Synthesis, Crystal Structure and Theoretical Calculations of a Copper(II) Coordination Polymer Assembled by 4,4’-Oxydibenzoic Acid and 1,4-Bis(Imidazol-1-ylmethyl)-Benzene Ligands

  • Xiu-Mei Li
  • Ya-Ru Pan
  • Jian-Ye Ji
  • Yan-Ling Niu
  • Qing-Wei Wang
Article
First Online:
Received:
Accepted:

Abstract

A new Cu(II) coordination polymer based on 4,4’-oxydibenzoic acid (H2oba) and 1,4-bis(imidazol-1-ylmethyl)benzene (bix), namely, [Cu(oba)(bix)]n·2nH2O (1), has been successfully synthesized under hydrothermal conditions. Its structure has been determined by single crystal X-ray diffraction analysis, elemental analyses, IR spectroscopy and UV spectrum. Compound 1 shows a two-dimensional network structure. The intermolecular C–H···O hydrogen bonding and π–π stacking interactions extend the compound 1 into three-dimensional supramolecular architectures and play an important role in stabilizing compound 1. In addition, natural bond orbital analysis was performed by using the PBE0/LANL2DZ method built in Gaussian 09 Program. The calculation results showed the obvious covalent interaction between the coordinated atoms and Cu(II) ion.

Graphical Abstract

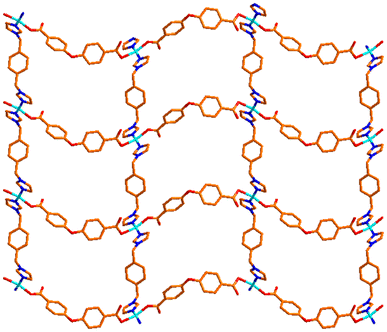

A new Cu(II) coordination polymer based on 4,4’-oxydibenzoic acid (H2oba) and 1,4-bis(imidazol-1-ylmethyl)benzene (bix), namely, [Cu(oba)(bix)]n·2nH2O (1), has been hydrothermally synthesized and structurally characterized by elemental analysis, IR, TG, UV and single-crystal X-ray diffraction. It shows a two-dimensional (2D) network structure. The intermolecular C-H···O hydrogen bonding and π–π stacking interactions extend the compound 1 into 3D supramolecular architectures. In addition, natural bond orbital (NBO) analysis was performed by using the PBE0/LANL2DZ method built in Gaussian 09 Program. The calculation results showed the obvious covalent interaction between the coordinated atoms and Cu(II) ion.

Keywords

Hydrothermal synthesis Crystal structure Coordination polymer Natural bond orbital
