Journal of Chemical Crystallography

, Volume 44, Issue 1, pp 51–56 | Cite as

Syntheses, Crystal Structures and Antimicrobial Studies of Two New Semicarbazone Derivatives

  • Tze Shyang Chia
  • Ching Kheng Quah
  • Chin Wei Ooi
  • B. Garudachari
  • Nishitha A. Isloor
  • Arun M. Isloor
  • Hoong-Kun Fun
Original Paper
First Online:
Received:
Accepted:

Abstract

Two new derivatives of semicarbazone, (E)-2-(hexan-2-ylidene)hydrazinecarboxamide and (E)-2-(heptan-2-ylidene)hydrazinecarboxamide were synthesized and characterized by IR and 1H NMR. Their crystal structures were characterized by X-ray diffraction method. Compound (I) crystallizes in triclinic \(P\overline{1}\), a = 6.7679(7) Å, b = 7.1912(8) Å, c = 9.9969(11) Å, α = 108.824(2)°, β = 99.398(3)°, γ = 92.680(2)°, V = 451.75(8) Å3, Z = 2, R 1 = 0.043 and wR 2 = 0.140. Compound (II) crystallizes in triclinic \(P\overline{1}\), a = 6.7192(6) Å, b = 7.2094(6) Å, c = 11.2842(11) Å, α = 103.303(2)°, β = 106.198(2)°, γ = 91.219(1)°, V = 508.70(8) Å3, Z = 2, R 1 = 0.044 and wR 2 = 0.133. Their molecules adopt a L-shape conformation with C atom in C=N double bond acting as the junction point. The C=O double bond indicate the existence of semicarbazone group in keto-like form for both compounds in their solid state. In the crystal, the carbonyl O atom for both derivatives acts as a common acceptor in the intermolecular bifurcated N–H···O hydrogen bonding which linked the molecules into one-dimensional supramolecular ribbons. Antimicrobial studies by serial dilution method showed both compounds exhibit antibacterial property.

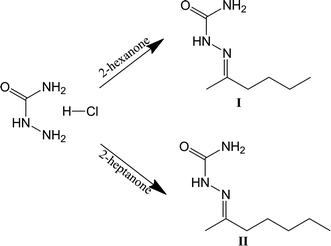

Graphical Abstract

Two new semicarbazone derivatives are characterized by IR, 1H NMR and single crystal X-ray diffraction methods and their antibacterial activity was further investigated by screening against four different bacterial strains.

Keywords

Semicarbazone X-ray diffraction Crystal structure Hydrogen bond
This is a preview of subscription content, log in to check access.

Notes

Acknowledgments

The authors thank Universiti Sains Malaysia (USM) for the Research University Grant (1001/PFIZIK/811160), APEX DE2012 Grant (1002/PFIZIK/910323) and Research University Cluster Grant (1001/PSKBP/8630013). TSC thanks the Malaysian government and USM for the award of Research Fellowship. AMI thanks Prof. Swapan Bhattacharya, Director, NITK Surathkal, India for the encouragements. The authors extend their appreciation to The Deanship of Scientific Research at King Saud University for the funding the work through the research group Project No. RGP-VPP-207.

References

  1. 1.
    Padhye S (1985) Coord Chem Rev 63:127–160CrossRefGoogle Scholar
  2. 2.
    Warren JD, Woodward DL, Hargreaves RT (1977) J Med Chem 20:1520–1521CrossRefGoogle Scholar
  3. 3.
    Chandra S, Gupta LK (2005) Spectrochim Acta Part A 62:1089–1094CrossRefGoogle Scholar
  4. 4.
    Jain VK, Handa A, Pandya R, Shrivastav P, Agrawal YK (2002) React Funct Polym 51:101–110CrossRefGoogle Scholar
  5. 5.
    Pilgram KHG (1978) US Patent No. 4:108 399Google Scholar
  6. 6.
    Yogeeswari P, Sriram D, Pandeya SN, Stables JP (2004) Il Farmaco 59:609–613CrossRefGoogle Scholar
  7. 7.
    Furniss BS, Hannaford AJ, Rogers V, Smith PWG, Tatchell AR (1978) Vogel’s textbook of practical organic chemistry, 4th edn. ELBS, London, p 1112Google Scholar
  8. 8.
    Cosier J, Glazer AM (1986) J Appl Cryst 19:105–107CrossRefGoogle Scholar
  9. 9.
    Bruker (2009) SADABS, APEX2 and SAINT. Bruker AXS Inc, MadisonGoogle Scholar
  10. 10.
    Sheldrick GM (2008) Acta Cryst A64:112–122CrossRefGoogle Scholar
  11. 11.
    Spek AL (2009) Acta Cryst D65:148–155Google Scholar
  12. 12.
    Degen A, Ruhl S, Bolte M (2000) Acta Cryst C56:e162–e163Google Scholar
  13. 13.
    Allen FH, Kennard O, Watson DG, Brammer L, Orpen AG, Taylor R (1987) J Chem Soc Perkin Trans 2:S1–S19CrossRefGoogle Scholar
  14. 14.
    Bernstein J, Davis RE, Shimoni L, Chang NL (1995) Angew Chem Int Ed Engl 34:1555–1573CrossRefGoogle Scholar
  15. 15.
    Dimmock JR, Puthucode RN, Smith JM, Hetherington M, Quail JW, Pugazhenthi U, Lecher R, Stables JP (1996) J Med Chem 39:3984–3997CrossRefGoogle Scholar
  16. 16.
    Fun HK, Yeap CS, Padaki M, Malladi S, Isloor AM (2009) Acta Cryst E65:o1619–o1620Google Scholar
  17. 17.
    Fun HK, Yeap CS, Padaki M, Malladi S, Isloor AM (2009) Acta Cryst E65:o1807–o1808Google Scholar
  18. 18.
    Bikas R, Nikbakht Sardari S, Hosseini SS, Shahverdizadeh GH, Notash B (2012) Acta Cryst E68:o1090Google Scholar
  19. 19.
    Sarojini BK, Narayana B, Bindya S, Yathirajan HS, Bolte M (2007) Acta Cryst E63:o2946Google Scholar
  20. 20.
    Dolomanov OV, Bourhis LJ, Gildea RJ, Howard JAK, Puschmann H (2009) J Appl Cryst 42:339–341CrossRefGoogle Scholar
  21. 21.
    Mackie TJ, McCartney JE, Collee JG (1989) Mackie & McCartney practical medical microbiology, 13th edn. Churchill Livingstone, LondonGoogle Scholar

Copyright information

© Springer Science+Business Media New York 2013

Authors and Affiliations

  • Tze Shyang Chia
    • 1
  • Ching Kheng Quah
    • 1
  • Chin Wei Ooi
    • 1
  • B. Garudachari
    • 3
  • Nishitha A. Isloor
    • 4
  • Arun M. Isloor
    • 3
  • Hoong-Kun Fun
    • 1
    • 2
  1. 1.X- ray Crystallography Unit, School of PhysicsUniversiti Sains MalaysiaMindenMalaysia
  2. 2.Department of Pharmaceutical Chemistry, College of PharmacyKing Saud UniversityRiyadhSaudi Arabia
  3. 3.Medicinal Chemistry Laboratory, Department of ChemistryNational Institute of Technology KarnatakaSurathkal, MangaloreIndia
  4. 4.Biotechnology Division, Department of Chemical EngineeringNational Institute of Technology KarnatakaSurathkal, MangaloreIndia
