Journal of Chemical Crystallography

, Volume 42, Issue 4, pp 305–312 | Cite as

Synthesis, Characterization and Biological Activity Studies on 6-p-Dimethylaminophenyl-5,6-dihydrobenzoimidazo[1,2-c]quinazoline: Crystal Structure of the Title Compound and Comparative Study with Related Derivatives

  • S. G. Bubbly
  • S. B. Gudennavar
  • N. M. Nanje Gowda
  • Rita Bhattacharjee
  • V. Gayathri
  • S. Natarajan
Original Paper
First Online:
Received:
Accepted:

Abstract

Reaction of o-aminophenylbenzimidazole with p-dimethylaminobenzaldehyde yielded 6-p-dimethylaminophenyl-5,6-dihydrobenzoimidazo[1,2-c]quinazoline, which was characterized by elemental analysis, IR, UV–Vis, 1H NMR, 13C NMR, mass spectral studies and X-ray crystal structure analysis. Studies on the antimicrobial activity of the compound revealed that it is active against fungus Yeast but not Bacillus subtilis. The compound crystallized in the space group P21/n with the unit cell parameters a = 10.652(2) Å, b = 11.002(2) Å, c = 15.753(2) Å, β = 109.29(2)° and the structure was refined to an R-factor of 0.0479. The hydropyrimidine ring in the quinazoline moiety is in skew-boat conformation. The dimethylamino group attached to phenyl ring is in conjugation with it. The structure was stabilized by intermolecular C–H–N interactions. A few of the related quinazolines (6-p-hydroxyphenyl-5,6-dihydrobenzoimidazo[1,2-c]quinazoline; 6-phenyl-5,6-dihydrobenzoimidazo[1,2-c]quinazoline; 6-pyridyl-5,6-dihydrobenzoimidazo[1,2-c]quinazoline; 6-furyl-5,6-dihydrobenzoimidazo[1,2-c]quinazoline) were also examined for their biological activity, in addition to their characterization by IR, UV–Vis, 1H and 13C NMR spectral studies along with structural comparison.

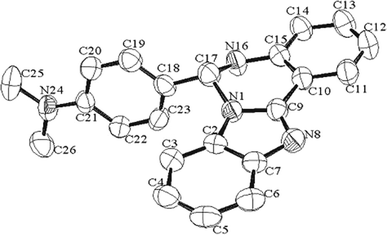

Graphical Abstract

The details regarding the synthesis, spectroscopic analysis, crystal structure and biological activity of the title compound are reported in this paper.

Keywords

X-ray crystal structure NMR p-Dimethylaminobenzaldehyde o-Aminophenylbenzimidazole Benzoimidazo[1,2-c]quinazoline Biological activity
This is a preview of subscription content, log in to check access.

Notes

Acknowledgements

The authors are thankful to Mr. Kalyan Sundar and Mr. Pandiaraman, School of Physics, Madurai Kamaraj University for single crystal data collection.

References

  1. 1.
    Ibrahim ES, Montgomerie AM, Sneddon AH, Proctor GR, Green B (1998) Eur J Med Chem 23:183CrossRefGoogle Scholar
  2. 2.
    Riou JF, Helissey P, Grondard L, Giorgi-Renault S (1991) Mol Pharmacol 40:699Google Scholar
  3. 3.
    Brana MF, Castellano JM, Keilhauer G, Machuca A, Martin Y, Redondo C, Schlick E, Walker N (1994) Anti-Cancer Drugs Des 9:527Google Scholar
  4. 4.
    Helissey P, Cros S, Giorgi-Renault S (1994) Anti-Cancer Drugs Des 9:51Google Scholar
  5. 5.
    Baker BR, Schaub RE, McEvoy FJ, Williams JH (1952) J Org Chem 17:132CrossRefGoogle Scholar
  6. 6.
    Rewcastle GW, Denny WA, Bridges AJ, Zhou H, Cody DR, McMichael A, Fry DW (1995) J Med Chem 38:3482CrossRefGoogle Scholar
  7. 7.
    De Clercq E (2001) Curr Med Chem 8:1543Google Scholar
  8. 8.
    Billimoria AD, Cava MP (1994) J Org Chem 59:6777CrossRefGoogle Scholar
  9. 9.
    Kamaraj K, Kim E, Galliker B, Zakharov LN, Rheingold AL, Zuberbühler AD, Karlin KD (2003) J Am Chem Soc 125:6028CrossRefGoogle Scholar
  10. 10.
    Moore LR, Cooks SM, Anderson MS, Schanz HJ, Griffin ST, Rogers RD, Kirk MC, Shaughnessy KH (2006) Organometallics 25:5151CrossRefGoogle Scholar
  11. 11.
    Lehn JM, Rigault A (1998) Angew Chem Int Ed Engl 27:1095CrossRefGoogle Scholar
  12. 12.
    Wiglenda T, Gust R (2007) J Med Chem 50:1475CrossRefGoogle Scholar
  13. 13.
    Baran PS, O’Malley DP, Zografos AL (2004) Angew Chem Int Ed Engl 43:2674CrossRefGoogle Scholar
  14. 14.
    O’Malley DP, Li K, Maue M, Zografos AL, Baran PS (2007) J Am Chem Soc 129:4762CrossRefGoogle Scholar
  15. 15.
    Ding MW, Chen YF, Huang NY (2004) Phosphorus Sulfur Silicon Relat Elem 179:2287CrossRefGoogle Scholar
  16. 16.
    Chan GW, Mong S, Hemling ME, Freyer AJ, Offen PH, DeBrosse CW, Sarau HM, Westley JW (1993) J Nat Prod 56:116CrossRefGoogle Scholar
  17. 17.
    Gadwood RC, Kamdar BV, Cipkus Dubray LA, Wolfe ML, Smith MP, Watt W, Mizsak SA, Groppi VE (1993) J Med Chem 36:1480CrossRefGoogle Scholar
  18. 18.
    Novikova GA, Molodkin AK, Kukalenko SS (1988) Russ J Inorg Chem 33:1794Google Scholar
  19. 19.
    Maxwell WA, Brody G (1971) Appl Microbiol 21:944Google Scholar
  20. 20.
    Rohini R, Shanker K, Reddy PM, Ho YP, Ravinder V (2009) Eur J Med Chem 44:3330CrossRefGoogle Scholar
  21. 21.
    Bahekar RH, Raghu Ram Rao A (2000) Arzneimittel-Forschung 50:712Google Scholar
  22. 22.
    Insuasty BA, Torres H, Quiroga J, Abonía R, Rodríguez R, Nogeras M, Sánchez A, Saitz C, Alvarez SL, Zacchino SA (2006) J Chil Chem Soc 51:927CrossRefGoogle Scholar
  23. 23.
    Hein DW, Alheim RJ, Leavitt JJ (1957) J Am Chem Soc 79:427CrossRefGoogle Scholar
  24. 24.
    Naveen S, Bhattacharjee R, Gayathri V, Anandalwar SM, Prasad JS (2008) Anal Sci x24:x39Google Scholar
  25. 25.
    Mahendra M, Gayathri V, Jayalakshmi K, Rangappa KS, Anandalwar SM, Prasad JS (2005) Acta Cryst E61:o3249Google Scholar
  26. 26.
    Naveen S, Bhattacharjee R, Gayathri V, Anandalwar SM, Prasad JS (2006) Anal Sci x22:x243Google Scholar
  27. 27.
    Jayalakshmi K, Devarajegowda HC, Anandalwar SM, Bheemanna HG, Gayathri V, Nanje Gowda NM, Begam NS, Rangappa KS, Prasad JS (2004) Anal Sci x20:x87Google Scholar
  28. 28.
    Sheldrick GM (1997) SHELX-97. University of Göttingen, GermanyGoogle Scholar
  29. 29.
    North ACT, Phillips DC, Mathews FS (1968) Acta Cryst A24:351Google Scholar
  30. 30.
    Yurdakul Ş, Kurt M (2003) J Mol Struct 650:181CrossRefGoogle Scholar
  31. 31.
    Lorente A, Galan C, Fonseca I, Sanz-Aparicio J (1995) Can J Chem 73:1546CrossRefGoogle Scholar
  32. 32.
    Ramm M, Dipl-Krist, Schulz B, Thurner JU, Ulbricht M (2006) Cryst Res Tech 25:411CrossRefGoogle Scholar
  33. 33.
    Cremer D, Pople JA (1975) J Am Chem Soc 97:1354CrossRefGoogle Scholar
  34. 34.
    Triggle AM, Shefter E, Triggle DJ (1980) J Med Chem 23:1442CrossRefGoogle Scholar
  35. 35.
    Wu H, Shi DQ, Shi CL, Wang JX, Wang XS, Hu HW, Yu KB (2004) Acta Cryst E60:o9Google Scholar
  36. 36.
    Shi DQ, Li ZY, Shi CL, Zhuang QY, Wang XS, Zhang Y (2004) Acta Cryst E60:o2032Google Scholar
  37. 37.
    Rybalova TV, Sedova VF, Gatilaov YY, Shkurko OP (2004) J Struct Chem 45:287CrossRefGoogle Scholar
  38. 38.
    Zhao CG, Hu J, Zhang YL, Zhang J, Yang SL (2011) Acta Cryst E67:o3009Google Scholar
  39. 39.
    Nizam MM, Rasheeth A, Huq CAMA (2008) Acta Cryst E64:o1812Google Scholar
  40. 40.
    Chandra Mohan K, Ravikumar K, Shetty MM, Velmurugan D (2003) Z Kristallogr 218:46CrossRefGoogle Scholar
  41. 41.
    He Q, Li J, Huang BJ (2011) Acta Cryst E67:o759Google Scholar
  42. 42.
    Zhang JL, Wang HS, Nu YJ, Zhu FX (2010) Acta Cryst E66:o2932Google Scholar
  43. 43.
    Chandra Mohan K, Ravikumar K, Shetty MM, Thiyagarajan S, Rajan SS (2003) J Chem Crystallogr 33:113CrossRefGoogle Scholar

Copyright information

© Springer Science+Business Media, LLC 2011

Authors and Affiliations

  • S. G. Bubbly
    • 1
  • S. B. Gudennavar
    • 1
  • N. M. Nanje Gowda
    • 2
  • Rita Bhattacharjee
    • 3
  • V. Gayathri
    • 3
  • S. Natarajan
    • 4
  1. 1.Department of PhysicsChrist UniversityBangaloreIndia
  2. 2.Dean of ScienceChrist UniversityBangaloreIndia
  3. 3.Department of ChemistryBangalore UniversityBangaloreIndia
  4. 4.School of PhysicsMadurai Kamaraj UniversityMaduraiIndia
