Journal of Chemical Crystallography

, Volume 39, Issue 10, pp 747–752 | Cite as

Crystal Structure of 2-Thiophenecarboxamide: A One-dimensional Tubular Structure Formed by N–H···O Hydrogen Bonds

  • John Nicolson Low
  • Antonio Quesada
  • Luís M. N. B. F. Santos
  • B. Schröder
  • Ligia R. Gomes
Original Paper
First Online:
Received:
Accepted:

Abstract

The crystal structure of 2-thoiphenecarboxamide is described. The compound crystallizes in the orthorhombic Pna21 space group with unit cell parameters a = 10.044 (3) Å, b = 14.203 (4) Å and c = 15.941 (3) Å; V = 2,274.1 (10) Å3. The asymmetric unit contains four independent molecules which are linked by N–H···O hydrogen bonds. The asymmetric unit at (x, y, z) is connected with another one, produced by the a-glide plane at 0.75 along the b-axis, that lies at (x + 0.5, −y + 1.5, z) by two N–H···O hydrogen bonds and by a C–H···O weak hydrogen bond to form a one-dimensional tube. Adjacent tubes are linked by C–H···pi interactions to form a three-dimensional framework.

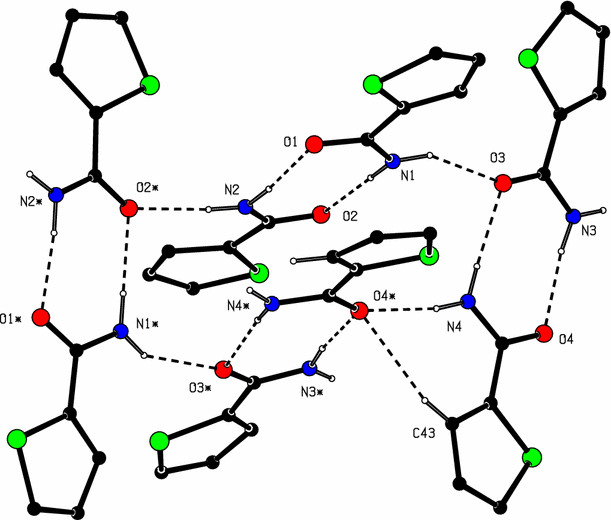

Graphical Abstract

The crystal structure of 2-thiophenecarboxamide, contains four crystallographically independent molecular components in the asymmetric unit linked by four N–H···O hydrogen bonds and a weak C–H···O hydrogen bond and form a one-dimensional tube.

Keywords

2-Thiophenecarboxamide X-ray diffraction Crystal structure
This is a preview of subscription content, log in to check access.

Notes

Acknowledgments

Authors thank “Servicios Técnicos de Investigacion of Universidad de Jaén and the staff for data collection. The authors also thank Dr. Manuel Melguizo and Dr. Christopher Glidewell for helpful discussion and advice. BS thanks FCT and the European Social Fund (ESF) under the third Community Support Framework (CSF) for the award of a Ph.D. Research Grant (SFRH/BPD/38637/2007). Thanks are also due to FCT for financial support for Project POCI/QUI/61873/2004.

Supplementary material

10870_2009_9564_MOESM1_ESM.docx (14 kb)
Supplementary material 1 (DOCX 14 kb)

References

  1. 1.
    Baxter A, Brough S, Cooper A, Floettmann E, Foster S, Harding C, Kettle J, Xue Y (2004) Bioorg Med Chem Lett 14:2817–2822CrossRefGoogle Scholar
  2. 2.
    Birrell MA, Wong S, Hardaker EL, Catley MC, McCluskie K, Collins M, Haj-Yahia S, Belvisi MG (2006) Mol Pharmacol 69(6):1791–1800. doi: 10.1124/mol.105.019521 CrossRefGoogle Scholar
  3. 3.
    Yonetoku Y, Kubota H, Okamoto Y, Toyoshima A, Funatsu M, Ishikawa J, Takeuchi M, Tsukamoto S (2006) Bioorg Med Chem 14(14):4750–4760. doi: 10.1016/j.bmc.2006.03.024 CrossRefGoogle Scholar
  4. 4.
    Norman MH, Navas F, Thompson JB, Rigdon GC (1996) J Med Chem 39(24):4692–4703. doi: 10.1021/jm9603375 CrossRefGoogle Scholar
  5. 5.
    Rowbottom MW, Vickers TD, Dyck B, Tamiya J, Zhang M, Zhao L, Grey J, Goodfellow VS (2005) Bioorg Med Chem Lett 15(14):3439–3445. doi: 10.1016/j.bmcl.2005.05.015 CrossRefGoogle Scholar
  6. 6.
    Pillai AD, Rathod PD, Franklin PX, Padh H, Rani S, Vasu KK, Sudarsanam V (2004) Biochem Biophys Res Commun 317:1067–1074. doi: 10.1016/j.bbrc.2004.03.148 CrossRefGoogle Scholar
  7. 7.
    Pillai AD, Rani S, Rathod PD, Xavier FP, Vasu KK, Padh H, Sudarsanam V (2005) Bioorg Med Chem 13:1275–1283. doi: 10.1016/j.bmc.2004.11.016 CrossRefGoogle Scholar
  8. 8.
    Ribeiro da Silva MAV, Monteiro IMM, Santos LMNBF, Schröder B (2007) J Chem Thermodyn 39(5):767–772. doi: 10.1016/j.jct.2006.10.006 CrossRefGoogle Scholar
  9. 9.
    Palmore GTR, Mc Donald JC (2000) In: Greenberg A, Breneman CM, Liebman JF (eds) The amide linkage: selected structural aspects in Chemistry, biochemistry and structural science. Wiley, Chichester, pp 291–336Google Scholar
  10. 10.
    Allen FH, Motherwell SWD, Raithby PR, Shields GP, Taylor R (1999) N J Chem 23:25–34. doi: 10.1039/a807212d CrossRefGoogle Scholar
  11. 11.
    Cambridge Structural database—refcode: BZAMIC. Penfold BR, White JCB (1959) Acta Cryst 12:130–135Google Scholar
  12. 12.
    Rauf MK, Badshah A, Bolte M, Saeed A (2006) Acta Crystallogr E62:o1070–o1071Google Scholar
  13. 13.
    Bourne N, Williams A, Douglas KT, Penkava TR (1984) J Chem Soc, Perkin Trans 2:1827–1832. doi: 10.1039/p29840001827 Google Scholar
  14. 14.
    Sturini M, Fasani E, Prandi C, Casaschi A, Albini A (1996) J Photochem Photobiol Chem 101:251–255. doi: 10.1016/S1010-6030(96)04408-5 CrossRefGoogle Scholar
  15. 15.
    Vidal A, Luengo MA (2001) Appl Catal Environ 32:1–6. doi: 10.1016/S0926-3373(01)00124-2 CrossRefGoogle Scholar
  16. 16.
    Bruker-Nonius BV (2004) Collect. Bruker-Nonius BV, Delft, The NetherlandsGoogle Scholar
  17. 17.
    Duisenberg AJM, Hooft RWW, Schreurs AMM, Kroon J (2000) J Appl Cryst 33:893–898. doi: 10.1107/S0021889800002363 CrossRefGoogle Scholar
  18. 18.
    Duisenberg AJM, Kroon-Batenburg LMJ, Schreurs AMM (2003) J Appl Cryst 36:220–229. doi: 10.1107/S0021889802022628 CrossRefGoogle Scholar
  19. 19.
    Sheldrick GM (2003) SADABS—Bruker Nonius area detector scaling and absorption correction—V2.10Google Scholar
  20. 20.
    Burla MC, Caliandro R, Camalli M, Carrozzini B, Cascarano GL, De Caro L, Giacovazzo C, Polidori G, Spagna R (2005) SIR2004; an improved tool for structure determination and refinement. J Appl Cryst 38:381–388. doi: 10.1107/S002188980403225X CrossRefGoogle Scholar
  21. 21.
    Farrugia LJ (1999) J Appl Cryst 32:837–838. doi: 10.1107/S0021889899006020 CrossRefGoogle Scholar
  22. 22.
    McArdle P (2003) OSCAIL for Windows, Version 10. Crystallography Centre, Chemistry Department, NUI Galway, IrelandGoogle Scholar
  23. 23.
    Sheldrick GM (1997) SHELXS97 and SHELXL97. Program for crystal structure refinement. University of Göttingen, GermanyGoogle Scholar
  24. 24.
    Flack HD (1983) Acta Crystallogr A 39:876–881. doi: 10.1107/S0108767383001762 CrossRefGoogle Scholar
  25. 25.
    Johnson CK (1976) ORTEP—A fortran thermal ellipsoid plot program, technical report ORNL-5138. Oak Ridge National Laboratory, USAGoogle Scholar
  26. 26.
    Spek AL (2003) J Appl Cryst 36:3–17. doi: 10.1107/S0021889802022112 CrossRefGoogle Scholar
  27. 27.
    Aakeröy CB, Scott BMT, Desper J (2007) N J Chem 31:2044–2051. doi: 10.1039/b715610c CrossRefGoogle Scholar
  28. 28.
    Bernstein J, Davis RE, Shimoni I, Chang N-L (1995) Angew Chem Int Ed Engl 34:1555–1573. doi: 10.1002/anie.199515551 CrossRefGoogle Scholar
  29. 29.
    Zhang B-Y, Yang Q, Nie J-J (2008) Acta Crystallogr E64:o105Google Scholar
  30. 30.
    Zhang M-H, Zheng S-L, Zhou J, Liu S-Y, Zhao Z-G (2005) Acta Crystallogr E61:o3568–o3570Google Scholar
  31. 31.
    Torre JM, Nogueras M, Cobo J, Low JN, Glidewell C (2006) Acta Crystallogr C 62:o256–o258. doi: 10.1107/S0108270106008663 CrossRefGoogle Scholar
  32. 32.
    Dey R, Banerjee T, Langer V, Ray S, Roychowdhury P (2006) Acta Cryst E62:0814–0816Google Scholar
