Journal of Materials Science

, Volume 51, Issue 21, pp 9761–9770 | Cite as

Electronic structure, ferroelectric properties, and phase stability of BiGaO3 under high pressure from first principles

Open Access
Original Paper
First Online:
Received:
Accepted:

Abstract

High-pressure behavior of BiGaO3 has been investigated from 0 to 20 GPa using density functional theory. It is found that BiGaO3 undergoes a pressure-induced first-order phase transition from pyroxene (Pcca) to monoclinic (Cm) at 3.5 GPa, and then to rhombohedral (R3c) at 5.2 GPa, and finally to orthorhombic (Pnma) structure at 7.4 GPa. The first phase transition (Pcca → Cm) agrees well with the experimental results. At 5.2 GPa the possible coexistence of three ferroelectric phases, i.e., monoclinic Cm, tetragonal P4mm, and rhombohedral R3c has been predicted. The calculated values of spontaneous polarization for these phases are of 124.87, 123.48, 88.75 μC/cm2 for Cm, P4mm, and R3c, respectively.

Keywords

Perovskite BiFeO3 Local Density Approximation Ferroelectric Property Spontaneous Polarization
These keywords were added by machine and not by the authors. This process is experimental and the keywords may be updated as the learning algorithm improves.

Introduction

In recent years, the Bi-based perovskites have attracted an increasing interest as a less-toxic alternative to the most widely used ferroelectric material, lead zirconate titanate [1, 2]. The stereochemically active 6s2 lone pair on the Pb2+ or Bi3+ ions is responsible for the large ion off-centering in Pb- and Bi-based perovskites and, as a result, the large ferroelectric polarization. Among bismuth perovskite oxides, BiGaO3 has been studied extensively since the first theoretical report [3], in which large ferroelectric polarization was predicted with the value of 151.9 μC/cm2 for tetragonal ground-state structure (space group P4mm). A high-pressure and high-temperature technique was used to prepare BiGaO3 samples [4]. Experimental results have shown that BiGaO3 crystallizes in the pyroxene structure (space group Pcca). A modified sol–gel method was used to synthesize nanocrystalline BiGaO3 films with orthorhombic structure [5]. The ellipsometric measurements have shown that BiGaO3 is indirect band gap oxide with the value of the gap 2.17 eV, which made it suitable for photovoltaic devices [5]. Further experimental investigation revealed that perovskite-like structures appear under chemical or hydrostatic pressure. The coexistence of polar rhombohedral (space group R3c) and monoclinic (space group Cm) phases was observed in solid solution BiFe1−x Ga x O3 at x = 0.1 [6] and x = 0.2–0.4 [7] and BiCr1−x Ga x O3 at x = 0.8 [7]. For these solid solutions large values of spontaneous polarization were predicted using the point charge model, i.e., 58 μC/cm2 for BiGa0.4Cr0.6O3, 116 μC/cm2 for BiGa0.4Fe0.6O3, and 102 μC/cm2 BiGa0.7Mn0.3O3 [7]. The supertetragonal-like structure was observed in BiFe0.6Ga0.4O3 thin films [8]. The giant ferroelectric polarization of 230 μC/cm2 for BiGa1−x Fe x O3 [6] and 150 μC/cm2 for BiFe0.6Ga0.4O3 [8] was found. The nonpolar orthorhombic (space groups Imma and Pnma) and monoclinic (space group C2/c) phases were observed in bulk BiCr1−x Ga x O3 [7, 9] and BiMn1−x Ga x O3 [7]. In the first report on structural behavior of BiGaO3 as a function of pressure, Yusa et al. [10] showed that it undergoes three pressure-induced phase transitions in the 0–11 GPa range, from pyroxene structure (Pcca space group) to the perovskite-like monoclinic Cm phase, and then to the orthorhombic Cmcm, and finally from Cmcm to Pbam structure at 3.2, 6.3, and 9.8 GPa, respectively.

From the theoretical side, the pyroxene phase of BiGaO3 has been characterized by density functional calculations. The majority of reports is focused on the structural, electronic, and vibrational properties of the pyroxene phase of BiGaO3 at ambient conditions [5, 11, 12, 13]. There are also several studies of the perovskite cubic phase of BiGaO3 [14, 15, 16, 17]. But to our knowledge, there are no theoretical reports concerning pressure-induced structural phase transitions for BiGaO3. Study of high-pressure phases could shed light on physical properties of phases which appear in different solid solutions of BiGaO3 systems [6, 7, 8, 9, 18, 19, 20]. In addition, in other perovskites, hydrostatic pressure may cause similar effects to chemical doping [21, 22]. For example, it has been shown that the rhombohedral to orthorhombic phase transition in BiFeO3 can be caused by rare-earth doping [21] or hydrostatic pressure [22]. In this paper we investigate structural, electronic, and ferroelectric properties of different crystallographic phases of BiGaO3 under high pressure.

This paper is organized as follows: in the next section the description of the method of calculations is presented, further we present results and discussion, and finally short summation is given.

Method of calculations

The calculations were done using the density functional theory (DFT) within the projector augmented wave (PAW) method [23, 24] as implemented in Vienna ab initio Simulation Package (VASP) [25]. The pseudopotentials used in our calculations were taken from the VASP pseudopotential library [24]. The d-states were treated as core states for Bi and as valence states for Ga. We considered the following space groups: Pcca, Cm, Cmcm, Pbam, R3c, Pnma, C2/c, and Imma. These space groups have been reported in the experimental studies on BiGaO3 under hydrostatic or chemical pressure [4, 5, 6, 7, 9, 10]. In addition, we have also investigated five space groups: Pm-3m, P4mm, R3m, C2/m, and R-3c, which have not been observed in experiment but were investigated theoretically in the Ref. [3]. Experimentally established structural data from Refs. [7, 10] were used as input for the calculations. The Brillouin zone integrations were performed using 12 × 12 × 12, 8 × 8 × 8, 8 × 8 × 8, and 6 × 6 × 6 Gamma-centered k-point grids for cell with 5- (Pm-3m, P4mm, R3m), 10- (C2/m, Cm, R3c, R-3c), 20- (C2/c, Cmcm, Imma, Pcca, Pnma), and 40-atoms (Pbam), respectively. A kinetic energy cutoff 520 eV and a total energy convergence threshold of 10−6 eV were used. The Brillouin zone sampling was checked to render converged results. The increasing number of k-points has small effect on phase energy differences. The cell shape and internal atomic positions were optimized within GGA with the Perdew–Burke–Ernzerhof (GGA-PBE) functional [26] and local density approximation (LDA) [27]. All results presented in this work were done within GGA-PBE until otherwise stated. All aforementioned structures were relaxed by minimizing their enthalpy at a series of pressures between 0 and 20 GPa.

Results

First, we compare the total energies of fully optimized aforementioned phases of BiGaO3 at ambient pressure within both generalized gradient and local density approximations. The results are presented in Table 1. From the total energy calculations within GGA-PBE the pyroxene Pcca phase is the most stable. The same calculations within LDA give the lowest energy for the perovskite monoclinic Cm phase. Only the GGA-PBE correctly predicts the pyroxene phase to be the crystallographic ground state of BiGaO3, while the LDA fails to do so. In Ref. [28] similar calculations have been performed for P4mm, R3c, R-3c, and R3m phases of BiGaO3 within LDA. The calculated total energy differences relative to P4mm were 0.041, 0.185, and 0.234 eV for R3c, R3m, and R-3c, respectively. The same values in our case are 0.038, 0.202, and 0.236 eV. This result is in a good agreement with those presented in Ref. [28]. Other phases presented here were not considered in Ref. [28].
Table 1

Computed energy differences (meV/f.u.) between different structural phases of BiGaO3 at ambient pressure relative to the pyroxene Pcca phase

Phase

E-E(Pcca) [meV/f.u.]

GGA

LDA

Cm

9

−8

C2/m

112

70

C2/c

33

3

Pcca

0

0

Pbam

34

5

Pnma

32

1

Cmcm

47

13

Imma

45

12

P4mm

12

−7

R3 m

38

13

R3c

23

−4

R-3c

51

16

Pm-3m

112

70

In order to study the energetic stability of the selected phases of BiGaO3 under high pressure, we plotted the pressure-relative enthalpy (P-ΔH) curves for each phase relative to pyroxene Pcca phase, as shown in Fig. 1. For the considered phases, the minimum enthalpy path is Pcca → Cm → R3c → Pnma. These phase transitions occur at 3.5, 5.2, and 7.4 GPa, respectively. The theoretical prediction of the first phase transition from pyroxene Pcca to perovskite monoclinic Cm phase agrees well with the experimental findings reported in Ref. [10]. The calculated transition pressure of 3.5 GPa is in good agreement with the experimental result of 3.2 GPa from Ref. [10]. For higher values of pressure there is no such agreement. The first disagreement is that the theoretical values of transition pressure are lower than the experimental ones. The second disagreement is that R3c and Pnma phases were not observed in the experiment [10].

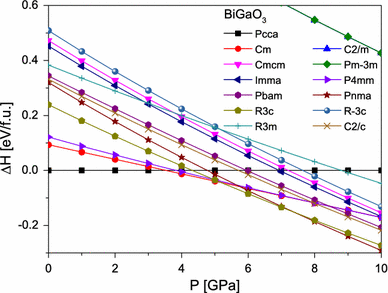

Figure 1

Relative enthalpies (meV/f.u.) between pyroxene Pcca phase and the other space groups as a function of pressure

There are several possible explanations of these discrepancies. First, it could be connected with the existence of high energy barriers not included in our calculations. Such situation has been observed in LiNbO3 [29]. Another source of difference between experiment and theory could arise from the difficulties in measurements i.e., nonhydrostatic conditions, quality of samples, etc. For example, the high-pressure phase diagram of BiFeO3 or PbZr1−x Ti x O3 is still unclear despite numerous experimental and theoretical studies [30, 31, 32, 33]. In case of BiGaO3, there is only one experimental report so far [10]. We believe that future experiments will give more decisive answer about the symmetry of high-pressure phases of BiGaO3.

The calculated volumes of Pcca, Cm, R3c, and Pnma phases as a function of pressure are shown in Fig. 2. There is a 6.6 % volume collapse at 3.5 GPa during the phase transition from Pcca pyroxene to Cm perovskite. This value is in a good agreement with the experimental measurement from Ref. [10] which is 6.5 %. Despite the disagreement in predicting crystal structure in the second phase transition, the calculated volume changes is similar to the experimental ones in Ref. [10]. For the theoretically predicted phase transition from the monoclinic Cm to the rhombohedral R3c there is a 6 % volume change at 5.2 GPa. The volume change measured in experiment at 6.3 GPa during the phase transition from the monoclinic Cm to the orthorhombic Cmcm is 5 %. The value of volume change for another phase transition in Ref. [10] (i.e., from Cmcm to Pbam) is not given, but from pressure–volume plot (Fig. 9 in the Ref. [10]) we see, that it is smaller than other ones. In our case, the value of calculated volume change from the rhombohedral R3c to the orthorhombic Pnma is 2 %, which is also smaller than in the earlier phase transitions.

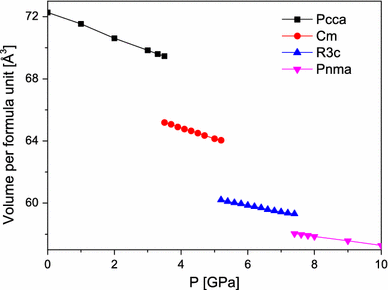

Figure 2

Volume of the unit cell (per f.u.) for the most stable structures of BiGaO3 as a function of pressure

Our data show that around 5 GPa there is a possibility of coexistence of three polar phases, i.e., monoclinic Cm, tetragonal P4mm, and rhombohedral R3c. This situation could be similar to the one in PbZr1−x Ti x O3 [30, 31]. The calculated structural parameters of these phases at the transition pressures are given in Table 2. In general, the values of these parameters are slightly overestimated and deviate from experimental results by less than 2 %. Only the value of the c constant in the monoclinic Cm phase is overestimated by 4 %. However, in all cases this overestimation is less than 5 % which is typical for GGA-PBE functional. The tetragonal P4mm phase has a large tetragonality (c/a = 1.286), which is in good agreement with the previous theoretical report (c/a = 1.30) [3]. The effective tetragonality in monoclinic Cm phase is given by 2√2c/(a + b). The calculated value of this parameter at 5.2 GPa is 1.279. The large value of effective tetragonality of Cm phase is in good agreement with the experimental results for solid solutions of BiGa0.4Fe0.6O3 and BiGa0.7Mn0.3O3 (both 1.25) from Ref. [7]. For the phases with very large c/a ratio, the large spontaneous polarization is expected. The value of spontaneous polarization is defined by:
$$ P_{\alpha } = \frac{e}{\varOmega }\sum\limits_{\kappa ,\beta } {Z_{\kappa ,\alpha \beta } \delta_{\kappa ,\beta } }, $$
where P α is the spontaneous polarization in the α direction, Ω is the volume of the unit cell, Z κ,αβ is the αβ element of the Born effective charge tensor of the atom κ, δ κ,β is the displacement of atom κ along the β direction from the centrosymmetric position. The centrosymmetric reference structures were R-3c for R3c, C2/m for Cm, and P4/mmm for P4mm. The Born effective charge (BEC) tensors were calculated by density functional perturbation theory as implemented in VASP [34]. The same approach has been used in our previous works on ferroelectric properties of BiFeO3 [35] and BiAlO3 [36]. In Table 3 we only present these values at 5.2 GPa. For other pressures these values do not deviate very much. The nominal ionic values of Bi, Ga, and O are +3, +3, and −2.
Table 2

Calculated lattice parameters and ionic positions of the pyroxene Pcca, monoclinic Cm, rhombohedral R3c, and orthorhombic Pnma phase of BiGaO3 at ambient and transition pressures

Phase

Reference

Pressure (GPa)

Lattice parameters

Wyckoff positions

Pcca

GGA-PBE this work

0.0

a = 5.503 Å; b = 5.195 Å; c = 10.112 Å

Bi(4d): 0.25, 0, 0.6091

Ga(4e): 0.25, 0.5, 0.3557

O1(4c): 0, 0.6471, 0.25

O2(8f): 0.9041, 0.2324, 0.0546

Pcca

Experiment ref. [4]

0.0

a = 5.416 Å; b = 5.134 Å; c = 9.937 Å

Bi(4d):0.25, 0, 0.6098

Ga(4e):0.25, 0.5, 0.3583

O1(4c):0, 0.6333, 0.25

O2(8f):0.9055, 0.2314, 0.0503

Pcca

Experiment ref. [5]

0.0

a = 5.626 Å; b = 5.081 Å; c = 10.339 Å

–

Cm

GGA-PBE this work

0.0

a = 5.293 Å; b = 5.259 Å; c = 4.876 Å; β = 92.99o

Bi(2a):0, 0, 0;

Ga(2a):0.4545, 0, 0.5624;

O(2a):0.4289, 0, 0.1847;

O(4b):0.2049, 0.2480, 0.7056

Cm

GGA-PBE this work

3.5

a = 5.244 Å; b = 5.224 Å; c = 4.763 Å; β = 92.20o

Bi(2a):0, 0, 0;

Ga(2a):0.4558, 0, 0.5631;

O(2a):0.4346, 0, 0.1778;

O(4b):0.2056, 0.2489, 0.7053

Cm

Experiment ref. [10]

3.2

A = 5.217 Å; b = 5.210 Å; c = 4.570 Å; β = 91.35°

–

R3c

GGA-PBE this work

0.0

a = 5.660 Å; α = 59.16o

Bi(2a):0, 0, 0;

Ga(2):0.2212, 0.2212, 0.2212;

O(6b):0.2837, 0.6906, 0.8245

R3c

GGA-PBE this work

5.2

a = 5.557 Å; α = 59.67°

Bi(2a):0, 0, 0;

Ga(2):0.2256, 0.2256, 0.2256;

O(6b):0.2817, 0.6881, 0.8243

Pnma

GGA-PBE this work

0.0

a = 5.676 Å; b = 7.814 Å; c = 5.461 Å

Bi(4c):0.0537, 0.25, 0.9908;

Ga(4b):0, 0, 0.5;

O(4c):0.9736, 0.25, 0.4091;

O(8d):0.2012, 0.9562, 0.1980

Pnma

GGA-PBE this work

7.4

a = 5.581 Å; b = 7.712 Å; c = 5.394 Å

Bi(4c):0.0513, 0.25, 0.9907;

Ga(4b):0, 0, 0.5;

O(4c):0.9772, 0.25, 0.4124;

O(8d):0.2030, 0.9575, 0.1992

Table 3

Calculated Born effective charge tensors and the high-frequency static dielectric tensor (ε ∞) for the monoclinic Cm, tetragonal P4mm, and rhombohedral R3c phase of BiGaO3

Atom

xx

yy

zz

xy

xz

yx

yz

zx

zy

Cm

 Bi

5.37

5.27

3.02

0.00

0.29

0.00

0.00

0.33

0.00

 Ga

2.98

2.98

3.57

0.00

0.14

0.00

0.00

0.01

0.00

 O1

−2.86

−2.80

−2.43

0.00

−0.26

0.00

0.00

−0.33

0.00

 O2

−2.74

−2.73

−2.08

0.23

−0.09

0.24

−0.10

−0.01

−0.03

 ε ∞

6.07

6.14

4.87

0.00

0.20

0.00

0.00

0.20

0.00

P4mm

 Bi

5.51

5.51

2.98

0.00

0.00

0.00

0.00

0.00

0.00

 Ga

2.94

2.94

3.59

0.00

0.00

0.00

0.00

0.00

0.00

 O1

−2.92

−2.92

−2.39

0.00

0.00

0.00

0.00

0.00

0.00

 O2

−3.05

−2.48

−2.08

0.00

0.00

0.00

0.00

0.00

0.00

 O3

−2.48

−3.05

−2.08

0.00

0.00

0.00

0.00

0.00

0.00

 ε ∞

6.27

6.27

4.88

0.00

0.00

0.00

0.00

0.00

0.00

R3c

 Bi

4.60

4.82

4.87

−0.09

−0.31

−0.30

0.26

0.06

−0.43

 Ga

3.32

3.38

3.42

−0.03

−0.10

−0.14

0.12

0.06

−0.21

 O1

−3.00

−2.28

−2.84

0.43

−0.19

0.33

0.45

−0.22

0.23

 O2

−2.76

−2.80

−2.58

−0.25

0.50

−0.19

0.22

0.67

0.04

 O3

−2.16

−3.12

−2.87

0.21

−0.30

0.03

−0.30

−0.13

−0.41

 ε ∞

6.01

6.19

6.23

−0.15

−0.10

−0.15

−0.06

−0.10

−0.06

The BEC tensors of BiGaO3 in the monoclinic Cm and tetragonal P4mm structures are diagonal (P4mm) or almost diagonal (Cm), which indicate that the spontaneous polarization should be along the axial direction. The xx and yy components of the BEC tensors of Bi and O are anomalously large with respect to their nominal ionic values, while the zz component is almost equal to them. The values of the BEC tensor of Ga are almost close to the nominal ionic value. The BEC tensors of BiGaO3 in the rhombohedral R3c phase have nonzero values in the off-diagonal components. The diagonal elements in x and y directions of these tensors in case of Bi and O atoms are larger than their nominal ionic charges but smaller than in case of Cm and P4mm phases. This is connected to the large c/a ratio in monoclinic and tetragonal phases. The larger distance between the bismuth and the surrounding oxygen weakens hybridization (the calculated values of Bi-O length are 3.86, 3.80, and 3.28 Å for Cm, P4mm, and R3c phase, respectively). Similar behavior has been observed in BiFeO3 [28]. The high values of the BEC tensors in perovskite oxides indicate the presence of ferroelectricity [37]. In Fig. 3 the calculated spontaneous polarization as a function of pressure for three polar phases is presented. In Table 4 the calculated values of spontaneous polarization at 0 and 5.2 GPa for Cm, P4mm, and R3c phases are given. At ambient pressure the magnitudes of spontaneous polarization are 136.26, 128.44, 97.01 μC/cm2 for Cm, P4mm, and R3c phase, respectively. The direction of spontaneous polarization is along [111] in R3c phase and it is along [001] in P4mm phase. For Cm phase the values of polarization are 44.86, 0, 124.83 μC/cm2 along x, y, and z directions, respectively. Despite the fact that the presence of these phases at 0 GPa is hypothetical, it is worth noticing that for the rhombohedral R3c phase the value of polarization is larger than that of BiFeO3 (90.9 μC/cm2) [35] and BiAlO3 (81 μC/cm2) [36] (both crystallize in R3c at ambient conditions) from our previous work. At the region of possible phase coexistence, i.e., at 5.2 GPa, these values are 124.87, 123.48, 88.75 μC/cm2 for Cm, P4mm, and R3c phase, respectively. For P4mm the value of 152 μC/cm2 has been predicted in the Ref. [3]. The coexistence of phases with large difference between spontaneous polarizations along different directions is important from technological point of view because it makes it possible to switch between these phases using an electric field [38]. Such phase coexistence could be obtained by the chemical pressure instead of the hydrostatic pressure. So far, the aforementioned phase coexistence of the monoclinic Cm and the rhombohedral R3c phases of BiGaO3 has been observed in solid solutions with Fe [6, 7] and Cr [7].

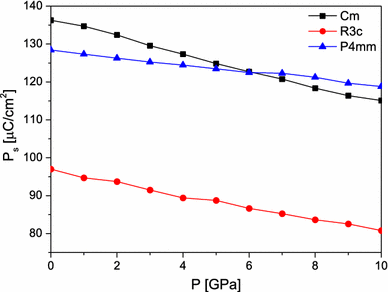

Figure 3

Polarization magnitude as a function of pressure for the monoclinic Cm, tetragonal P4mm, and rhombohedral R3c phase of BiGaO3

Table 4

Calculated values of spontaneous polarization of three polar phases of BiGaO3 at 0 GPa and 5.2 GPa pressures



0 GPa

5.2 GPa

Cm

136.26

124.87

P4mm

128.44

123.48

R3c

97.01

88.75

The ferroelectric properties of aforementioned phases are caused by stereochemically active 6s2 lone pairs on bismuth ions. To show this the electronic structure calculations were performed and the results are given in Figs. 4, 5, 6. In Fig. 4 we present the total and partial density of states for four phases at their theoretically predicted transition pressures. The detailed studies of the electronic structure of the Pcca pyroxene phase at ambient pressure were given elsewhere [13]. In general, in all phases the valence band (VB) is split into two separate subbands. The upper part of the VB (from 0 to 8 eV below the Fermi level) consists mainly of the O-2p states with small contribution from the Ga-3sp states and the Bi-6sp states. Below these bands the Bi-6s states appear with small contributions from O-2p states. The conduction band (CB) is characterized by empty Bi-6p and O-2p states with small contribution from Ga-3s states. The occupied Bi-6s and O-2p states form the bonding (8–10 eV below the Fermi level) and antibonding (near the Fermi level, Fig. 5) states, respectively. In case of centrosymmetric Pcca pyroxene, noncentrosymmetric Cm and R3c perovskites the antibonding states hybridize with Bi-6p states (see Fig. 5) which lead to the asymmetric electron distribution around the Bi atoms. There is no such hybridization in case of centrosymmetric Pnma perovskite. The situation for Pcca, Cm, and R3c is typical in the formation of lone pairs [39]. This can be visualized with the help of the electron localization function (ELF) which is shown in Fig. 6. ELF is a tool for analysis of the character of the chemical bond [40, 41] and is a measure of the probability of finding an electron near another same-spin electron. The values of ELF are between 0 and 1. The high values of ELF describes region where there is no chance to find two same-spin electrons and is interpreted as a presence of the lone pairs. In our case the ELFs are localized near the Bi atoms in all aforementioned phases. However, the ELFs are strongly asymmetric in the case of Pcca, Cm, and R3c, and symmetric in the case of Pnma. In case of Pcca pyroxene the lone pairs are arranged in opposite manner due to the centrosymmetric structure. For monoclinic Cm and rhombohedral R3c the lone pairs promote structural distorsion and, as a result, these phases are ferroelectric.

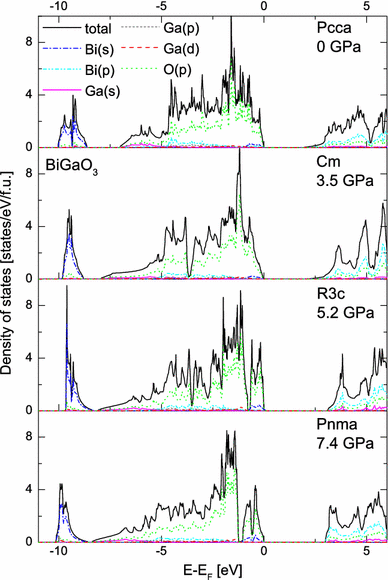

Figure 4

The total and partial density of states of four different phases of BiGaO3 at their transition pressures

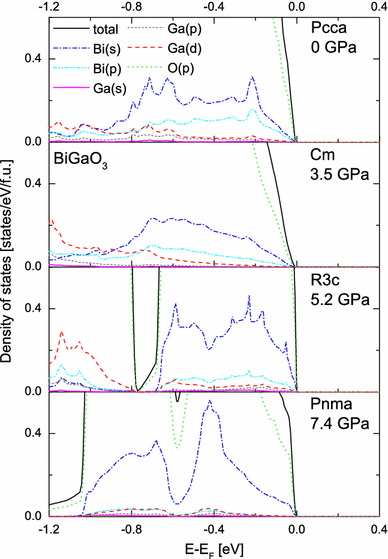

Figure 5

The total and partial density of states near the Fermi level

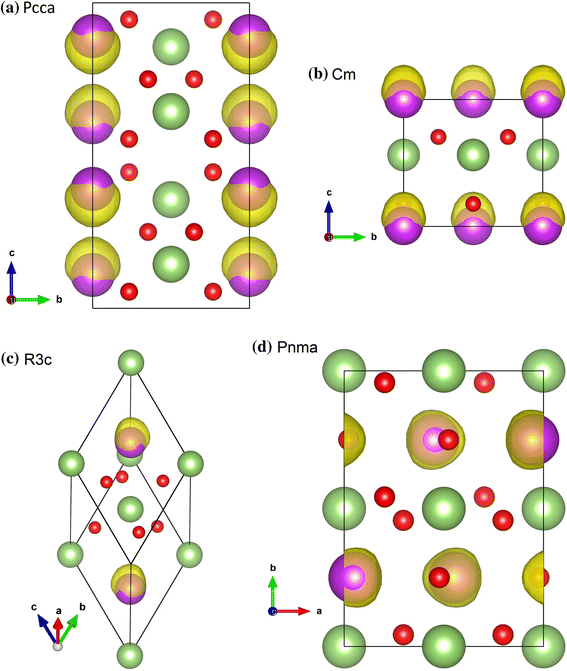

Figure 6

Electron localization function (ELF) of the most stable phases of BiGaO3 at the value of 0.9. The figure was generated using the VESTA visualization package [42]

Conclusions

The ground-state properties as well as high-pressure behavior of BiGaO3 were studied by means of the first-principles method. We have found the following sequence of phase transitions: Pcca → Cm → R3c → Pnma, which occur at 3.5, 5.2, and 7.4 GPa, respectively. Only the first phase transition (Pcca → Cm) has been observed experimentally. At 5.2 GPa the coexistence of three ferroelectric phases i.e., monoclinic Cm, tetragonal P4mm, and rhombohedral R3c has been predicted with the high values of spontaneous polarization of 124.87, 123.48, 88.75 μC/cm2, respectively. For these structures the mixing of Bi-s, Bi-p, and O-p states near the top of the valence band is responsible for the formation of the lone pair in the vicinity of the bismuth atoms and, as a result, for ferroelectric properties. In addition, the large values of the spontaneous polarization in case of Cm and P4mm phases are caused by large tetragonality (~1.3).

Notes

Acknowledgements

This work was supported by the National Science Centre (Poland) through the Grant No. DEC-2011/01/B/ST3/02212.
