How can climate change and engineered water conveyance affect sediment dynamics in the San Francisco Bay-Delta system?
- 2.6k Downloads
Suspended sediment concentration is an important estuarine health indicator. Estuarine ecosystems rely on the maintenance of habitat conditions, which are changing due to direct human impact and climate change. This study aims to evaluate the impact of climate change relative to engineering measures on estuarine fine sediment dynamics and sediment budgets. We use the highly engineered San Francisco Bay-Delta system as a case study. We apply a process-based modeling approach (Delft3D-FM) to assess the changes in hydrodynamics and sediment dynamics resulting from climate change and engineering scenarios. The scenarios consider a direct human impact (shift in water pumping location), climate change (sea level rise and suspended sediment concentration decrease), and abrupt disasters (island flooding, possibly as the results of an earthquake). Levee failure has the largest impact on the hydrodynamics of the system. Reduction in sediment input from the watershed has the greatest impact on turbidity levels, which are key to primary production and define habitat conditions for endemic species. Sea level rise leads to more sediment suspension and a net sediment export if little room for accommodation is left in the system due to continuous engineering works. Mitigation measures like levee reinforcement are effective for addressing direct human impacts, but less effective for a persistent, widespread, and increasing threat like sea level rise. Progressive adaptive mitigation measures to the changes in sediment and flow dynamics resulting from sea level rise may be a more effective strategy. Our approach shows that a validated process-based model is a useful tool to address long-term (decades to centuries) changes in sediment dynamics in highly engineered estuarine systems. In addition, our modeling approach provides a useful basis for long-term, process-based studies addressing ecosystem dynamics and health.
KeywordsSuspended Sediment Concentration Sediment Input Sediment Dynamic Secondary Circulation Tidal Prism
In estuaries, fine sediments transported from the watershed determine turbidity levels to a high degree. High turbidity levels attenuate light penetration in the water column limiting primary production, define habitat conditions for endemic species (Brown et al. 2013), nourish marshes and tidal flats, and carry nutrients and contaminants to intertidal and coastal areas. Natural and anthropogenic changes in environmental conditions modify the sediment dynamics, turbidity levels, and the system’s resilience to future impacts (Hestir et al. 2013; Schoellhamer 2011; Winterwerp and Wang 2013).
The human impact on sediment load is similar for several estuaries worldwide. Initially, an increase in sediment load due to deforestation, changes in land use, or mining activities is followed by a sharp decrease in sediment load resulting from reservoir construction and riverbank reinforcement (Syvitski et al. 2005; Walling and Fang 2003; Whitney et al. 2014). Examples of this pattern of changes in sediment load are the San Francisco Bay-Delta (Barnard et al. 2013), the Ebro (Guillén and Palanques 1997), and the Yangtze River Delta (Wang et al. 2015). Human activities such as channel deepening (van Maren et al. 2015; Winterwerp and Wang 2013), land reclamation, and water deviation for agriculture and human consumption further impact the sediment dynamics of estuaries (Scavia et al. 2002).
Since the beginning of the Holocene, sea level rise (SLR) has had a large influence on estuarine sediment dynamics (Roy 1994; Borrego et al. 1993). Current SLR predictions for the State of California range from 0.42 to 1.67 m by 2100 (NRC 2012). Estuarine salt marsh vegetation can be resilient to SLR as long as sediment supply is high enough to keep with the rate of SLR (Fagherazzi et al. 2012; Reed 2002).
To maintain prevailing habitat conditions, estuaries need to trap sediment when SLR. Reservoir construction prevents sediment from the watershed entering the estuarine domain. In addition, episodic river floods that once were responsible for resetting the system and transporting large amounts of sediments seaward are increasingly rare due to flood control barriers and water diversions. For the Sacramento-San Joaquin Delta (Delta), this has led to a depletion of the downstream sediment pool and a change from transport limited suspended sediment concentration (SSC) to supply limited SSC (Schoellhamer 2011; Schoellhamer et al. 2013).
The impact of SLR relative to shorter-term engineering measures is an important discussion in estuaries dynamics (Dettinger et al. 2016). In this work, we evaluate the possible impact of direct human disturbance (e.g., water diversion operations, levee failure) and climatic change on estuarine sediment dynamics with a focus on the highly engineered estuary of the San Francisco Bay-Delta system. We selected the Bay-Delta system because it is data-rich, which facilitates model calibration and validation. A two-dimensional (2DH), vertically aggregated, process-based, numerical model (Delft3D FM) is used to describe sediment dynamics and simulate the sediment budget and patterns in SSC, and turbidity levels. These data are translated into turbidity levels in order to assess the impacts on habitat conditions.
2 Study area
Tides propagate from Golden Gate into the Delta up to Sacramento. The boundary between the Bay and the Delta is near Chipps and Mallard Island. Mallard Island experiences mixed diurnal and semidiurnal tides that range from about 0.6 to 1.8 m (neap-spring tide). During dry season, tidal oscillation is observed in the Sacramento River up to the Freeport station and in the San Joaquin River up to the Vernalis station.
Located landward of San Francisco Bay, the Delta is an inland, natural and man-made, channel network formed by the junction of two main tributaries, the Sacramento River and the San Joaquin River (Fig. 1). These rivers contribute 90 and 9%, respectively, of the total runoff. During winter or early spring, peak river discharge lasts several days to weeks and delivers the majority of fresh water to the Delta. The Delta discharge varies between 50–150 m3 s−1 during summer and 800–4000 m3 s−1 during the spring/winter (Kimmerer 2004). Apart from the intra-yearly seasonality, the Delta experiences inter-annual variability with wetter (e.g., 2011) and drier years (e.g., 2013).
During the wet season, the Sacramento River pulse increases SSC and exports sediment towards the Bay, affecting biota behavior (Ganju and Schoellhamer 2006; McKee et al. 2006, 2013). On average, the Delta stores roughly two-thirds of the sediment input for both wet and dry years (Wright and Schoellhamer 2005; Marineau and Wright 2014; Achete et al. 2015).
The Delta includes engineered channels and several temporary barriers constructed to improve water quality and fish habitat. The most important engineered channel is the Delta Cross Channel (DCC, Fig. 1), which is one of the three connections between the Sacramento River and the Central and South Delta (Achete et al. 2015). Water diversions for agriculture and human use are done via a pumping station located in the South Delta. In an average year, 200 m3 s−1 of water is pumped to Southern California (Kimmerer 2004). The pumping rate is designed to keep the 2 psu (salinity) line landwards of Chipps Island to avoid salinity intrusion into the Delta.
Over the last three centuries, human activities have had a significant effect on San Francisco estuary. Beginning in the 1850s, the Sacramento River watershed experienced 35 years of hydraulic mining, which remobilized in total 1.1 × 109 m3 of sediment. The sediment was transported from rivers in the foothills all the way to the Bay. The very high sediment loads shoaled channels, nourished tidal flats and marshes, and shoaled northern San Francisco Bay up to 5 m in places during a 30-year period (Jaffe et al. 2007; Wright and Schoellhamer 2004; Barnard et al. 2013).
After a California Supreme Court decision in 1884 that prohibited discharge of mine tailings to rivers, which effectively stopped hydraulic mining, major civil works were carried out in the Delta and watershed. Levee construction around Delta marshes created “islands” for agricultural purposes and increased hydraulic conveyance. Water diversion and upstream dams reduced sediment input to the Delta and Bay (Delta Atlas 1995; Wright and Schoellhamer 2004, Beagle et al. 2015).
3.1 Model description
The Delft3D Flexible Mesh (Delft3D FM) is a hydrodynamic and morphodynamic unstructured mesh, process-based model, based on finite volume approach (Kernkamp et al. 2010; Deltares 2014). Delft3D FM allows for straightforward coupling of its hydrodynamic modules with a water-quality model, Delft3D-WAQ (DELWAQ) (Achete et al. 2015).
DELWAQ solves the advection–diffusion–reaction equation and the Krone–Partheniades for cohesive sediment (Ariathurai and Arulanandan 1978; Krone 1962). We applied the 2D horizontal, vertically aggregated model that does not account for vertical variations in water flow. Major salt-fresh water interactions occur in the Bay outside the Delta (Kimmerer 2004).

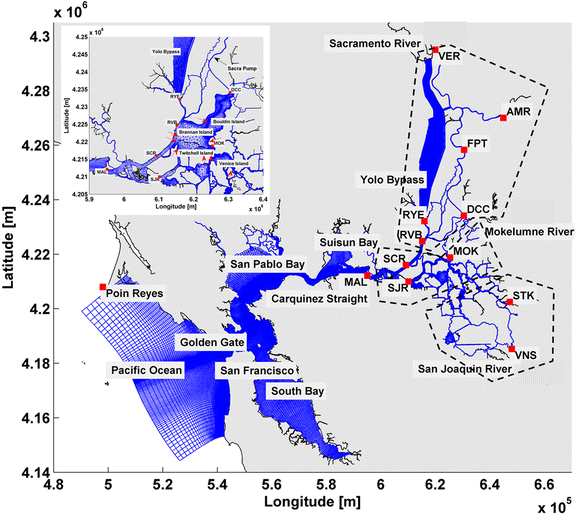

The model grid comprises the full Bay and Delta with resolution ranging from 500 to 20 m (Fig. 1). The time step in Delft3D FM is calculated online based on a maximum Courant flow criterion of 0.7 being on average 15 s. The DELWAQ time step is 5 min. Both hydrodynamics and sediment calibration parameter settings were established previously by Achete et al. (2015) and applied for all scenarios (http://www.d3d-baydelta.org).
The Bay-Delta system has an extensive monitoring network, providing in situ observations for model boundary forcing, validation, and calibration. The base-case reflects the current conditions and is used as the standard run for comparison with scenarios of direct human impact (shift in water pumping location), climate change (SLR and SSC decrease), and abrupt disasters (island flooding, possibly as the results of an earthquake).
3.2.1 Base-case scenario
The seaward boundary water level is derived from hourly time-series at the Point Reyes station (tidesandcurrents.noaa.gov/). The initial water level is 1.5 m, and the model spin-up time is less than a week for the 2D simulations. Landward, hourly water discharge and SSC are defined at locations on the main Delta tributaries (Fig. 1). Landward boundaries are located on the Sacramento River at Verona and on the American River, for the South Delta on the San Joaquin River at Vernalis, and for the East Delta on the Mokelumne River at Woodbridge (http://sfbay.wr.usgs.gov) (Fig. 2). In the model, two pumps are implemented in the South Delta at Tracy and Clifton Court. The pumps are defined as negative discharge and will transport sediment in amounts determined by local SSC levels and the intensity of pumping. The hydrodynamic model includes wind as prescribed by the model of Ludwig and Sinton (2000).
At Vernalis and Mokelumne at Woodbridge, SSC in situ observations are available and applied as a boundary condition. At Verona, only the median turbidity in ntu units is available. The turbidity values were converted to SSC by the rating curve (personal communication, USGS Sacramento) SSC = exp(0.789∗ log 10(turb) + 0.567) (Fig. 2). At American River, SSC was defined as a constant concentration of 10 mg L−1.
Over the model domain, the initial SSC was set at 20 mg L−1, which is typical for the dry season. The model is initialized with no sediment available in the bed following the discussion in Achete et al. (2015) and the findings of Schoellhamer (2011) of a depleted sediment pool.
3.2.2 Pumping scenario at Sacramento River
The pumping boundaries are shifted from the South Delta to the Sacramento River upstream from DCC following the BDCP project. The project A4 (http://baydeltaconservationplan.com/Home.aspx) considers the construction of a tunnel north of DCC until the Southern Delta pumps. The pumping rate is defined depending on Sacramento River discharge (supplementary material).
3.2.3 Flooded island scenario
All the boundaries are kept from the base-case. A flooded island is formerly leveed land where a levee breaches leading to formation of a “lake.” This scenario is relevant since the Delta is located in a seismically active region. A strong earthquake could lead to massive levee failures. The model grid is extended covering Brannan Island, Twitchell Island, and Bouldin and Venice Island (Fig. 1). The levees to be breached are defined based on highest probability of flooding in the past and future years (DWR, risk report 2009), and overtopping probability (Brooks et al. 2012). We stress that this is a hypothetical case used as a preliminary assessment. The flooded island scenario includes fetch limited wind-waves.
3.2.4 Sea level rise scenario at 2100
The SLR scenario is defined by increasing water levels at the seaward boundary by 1.67 m. This value is based on the guideline report by California Ocean Protection Council and is considered as a maximum rise after 100 years (NCR 2012).
The landward boundaries and grid extend were maintained so that extra flooding of land in the model domain was included. Although river discharge scenarios suggest a more concentrated wet season earlier snow melt and a larger rain to snow rate (Knowles and Cayan 2002), the average total yearly river hydrograph would keep the same volume. In this case, selecting a future hydrograph and its correlated sediment rating curve would lead to more uncertainty than maintaining the current conditions as boundary conditions (Warrick 2014).
We also created a scenario representing both SLR and decrease of SSC load. Recent data show that the rate of decrease is most probably about 0.8% per year (personal communication, Schoellhamer). A rate of 0.8% per year in 78 years accounts for a 62% decrease by 2100. This scenario applies the same boundary conditions as in the SLR scenario, but the SSC is only 38% of the original. Finally, we included an additional scenario including all direct human impacts and climate change impacts.
We divided the Delta into North, Central, and South regions to facilitate the analysis. The North Delta is represented by the cross-sections Rio Vista and Freeport. The South Delta is represented by Stockton and Vernalis. The Central Delta is represented by San Joaquin and Mokelumne. The Delta output is at Mallard (Fig. 1).
The isoline of 35 mg L−1 corresponds to a turbidity of 18 ntu. This is a minimum habitat threshold for Delta smelt, which is an important Delta ecosystem indicator species (Brown et al. 2013). The isoline migration landward indicates deterioration of habitat conditions while seaward migration indicates improvement. During the wet year (2011), the 35-mg-L−1 isoline is 12 km more seaward than in the below normal of 2012, while for the dry year of 2013, the isoline is 20 km more landward.
4.2 Comparison of scenarios
4.2.1 Mean water level and tidal prism
The SLR scenario shows a higher mean water level decreasing bottom friction impact and further penetration of the tidal wave into the Delta. The flooded island scenario increases the tidal prism leading to higher velocities in the channels and more tidal energy dissipation (Fig. 3). The flooded island stores flood water that is not used for further propagation upstream. The changes in friction lead to differences in tidal phasing. In the SLR scenario, the tidal wave propagates faster and the phase difference with the sea boundary is smaller than the base-case, while in the flooded island scenario, the tidal wave propagates slower increasing the phase difference (Fig. 3).
The flooded island scenario shows an increase in tidal prism of 20% (due to the flooded island) compared to current conditions while the SLR scenario shows a tidal prism increase of less than 5%. The increase in tidal prism is associated with higher velocities (Fig. 3) and slightly changes in net discharge.
4.2.2 Secondary circulation
Water pumping has a large impact on the circulation pattern. In the Delta, the shift of pumping from the South to the North Delta had a large effect in the South Delta. The results show the South pumps attracting San Joaquin River water, but the shift to the North allows San Joaquin River water to flow through the Eastern Delta. The river discharge locally increases the water level, and the higher water column decreases bottom friction allowing further penetration of the tidal wave and increasing tidal amplitudes at Stockton (Fig. 3). This results in larger sediment flux in the San Joaquin River branch in the Delta. During peak flow, the change in pumping induces recirculation from the North to Central Delta and shifts the 35-mg-L−1 isoline ~5 km landwards (Fig. 6).
4.2.3 Sediment dynamics

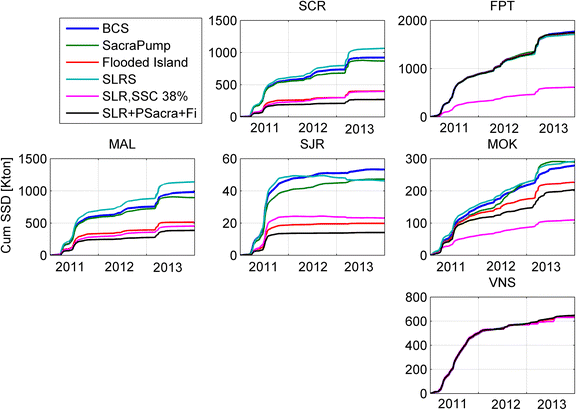

Despite the small difference in net water discharge, the combination with the changes in mean water level and tidal propagation leads to a significant impact on suspended sediment discharge (Fig. 4). The SLR scenario increases suspended sediment discharge in the entire Delta, since it enhances tidal action keeping sediment in suspension (Fig. 1), while for the flooded island, and the SLR scenarios, SLR with reduction of sediment input decrease suspended sediment discharge by about one-third. The flooded island scenario has the most impact on the Ψ, increasing it by 15%, while in the SLR scenario, Ψ decreases by 10% (Fig. 5). Flooded islands are the primary sedimentation areas due to the low flow velocities. Further island breaching will probably result in an even higher Ψ. An additional scenario which considered flooded islands but not wind-waves was performed to evaluate the importance of winds. In that case, the flooded island trapped 10% more sediment than if wind-waves were considered.
The BDCP project calls for a sedimentation basin before pumping the water southward, so we considered that the sediment trapped by the pumps stays in the Delta increasing Ψ on average 5% compared to the base-case.

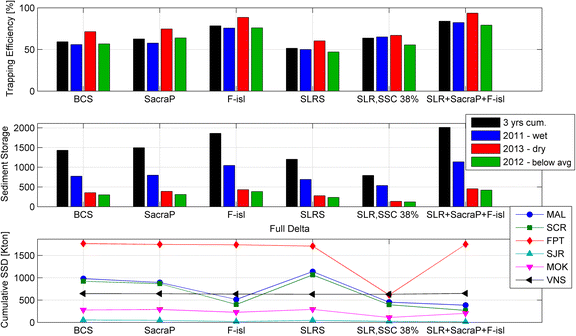

The decrease of sediment input from watershed causes the most extreme change in sediment dynamics (Fig. 5b). The decrease in sediment input leads to a sharp decrease in the SSC distribution and sediment deposition in the entire North and Central Delta (Fig. 4). However, the decrease in sediment input has a minor effect in Ψ (Fig. 5). This behavior is observed in historical observations comparing wet and dry years (Erikson et al. 2013; Wright and Schoellhamer 2004).
Apart from the seasonal cycle of wet and dry seasons, the Delta experiences inter-annual cycles of high and low river discharge. In dry and below average years, the amount of sediment deposited in the Delta decreases from ~1500 (wet) to ~550 kt year−1, and the suspended sediment discharge in San Joaquin River area is virtually zero (2 kt year−1) (Fig. 5). In those years, the influence of SLR, the changing in pumping operation, and decrease of SSC input can lead to cumulative suspended sediment discharge away from the Bay in the Central Delta (Fig. 4).
Though in the dry year sediment deposition in the Delta is almost half of the wet year deposition (Fig. 5b), Ψ is on average 10% larger due to the lower velocities, the shear stress is lower and the sediment has a longer time to deposit (Fig. 5c). This behavior is observed in all the scenarios.
5.1 Mitigating impacts
The current study shows that a process-based model validated against in situ observations can be used to assess the impact of abrupt disasters, direct human impact, and climate change. The latter scenario, obviously, has the longest timescale as the increase in sea level will occur over centuries while an earthquake resulting in levee failure and island flooding takes place in seconds.
A key drawback of the current model is that it does not take into account bed level changes. The calculated positive trapping efficiency suggests that Delta bed levels will accrete. This will have an effect on future trapping efficiencies implying that modeled trapping efficiencies will probably be lower when time scales longer than a few years are considered. The modeled trapping efficiencies in this study should be considered a maximum; lower values should be used for analyses over long time scales.
Our modeling effort shows that direct human impact on sediment dynamics can be significant. This can lead to unwanted developments like the shift in the pumping location decreasing SSC levels in the Central Delta, as is observed in the SSC at SJR (Fig. 6). The decrease in SSC in the Central Delta can affect endemic species survival, such as the Delta smelt (Brown et al. 2013), and may have an impact on marsh restoration projects. Mitigation measures may range, for example, from sediment releases from reservoirs to salt marsh restoration projects or levee construction/reorientation works, and can serve as sustainable water resources management. SLR impacts are smaller compared to the direct human impacts. The impacts have a long-term aspect giving time to plan for adaptation to minimize negative impacts. Natural disasters leading to major structure failure is catastrophic for the system dynamics and leaves almost no room for mitigation or adaptation.
The model formulations related to hydrodynamics and sediment characteristics are complex. However, despite this complexity, the required model calibration efforts were limited and had limited uncertainty (Achete et al. 2015). This suggests that the model sufficiently described the physical processes to generate a trustworthy prediction of governing sediment dynamics. In addition, the model forcings and the data required to describe those forcings are quite straightforward (a limited number of boundary locations and conditions). This suggests that similar studies can be carried out in data-scarce environments, provided that boundary conditions and initial conditions (bathymetry) are known. In addition, our numerical, process-based approach allows for multiple runs to generate statistical confidence for uncertain model input parameters.
5.2 Ecological impact
5.2.1 Delta smelt
The Delta maintains important ecosystems and habitat conditions. The model results can be processed to explore the impact on habitat conditions of various species. As an example, the Delta smelt is an important endemic fish that needs specific conditions of salinity, temperature, food availability, and turbidity levels (higher than 18 ntu or 35 mg L−1) to survive (Brown et al. 2013, 2016).

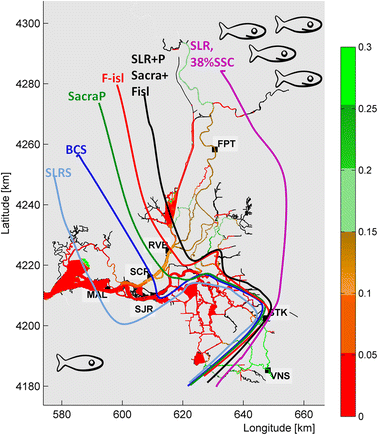

To compare the scenarios in terms of turbidity, we evaluated the time percentage of exceeding 35 mg L−1. Landward (eastward) of the isoline (Fig. 6), SSC exceeds 35 mg L−1 for more than 10% of the time during the 3-year simulation. This means that habitat conditions are favorable for Delta smelt during more than 10% of the time while seawards (westwards) of the 10% isoline the conditions are favorable for less than 10% of the simulation time. The South Delta turbidity conditions are only affected by the different scenarios to a limited degree, mainly because the sediment dynamics there are governed by the San Joaquin River dynamics (Achete et al. 2015). The Central Delta is the most affected area. The decrease of sediment input (SLR with reduction of sediment input) is the scenario that most affects the habitat conditions followed by the flooded islands and pumping scenarios. All of these scenarios shift the 10% isoline northward and eastward. In contrast, SLR improves conditions for the Delta smelt because sediment stays longer in the water column keeping turbidity higher for a longer period of time.
This analysis shows the potential of applying process-based modeling techniques in ecosystem studies. We also recognize that the analysis is rudimentary and would require more knowledge on turbidity requirements (e.g., are there seasonal fluctuations?) and should include other conditions such as vegetation presence, salinity, and water temperature.
5.2.2 Marsh restoration
Marshes are valuable ecosystems for fauna and flora as well as for coastal protection. Marshland growth and survival depends on organic matter supply by the marsh vegetation itself, and on sediment supply by rivers (Kirwan et al. 2016). Restoration projects become an option to mitigate possible impacts of SLR and preserve biodiversity. For restoration projects where vegetation is absent, sediment is the key factor to success. Salt marsh restoration, for example, by flooding islands will have different effects on the system. It can increase the tidal prism and act as a sediment sink depending on the level of restoration. In addition, restoration will reduce prevailing SSC levels since sediment can deposit in the salt marsh.
For marshland development, the most favorable scenarios are the ones increasing trapping efficiency, like the flooded island scenario. In contrast, a decrease of sediment input is the least favorable scenario for marsh restoration. Highly engineered estuaries have most of their banks diked. These structures do not leave much space for an increase in tidal prism. However, creating accommodation via marsh restoration can benefit from the SLR scenario keeping sediment in suspension during longer period.
Process-based models provide a promising tool to assess the impacts of SLR and direct human impacts in estuaries worldwide with only limited information (forcing at the boundaries, geometry, and bathymetry). Our validated model provides a useful tool to address anticipated changes in the Delta as the result of human interventions and SLR. Model results show clear impacts of different scenarios based on detailed process descriptions. The model provides a validated basis for future studies on ecosystem impacts in terms of possible changes and mitigation actions. The scenarios presented here can now be used as input for ecological models such as phytoplankton, clams, and fishes, enabling assessment of the possible impacts.
Dry year conditions and the Central Delta are more vulnerable, while wet year conditions and North Delta are more resilient. Regardless of the uncertainty related to the definition of the scenarios, they give indications of the potential impacts allowing for possible remediation. This study and findings for the Sacramento-San Joaquin Delta indicate possible impacts affecting estuarine ecosystem functioning. It shows that conditions will change as the result of human intervention, but it also opens up possibilities for addressing and mitigating impacts in a sustainable manner through management.
Structural failure can change hydrodynamics by increasing the tidal prism, generating secondary circulations and accommodation. In the Delta, the increase in accommodation and decrease in velocities increases trapping efficiency by 15%. The decrease in sediment input is the factor that contributes most to turbidity level variations as reflected in both sediment deposition and suspended sediment concentration distribution. Engineer structures do not leave much space for increase of tidal prism due to SLR, which in combination with increasing velocities and deeper water column leads to higher export of sediment. Changes in tidal prism is key for the adaptation of the ecosystem. If under SLR the estuary is highly engineered and has little or no room for increasing tidal prism, then the tendency is for increased sediment export.
Direct human impacts may be more easily mitigated than SLR because, unlike SLR that effects large areas and is expected to continue for a long time requiring persistent and potentially increasing mitigation measures, they typically are spatially more limited and do not persist through time. Adapting to the changes in dynamics resulting from SLR may be a more effective strategy.
Impacts from the scenarios we explored—a direct human impact (shift in water pumping location), climate change (SLR and SSC decrease) and abrupt disasters (island flooding, possibly as the results of an earthquake)—can improve or deteriorate the current habitat and change system dynamics. An unanswered question is how much we should manage estuaries in order to fit our needs. This modeling exercise contributes to a better assessment of possible future impacts of climate change and human disturbance on estuarine systems.
The research is part of the US Geological Survey CASCaDE climate change project (CASCaDE contribution 64). The authors acknowledge the US Geological Survey Priority Ecosystem Studies and CALFED for making this research financially possible and the Delta Sediment Project for the data. This research was also partially funded by the Brazilian Government via Capes agency. The model applied in this work will be freely available from http://www.D-Flow-baydelta.org/. Rose Martyr (USGS) provided a helpful review of the manuscript before submission. Lisa Lucas (USGS) and Noah Knowles (USGS) supplied valuable input concerning scenario definitions.
