Climate risk management requires explicit representation of societal trade-offs
- 1.9k Downloads
Strategies for managing climate-change risks impact diverse stakeholder groups that possess potentially conflicting preferences. Basic physics and economics suggest that reconciling all of these preference conflicts may not be possible. Moreover, different climate risk management strategies can yield diverse and potentially severe impacts across different global stakeholders. These preference conflicts and their uncertain impacts require an explicit understanding of the trade-offs that emerge across different risk management strategies. Traditionally, integrated assessment models (IAMs) typically aggregate the stakeholders’ preferences across the entire globe into a single, a priori defined utility function. This framing hides climate risk management trade-offs as well as the inherent stakeholder compromises implicit to the resulting single “optimal” expected utility solution. Here, we analyze a simple IAM to quantify and visualize the multidimensional trade-offs among four objectives representing global concerns: (i) global economic productivity, (ii) reliable temperature stabilization, (iii) climate damages, and (iv) abatement costs. We quantify and visualize the trade-offs across these objectives and demonstrate how a traditional optimal expected utility policy implicitly eliminates many relevant policy pathways. Explicit trade-off analysis provides a richer context for exploring conflicting global policy preferences and clarifies the implications of alternative climate risk mitigation policies to better inform negotiated compromises.
KeywordsClimate Sensitivity Abatement Cost Climate Risk Expect Utility Maximization Stakeholder Preference
The goal of the internationally ratified Framework Convention on Climate Change is to stabilize the level of greenhouse gas concentrations in the atmosphere to a level that “would prevent dangerous anthropogenic interference with the climate system” in a way that “enable[s] economic development to proceed in a sustainable manner” (United Nations 1992). As described, this agreement seeks to balance the policy trade-offs that emerge when reducing greenhouse gas emissions while seeking to maintain global economic productivity. Integrated assessment models (IAMs) represent one class of tools that are being used to evaluate the balance between climate risk mitigation and global economic welfare. IAMs of climate change and the economy typically use utility-based abstractions of global welfare preferences to analyze and select optimal climate change mitigation strategies (Weyant et al. 1996). Framing the problem in terms of utility maximization aggregates the values and preferences of diverse stakeholder groups into a single value function that is used to rank alternative mitigation strategies. Simply maximizing the expectation of utility derives the optimal decision for a single hypothetical rational agent. This approach has provided important insights (e.g., Nordhaus 2013, McInerney et al. 2012) and is based on simple axioms (Bentham 1879, Ramsey 1931, Von Neumann and Morgenstern 1945); however, maximizing the expected utility can have poor descriptive power for real decision making (Ellsberg 1961; Banzhaf 2009).
We use the Dynamic Integrated Climate-Economy model (DICE) to illustrate this commensuration conundrum (Nordhaus 2013). DICE is one of three IAMs used by the United States Environmental Protection Agency in determining the social cost of carbon, a quantity used in cost-benefit analyses of climate-change mitigation and adaptation strategies (Greenstone et al. 2013). The standard approach in DICE is to derive an optimal strategy by maximizing the discounted expected utility of per capita consumption. When using this approach, it is important to understand the implicit compromises made among critical stakeholder preferences. To do so, we expand the problem formulation in DICE to consider four objectives that approximate key stakeholder concerns: (i) expected utility maximization (EUM) where the primary focus of the stakeholder is that the benefits justify the costs (U.S. Office of Management and Budget 2003), (ii) maximize the reliability of limiting global mean temperature rise to two degrees Celsius (Held et al. 2009) (REL2C) for those concerned about, “dangerous anthropogenic interference with the Earth System” (United Nations 1992), (iii) minimize the expected discounted climate damages (DAM) to approximate the preferences of those concerned about vulnerable systems (McGranahan et al. 2007), and (iv) minimize the expected cost of a carbon-abatement policy (ABATE) to represent those concerned with the costs of mitigating climate change (Heggelund 2007). These objectives abstract highly diverse stakeholder values and potential preferences that are vital to understanding the broader contexts climate risk decisions (Gupta et al. 2007).
Conflicting stakeholder preferences are often abstracted using a summation of alternative mathematical forms as well as weightings of the abatement costs and damage functions (e.g., Kolstad and Toman 2001, Keller et al. 2000, Keller et al. 2005, McInerney et al., 2012). For example, a stakeholder concerned with reliably keeping the global mean temperature increase below two degrees Celsius may define a damage function with extraordinary costs when the temperature exceeds the threshold. Conversely, a stakeholder concerned about abatement costs may choose a steeply-increasing abatement cost function. Drouet et al. (2015) provides a recent illustration of this general approach in representing different stakeholder values and risk preferences. These aggregated approximations for conflicting stakeholder preferences can provide useful insights, but they face several challenges. For one, this approach hides the weighting of societal preferences in an a priori choice of the cost functions and aggregates into a single objective, thus the tradeoff among the societal preferences becomes muddled and difficult to analyze. Moreover, the complex group-decision-making context merits more explicit understanding of how policy pathways impact tradeoffs in societal values (National Research Council 2009).

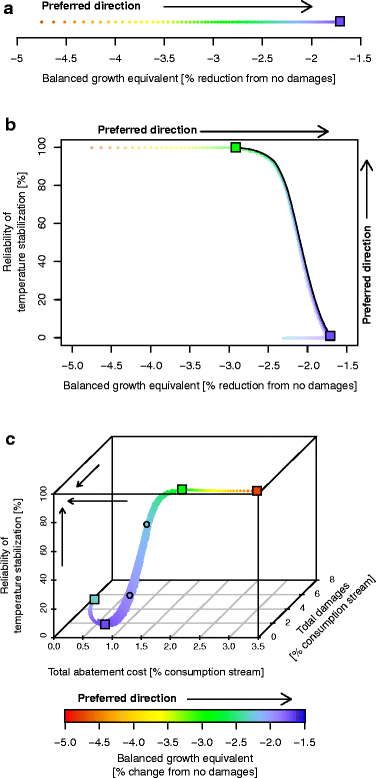

Expanding the problem formulation by considering a broader suite of objectives can reveal decision relevant trade-offs and reduce decision myopia. For example, adding the reliability of the two degrees Celsius stabilization goal (REL2C) recasts the context and implications of the EUM solution. The two-objective sub-space of the full four objective problem shown highlights a strong trade-off between EUM and REL2C (Fig. 1b). The ideal solution would maximize both EUM and REL2C. This ideal solution, however, is infeasible given the coupled geophysical and economic constraints of the model. The boundary between the feasible and infeasible solutions is the Pareto-front or “trade-off curve” (black line). Solutions on the trade-off curve cannot be improved upon in the underlying model with respect to one objective without degrading the other objective. The trade-off curve is bounded by solutions that optimize each of the objectives separately (blue box – EUM, green box – REL2C) and spans the entire range of possible REL2C values (0% - 100%) (Fig. 1b). Given the strong tension between these two objectives, it would be difficult to argue that the preference represented by the REL2C objective is captured in the EUM problem formulation or appropriated any weight in the a priori definition of utility. Unless explicitly represented in a multi-objective problem formulation, this trade-off would remain hidden, presenting a case of myopia.

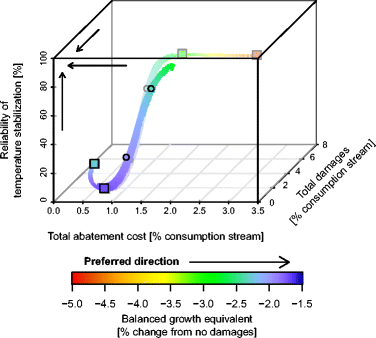

Increasing the number of objectives visualized to cover the full four-objective formulation (Fig. 1c) clarifies the trade-offs that emerge when moving away from the extreme solutions that optimize each individual preference perspective. The primary axes in this visualization are the REL2C, DAM, and ABATE objectives while the color gradient represents the EUM objective. The optimal single-objective solutions for the DAM (orange box) and ABATE (cyan box) objectives occupy the extreme ends of the newly introduced visualized trade-offs. While each of these boxes represents an optimal solution for a single objective, they do not provide a compromise over preferences. In a decision-making scenario, the decision makers would either be implicitly (e.g., Fig. 1a) or explicitly (e.g., Fig. 1c) trading off performance among the objectives (Herman et al. 2014). The four-objective visual trade-off analysis provides a richer context for explicitly selecting and understanding compromise climate mitigation solutions. As an illustration of potential compromises, we have selected two solutions as if decision makers selected them for further discussion (Fig. 1c, purple and cyan circles). Although these solutions do not represent actual real-world elicited choices, they are helpful in illustrating how explicit trade-off analyses can aid in understanding the implications of negotiated compromises.

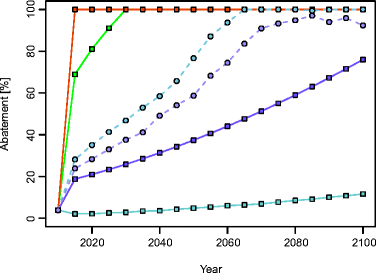

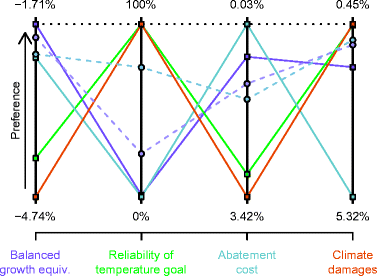

Intermediate or compromise solutions chosen from the trade-off curve may provide satisficing outcomes across all stakeholder preferences whereas the single objective optimal solutions often represent extreme perspectives (Simon 1955; Yohe 2009) (Fig. 2). The EUM solution (purple solid line in Fig. 2) prioritizes a balance between abatement costs and climate damages, but at the expense of reliably achieving temperature stabilization. In fact, the application of the discount rate in the DICE model influences the EUM solution to prefer present day consumption over avoiding the discounted effects of future climate damages, resulting in a climate risk management strategy that most closely mimics a sole focus on abatement cost (see the cyan ABATE solution in Fig. 2). The steep slopes between objectives in Fig. 2 indicate a strong trade-offs across objective pairs and highlight that finding a single ideal solution that is optimal across all stakeholder preferences is impossible in the considered model. The 4-objective tradeoffs provide a richer context for understanding potential climate risk management compromises as well as their implications (Fig. 2, dashed lines). For example, the cyan compromise solution demonstrates how increasing the reliability of stabilizing atmospheric temperatures drastically decreases future climate damages by increasing abatement investments to a level that yields a relatively modest reduction in global growth equivalent (i.e., EUM).
Our results use a simple and transparent model to illustrate the power of a multi-objective problem formulation for understanding the implicit choices and trade-offs that are embedded in the standard EUM approach to analyzing climate-change risk management decisions. This simplicity, however, results in several caveats. For example, the DICE model considers only globally aggregated outcomes and is thus silent on critical questions surrounding intragenerational justice (Rawls 2001). Furthermore, our analysis considers a rather shallow sample of the deep uncertainties (e.g., Butler et al. 2014, Hall et al. 2012). As a last example, our considered objective space is a small subset of the diverse values and objectives relevant to the design of climate change strategies.
Despite these caveats, we show that the standard problem formulation hinges on strong assumptions about the relevance of stakeholder preferences. Specifically, the standard formulation is vulnerable to questionable assumptions in how it exploits an a priori-weighted representation of the potentially conflicting preferences of multiple stakeholders. Explicitly evaluating the higher-dimensional trade-offs reduces this vulnerability and provides richer contextual support for choosing negotiated climate risk mitigation strategies. We demonstrate how concessions in expected utility can lead to large gains in Earth-system related objectives and the externalities of climate change on vulnerable populations. We also show that committing to an abatement policy that maximizes global utility could possibly remove relevant stakeholder preferences from the problem, raising concerns about the ethics of climate-related decision-making. The new formulation can improve the ability of IAMs to provide decision support through an a posteriori assessment of performance criteria over the Pareto-optimal solution set.
1.1 Porting DICE to C/C++
We ported the GAMS version of the DICE 2013R model (DICE2013Rv2_102213_vanilla_v24b.gms) to C/C++ to more seamlessly integrate with the Borg-MOEA software. We tested the consistency of our port with the original GAMS code (Online Resource Fig. ESM1) and found that results from our port are virtually indistinguishable from those of the original GAMS code for the deterministic optimal solution with default parameters. The ported DICE model (CDICE2013) along with the coupled DOECLIM climate model (discussed below) are available at https://github.com/scrim-network/cdice_doeclim.
1.2 Representing key aspects of uncertainty in DICE
We represent a key uncertainty in DICE in order to calculate the expectations and reliabilities associated with each of the objectives. To do so, we produce 100 samples from a log-normal fit to a recently published distribution of climate sensitivity (Olson et al. 2012) (μ= 1.098001424, σ= 0.265206276) using inverse-transform sampling.
To improve the consistency of the model temperature hindcasts with historical temperature records, we couple the DOECLIM climate model (Kriegler 2005; Goes et al. 2011) to CDICE2013. DOECLIM is a simple energy-balance model that connects the troposphere and upper ocean with a diffusive deep-ocean layer. We calibrate the climate sensitivity, ocean diffusivity, and aerosol forcing parameters in DOECLIM using the National Aeronautics and Space Administration Goddard Institute for Space Studies (NASA-GISS) atmospheric temperature anomalies and radiative forcing data (Hansen et al. 2010) (Online Resource Fig. ESM2) from years 1900 through 2010. We calibrate the parameters by iterating over values of climate sensitivity while optimizing the ocean diffusivity and aerosol forcing parameters that minimizes the sum of square residuals between the model results and NASA-GISS temperature data (Online Resource Fig. ESM3). We acknowledge that using a Markov-Chain Monte Carlo analysis to obtain the full joint distributions of the three parameters would be a more formal and exhaustive calibration, but our approximate method seems sufficient for the purposes of this study.
A climate sensitivity sample with the calibrated ocean diffusivity and aerosol forcing parameters represent a single state of the world (SOW). For each SOW, a hindcast of atmospheric temperature anomalies is produced and used as the initial condition for the CDICE2013 projections (Online Resource Fig. ESM3). For every evaluation of DICE in the optimization process, the endogenous variables are recalculated for each state of the world, producing 100 values or time-series of each endogenous variable.
Coupling DOECLIM to CDICE2013 not only helps maintain the relationship among model parameters throughout the SOW sampling process, but shows that a better understanding of the science while using past (hindcast) information pushes the Pareto-optimal solution set closer to the ideal solution point (Online Resource Fig. ESM4). This improvement in objective space translates to possible additional satisficing solutions in decision space and thus an improved compromise across the preferences of the stakeholders.
1.3 Defining objectives
Where n SOW is the number of SOW and i is an index over each SOW. The EUM objective is similar to that defined in the original DICE model, except that we calculate the expectation of utility over the states of the world previously described. The REL2C objective is the fraction of SOW where the maximum deviation in atmospheric temperature (TAT) at any time in the model projection t remains at or below 2.0 degrees Celsius. The expression max t (T AT,t ) ≤ 2.0 produces one if true or zero if false for SOW i. The ABATE and DAM objectives are the expectations over the SOW of the net-present value of the abatement costs (Λ) and climate damages (Ω), respectively, summed over time. The variable ri is the real interest rate calculated endogenously within the model and is a function of time t and SOW i. The EUM (Eq. 1) and REL2C (Eq. 2) objectives are maximized while the ABATE (Eq. 3) and DAM (Eq. 4) objectives are minimized.
We use the Borg Multi-Objective Evolutionary Algorithm (Borg-MOEA) to search for the complex Pareto surface generated by the four-objective functions used in our problem formulation (Hadka and Reed 2012a). Borg-MOEA is an advanced evolutionary optimization algorithm and has been shown to be one of the most powerful optimization algorithms to date (Hadka and Reed 2012b; Woodruff et al. 2013). We chose Borg-MOEA as our optimization algorithm for its efficiency and reliability in finding the complex four-dimensional Pareto surface associated with our problem formulation.
The algorithm uses ε-dominance (Laumanns et al. 2002) as a means of numerical precision in objective space. We use epsilon values of 0.1, 0.01, 0.05, and 0.05 for the EUM, REL2C, ABATE, and DAM objectives respectively. This yields 2914 solutions (2251 solutions in the inertia constrained formulation) that create the four-dimensional Pareto-optimal surface.
We define convergence to the Pareto-optimal surface through the use of the Borg-MOEA operator selection probabilities and Pareto-improvements during the optimization (Online Resource Fig. ESM5, ESM6). Borg-MOEA uses a combination of operators that select the next potential solutions to be tested. Once the uniform mutation operator (UM) takes over the solution proposition process (i.e. high probability) and the Pareto-improvement rate drops to 1% or less of the size of the solution set, additional optimization time would yield only marginal gains in solution quality.
We thank D. Hadka for his technical support with the Borg-MOEA. We also thank W. Nordhaus, D. Diaz, C. and B. Forest, N. Tuana, M. Adler, D. Anthoff, M. Oppenheimer, R. Lempert, V. Bosetti, and the anonymous reviewers for invaluable input. This work was partially supported by the National Science Foundation (NSF) through the Network for Sustainable Climate Risk Management (SCRiM) under NSF cooperative agreement GEO-1240507 and the Penn State Center for Climate Risk Management. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the NSF.
