Breast Cancer Research and Treatment

, Volume 163, Issue 2, pp 241–254 | Cite as

A comparison of the molecular subtypes of triple-negative breast cancer among non-Asian and Taiwanese women

  • Ling-Ming TsengEmail author
  • Jen-Hwey Chiu
  • Chun-Yu Liu
  • Yi-Fang Tsai
  • Yun-Lin Wang
  • Chu-Wen Yang
  • Yi-Ming Shyr
Open Access
Preclinical study

Abstract

Background

“Precision medicine” is a concept that by utilizing modern molecular diagnostics, an effective therapy is accurately applied for each cancer patient to improve their survival rates. The treatment of triple-negative breast cancer (TNBC) remains a challenging issue. The aim of this study was to compare the molecular subtypes of triple-negative breast cancer (TNBC) between Taiwanese and Non-Asian women.

Methods

GEO Datasets for non-Asian (12 groups, n = 1450) and Taiwanese (3 groups, n = 465) breast cancer, including 617 TNBC, were acquired, normalized and cluster analyzed. Then, using TNBC cell lines of different subtypes, namely, MDA-MB-468 (basal-like1, BL1), MDA-MB-231 (mesenchymal stem like, MSL), BT-549 (mesenchymal, M), MDA-MB-453 (luminal androgen receptor, LAR), and DU4475 (immunomodulatory, IM), real-time PCR in triplicate for 47 genes signatures were performed to validate the specificity of these subtypes.

Results

The results showed that the percentage of TNBC subtypes in non-Asian women, namely, BL1, BL2, IM, M, MSL, and LAR was 13.56, 8.91, 16.80, 20.45, 8.30, and 11.13%, respectively. When data from Taiwanese were normalized and clustered, five TNBC subtypes, namely, BL (8.94%), IM (13.82%), M (22.76%), MSL (30.89%), and LAR (23.58%), were classified. Real-time PCR validated the specificity of these subtypes. Besides, the presence of interaction between IM- and MSL-subtypes suggests the involvement of tumor microenvironment in TNBC subtype classification.

Conclusion

Our data suggested that there exist different presentations between non-Asian and Taiwanese TNBC subtypes, which provides important information when selection of therapeutic targets or designs for clinical trials for TNBC patients.

Keywords

Triple negative Breast cancer Subtype Gene expression Precision medicine

Abbreviations

BL

Basal-like

CDF

Cumulative Distribution Function

ER

Estrogen receptor

GE

Gene expression

HER2

Human epidermal growth receptor 2

IM

Immune-modulatory

M

Mesenchymal

MSL

Mesenchymal stem cell like

LAR

Luminal androgen receptor

PR

Progenstin receptor

TNBC

Triple-negative breast cancer

Introduction

Precision medicine has become an important emerging approach to the diagnosis, treatment, and prevention of disease, especially cancers; it takes into account the individual variability of each person in terms of genes, environment, and lifestyle. Breast cancer is the most common malignancy in women [1, 2]. Owing to tumor heterogeneity caused by cell phenotype diversity, different approaches to treatment and prognosis have been shown to be highly correlated with the intrinsic subtypes of the breast cancer [3]. Triple-negative breast cancer [TNBC, ER(−), PR(−), HER2(−)], which accounts for about 15% of breast cancers worldwide, is characterized by aggressive tumor behavior and a strong resistance to ant hormone treatment, chemotherapy, and targeted therapy [4, 5, 6].

Previously, using whole-genome (genome wide) analysis, including gene expression analysis (gene expression profiling), various TNBC molecular subtypes have been further identified. For example, six specific subtypes, namely, basallike1 (BL1), basallike2 (BL2), mesenchymal (M), mesenchymal stem like (MSL), immune response (M), and luminal androgen receptor positive (LAR) were first described by Lehmann et al. [7]. Since then, more investigations have targeted TNBC tumor heterogeneity using gene ontology [8, 9, 10], therapeutic targets [11, 12], and using mRNA or long noncoding RNAs (lncRNAs) as diagnostic criteria [13]. Although the six subtype classification has been refined recently [14, 15], the variation in molecular classification of TNBC across various different populations remains to be elucidated.

Accumulating evidence has shown that social economic, epidemiological, and genetic factors all play roles in tumor behavior, cancer subtype, and the prognosis of patients among different racial/ethnic groups [16, 17, 18]. For example, women of African heritage, compared to women of Caucasian heritage, have a higher rate of TNBC and a lower rate of receptor (+)/HER2(−) breast cancers after the age of 35 years [19]. Furthermore, a high prevalence and poorer clinical outcomes have been observed among African-American women with TNBC than among women of European descent [20, 21]. There is consensus that genome-wide studies, such as gene expression profile analysis, provide multi-gene signatures that are closely linked to TNBC carcinogenesis [22, 23]. Previous studies have demonstrated a significant association between the PTEN mutation, a high Ki67 index and the CD44+/CD24 phenotype among African-American women with TNBC [24]. In addition to the above findings, it has also been noted that there are frequently variations in the EGFR-activating mutations found in TNBCs among East Asians patients and this is not true for European patients [25]. In the context of these findings, controversy exists regarding the amount of variations that occurs in genomic profiles between different ethnic populations [26]. Therefore, the aim of the present study was to compare the molecular subtypes of triple-negative breast cancers (TNBCs) between Taiwanese female patients and nonunion female patients.

Methods

Subjects

Under the approval of the Institutional Review Board (# 201310020BC) of Taipei Veterans General Hospital, Taiwan, ROC, a total of 57 patients between June 2013 and September 2015 with TNBC [ER(−), PR(−), HER2(−)] were identified by immunohistochemical analysis of their pathological specimens. Total RNA was extracted from these TNBC tissue samples, and the RNA samples were used to conduct oligonucleotide microarray analysis by the Genome Research Center, National Yang-Ming University [27].

Data set collection and TNBC identification by bimodal filtering

GE profiles from fourteen publicly available breast cancer microarray datasets, including twelve nonunion and two Taiwanese datasets (Sun Yat-Sen Cancer Center and Cathy hospital) (GEO, http://www.ncbi.nlm.nih.gov/gds; Array Express, http://www.ebi.ac.uk/microarrayas/ae/) were compiled and these were added to our dataset (GSE95700) (Supplementary Reference 1). In total, 1915 human breast cancer samples were included and among these samples a total of 617 TNBCs were identified (Table 1). The GE raw values for each of the datasets were normalized independently using the RMA procedure. The Affymetrix probes used for ER, PR, and HER2 were 205225_at, 208305_at, and 216836_s_at, respectively. A two-component Gaussian mixture distribution model was used to analyze the empirical expression distributions of ER, PR, and HER2 and the default parameters were estimated by maximum likelihood optimization using R statistical software (https://www.rproject.org/). After the posterior probability of a negative expression state for ER, PR, and HER2 had been estimated, a sample was defined as having negative expression if the posterior probability was less than 0.5. This process was followed by bimodal filtering to remove all ER/PR/HER2 positive tumors. The remaining TNBC tumors were then normalized along with positive controls for ER, PR, and HER2. Only samples that displayed a marked reduction in expression based on the above criteria compared to the positive controls were classified as TNBC (n = 617).
Table 1

Triple-negative breast cancer (TNBC) distribution in publicly available data sets

Non-Asian

Country

Taiwanese

GEO accession

BC case

TNBC

GEO accession

BC case

TNBC

GSE12276

204

67

Netherlands

GSE20685

327

57

GSE14017

29

13

USA

GSE48390

81

16

GSE17907

51

1

France

GSE95700 (VGH)

57

50

GSE18864

84

53

Denmark



GSE19615

115

35

USA



GSE19697

24

24

USA



GSE20711

88

24

Canada



GSE21653

266

91

France



GSE31448

353

131

France



GSE42568

104

32

Ireland



GSE43502

25

19

USA



GSE58812

107

96

France



Sum

1450

494



Sum

465

123

BC breast cancer, TNBC triple-negative breast cancer, VGH Veterans General Hospital

Identification of TNBC subtypes

Previously, six distinct TNBC molecular subtypes were proposed by Lehmann et al. [7] and these were basallike1 (BL1), basallike2 (BL2), mesenchymal (M), mesenchymal stem-like (MSL), immune response (M), and luminal androgen receptor positive (LAR). Accordingly, using the published six type gene lists, we clustered and replotted the six types of heat map using our compiled complete dataset. In addition to background correction, the MAS5 procedure was applied to the Taiwanese data and then consensus clustering and k-means clustering were used to determine the optimal number of stable TNBC subtypes. Cluster robustness was assessed by consensus clustering using agglomerative k-means clustering using the average linkage for the 123 TNBC profiles based on the most differentially expressed genes (SD > 0.9; n = 5463 genes). The optimal number of clusters was determined from the Consensus Cumulative Distribution Function (CDF), which plotted the corresponding empirical cumulative distribution; this was defined over the range [0,1], and calculated based on the proportional increase in the area under the CDF curve. Following this, the number of clusters was decided when any further increase in cluster number (k) did not lead to a corresponding marked increase in the CDF area. Principal component analysis (PCA) and heat maps were generated using GeneSpring software (GeneSpring GX 11.5; Agilent Technologies, Inc., Santa Clara, CA, USA) and further pathway analysis was carried out using Ingenuity Pathway Analysis software [27] (IPA; Qiagen, Redwood City, CA, USA).

Gene selection specific to each TNBC subtype

After consensus clustering and k-means clustering of the Taiwanese data, the TNBC subtypes were determined. The genes specific to each TNBC subtype were defined as followings: (1) the strongest probe with a fold change (ratio), >1.75 (upregulation) or <0.5 (downregulation), compared with the other subtypes; (2) the percentage of the sample with a GE difference >0 (sample GE − mean GE of other subtypes) of >80%; and a p value <104 (t test: specific subtype versus other subtypes).

Cell line and reagents

Under the approval of Institutional Review Board (# 201606012BC) of Taipei Veterans General Hospital, Taiwan, ROC, the human triple-negative breast cancer cell lines MDA-MB-468 (BL1), MDA-MB-231 (MSL), BT-549 (M), MDA-MB-453 (LAR), and DU4475 (IM) were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA), and these were then maintained in specific culture medium, namely F12 MEM (No. 12400024, Gibco, NY, USA), RPMI, as appropriate; the media were supplemented with 10% FBS, 2 mM l glutamine and penicillin/streptomycin, and the cells were cultured at 37 °C in a humidified atmosphere containing 5% CO2. Cells that were from three passages to ten passages were used.

Total RNA extraction and reverse transcription PCR

Total RNA was isolated using the modified single step guanidinium thiocyanate method [28] (TRI REAGENT, T9424, Sigma Chem. Co., St. Louis, MO, USA). After the cells from the five different subtypes, namely, MDA-MB-468 (BL1), MDA-MB-231 (MSL), BT-549 (M), MDA-MB-453 (LAR), and DU4475 (IM) had been grown up and total RNAs extracted, complementary DNA (cDNA) was created using a First Strand cDNA Synthesis Kit (Invitrogen, CA, USA). TaqMan® Gene Expression Assays were used to validate the differential expression at the mRNA level of the various identified genes sets that had been selected from consensus clustering results (Table 2). The TaqMan system was supported by a well-established primer database that reduces significantly the experimental failure due to inappropriate primer design.
Table 2

Gene list for validation of Taiwanese TNBC subtype

Subtype 1 (IM)

Subtype 2 (MSL)

Subtype 3 (M)

Subtype 4 (LAR)

Subtype 5 (BL)

Probe

Gene symbol

Probe

Gene symbol

Probe

Gene symbol

Probe

Gene symbol

Probe

Gene symbol

232362_ata

CCDC18

227427_at

ARHGEF25

201268_at

NME1-NME2

218211_s_at

MLPH

219787_s_at

ECT2

206486_at

LAG3

206485_at

CD5

213801_x_at

RPSA

215465_s_at

ABCA12

231984_at

MTAP

207634_at

PDCD1

217190_x_at

ESR1

200023_s_at

EIF3F

232914_s_at

SYTL2

229538_s_at

IQGAP3

223834_at

CD274

211233_x_at

ESR1

215157_x_at

PABPC1

212510_at

GPD1L

208165_s_at

PRSS16

220049_s_at

PDCD1LG2

215104_at

NRIP2

228256_s_at

EPB41L4A

227733_at

TMEM63C

226189_at

ITGB8

222835_at

THSD4

229377_at

GRTP1

205990_s_at

WNT5A

235020_at

TAF4B

212998_x_at

HLA-DQB1

228708_at

RAB27B

244264_at

KLRG2

226192_at

AR

209138_x_at

IGLC1

215536_at

HLA-DQB2

209505_at

NR2F1

232179_at

LOC158863

204014_at

DUSP4

225973_at

TAP2

204149_s_at

GSTM4

226553_at

TMPRSS2

236390_at

SLX4IP

203963_at

CA12

223307_at

CDCA3

214123_s_at

NOP14-AS1



213823_at

HOXA11



232001_at

PRKCQ-AS1



a Gene probes were derived from Affi-matrix microarray GE

IM immumodulatory, MSL mesenchymal stem like, M mesenchymal, LAR luminal androgen receptor, BL basal-like

Any possible contamination of the various PCR components was excluded by performing a PCR reaction with these components in the absence of the RT product for each set of experiments (contemplate control, NTC). For the statistical comparisons, the relative expression level of the mRNA of each specific gene was normalized against the amount of GAPD mRNA in the same RNA extract. All samples were analyzed in triplicate.

Statistic analysis

Data are expressed as mean ± SEM. Differences between groups were identified by repeatedly measured one-way ANOVA, followed by Dunnet’s post hoc test. Differences between different groups were identified by Mann–Whitney U test for nonparametric analysis or the Student’s t test. A p value of <0.05 is considered statistically significant.

Results

Dataset collection and TNBC identification by bimodal filtering

From June 2013 to September 2015, 57 patients whose tumor samples were screened as TNBC by immunohistochemistry (ER < 1%, PR < 1%, HER2, not amplified) were identified at Taipei Veterans General Hospital. These tumor samples were sent for microarray analysis. Next, two Taiwanese (n = 408) and twelve nonunion datasets (n = 1450) were downloaded from the public domain. Thus, a total of 1915 human breast cancer samples, including ours (n = 57), were available for expression analysis. The gene expression information generated from Affymetrix microarrays were then normalized independently using RMA procedures (Fig. 1a and Supplementary Reference 1).

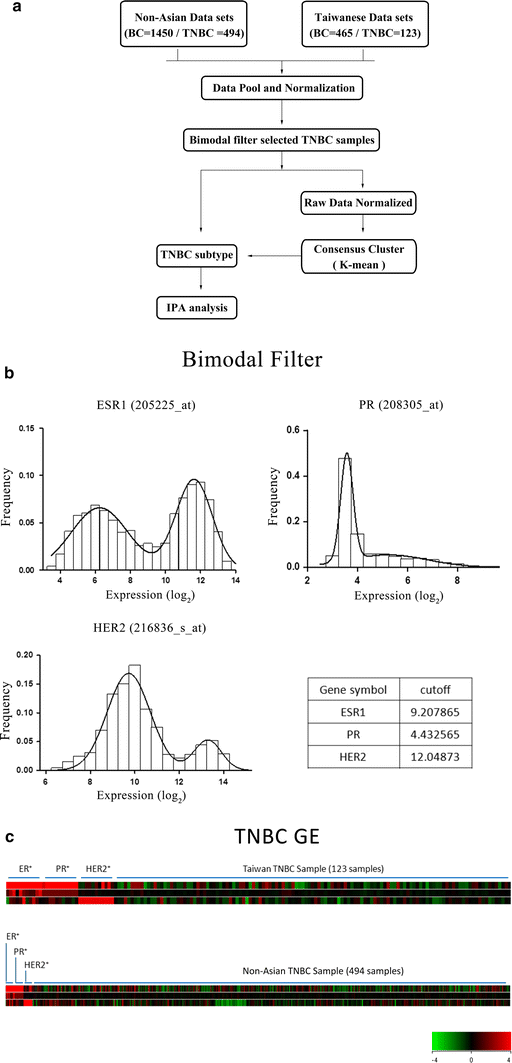

Fig. 1

Protocol for the acquisition and analysis of the gene expression datasets. GEO Datasets for nonunion (12 groups, n = 1450) and Taiwanese (3 groups, n = 465) female breast cancer samples, including 617 triple-negative breast cancer (TNBC) samples, were acquired, normalized, and cluster analyzed (a). TNBC was identified by bimodal filtering (b) and was demonstrated in (c)

The gene expression distributions of ER, PR, and HER2 for the TNBC samples were validated by two-component Gaussian distribution, and the cutoff point was estimated by maximum likelihood optimization using the optimize function (R statistical software) (Fig. 1b). This resulted in a heat map showing the TNBC tumors normalized along with positive controls for ER, PR, and HER2 (Fig. 1c). Finally, the TNBCs identified as true TNBCs (n = 617) were enrolled into the compiled dataset.

The GE TNBC subtype samples of nonunion and Taiwanese women clustered in terms of the published 6-subtype gene lists

Since TNBC subtyping has been suggested as a useful approach, we acquired the published gene lists of the 6-subtype of TNBC and used these for clustering of our compiled dataset, which included nonunion (Fig. 2, left panel) and Taiwanese (Fig. 2, right panel) women. The results showed that the percentages of TNBC subtypes in nonunion women, namely, BL1, BL2, IM, M, MSL, and LAR were 13.56, 8.91, 16.80, 20.45, 8.30, and 11.13%, respectively, while those in Taiwanese women was 14.63, 4.07, 17.89, 16.26, 17.89, and 20.33%, respectively.
Fig. 2

Heat maps of the clustered triple-negative breast cancer (TNBC) subtype for nonunion and Taiwanese women. The published gene lists of the six subtypes of TNBC were imported and used for the clustering of our compiled dataset, which consisted of a nonunion group (left panel) and a Taiwanese group (right panel) TNBC

When the two groups of women are compared, there exist some discrepancies between nonunion and Taiwanese women in terms of TNBC subtypes. To address this, background correction for the Taiwanese data was performed and consensus clustering and k-means clustering were used to determine the optimal number of TNBC subtypes for Taiwanese (Fig. 3). The results showed that five stable subtypes were obtained based on the Taiwanese TNBC data (Fig. 4a). These were IM (13.82%), MSL (30.89%), M (22.76%), LAR (23.58%) and BL (8.94%). The genes specific to each subtype were 274227458_at (CD 274 or PDL1) for IM, 205225_at for MSL, 200091_s_at for M, 226192_at (androgen receptor) for LAR, and 229538_s_at (IQGAP3) for BL (Fig. 4b). The genes specific to each TNBC subtype having been identified (Supplementary Reference 2) and correlated with the Lehmann et al. genes (Table 3) were analyzed using ingenuity pathway analysis (IPA); furthermore, their top canonic pathways, their upstream regulators, their top disease and their biofunctions were also analyzed. The results are summarized in Tables 4 and 5.

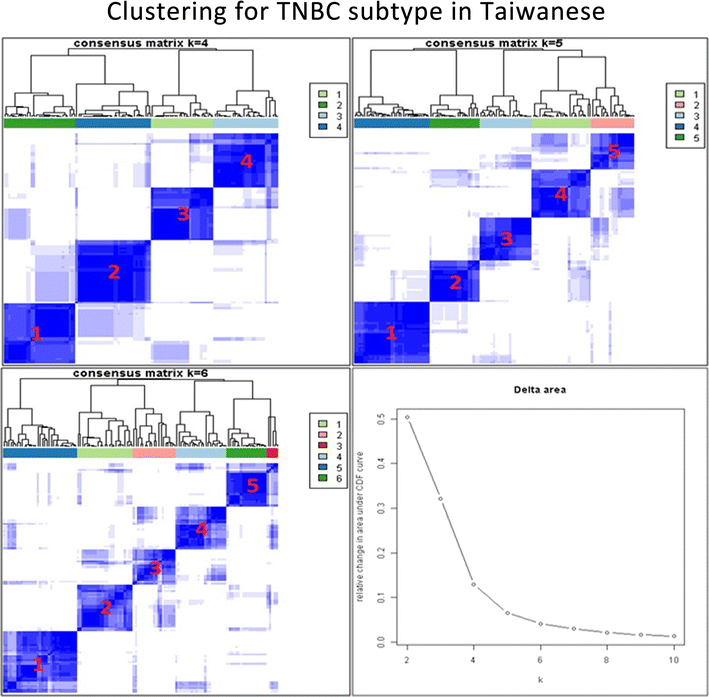

Fig. 3

Cluster analysis of the triple-negative breast cancer (TNBC) subtype for Taiwanese women. After background correction of the Taiwanese data, consensus clustering and k-means clustering were used to determine the optimal number of TNBC subtypes. The optimal number of clusters was determined from the Consensus Cumulative Distribution Function (CDF)

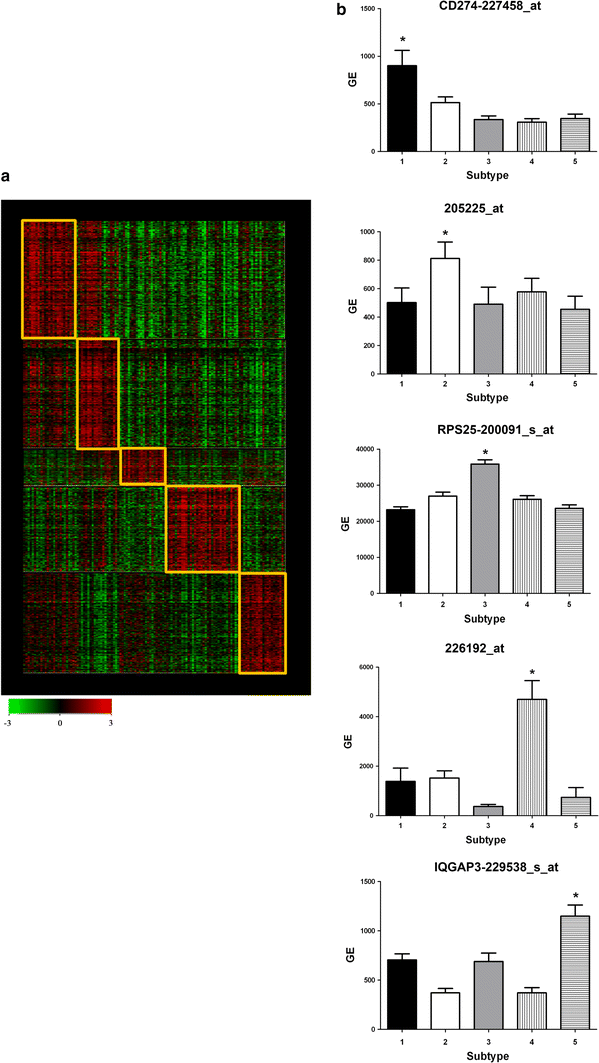

Fig. 4

The triple-negative breast cancer (TNBC) subtypes for TNBC from Taiwanese women. The heat map shows five stable TNBC subtypes (a). The genes specific to each subtype are 274227458_at (CD 274 or PDL1) for IM, 205225_at for MSL, 200091_s_at for M, 226192_at (androgen receptor) for LAR, and 229538_s_at (IQGAP3) for BL (b)

Table 3

Correlation of subtype-specific genes between Taiwanese’s and Lehmann’s genes

Lehmann’s subtypes

Present study

Subtype1 (IM)

Subtype2 (MSL)

Subtype3 (M)

Subtype4 (LAR)

Subtype5 (BL)

BL1

19.23a

0.00

8.70

0.00

50.00

BL2

0.00

5.26

8.70

3.03

4.55

IM

53.85

26.32

13.04

0.00

0.00

M

19.23

5.26

34.78

9.09

13.64

MSL

0.00

52.63

13.04

24.24

4.55

LAR

3.85

10.53

0.00

63.64

4.55

a Data were presented as percentage (%)

IM immumodulatory, MSL mesenchymal stem like, M mesenchymal, LAR luminal androgen receptor, BL basal-like

Table 4

Ingenuity pathway analysis for up-regulated genes in TNBC subtypes

Name

p-value

Subtype 01 (immunomodulatory)

 Top canonical pathways

  CD28 signaling in T helper cells

7.02E−17

  iCOS-iCOSL signaling in T helper cells

1.24E−16

  Natural killer cell signaling

9.45E−15

  Role of NFAT in regulation of the immune response

2.08E−13

  T cell receptor signaling

3.69E−13

 Top upstream regulators

  E2F4/IRF7/IRF1/E2F1/ESR1

 Top diseases and bio functions

  Cancer/organismal injury and abnormalities/gastrointestinal disease/infectious diseases/hematological disease

Subtype 02 (mesenchymal stem like)

 Top canonical pathways

  EIF2 signaling

1.19E−17

  iCOS-iCOSL signaling in T helper cells

1.15E−14

  Hepatic fibrosis/hepatic stellate cell activation

1.27E−14

  Crosstalk between dendritic cells and natural killer cells

3.20E−14

  Tec kinase signaling

2.89E−12

 Top upstream regulators

  CREBBP/MYCN/EP300/ID2/BCL6

 Top diseases and bio functions

  Cancer/organismal injury and abnormalities/inflammatory response/connective tissue disorders/skeletal and muscular disorders

Subtype 03 (mesenchymal)

 Top canonical pathways

  EIF2 signaling

3.18E−69

  Regulation of eIF4 and p70S6K signaling

2.92E−23

  Oxidative phosphorylation

4.38E−18

  mTOR signaling

1.45E−16

  Mitochondrial dysfunction

5.81E−14

 Top upstream regulators

  MYCN/MYC/HNF4A/DOT1L/HSF1

 Top diseases and bio functions

  Cardiovascular disease/developmental disorder/hereditary disorder/organismal injury and abnormalities

Subtype 04 (luminal androgen receptor)

 Top canonical pathways

  NRF2-mediated oxidative stress response

8.86E−08

  Xenobiotic metabolism signaling

3.00E−06

  LPS/IL-1 mediated Inhibition of RXR function

1.64E−05

  HIPPO signaling

5.69E−05

  Clathrin-mediated endocytosis signaling

7.13E−05

 Top upstream regulators

  ESR1/HNF4A/TP53/PGR/ESR2

 Top diseases and bio functions

  Cancer/organismal injury and abnormalities/gastrointestinal disease/hepatic system disease/developmental disorder

Subtype 05 (basal-like)

 Top canonical pathways

  Role of BRCA1 in DNA damage response

2.92E−15

  Hereditary breast cancer signaling

4.71E−14

  Cell cycle: G2/M DNA damage checkpoint regulation

2.32E−13

  Role of CHK proteins in cell cycle checkpoint control

4.39E−13

  Mitotic roles of polo-like kinase

2.82E−12

 Top upstream regulators

  E2F4/HNF4A/NUPR1/E2F1/ESR1

 Top diseases and bio functions

  Cancer/organismal injury and abnormalities/gastrointestinal disease/infectious diseases/hepatic system disease

Table 5

Ingenuity pathway analysis for down-regulated genes in TNBC subtypes

Name

p-value

Subtype 01 (immunomodulatory)

 Top canonical pathways

  EIF2 signaling

6.04E−25

  Regulation of eIF4 and p70S6K signaling

2.40E−11

  mTOR signaling

9.41E−10

  Mitochondrial dysfunction

3.25E−08

  Tight junction signaling

2.08E−07

 Top upstream regulators

  MYCN/ESR1/HNF4A/CREB1/PGR

 Top diseases and bio functions

  Cancer/organismal injury and abnormalities/neurological disease/psychological disorders/gastrointestinal disease

Subtype 02 (mesenchymal stem like)

 Top canonical pathways

  Protein ubiquitination pathway

4.08E−20

  Role of CHK proteins in cell cycle checkpoint control

1.19E−13

  Mitotic roles of polo-like kinase

1.45E−12

  Hypoxia signaling in the cardiovascular system

1.14E−10

  Role of BRCA1 in DNA damage response

1.29E−09

 Top upstream regulators

  HNF4A/E2F4/ESR1/TP53/NUPR1

 Top diseases and bio functions

  Cancer/organismal injury and abnormalities/gastrointestinal disease/infectious diseases/hepatic system disease

Subtype 03 (mesenchymal)

 Top canonical pathways

  B cell receptor signaling

2.16E−18

  Leukocyte extravasation signaling

7.44E−16

  Integrin signaling

5.48E−15

  Molecular mechanisms of cancer

1.05E−14

  Hepatic fibrosis/hepatic stellate cell activation

4.83E−12

 Top upstream regulators

  ESR1/HNF4A/TP53/ERG/NR3C1

 Top diseases and bio functions

  Cancer/organismal injury and abnormalities/gastrointestinal disease/hepatic system disease/reproductive system disease

Subtype 04 (luminal androgen receptor)

 Top canonical pathways

  Role of BRCA1 in DNA damage response

3.35E−14

  Molecular mechanisms of cancer

4.43E−11

  Hereditary breast cancer signaling

1.03E−10

  Crosstalk between dendritic cells and natural killer cells

2.98E−10

  Natural killer cell signaling

6.01E−10

 Top upstream regulators

  E2F4/IRF7/E2F1/CDKN2A/IRF1

 Top diseases and bio functions

  Cancer/organismal injury and abnormalities/gastrointestinal disease/infectious diseases/hematological disease

Subtype 05 (basal-like)

 Top canonical pathways

  EIF2 signaling

3.99E−20

  Hepatic fibrosis/hepatic stellate cell activation

1.52E−17

  Crosstalk between dendritic cells and natural killer cells

1.58E−12

  Primary immunodeficiency signaling

1.13E−09

  LPS/IL-1 mediated inhibition of RXR function

1.91E−09

 Top upstream regulators

  MYCN/CREBBP/EP300/SMARCA4/CTNNB1

 Top diseases and bio functions

  Cancer/organismal injury and abnormalities/dermatological diseases and conditions/connective tissue disorders/inflammatory disease

Model identification using representative genes in human TNBC cell lines

Using the gene lists selected from the clustering results (Supplementary Reference 2), which were identified as specific to each subtype, real-time PCR was carried targeting a 47 gene signature (Table 2) using customized chip. This analysis was carried out on five human TNBC cell lines, namely, MDA-MB-468 (BL1), MDA-MB-231 (MSL), BT-549 (M), MDA-MB-453 (LAR), and DU4475 (IM).

Using DU4475 (IM) as the reference line, significant downregulation of THSD4, ECT2, RAB27B, and ITGB8 was found (Fig. 5a), together with significant upregulation of PDCD1 (PD1), CD274 (PDL1) (except MDAMB231), and PDCD1LG2 (PDL2) (Fig. 5b), in DU4475 compared to the other cell lines MDA-MB-468 (BL1), MDA-MB-231 (MSL), BT-549 (M), and MDA-MB-453 (LAR). Using MDA-MB-231 (MSL) as the reference line, significant upregulation of DUSP4, together with significant downregulation of CCDC18 and GRTP1 (Fig. 5c) were found in MDA-MB-231 compared to the other cell lines. Using BT-549 (M) as the reference line, significant upregulation of CDCA3 and MATP in BT-549 (Fig. 5d) was found compared to the other cell lines. However, in addition these findings for BT-549, it needs to be noted that there was significant upregulation of DUSP4 in MDA-MB-231 (MSL) and of AR in MDA-MB-453 (LAR) compared to BT-549 (M) (Fig. 5d). When using MDA-MB-453 (LAR) as the reference line, significant upregulation of AR, ABCA12, IGQAP3, and KLRG2 in MDA-MB-453 (Fig. 5e) was found. Finally, when using MDA-MB-468 (BL1) as the reference line, significant upregulation of ITGB8, PABPC1, and WNT5A in MDA-MB-468 (Fig. 5f) was found.

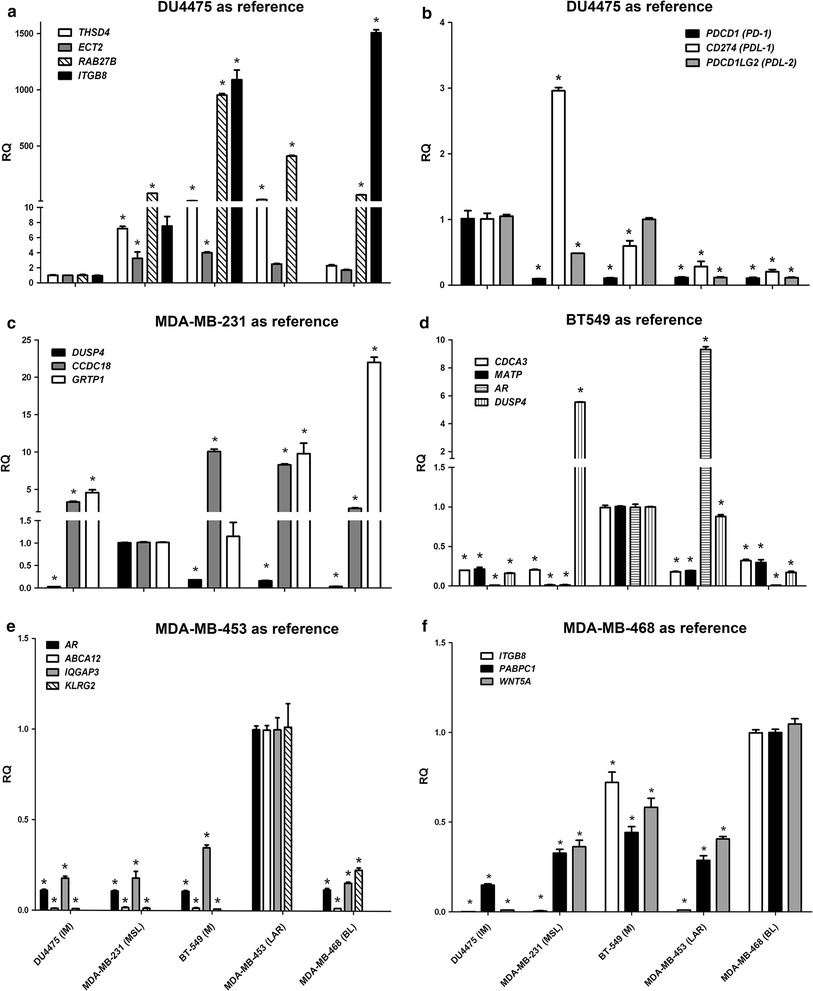

Fig. 5

Model identification using representative genes in human triple-negative breast cancer (TNBC) cell lines. Using the DU4475 (IM) as the reference line, there was significant downregulation of THSD4, ECT2, RAB27B, and ITGB8 (a) together with significant upregulation of PDCD1 (PD1), CD274 (PDL1) (except MDAMB231), and PDCD1LG2 (PDL2) (b) compared to the other cell lines).Using the MDA-MB-231 (MSL) (c) as the reference line, there was significant upregulation of DUSP4 together with significant downregulation of CCDC18 and GRTP1 compared to other cell lines. Using the BT-549 (M) (d) as the reference line, there was significant upregulation of CDCA3 and MATP in this line, compared to other cell lines and there was significant upregulation of DUSP4 in MDA-MB-231 (MSL) and AR in MDA-MB-453 (LAR), compared to the BT-549 (M) line. Using the MDA-MB-453 (LAR) as reference line (e), there was significant upregulation of AR, ABCA12, IQGAP3, and KLRG2 in this line, compared to other cell lines. Using the MDA-MB-468 (BL1) as the reference line (f), there was significant upregulation of TPGB8, PABPC1, and WNT5A in this line, compared to other cell lines

Discussion

Breast cancer raises important health problem worldwide. Even after considering the many therapies for the various subtypes of breast cancer, treatment of triple-negative breast cancer (TNBC) remains a challenging issue. The heterogeneity of TNBC tumors contributes to their poor response to chemotherapy, and this had led to the development of TNBC subtyping. In this study, we compiled GE profiles from publically available breast cancer microarray datasets that included both nonunion and Taiwanese populations. These were then cluster analyzed, which was followed by model identification using representative genes in TNBC cell lines.

There is consensus that significant preprocessing, including background adjustment, normalization, and summarization, is required before a specific gene may be accurately assessed using a complied dataset [29]. Based on the published gene lists of the six subtypes of TNBC proposed by Lehmann et al. [7], using our compiled dataset, we found that there was clearly distinct subtype presentation among nonunion samples (Fig. 2, left panel), but this subtyping was not the same for the Taiwanese population (Fig. 2, right panel). Based on these finding, we renormalized the Taiwanese data using the MAS5 procedure and carried out clustering; this resulted in five rather than six clear subtypes being present in the Taiwanese population. Previous studies have suggested that the GCRMA approach might be responsible for introducing artifacts into the data analysis and that this can lead to a systematic overestimate of pairwise correlations within the data. In this context, it has been suggested that the MAS5 approach provides the most faithful cellular network reconstruction [30, 31].

Although from three to six TNBC subtypes have been proposed by various authors either using gene ontologies [10, 32], therapeutic targets [11, 12] or mRNA profiles as the diagnostic criteria [13], the exact number of TNBC subtypes that occur in women remains an open question [14]. Our findings identified five subtypes and these were the IM, MSL, M, LAR and BL subtypes. Interestingly, the BL1 and BL2 subtypes of the Lehmann’s six type classification were clustered as a single BL subtype in our Taiwanese dataset. We attribute this discrepancy to a result of a smaller sample size, as the number of subtypes tends to increase with sample size.

Several lines of evidence suggest that the interactions of cancer cells with their microenvironment are a critical feature during tumor progression. The cell types involved in such interactions are not necessarily stromal cells [33], but also include macrophages [34], endothelial cells [35], and T cells [36]. Interestingly, we found significant upregulation of PDCD1 (PD1), CD274 (PDL1), and PDCD1LG2 (PDL2) expression in the IM subtype compared to the MSL subtype in our compiled dataset. However, when using DU4475 (IM) as the reference line, there was significant upregulation of PDCD1 (PD1), and PDCD1LG2 (PDL2), but not of CD274 (PDL1), compared to MDA-MB-231 (MSL) (Supplementary Reference 3). We attribute this discrepancy to the study samples used, namely, cell lines versus tumor tissue. In the former, only cancer cells were investigated, while in the latter, cancer cells and other cells participating in the tumor microenvironment were investigated as a pool. It should be noted that the IM and MSL subtypes in our dataset share many canonical pathways, such as the iCOS-iCOSL signaling pathway (Table 4), which suggests the presence of significant similarity between these two subtypes. This seems to be supported by previous findings, which indicated that some transcripts present in the IM and MSL subtypes are contributed to by the tumor microenvironment [14].

The expression of the androgen receptor (AR) plays various different prognostic roles depending on the breast cancer subtype, such as the difference between ER-positive and ER-negative breast cancers with the expression levels of around 67–88% [37, 38] and 12–50% [39] for AR, respectively. Importantly in this context, it should be noted that the prevalence of AR expression has been found to range from 0–53% of TNBC [40].

In our compiled dataset, the percentages of the LAR subtype among nonunion and Taiwanese TNBC women were found to be 11.13 and 23.58%, respectively. There is evidence suggesting that AR expression is about 60% among early breast cancers and is more frequently expressed in ER-positive than ER-negative breast cancers [41]. We speculate that ethnic differences might explain the variation in the percentage of the AR subtype between these different populations. However, further validation of this speculation is needed. If we examine cell line-specific gene expression, although the AR gene in BT-549 (M) is upregulated compared to DU4475 (IM), MDA-MB-468 (BL1) and MDA-MB-231 (MSL), the AR gene transcript in MDA-MB-453 (LAR) is ninefold higher than in BT-549 (M), which suggests that this change in AR gene expression is specific to the LAR subtype. Recent discrepancies concerning the role of AR have been noted in various TNBC basic and clinical studies and both AR agonist and AR antagonist clinical trials have been designed for the treatment of TNBC and ER+ breast cancers [41, 42, 43]. Thus, the therapeutic role of AR remains an open question.

In summary, our findings suggest that there exist different presentations between nonunion and Taiwanese female populations in terms of TNBC subtypes. The fact that there seems to be correlation between the IM and MSL subtypes suggests the involvement of the tumor microenvironment in TNBC subtype classification might help to provide important information when selecting therapeutic targets or designing for clinical trials for TNBC patients.

Notes

Acknowledgements

This work was supported by grants from Ministry of Health and Welfare (Center of Excellence for Cancer Research at Taipei Veterans General Hospital phase II, MOHW103TDU212114002, MOHW104TDUB211124001, MOHW105TDUB211134003, and Taipei Veterans General Hospital, (V106C029). We thank the Genome Research Center, National Yang-Ming University, for the assistance on oligonucleotide microarray analysis and open array TaqMan® Gene Expression Assays.

Compliance with ethical standards

Conflict of interests

I confirm that I have read BioMed Central’s guidance on competing interests and have included a statement indicating that none of the authors have any competing interests in the manuscript.

Ethical approval

Since this study was a retrospective review of medical records, it was approved by Institutional Review Board of Taipei Veterans General Hospital (# 2013-10-020BC), and no patients’ consent form was needed. The human triple negative breast cancer cell lines were used under the approval of Institutional Review Board of Taipei Veterans General Hospital (# 2016-06-012BC).

Authors’ contributions

Tseng, LM and Chiu, JH contributed in forming the idea and writing the manuscript and providing clinical data. Chiu JH contributed in conducting the microarray analysis. Wang YL contributed in publicly available data acquisition. Liu CY contributed in providing cell lines. Tsai YF contributed in providing clinical data. Yang CW contributed in providing microarray analysis comments. Shyr YM contributed in providing clinical and facilities supports.

Supplementary material

10549_2017_4195_MOESM1_ESM.pdf (112 kb)
Supplementary material 1 (PDF 111 kb)
10549_2017_4195_MOESM2_ESM.pdf (114 kb)
Supplementary material 2 (PDF 113 kb)
10549_2017_4195_MOESM3_ESM.pdf (219 kb)
Supplementary material 3 (PDF 219 kb)

References

  1. 1.
    Tao Z, Shi A, Lu C, Song T, Zhang Z, Zhao J (2015) Breast cancer: epidemiology and etiology. Cell Biochem Biophys 72(2):333–338. doi: 10.1007/s12013-014-0459-6 CrossRefPubMedGoogle Scholar
  2. 2.
    DeSantis C, Siegel R, Bandi P, Jemal A (2011) Breast cancer statistics, 2011. CA Cancer J Clin 61(6):409–418. doi: 10.3322/caac.20134 CrossRefPubMedGoogle Scholar
  3. 3.
    Skibinski A, Kuperwasser C (2015) The origin of breast tumor heterogeneity. Oncogene 34(42):5309–5316. doi: 10.1038/onc.2014.475 CrossRefPubMedPubMedCentralGoogle Scholar
  4. 4.
    Kumar P, Aggarwal R (2016) An overview of triple-negative breast cancer. Arch Gynecol Obstet 293(2):247–269. doi: 10.1007/s00404-015-3859-y CrossRefPubMedGoogle Scholar
  5. 5.
    Podo F, Buydens LM, Degani H, Hilhorst R, Klipp E, Gribbestad IS, Van Huffel S, van Laarhoven HW, Luts J, Monleon D, Postma GJ, Schneiderhan-Marra N, Santoro F, Wouters H, Russnes HG, Sorlie T, Tagliabue E, Borresen-Dale AL, Consortium F (2010) Triple-negative breast cancer: present challenges and new perspectives. Mol Oncol 4(3):209–229. doi: 10.1016/j.molonc.2010.04.006 CrossRefPubMedGoogle Scholar
  6. 6.
    Kuo WH, Chang YY, Lai LC, Tsai MH, Hsiao CK, Chang KJ, Chuang EY (2012) Molecular characteristics and metastasis predictor genes of triple-negative breast cancer: a clinical study of triple-negative breast carcinomas. PLoS ONE 7(9):e45831. doi: 10.1371/journal.pone.0045831 CrossRefPubMedPubMedCentralGoogle Scholar
  7. 7.
    Lehmann BD, Bauer JA, Chen X, Sanders ME, Chakravarthy AB, Shyr Y, Pietenpol JA (2011) Identification of human triple-negative breast cancer subtypes and preclinical models for selection of targeted therapies. J Clin Investig 121(7):2750–2767. doi: 10.1172/JCI45014 CrossRefPubMedPubMedCentralGoogle Scholar
  8. 8.
    Ahn SG, Kim SJ, Kim C, Jeong J (2016) Molecular classification of triple-negative breast cancer. J Breast Cancer 19(3):223–230. doi: 10.4048/jbc.2016.19.3.223 CrossRefPubMedPubMedCentralGoogle Scholar
  9. 9.
    Le Du F, Eckhardt BL, Lim B, Litton JK, Moulder S, Meric-Bernstam F, Gonzalez-Angulo AM, Ueno NT (2015) Is the future of personalized therapy in triple-negative breast cancer based on molecular subtype? Oncotarget 6(15):12890–12908. doi: 10.18632/oncotarget.3849 CrossRefPubMedPubMedCentralGoogle Scholar
  10. 10.
    Anders CK, Abramson V, Tan T, Dent R (2016) The evolution of triple-negative breast cancer: from biology to novel therapeutics. Am Soc Clin Oncol Educ Book Am Soc Clin Oncol Meet 35:34–42. doi: 10.14694/EDBK_159135 CrossRefGoogle Scholar
  11. 11.
    Barton VN, D’Amato NC, Gordon MA, Lind HT, Spoelstra NS, Babbs BL, Heinz RE, Elias A, Jedlicka P, Jacobsen BM, Richer JK (2015) Multiple molecular subtypes of triple-negative breast cancer critically rely on androgen receptor and respond to enzalutamide in vivo. Mol Cancer Ther 14(3):769–778. doi: 10.1158/1535-7163.MCT-14-0926 CrossRefPubMedPubMedCentralGoogle Scholar
  12. 12.
    Burstein MD, Tsimelzon A, Poage GM, Covington KR, Contreras A, Fuqua SA, Savage MI, Osborne CK, Hilsenbeck SG, Chang JC, Mills GB, Lau CC, Brown PH (2015) Comprehensive genomic analysis identifies novel subtypes and targets of triple-negative breast cancer. Clin Cancer Res 21(7):1688–1698. doi: 10.1158/1078-0432.ccr-14-0432 CrossRefPubMedGoogle Scholar
  13. 13.
    Liu YR, Jiang YZ, Xu XE, Yu KD, Jin X, Hu X, Zuo WJ, Hao S, Wu J, Liu GY, Di GH, Li DQ, He XH, Hu WG, Shao ZM (2016) Comprehensive transcriptome analysis identifies novel molecular subtypes and subtype-specific RNAs of triple-negative breast cancer. Breast Cancer Res 18(1):33. doi: 10.1186/s13058-016-0690-8 CrossRefPubMedPubMedCentralGoogle Scholar
  14. 14.
    Lehmann BD, Jovanovic B, Chen X, Estrada MV, Johnson KN, Shyr Y, Moses HL, Sanders ME, Pietenpol JA (2016) Refinement of triple-negative breast cancer molecular subtypes: implications for neoadjuvant chemotherapy selection. PLoS ONE 11(6):e0157368. doi: 10.1371/journal.pone.0157368 CrossRefPubMedPubMedCentralGoogle Scholar
  15. 15.
    Lehmann BD, Pietenpol JA, Tan AR (2015) Triple-negative breast cancer: molecular subtypes and new targets for therapy. Am Soc Clin Oncol Educ Book Am Soc Clin Oncol Meet. doi: 10.14694/EdBook_AM.2015.35.e31 Google Scholar
  16. 16.
    Brewster AM, Chavez-MacGregor M, Brown P (2014) Epidemiology, biology, and treatment of triple-negative breast cancer in women of African ancestry. Lancet Oncol 15(13):e625–e634. doi: 10.1016/S1470-2045(14)70364-X CrossRefPubMedPubMedCentralGoogle Scholar
  17. 17.
    Llanos AA, Chandwani S, Bandera EV, Hirshfield KM, Lin Y, Ambrosone CB, Demissie K (2015) Associations between sociodemographic and clinicopathological factors and breast cancer subtypes in a population-based study. Cancer Causes Control 26(12):1737–1750. doi: 10.1007/s10552-015-0667-4 CrossRefPubMedPubMedCentralGoogle Scholar
  18. 18.
    Martinez ME, Wertheim BC, Natarajan L, Schwab R, Bondy M, Daneri-Navarro A, Meza-Montenegro MM, Gutierrez-Millan LE, Brewster A, Komenaka IK, Thompson PA (2013) Reproductive factors, heterogeneity, and breast tumor subtypes in women of mexican descent. Cancer Epidemiol Biomarkers Prev 22(10):1853–1861. doi: 10.1158/1055-9965.EPI-13-0560 CrossRefPubMedPubMedCentralGoogle Scholar
  19. 19.
    Clarke CA, Keegan TH, Yang J, Press DJ, Kurian AW, Patel AH, Lacey JV Jr (2012) Age-specific incidence of breast cancer subtypes: understanding the black-white crossover. J Natl Cancer Inst 104(14):1094–1101. doi: 10.1093/jnci/djs264 CrossRefPubMedPubMedCentralGoogle Scholar
  20. 20.
    Lund MJ, Trivers KF, Porter PL, Coates RJ, Leyland-Jones B, Brawley OW, Flagg EW, O’Regan RM, Gabram SG, Eley JW (2009) Race and triple negative threats to breast cancer survival: a population-based study in Atlanta, GA. Breast Cancer Res Treat 113(2):357–370. doi: 10.1007/s10549-008-9926-3 CrossRefPubMedGoogle Scholar
  21. 21.
    Dietze EC, Sistrunk C, Miranda-Carboni G, O’Regan R, Seewaldt VL (2015) Triple-negative breast cancer in African-American women: disparities versus biology. Nat Rev Cancer 15(4):248–254. doi: 10.1038/nrc3896 CrossRefPubMedGoogle Scholar
  22. 22.
    Chen LH, Kuo WH, Tsai MH, Chen PC, Hsiao CK, Chuang EY, Chang LY, Hsieh FJ, Lai LC, Chang KJ (2011) Identification of prognostic genes for recurrent risk prediction in triple negative breast cancer patients in Taiwan. PLoS ONE 6(11):e28222. doi: 10.1371/journal.pone.0028222 CrossRefPubMedPubMedCentralGoogle Scholar
  23. 23.
    Hicks C, Kumar R, Pannuti A, Backus K, Brown A, Monico J, Miele L (2013) An integrative genomics approach for associating GWAS information with triple-negative breast cancer. Cancer Inform 12:1–20. doi: 10.4137/CIN.S10413 CrossRefPubMedPubMedCentralGoogle Scholar
  24. 24.
    Wu Y, Sarkissyan M, Elshimali Y, Vadgama JV (2013) Triple negative breast tumors in African-American and Hispanic/Latina women are high in CD44+, low in CD24+, and have loss of PTEN. PLoS ONE 8(10):e78259. doi: 10.1371/journal.pone.0078259 CrossRefPubMedPubMedCentralGoogle Scholar
  25. 25.
    Jacot W, Lopez-Crapez E, Thezenas S, Senal R, Fina F, Bibeau F, Romieu G, Lamy PJ (2011) Lack of EGFR-activating mutations in European patients with triple-negative breast cancer could emphasise geographic and ethnic variations in breast cancer mutation profiles. Breast Cancer Res 13(6):R133. doi: 10.1186/bcr3079 CrossRefPubMedPubMedCentralGoogle Scholar
  26. 26.
    Chavez-Macgregor M, Liu S, De Melo-Gagliato D, Chen H, Do KA, Pusztai L, Fraser Symmans W, Nair L, Hortobagyi GN, Mills GB, Meric-Bernstam F, Gonzalez-Angulo AM (2014) Differences in gene and protein expression and the effects of race/ethnicity on breast cancer subtypes. Cancer Epidemiol Biomarkers Prev 23(2):316–323. doi: 10.1158/1055-9965.EPI-13-0929 CrossRefPubMedGoogle Scholar
  27. 27.
    Tsai CH, Chiu JH, Yang CW, Wang JY, Tsai YF, Tseng LM, Chen WS, Shyr YM (2015) Molecular characteristics of recurrent triple-negative breast cancer. Mol Med Rep 12(5):7326–7334. doi: 10.3892/mmr.2015.4360 PubMedPubMedCentralGoogle Scholar
  28. 28.
    Chomczynski P, Sacchi N (1987) Single-step method of RNA isolation by acid guanidinium thiocyanate–phenol–chloroform extraction. Anal Biochem 162(1):156–159. doi: 10.1006/abio.1987.9999 CrossRefPubMedGoogle Scholar
  29. 29.
    Gautier L, Moller M, Friis-Hansen L, Knudsen S (2004) Alternative mapping of probes to genes for Affymetrix chips. BMC Bioinform 5:111. doi: 10.1186/1471-2105-5-111 CrossRefGoogle Scholar
  30. 30.
    Irizarry RA, Bolstad BM, Collin F, Cope LM, Hobbs B, Speed TP (2003) Summaries of Affymetrix GeneChip probe level data. Nucleic Acids Res 31(4):e15CrossRefPubMedPubMedCentralGoogle Scholar
  31. 31.
    Lim WK, Wang K, Lefebvre C, Califano A (2007) Comparative analysis of microarray normalization procedures: effects on reverse engineering gene networks. Bioinformatics 23(13):i282–i288. doi: 10.1093/bioinformatics/btm201 CrossRefPubMedGoogle Scholar
  32. 32.
    Jezequel P, Loussouarn D, Guerin-Charbonnel C, Campion L, Vanier A, Gouraud W, Lasla H, Guette C, Valo I, Verriele V, Campone M (2015) Gene-expression molecular subtyping of triple-negative breast cancer tumours: importance of immune response. Breast Cancer Res 17:43. doi: 10.1186/s13058-015-0550-y CrossRefPubMedPubMedCentralGoogle Scholar
  33. 33.
    Nitsche U, Stangel D, Pan Z, Schlitter AM, Esposito I, Regel I, Raulefs S, Friess H, Kleeff J, Erkan M (2016) Periostin and tumor–stroma interactions in non-small cell lung cancer. Oncol Lett 12(5):3804–3810. doi: 10.3892/ol.2016.5132 PubMedPubMedCentralGoogle Scholar
  34. 34.
    Hsu DS, Wang HJ, Tai SK, Chou CH, Hsieh CH, Chiu PH, Chen NJ, Yang MH (2014) Acetylation of snail modulates the cytokinome of cancer cells to enhance the recruitment of macrophages. Cancer Cell 26(4):534–548. doi: 10.1016/j.ccell.2014.09.002 CrossRefPubMedGoogle Scholar
  35. 35.
    Romero-Lopez M, Trinh AL, Sobrino A, Hatch MM, Keating MT, Fimbres C, Lewis DE, Gershon PD, Botvinick EL, Digman M, Lowengrub JS, Hughes CC (2017) Recapitulating the human tumor microenvironment: colon tumor-derived extracellular matrix promotes angiogenesis and tumor cell growth. Biomaterials 116:118–129. doi: 10.1016/j.biomaterials.2016.11.034 CrossRefPubMedGoogle Scholar
  36. 36.
    Martinenaite E, Munir Ahmad S, Hansen M, Met O, Westergaard MW, Larsen SK, Klausen TW, Donia M, Svane IM, Andersen MH (2016) CCL22-specific T Cells: modulating the immunosuppressive tumor microenvironment. Oncoimmunology 5(11):e1238541. doi: 10.1080/2162402X.2016.1238541 CrossRefPubMedGoogle Scholar
  37. 37.
    Loibl S, Muller BM, von Minckwitz G, Schwabe M, Roller M, Darb-Esfahani S, Ataseven B, du Bois A, Fissler-Eckhoff A, Gerber B, Kulmer U, Alles JU, Mehta K, Denkert C (2011) Androgen receptor expression in primary breast cancer and its predictive and prognostic value in patients treated with neoadjuvant chemotherapy. Breast Cancer Res Treat 130(2):477–487. doi: 10.1007/s10549-011-1715-8 CrossRefPubMedGoogle Scholar
  38. 38.
    Hu R, Dawood S, Holmes MD, Collins LC, Schnitt SJ, Cole K, Marotti JD, Hankinson SE, Colditz GA, Tamimi RM (2011) Androgen receptor expression and breast cancer survival in postmenopausal women. Clin Cancer Res 17(7):1867–1874. doi: 10.1158/1078-0432.CCR-10-2021 CrossRefPubMedPubMedCentralGoogle Scholar
  39. 39.
    Gucalp A, Tolaney S, Isakoff SJ, Ingle JN, Liu MC, Carey LA, Blackwell K, Rugo H, Nabell L, Forero A, Stearns V, Doane AS, Danso M, Moynahan ME, Momen LF, Gonzalez JM, Akhtar A, Giri DD, Patil S, Feigin KN, Hudis CA, Traina TA, Translational Breast Cancer Research Consortium (2013) Phase II trial of bicalutamide in patients with androgen receptor-positive, estrogen receptor-negative metastatic breast cancer. Clin Cancer Res 19(19):5505–5512. doi: 10.1158/1078-0432.CCR-12-3327 CrossRefPubMedPubMedCentralGoogle Scholar
  40. 40.
    McNamara KM, Yoda T, Takagi K, Miki Y, Suzuki T, Sasano H (2013) Androgen receptor in triple negative breast cancer. J Steroid Biochem Mol Biol 133:66–76. doi: 10.1016/j.jsbmb.2012.08.007 CrossRefPubMedGoogle Scholar
  41. 41.
    Pietri E, Conteduca V, Andreis D, Massa I, Melegari E, Sarti S, Cecconetto L, Schirone A, Bravaccini S, Serra P, Fedeli A, Maltoni R, Amadori D, De Giorgi U, Rocca A (2016) Androgen receptor signaling pathways as a target for breast cancer treatment. Endocr Relat Cancer 23(10):R485–R498. doi: 10.1530/erc-16-0190 CrossRefPubMedGoogle Scholar
  42. 42.
    Asano Y, Kashiwagi S, Goto W, Tanaka S, Morisaki T, Takashima T, Noda S, Onoda N, Ohsawa M, Hirakawa K, Ohira M (2017) Expression and clinical significance of androgen receptor in triple-negative breast cancer. Cancers. doi: 10.3390/cancers9010004 PubMedPubMedCentralGoogle Scholar
  43. 43.
    Narayanan R, Dalton JT (2016) Androgen receptor: a complex therapeutic target for breast cancer. Cancers. doi: 10.3390/cancers8120108 PubMedPubMedCentralGoogle Scholar

Copyright information

© The Author(s) 2017

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors and Affiliations

  • Ling-Ming Tseng
    • 1
    • 2
    Email author
  • Jen-Hwey Chiu
    • 1
    • 3
    • 4
  • Chun-Yu Liu
    • 5
  • Yi-Fang Tsai
    • 1
    • 6
  • Yun-Lin Wang
    • 3
  • Chu-Wen Yang
    • 7
  • Yi-Ming Shyr
    • 1
  1. 1.Comprehensive Breast Health Center & Division of General Surgery, Department of SurgeryTaipei Veterans General HospitalTaipeiTaiwan, ROC
  2. 2.Department of Surgery, School of MedicineNational Yang-Ming UniversityTaipeiTaiwan, ROC
  3. 3.Institute of Traditional Medicine, School of MedicineNational Yang-Ming UniversityTaipeiTaiwan, ROC
  4. 4.Division of General Surgery, Department of SurgeryCheng-Hsin General HospitalTaipeiTaiwan, ROC
  5. 5.Division of Medical Oncology, Department of OncologyTaipei Veterans General HospitalTaipeiTaiwan, ROC
  6. 6.School of Medicine, Institute of Clinical MedicineNational Yang-Ming UniversityTaipeiTaiwan, ROC
  7. 7.Department of MicrobiologySoochow UniversityTaipeiTaiwan, ROC

Personalised recommendations
