Journal of Plant Research

, Volume 127, Issue 1, pp 73–78 | Cite as

Evaluation of the radioactive Cs concentration in brown rice based on the K nutritional status of shoots

  • Hitoshi Sekimoto
  • Takashi Yamada
  • Tomoe Hotsuki
  • Toru Fujiwara
  • Tetsuro Mimura
  • Akio Matsuzaki
JPR Symposium Current status and future control of cesium contamination in plants and algae in Fukushima

Abstract

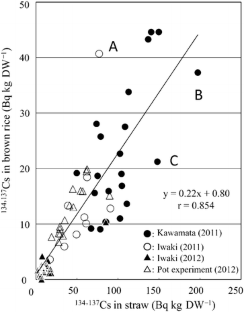

The radioactive cesium (134,137Cs) concentration in brown rice is correlated with that in the straw/husk. The distribution of 134,137Cs, resembles that of potassium (K), a homologous element of Cs, in the rice plant body. The relative isotopic abundance of 40K is 0.0117 %; thus, 1 g K contains 30.4 Bq 40K, and the mass of 4,000 Bq 40K is 0.0154 g, indicating that the K concentration can be calculated from 40K concentration. We examined if the radioactive Cs concentration in brown rice can be estimated from 40K concentrations in straw, and especially might be predicted from the 40K:134,137Cs ratio in straw. We determined the concentrations of 40K and radioactive Cs in straw and brown rice, and found a strong correlated-equation (y = 72.922 x−0.759; r = 0.907) between the radioactive Cs concentration in brown rice and the 40K:134,137Cs ratio in straw. The estimated-radioactive Cs concentration in brown rice can be as much as double, depending on the K nutritional status changing the 40K:134,137Cs ratio in straw. We herein propose a nutritional diagnosis that radioactive Cs concentrations in brown rice can be predicted from the 40K:134,137Cs ratio in shoots.

Keywords

K nutritional status 40K:134,137Cs concentration ratio Plant nutritional diagnosis Radioactive Cs

Notes

Acknowledgments

We thank Prof. Yuichi Onda (University of Tsukuba) for supervising this research. We also thank Prof. Akira Kitamura and Ms. Chiyo Komiyama (Graduate School of Maritime Sciences, Kobe University) and Ms. Mari Mimura (Graduate school of science, Kobe University) for their support with the Ge solid-state detector system and data analysis. This research was funded by the Ministry of Education, Culture, Sports, Science and Technology of Japan (Grant-in-Aid No. 24110007), and received funds from a grant from the Mitsui & Co., Ltd. Environment Fund, and from a research grant for Supporting Tohoku from the President of Utsunomiya University.

References

  1. Bange GGJ, Overstreet R (1960) Some observations on absorption of cesium by excised barley root. Plant Physiol 35:605–608CrossRefPubMedCentralPubMedGoogle Scholar
  2. Brownridge JD (1984) The radial distribution of 137Cs and 40K in tree stems. J Plant Nutr 7:887–896CrossRefGoogle Scholar
  3. Bunzl K, Albers BP, Schimmack W, Belli M, Ciuffo L, Menegon S (2000) Examination of a relationship between 137Cs concentrations in soils and plants from alpine pastures. J Environ Radioactivity 48:145–158CrossRefGoogle Scholar
  4. Ciuffo LEC, Belli M (2006) Radioactive trace in semi natural grassland. Effect of 40K in soil and potential remediation. Electr J Biotechnol 9:297–302CrossRefGoogle Scholar
  5. Ciuffo LEC, Belli M, Pasquale A, Menegon S, Velasco HR (2002) 137Cs and 40K soil-to-plant relationship in a semi natural grassland of the Giulia Alps, Italy. Sci Total Environ 295:69–80CrossRefPubMedGoogle Scholar
  6. Cline JF (1962) Effect of nutrient potassium on the uptake of caesium-137 and potassium discrimination factor. Nature 193:1302–1303CrossRefPubMedGoogle Scholar
  7. Endo S, Kajimoto T, Shizuma K (2013) Paddy-field contamination with 134Cs and 137Cs due to Fukushima Dai-ichi Nuclear Power Plant accident and soil-to-rice transfer coefficients. J Environ Radioactivity 116:59–64CrossRefGoogle Scholar
  8. Fukushima Prefecture Department of Agriculture, Forestry and Fisheries (2013) Technical guidelines relating to reduction and decontamination of radioactive cesium for crops, 2nd edn. http://wwwcms.pref.fukushima.jp/download/1/2-1-s_suitou_h250329.pdf (in Japanese)
  9. Fukushima Prefecture, Ministry of Agriculture Forestry and Fisheries (MAFF) (2013) Factors and measures productive of the rice containing high radioactive Cs. http://wwwcms.pref.fukushima.jp/download/1/youinkaiseki-kome130124.pdf (in Japanese)
  10. Handley R, Overstreet R (1961) Effect of various cations upon absorption of carrier-free cesium. Plant Physiol 36:66–69CrossRefPubMedCentralPubMedGoogle Scholar
  11. Harada N, Nonaka M (2013) Soil radiocesium distribution in rice fields disturbed by farming process after the Fukushima Dai-ichi Nuclear Power Plant accident. Science Total Environ 438:242–247CrossRefGoogle Scholar
  12. Hasegawa E, Saitoh K, Yasui T, Hisamasue T, Shiojima M (1987) Potassium and sodium uptake by rice plant. Bull Miyagi Prefect Agriculture Research Center 55:19–36 (in Japanese with English summary)Google Scholar
  13. Hasegawa E, Saitoh K, Yasui T (1990) Potassium and sodium uptake by rice plant. Jpn J Soil Sci Plant Nutr 61:649–652 (in Japanese)Google Scholar
  14. Hokkaido Agricultural Administration (2010) Hokkaido Fertilizer Recommendations 2010. p 18. http://www.agri.hro.or.jp/chuo/fukyu/sehiguide2010_index.html (in Japanese)
  15. Ichida AM, Baizabal-Aguirre VM, Schroeder JI (1999) Genetic selection of inward-rectifying K+ channel mutants with reduced Cs+ sensitivity by random recombinant DNA shuffling mutagenesis and mutant selection in yeast. J Exp Bot 50:967–978CrossRefGoogle Scholar
  16. Kanter U, Hauser A, Michalke B, Dräxl S, Schäffner AR (2010) Caesium and strontium accumulation in shoots of Arabidopsis thaliana genetic and physiological aspects. J Exp Bot 61:3995–4009CrossRefPubMedGoogle Scholar
  17. Karunakara N, Rao C, Ujwal P, Yashodhara I, Kumara S, Ravi PM (2013) Soil to rice transfer factors for 226Ra, 228Ra, 210Pb, 40K and 137Cs: a study on rice grown in India. J Environ Radioactivity 118:80–92CrossRefGoogle Scholar
  18. Lembrechts J (1993) A review of literature on the effectiveness of chemical amendments in reducing the soil-to-plant transfer of radiostrontium and radiocesium. Sci Total Environ 137:81–98CrossRefGoogle Scholar
  19. Maathuis FJM, Sanders D (1996) Characterization of csi52, a Cs+ resistant mutant of Arabidopsis thaliana altered in K+ transport. Plant J 10:579–589CrossRefPubMedGoogle Scholar
  20. Matsuzaka T, Shirai A, Imaizumi Y (1962a) Studies on the potassium deficiency of paddy rice plant (part 1). The disturbances of the nutrients uptake and metabolism in potassium deficient rice plant (1). Jpn J Soil Sci Plant Nutr 33:125–128 (in Japanese)Google Scholar
  21. Matsuzaka T, Shirai A, Imaizumi Y (1962b) Studies on the potassium deficiency of paddy rice plant (part 2). The relation of potassium deficiency to nitrogen nutrition in paddy rice plant. Jpn J Soil Sci Plant Nutr 33:129–132 (in Japanese)Google Scholar
  22. Matsuzaka T, Shirai A, Imaizumi Y (1962c) Studies on the potassium deficiency of paddy rice plant (part 3). The disturbances of the nutrients uptake and metabolism in potassium deficient rice plant (2). Jpn J Soil Sci Plant Nutr 33:173–176 (in Japanese)Google Scholar
  23. Mimura T, Mimura M, Komiyama C, Miyamoto M, Kitamura A (2014) Measurements of gamma (γ)-emitting radionuclides with a high purity germanium detector: the methods and reliability of our environmental assessments on the Fukushima 1 Nuclear Power Plant accident. J Plant Res 127 (in this issue). doi: 10.1007/s10265-013-0594-y
  24. Ohmori Y, Kajikawa M, Nishida S, Tanaka N, Kobayashi NI, Tanoi K, Furukawa J, Fujiwara T (2014) The effect of fertilization on cesium concentration of rice grown in a paddy field in Fukushima Prefecture in 2011 and 2012. J Plant Res 127 (in this issue). doi: 10.1007/s10265-013-0618-7
  25. Sekimoto H, Yamada T, Hotsuki T, Matsuzaki A, Mimura T (2014) Desirable levels of exchangeable K and Ca and their concentration in soil solution for reduction of radioactive Cs uptake in rice plant. Jpn J Soil Sci Plant Nutr (in press) (in Japanese with English summary)Google Scholar
  26. Shaw G, Bell JNB (1989) The kinetics of cesium absorption by roots of winter-wheat and the possible consequences for the derivation of soil-to-plant transfer factors for radiocesium. J Environ Radioactivity 10:213–231CrossRefGoogle Scholar
  27. Smolders E, Kiebooms L, Buysse J, Merckx R (1996a) 137Cs uptake in spring wheat (Triticum aestivum L. cv Tonic) at varying K supply I. The effect in solution culture. Plant Soil 181:205–209CrossRefGoogle Scholar
  28. Smolders E, Kiebooms L, Buysse J, Merckx R (1996b) 137Cs uptake in spring wheat (Triticum aestivum L. cv Tonic) at varying K supply Π. A potted soil experiment. Plant Soil 181:211–220CrossRefGoogle Scholar
  29. Smolders F, Van den Brande K, Merckx R (1997) Concentrations of 137Cs and K in soil solution predict the plant availability of 137Cs in soils. Environ Sci Technol 31:3432–3438CrossRefGoogle Scholar
  30. Takahashi Y, Shima T, Takahashi Y, Takahashi M, Ono T (2003) The exchangeable potassium level in soil which enables paddy rice cultivation without potassium fertilizer. Bull Iwate Agric Res Center 3:49–56Google Scholar
  31. Tensho K, Yo K, Mitsui S (1961) Specific mechanisms of cesium uptake by rice plant. Jpn J Soil Sci Plant Nutr 32:139–144 (in Japanese)Google Scholar
  32. Tsukada H, Hasegawa H, Hisamatsu S, Yamasaki S (2002a) Transfer of 137Cs and stable Cs from paddy soil to polished rice in Aomori, Japan. J Environ Radioactivity 59:351–363CrossRefGoogle Scholar
  33. Tsukada H, Hasegawa H, Hisamatsu S, Yamasaki S (2002b) Rice uptake and distributions of radioactive 137Cs, stable 133Cs and K from soil. Environ Pollut 117:403–409CrossRefPubMedGoogle Scholar
  34. Tsumura A, Komamura M, Kobayashi H (1984) Behavior of radioactive Sr and Cs in soil -plant systems. Bull Natl Inst Agric Sci Ser B 36:57–113 (in Japanese with English summary)Google Scholar
  35. White PJ, Broadley MR (2000) Mechanisms of caesium uptake by plants. New Phytol 147:241–256CrossRefGoogle Scholar
  36. Yoshizawa C, Takazawa Y, Tsunemi J, Oshima M (2011) relationship between nitrogen nutrition and rice crops yield under long-term application of organic matter to Andosol paddy fields. Bull Tochigi Agric Exp Stn 66:27–35Google Scholar
  37. Zhu Y-G, Smolders E (2000) Plant uptake of radiocaesium: a review of mechanisms, regulation and application. J Exp Bot 51:1635–1645CrossRefPubMedGoogle Scholar
  38. Zhu Y-G, Shaw G, Nisbet AF, Wilkins BT (2000) Effects of external potassium supply on compartmentation and flux characteristics of radiocaesium in intact spring wheat roots. Ann Bot 85:293–298CrossRefGoogle Scholar
