Real rank geometry of ternary forms
- 716 Downloads
- 6 Citations
Abstract
We study real ternary forms whose real rank equals the generic complex rank, and we characterize the semialgebraic set of sums of powers representations with that rank. Complete results are obtained for quadrics and cubics. For quintics, we determine the real rank boundary: It is a hypersurface of degree 168. For quartics, sextics and septics, we identify some of the components of the real rank boundary. The real varieties of sums of powers are stratified by discriminants that are derived from hyperdeterminants.
Keywords
Real rank Ternary form DiscriminantMathematics Subject Classification
14P10 51N351 Introduction
Our aim is to study these hypersurfaces. The big guiding problem is as follows:
Problem 1.1
Determine the polynomial that defines the real rank boundary \(\partial _\mathrm{alg}(\mathcal {R}_d)\).
The analogous question for binary forms was answered in [25, Theorem 4.1]. A related and equally difficult issue is to identify all the various open strata in the real rank stratification.
Problem 1.2
Determine the possible real ranks of general ternary forms in \(\,\mathbb {R}[x,y,z]_d\).
This problem is open for \(d \ge 4\); the state of the art is the work of Bernardi, Blekherman and Ottaviani in [6]. For binary forms, this question has a complete answer, due to Blekherman [7], building on earlier work of Comon and Ottaviani [16]. See also [25, §4].
Varieties of sums of powers for ternary forms of degree \(d=2,3,4,5,6,7,8\)
| Ternary forms | R(d) | \(\mathrm{VSP}(f)\) | References |
|---|---|---|---|
| Quadrics | 3 | del Pezzo threefold \(V_5\) | Mukai [27] |
| Cubics | 4 | \(\mathbb {P}^2\) | Dolgachev and Kanev [19] |
| Quartics | 6 | Fano threefold \(V_{22}\) of genus 12 | Mukai [27] |
| Quintics | 7 | 1 point | Hilbert, Richmond, Palatini, see [33] |
| Sextics | 10 | K3 surface \(V_{38}\) of genus 20 | |
| Septics | 12 | 5 points | Dixon and Stuart [18] |
| Octics | 15 | 16 points | Ranestad and Schreyer [33] |
We are interested in the semialgebraic subset \(\mathrm{SSP}(f)_\mathbb {R}\) of those configurations (3) in \(\mathrm{VSP}(f)\) whose r points all have real coordinates. This is the space of real sums of powers. Note that the space \(\mathrm{SSP}(f)_\mathbb {R}\) is non-empty if and only if the ternary form f lies in the semialgebraic set \(\mathcal {R}_d\). The inclusion of \(\overline{\mathrm{SSP}(f)_\mathbb {R}}\) in the real variety \(\mathrm{VSP}(f)_\mathbb {R}\) of real points of \(\mathrm{VSP}(f)\) is generally strict. Our aim is to describe these objects as explicitly as possible.
Another important tool is the middle catalecticant of f, which is defined as follows. For any partition \(d = u+v\), consider the bilinear form \(\, C_{u,v}(f) : \mathbb {R}[x,y,z]_{u} \times \mathbb {R}[x,y,z]_{v} \rightarrow \mathbb {R}\,\) that maps (p, q) to the real number obtained by applying \((p \cdot q) ( \frac{\partial }{\partial x}, \frac{\partial }{\partial y}, \frac{\partial }{\partial z} ) \) to the polynomial f. We identify \(C_{u,v}(f)\) with the matrix that represents the bilinear form with respect to the monomial basis. The middle catalecticant C(f) of the ternary form f is precisely that matrix, where we take \(u=v = d/2\) when d is even, and \(u=(d-1)/2, v=(d+1)/2\) when d is odd. The hypothesis \(d \in \{2,4,6,8\}\) ensures that C(f) is square of size equal to \(R(d) = \left( {\begin{array}{c}d/2+2\\ 2\end{array}}\right) \).
Proposition 1.3
Let \(d \in \{2,4,6,8\}\) and \(f \in \mathbb {R}[x,y,z]_d\) be general. The signature of any representation (1) coincides with the signature of the middle catalecticant C(f). If C(f) is positive definite then \(\overline{\,\mathrm{SSP}(f)_\mathbb {R}}= \mathrm{VSP}(f)_\mathbb {R}\), and this set is always non-empty provided \(d \le 4\).
Proof
If \(f = \sum _{i=1}^r \lambda _i \ell _i^d\) as in (1) then C(f) is the sum of the rank one matrices \(\lambda _i C(\ell _i^d)\). If C(f) has rank r then its signature is \((\# positive \lambda _i, \# negative \ \lambda _i)\). The identity \(\mathrm{SSP}(f)_\mathbb {R}= \mathrm{VSP}(f)_\mathbb {R}\) will be proved for \(d=2\) in Theorem 2.1, and the same argument works for \(d=4,6,8\) as well. The last assertion, for \(d \le 4\), is due to Reznick [35, Theorem 4.6].\(\square \)
The structure of the paper is organized by increasing degrees: Section d is devoted to ternary forms of degree d. In Section 2, we determine the threefolds \(\mathrm{SSP}(f)_\mathbb {R}\) for quadrics, and in Section 3 we determine the surfaces \(\mathrm{SSP}(f)_\mathbb {R}\) for cubics. Theorem 3.1 summarizes the four cases displayed in Table 2. Section 4 is devoted to quartics f and their real rank boundaries. We present an algebraic characterization of \(\mathrm{SSP}(f)_\mathbb {R}\) as a subset of Mukai’s Fano threefold \(V_{22}\), following [24, 27, 29, 33, 36]. In Section 5, we use the uniqueness of the rank 7 decomposition of quintics to determine the irreducible hypersurface \(\partial _\mathrm{alg} (\mathcal {R}_5)\). We also study the case of septics \((d=7)\), and we discuss \(\mathrm{VSP}_X\) for arbitrary varieties \(X \subset \mathbb {P}^N\). Finally, Section 6 covers all we know about sextics, starting in Theorem 6.1 with a huge component of the boundary \(\partial _\mathrm{alg} (\mathcal {R}_6)\), and concluding with a case study of the monomial \(f = x^2 y^2 z^2\).
This paper contains numerous open problems and conjectures. We are fairly confident about some of them (like the one stated prior to Problem 1.1). However, others (like Conjectures 4.3 and 5.5) are based primarily on optimism. We hope that all will be useful in inspiring further progress on the real algebraic geometry of tensor decompositions.
2 Quadrics
Theorem 2.1
Let f be a rank n quadric of signature (p, q). The space \(\mathrm{SSP}(f)_\mathbb {R}\) can be identified with the quotient \(\mathrm{SO}^{+}(p,q)/G\). If the quadric f is definite then \(\mathrm{SSP}(f)_\mathbb {R}= \mathrm{VSP}(f)_\mathbb {R}= \mathrm{SO}(n)/G\). In all other cases, \(\overline{\mathrm{SSP}(f)_\mathbb {R}}\) is strictly contained in the real variety \(\mathrm{VSP}(f)_\mathbb {R}\).
Proof
The analogue of the first assertation over an algebraically closed field appears in [34, Proposition 1.4]. To prove \(\mathrm{SSP}(f)_\mathbb {R}= \mathrm{SO}^{+}(p,q)/G\) over \(\mathbb {R}\), we argue as follows. Every rank n decomposition of f has the form \(\sum _{i=1}^p \ell _i^2-\sum _{j=p+1}^{p+q} \ell _j^2\) and is hence obtained from (6) by an invertible linear transformation \(x_j \rightarrow \ell _j \) that preserves f. These elements of \(\mathrm{GL}(n,\mathbb {R})\) are taken up to sign reversals and permutations of the sets \(\{\ell _1,\ldots ,\ell _p\}\) and \(\{\ell _{p+1},\ldots ,\ell _{n}\}\).
Suppose that f is not definite, i.e., \(p,q \ge 1\). Then we can write \( f = 2\ell _1^2-2\ell _2^2+\sum _{j=3}^n \pm \ell _j^2\). Over \(\mathbb {C}\), with \(i = \sqrt{-1}\), this can be rewritten as \( \,f = (\ell _1+i\ell _2)^2+(\ell _1-i\ell _2)^2+\sum _{j=3}^n \pm \ell _j^2\). This decomposition represents a point in \(\mathrm{VSP}(f)_\mathbb {R}\backslash \overline{\mathrm{SSP}(f)_\mathbb {R}}\). There is an open set of such points.
Four possible types of a real cubic f of form (15) and its quadratic map \(F:\mathbb {P}^2 \rightarrow \mathbb {P}^2\)
| \(\lambda < -3\) | \(-3<\lambda < 0\) | \(0< \lambda < 6\) | \( 6 < \lambda \) | |
|---|---|---|---|---|
| f | Hyperbolic | Not hyperbolic | Not hyperbolic | Not hyperbolic |
| H(f) | Not hyperbolic | Hyperbolic | Hyperbolic | Hyperbolic |
| C(f) | Hyperbolic | Hyperbolic | Not hyperbolic | Hyperbolic |
| \(\# F^{-1}(\bullet )_\mathbb {R}\) | 4, 2, 0 | 4, 2, 4 | 4, 2 | 4, 2, 0 |
| \(\mathrm{SSP}(f)_\mathbb {R}\) | Disk | Disk \(\sqcup \) Möbius strip | Disk | Disk |
| Oriented matroid | \((+,+,+,+)\) | \((+,+,+,+)\) \(\sqcup \) \((+,+,-,-) \) | \((+,+,+,-)\) | \((+,+,+,+)\) |
The geometry of the inclusion \(\mathrm{SSP}(f)_\mathbb {R}\) into \(\mathrm{VSP}(f)_\mathbb {R}\) is already quite subtle in the case of binary forms, i.e., \(n=2\). We call \(f = a_0 x^2 + a_1 xy + a_2 y^2\) hyperbolic if its signature is (1, 1). Otherwise f is definite. These two cases depend on the sign of the discriminant \(a_0 a_2 - 4 a_1^2 \).
Corollary 2.2
Let f be a binary quadric of rank 2. If f is definite then \(\mathrm{SSP}(f)_\mathbb {R}=\mathrm{VSP}(f)_\mathbb {R}=\mathbb {P}^1_\mathbb {R}\). If f is hyperbolic then \(\mathrm{SSP}(f)_\mathbb {R}\) is an interval in the circle \(\mathrm{VSP}(f)_\mathbb {R}=\mathbb {P}^1_\mathbb {R}\).
Proof
The apolar ideal \(f^\perp \) is generated by two quadrics \(q_1,q_2\) in \(\mathbb {R}[x,y]_2\). Their pencil \(\mathbb {P}(f^\perp _2) \) is \(\mathrm{VSP}(f) \simeq \mathbb {P}^1\). A real point \((u:v) \in \mathbb {P}^1_\mathbb {R}= \mathrm{VSP}(f)_\mathbb {R}\) may or may not be in \(\mathrm{SSP}(f)_\mathbb {R}\). The fibers of the map \(\mathbb {P}^1_\mathbb {R}\rightarrow \mathbb {P}^1_\mathbb {R}\) given by \((q_1,q_2)\) consist of two points, corresponding to the decompositions \(f = \ell _1^2 \pm \ell _2^2\). The fiber over (u : v) consists of the roots of the quadric \(u q_2 - v q_1\). If f is definite, then both roots are always real. Otherwise the discriminant with respect to (x, y), which is a quadric in (u, v), divides \(\mathbb {P}^1_\mathbb {R}\) into \(\mathrm{SSP}(f)_\mathbb {R}\) and its complement.\(\square \)
Example 2.3
- (i)
the interior region \(\{a_0 a_2 - 4 a_1^2 < 0 \}\) is a disk, and it parametrizes the definite quadrics;
- (ii)
the exterior region \( \{a_0 a_2 - 4 a_1^2 > 0 \}\) is a Möbius strip, consisting of hyperbolic quadrics.
The topic of this paper is ternary forms, so we now fix \(n=3\). A real ternary form of rank 3 is either definite or hyperbolic. In the definite case, the normal form is \(f = x^2+y^2+z^2\), and \(\mathrm{SSP}(f)_\mathbb {R}= \mathrm{VSP}(f)_\mathbb {R}= \mathrm{SO}(3)/G\), where G has order 24. In the hyperbolic case, the normal form is \(f = x^2+y^2-z^2\), and \(\overline{\mathrm{SSP}(f)_\mathbb {R}} \subsetneq \mathrm{VSP}(f)_\mathbb {R}= \overline{\mathrm{SO}^{+}(2,1)/G}\), where G has order 4. These spaces are three-dimensional, and they sit inside the complex Fano threefold \(V_5\), as seen in Table 1. We follow [29, 34] in developing our algebraic approach to \(\mathrm{SSP}(f)_\mathbb {R}\). This sets the stage for our study of ternary forms of degree \( d \ge 4\) in the later sections.
Proposition 2.4
Proof
This fact was first observed by Mukai [27]. See also [33, §1.5]. If \(U = u_1 \wedge u_2 \wedge u_3\) lies in this intersection then the matrix A has the form (8) for any basis that contains \(u_1,u_2,u_3\).\(\square \)
Note that any general codimension 3 linear section of \(\mathrm{Gr}(3,5)\) arises in this manner. In other words, we can start with three skew-symmetric \(5 \times 5\)-matrices \(A_1,A_2,A_3\) and obtain \(\mathrm{VSP}(f) = \mathrm{Gr}(3,5) \cap \mathbb {P}^6_A\) for a unique quadratic form f. In algebraic geometry, this Fano threefold is denoted \(V_5\). It has degree 5 in \(\mathbb {P}^9\) and is known as the quintic del Pezzo threefold.
Our space \(\mathrm{SSP}(f)_\mathbb {R}\) is a semialgebraic subset of the real Fano threefold \(\mathrm{VSP}(f)_\mathbb {R}\subset \mathbb {P}^9_\mathbb {R}\). If f is hyperbolic, then the inclusion is strict. We now extend Example 2.3 to this situation.
Example 2.5
Our derivation establishes the following result for the hyperbolic quadric \(f = x^2 + y^2-z^2\). The solutions of (12) correspond to the decompositions \(f = \ell _1^2 + \ell _2^2 - \ell _3^2\), as described above.
Corollary 2.6
In affine coordinates on the Grassmannian \(\mathrm{Gr}(3,5)\), the real threefold \(\mathrm{VSP}(f)_\mathbb {R}\) is defined by the quadrics (12). The affine part of \(\mathrm{SSP}(f)_\mathbb {R}\simeq \mathrm{SO}^{+}(2,1)/G\) is the semialgebraic subset of points \((a,\ldots ,e,g)\) at which the hyperdeterminant \(\mathrm{Det}(T)\) is negative.
We close this section with an interpretation of hyperdeterminants (of next-to-boundary format) as Hurwitz forms [38]. This will be used in later sections to generalize Corollary 2.6.
Proposition 2.7
The hyperdeterminant of format \(m \times n \times (m+n-2)\) equals the Hurwitz form (in dual Stiefel coordinates) of the variety of \(m \times (m+n-2)\)-matrices of rank \(\le m-1\). The maximal minors of such a matrix whose entries are linear forms in n variables define \(\left( {\begin{array}{c}m+n-2\\ n-1\end{array}}\right) \) points in \(\mathbb {P}^{n-1}\), and the above hyperdeterminant vanishes when two points coincide.
Proof
Let X be the variety of \(m \times (m+n-2)\)-matrices of rank \(\le m-1\). By [22, Theorem 3.10, Section 14.C], the Chow form of X equals the hyperdeterminant of boundary format \(m \times n \times (m+n-1)\). The derivation can be extended to next-to-boundary format, and it shows that the \(m \times n \times (m+n-2)\) hyperdeterminant is the Hurwitz form of X. The case \(m=n=3\) is worked out in [38, Example 4.3].\(\square \)
In this paper, we are concerned with the case \(n=3\). In Corollary 2.6 we took \(m=2\).
Corollary 2.8
The hyperdeterminant of format \(3 \times m \times (m+1)\) is an irreducible homogeneous polynomial of degree \(12 \left( {\begin{array}{c}m+1\\ 3\end{array}}\right) \). It serves as the discriminant for ideals of \(\left( {\begin{array}{c}m+1\\ 2\end{array}}\right) \) points in \(\mathbb {P}^2\).
3 Cubics
The case \(d=3\) was studied by Banchi [4]. He gave a detailed analysis of the real ranks of ternary cubics \(f \in \mathbb {R}[x,y,z]_3\) with focus on the various special cases. In this section, we consider a general real cubic f. We shall prove the following result on its real decompositions.
Theorem 3.1
The semialgebraic set \(\mathrm{SSP}(f)_\mathbb {R}\) is either a disk in the real projective plane or a disjoint union of a disk and a Möbius strip. The two cases are characterized in Table 2. The algebraic boundary of \(\,\mathrm{SSP}(f)_\mathbb {R}\) is an irreducible sextic curve that has nine cusps.
Our point of departure is the following fact which is well known, e.g., from [4, §5] or [6].
Proposition 3.2
The real rank of a general ternary cubic is \(R(3) = 4\), so it agrees with the complex rank. Hence, the closure of \(\,\mathcal {R}_3\) is all of \(\mathbb {R}[x,y,z]_3\), and its boundary \(\partial \mathcal {R}_3\) is empty.
Proof
Remark 3.3
An illustrative example is the Fermat curve \( x^3+y^3+z^3\). It is unique over \(\mathbb {C}\), but it has two distinct real models, corresponding to \(\lambda = 0\) or 6. The case \(\lambda =6\) is isomorphic over \(\mathbb {R}\) to \(g = x^3+(y+iz)^3+(y-iz)^3\). This real cubic satisfies \({\hbox {rk}_{\mathbb {C}}}(g) = 3\) but \({\hbox {rk}_{\mathbb {R}}}(g) = 4\). Here, the real surface \(\,\mathrm{VSP}(g)_\mathbb {R}\,\) is non-empty, but its semialgebraic subset \(\,\mathrm{SSP}_\mathbb {R}(g)\,\) is empty.
Second proof of Proposition 3.2
We follow a geometric argument, due to De Paolis in 1886, as presented in [4, §5] and [6, §3]. Let H(f) be the Hessian of f, i.e., the \(3 \times 3\) determinant of second partial derivatives of f. We choose a real line \(\ell _1\) that intersects the cubic H(f) in three distinct real points. The line \(\ell _1\) is identified with its defining linear form and hence with a point in the dual \(\mathbb {P}^2\). That \(\mathbb {P}^2\) is the domain of F. We may assume that \(F(\ell _1)\) is not in the branch locus B. There exists a decomposition \(\,f = \ell _1^3 + \ell _2^3 + \ell _3^3 + \ell _4^3\), where \(\ell _2,\ell _3,\ell _4 \in \mathbb {C}[x,y,z]_1\). We claim that the \(\ell _i\) have real coefficients. Let \(\partial _p(f)\) be the polar conic of f with respect to \(p = \ell _1 \cap \ell _2\). This conic is a \(\mathbb {C}\)-linear combination of \(\ell _3^2\) and \(\ell _4^2\). It is singular at the point \(\ell _3 \cap \ell _4\). In particular, p belongs to \(\ell _1\) and to the cubic H(f). Hence, p is a real point, the conic \(\partial _p (f)\) is real, and its singular point \(\ell _3 \cap \ell _4\) is real. The latter point is distinct from \(p = \ell _1 \cap \ell _2\) because f is smooth. After relabeling, all pairwise intersection points of the lines \(\ell _1,\ell _2,\ell _3,\ell _4\) are distinct and real. Hence the lines themselves are real.
The key step in the second proof is the choice of the line \(\ell _1\). In practice, this is done by sampling linear forms \(\ell _1 \) from \( \mathbb {R}[x,y,z]_1\) until \(H(f) \cap \ell _1\) consists of three real points p. For each of these, we compute the singular point of the conic \(\partial _p (f)\) and connect it to p by a line. This gives the lines \(\ell _2,\ell _3,\ell _4 \in \mathbb {R}[x,y,z]_1\). The advantage of this method is that the coordinates of the \(\ell _i\) live in a cubic extension and are easy to express in terms of radicals.
In order to choose the initial line \(\ell _1\) more systematically, we must understand the structure of \(\mathrm{SSP}(f)_\mathbb {R}\). This is our next topic. By definition, \(\mathrm{SSP}(f)_\mathbb {R}\) is the locus of real points \(p \in \mathbb {P}^2 = \mathrm{Gr}(2,f^\perp _2)\) for which the fiber \(F^{-1}(p)\) is fully real. Such points p have the form \(p = F(\ell )\) where \(\ell \) is a line that meets the Hessian cubic H(f) in three distinct real points.
Example 3.4
A smooth cubic f in the real projective plane is either a connected curve, namely a pseudoline, or it has two connected components, namely a pseudoline and an oval. In the latter case, f is hyperbolic. The cubic in the Hesse pencil (15) is singular for \(\lambda = -3\), it is hyperbolic if \(\lambda <-3\), and it is not hyperbolic if \(\lambda > -3\). This trichotomy is the key for understanding \(\mathrm{SSP}(f)_\mathbb {R}\). However, we must consider this trichotomy also for the Hessian cubic H(f) in (18) and for the Cayleyan cubic C(f) in (19). The issue is whether their Hesse parameters \(-\frac{\lambda ^3+108}{3\lambda ^2}\) and \(\frac{54-\lambda ^3}{9\lambda }\) are bigger or smaller than the special value \(-3\). The values at which the behavior changes are \(\lambda = -3, 0, 6\). Table 2 summarizes the four possibilities.
Three possible hyperbolicity behaviors are exhibited by the three cubics f, H(f), C(f). One of these behaviors leads to two different types, seen in the second and fourth column in Table 2. These two types are distinguished by the fibers of the map \(F: \mathbb {P}^2 \rightarrow \mathbb {P}^2\). These fibers are classified by the connected components in the complement of the Cayleyan C(f). There are three such components if C(f) is hyperbolic and two otherwise. The fifth row in Table 2 shows the number of real points over these components. For \(6 < \lambda \), there are no real points over one component; here, the general fibers have 4, 2 or 0 real points. However, for \(-3< \lambda < 0\), all fibers contain real points; here, the general fibers have 4, 2 or 4 real points.
Proof of Theorem 3.1
After a coordinate change by a matrix \(\tau \in \mathrm{PGL}(3,\mathbb {R})\), we can assume that the cubic f is in the Hesse pencil (15). Hence so are the associated cubics H(f) and C(f). If we change the parameter \(\lambda \) so that all three cubics remain smooth, then the real topology of the map F is unchanged. This gives four different types for \(\mathrm{SSP}(f)_\mathbb {R}\), the locus of fully real fibers. The sextic B divides the real projective plane into two or three connected components, depending on whether its dual cubic \(C(f) = B^\vee \) is hyperbolic or not.
Figures 1, 2, 3 and 4 illustrate the behavior of the map F in the four cases given by the columns in Table 2. Each figure shows the plane \(\mathbb {P}^2\) with coordinates (x : y : z) on the left and the plane \(\mathbb {P}^2\) with coordinates (a : b : c) on the right. The map F takes the left plane onto the right plane. The two planes are dual to each other. In particular, points on the left correspond to lines on the right. Each of the eight drawings shows a cubic curve and a sextic curve. The two curves on the left are dual to the two curves on the right.

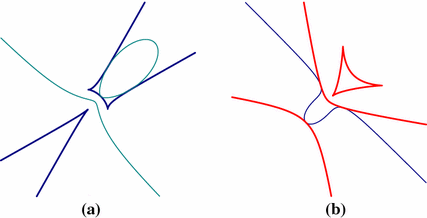

Ramification and branching for \(\lambda < -3\). The domain \(\mathbb {P}^2 = \{(x:y:z)\}\). is shown in (a). The domain \(\mathbb {P}^2 = \{(a:b:c)\}\) is shown in (b). The triangular region in (b) is \(\mathrm{SSP}(f)_\mathbb {R}\)

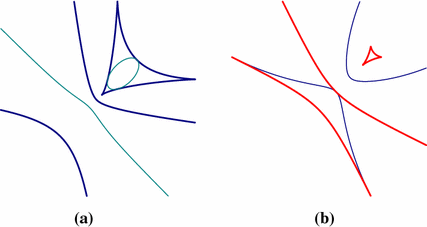

Ramification and branching for \(-3< \lambda < 0\). The locus \(\mathrm{SSP}(f)_\mathbb {R}\) is bounded by the (red) sextic curve on the right. It consists of the triangular disk and the Möbius strip (color figure online)
Consider the three cases where C(f) is hyperbolic. These are in Figs. 1, 2 and 3. Here, \(\mathbb {P}^2_\mathbb {R}\backslash B\) has three connected components. The fibers of F could have 0, 2 or 4 real points on these three regions. The innermost region has four real points in its fibers. It is bounded by the triangular connected component of the (red) branch curve B, which is dual to the pseudoline of C(f). This innermost region is connected and contractible: it is a disk in \(\mathbb {P}^2_\mathbb {R}\).

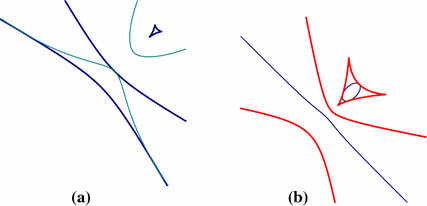

Ramification and branching for \(\lambda > 6\). The triangular region is \(\mathrm{SSP}(f)_\mathbb {R}\)

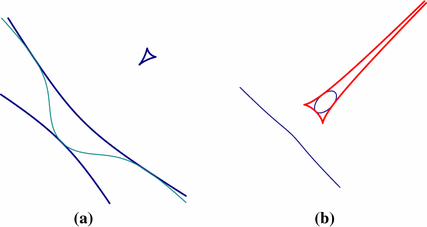

Ramification and branching for \(0< \lambda < 6\). The triangular region is \(\mathrm{SSP}(f)_\mathbb {R}\)
Figure 2 reveals something interesting for the decompositions \(f=\sum _{i=1}^4 \ell _i^3\). These come in two different types, for \(\lambda \in (-3,0)\), one for each of the two connected components of \(\mathrm{SSP}(f)_\mathbb {R}\). Over the disk, all four lines \(\ell _i\) intersect the Hessian H(f) only in its pseudoline. Over the Möbius strip, the \(\ell _i\) intersect the oval of H(f) in two points and the third intersection point is on the pseudoline. Compare this with Fig. 3: the Hessian H(f) is also hyperbolic, but all decompositions are of the same type: three lines \(\ell _i\) intersect H(f) in two points of its oval and one point of its pseudoline, while the fourth line intersects H(f) only in its pseudoline.
It remains to consider the case when C(f) is not hyperbolic. This is shown in Fig. 4. The branch curve \(B = C(f)^\vee \) divides \(\mathbb {P}^2_\mathbb {R}\) into two regions, one disk and one Möbius strip. The former corresponds to fibers with four real points, and the latter corresponds to fibers with two real points. We conclude that \(\mathrm{SSP}(f)_\mathbb {R}\) is a disk also in this last case. We might note, as a corollary, that all fibers of \(F: \mathbb {P}^2 \rightarrow \mathbb {P}^2 \) contain real points, provided \(0< \lambda < 6 \).
For all four columns of Table 2, the algebraic boundary of the set \(\mathrm{SSP}(f)_\mathbb {R}\) is the branch curve B. This is a sextic with nine cusps because it is dual to the smooth cubic C(f).
- (i)
in Fig. 1, inside the region bounded by \(H(f)^\vee \) and cut into four by C(f);
- (ii)
in Fig. 2, inside the spiky triangle bounded by \(H(f)^\vee \) and cut into four by C(f);
- (iii)
in Figs. 3 and 4, one inside the triangle bounded by \(H(f)^\vee \) and the others in the region bounded by the other component of \(H(f)^\vee \) cut into three regions by C(f).
Remark 3.5
Given a ternary cubic f with rational coefficients, how to decide whether \(\mathrm{SSP}(f)_\mathbb {R}\) has one or two connected components? The classification in Table 2 can be used for this task as follows. We first compute the j-invariant of f and then we substitute the rational number j(f) into (16). This gives a polynomial of degree 4 in the unknown \(\lambda \). That polynomial has two distinct real roots \(\lambda _1 < \lambda _2\), provided \(\,j(f) \not \in \{0,1728\}\). They satisfy \(\lambda _1< \lambda _2 < -3\), or \(0< \lambda _1< \lambda _2 < 6\), or (\(-3< \lambda _1 < 0\) and \( 6 < \lambda _2\)). Consider the involution that swaps \(\lambda _1 \) with \(\lambda _2\). This fixes the case in Fig. 1, and the case in Fig. 4, but it swaps the cases in Figs. 2 and 3. Thus this involution preserves the hyperbolicity behavior. We get two connected components, namely both the disk and Möbius strip, only in the last case. The correct \(\lambda \) is identified by comparing the sign of the degree six invariant T(f), as in (17).
Example 3.6
Remark 3.7
The value 1728 for the j-invariant plays a special role. A real cubic f is hyperbolic if \(j(f) > 1728\), and it is not hyperbolic if \(j(f) < 1728\). Applying this criterion to a given cubic along with its Hessian and Cayleyan is useful for the classification in Table 2.
What happens for \(j(f) = 1728\)? Here, the two real forms of the complex curve V(f) differ: one is hyperbolic and the other one is not. For example, \(f_1 = x^3- x z^2 - y^2 z \) is hyperbolic and \(f_2 = x^3 + x z^2 - y^2 z\) is not hyperbolic. These two cubics are isomorphic over \(\mathbb {C}\), with \(j(f_1) = j(f_2) = 1728\), and they are also isomorphic to their Hessians and Cayleyans.
We find noteworthy that the topology of \(\mathrm{SSP}(f)_\mathbb {R}\) can distinguish between the two real forms of an elliptic curve. This happens when \(j(f)< 1728< \mathrm{min}\bigl \{ j(H(f)), j(C(f)) \bigr \}\). Here the two real forms of the curve correspond to the second and fourth column in Table 2.
We close this section by explaining the last row of Table 2. It concerns the oriented matroid [5] of the configuration \(\{(a_i,b_i,c_i) : i=1,\ldots ,r\}\) in the decompositions (1). For \(d=3\) the underlying matroid is always uniform. This is the content of the following lemma.
Lemma 3.8
Consider a ternary cubic \(f=\sum _{i=1}^4\ell _i^3\) whose apolar ideal \(f^{\perp }\) is generated by three quadrics. Then any three of the linear forms \(\ell _1,\ell _2,\ell _3,\ell _4\) are linearly independent.
Proof
Suppose \(\ell _1,\ell _2, \ell _3\) are linearly dependent. They are annihilated by a linear operator p as in (5). Let \(q_1\) and \(q_2\) be independent linear operators that annihilate \(\ell _4\). Then \(p q_1\) and \(p q_2\) are independent quadratic operators annihilating f. Adding a third quadric would not lead to a complete intersection. This is a contradiction, since \(f^{\perp }\) is a complete intersection.\(\square \)
In the situation of Lemma 3.8, there is unique vector \(v = (v_1,v_2,v_3,v_4) \in (\mathbb {R}\backslash \{0\})^4\) satisfying \(v_1 = 1\) and \(\sum _{i=1}^4 v_i \ell _i = 0\). The oriented matroid of \((\ell _1,\ell _2,\ell _3,\ell _4)\) is the sign vector \(\bigl (+,\mathrm{sign}(v_2),\mathrm{sign}(v_3), \mathrm{sign}(v_4)\bigr ) \in \{-,+\}^4\). Up to relabeling there are only three possibilities:
\( \quad (+,+,+,+)\): the four vectors \(\ell _i\) contain the origin in their convex hull;
\( \quad (+,+,+,-)\): the triangular cone spanned by \(\ell _1,\ell _2,\ell _3\) in \(\mathbb {R}^3\) contains \(\ell _4\);
\( \quad (+,+,-,-)\): the cone spanned by \(\ell _1,\ell _2,\ell _3,\ell _4\) is the cone over a quadrilateral.
For a general cubic f, every point in \(\mathrm{SSP}(f)_\mathbb {R}\) is mapped to one of the three sign vectors above. By continuity, this map is constant on each connected component of \(\mathrm{SSP}(f)_\mathbb {R}\). The last row in Table 2 shows the resulting map from the five connected components to the three oriented matroids. Two of the fibers have cardinality one. For instance, the fiber over \((+,+,-,-)\) is the Möbius strip in \(\mathrm{SSP}(f)_\mathbb {R}\). This is the first of the following two cases.
Corollary 3.9
- (i)
The space \(\mathrm{SSP}(f)_\mathbb {R}\) is disconnected if and only if f is isomorphic over \(\mathbb {R}\) to a cubic of the form \(x^3+y^3+z^3+(ax+by-cz)^3\) where a, b, c are positive real numbers.
- (ii)
The Hessian H(f) is hyperbolic and the Cayleyan C(f) is not hyperbolic if and only if f is isomorphic to \(x^3+y^3+z^3 +(a x+ by+cz)^3\) where a, b, c are positive real numbers.
Proof
The sign patterns \((+,+,-,-)\) and \( (+,+,+,-)\) occur in the second and third column in Table 2, respectively. The corollary is a reformulation of that fact. The sign pattern \((+,+,+,+)\) in columns 1,2 and 4 corresponds to cubics \(x^3+y^3+z^3 -(a x+ by+cz)^3\). \(\square \)
Remark 3.10
The fiber over the oriented matroid \((+,+,+,+)\) consists of cubics of the form \(x^3+y^3+z^3-(a x+ by+cz)^3\), where \(a,b,c > 0\). It may seem surprising that this space has three components in Table 2. One can pass from one component to another, for instance, by passing through singular cubics, like \(\,24xyz = (x+y+z)^3+(x-y-z)^3+(-x+y-z)^3+(-x-y+z)^3 \).
4 Quartics
According to the Hilbert–Burch Theorem, the radical ideal \(I_T\) of the point configuration \(\{ (a_i:b_i:c_i)\}_{i=1,\ldots ,6}\) is generated by the \(3 \times 3\)-minors of a \(4 \times 3\)-matrix \( T = T_1 x + T_2 y + T_3 z\), where \(T_1,T_2,T_3 \in \mathbb {R}^{4 \times 3}\). We interpret T also as a \(3 \times 3 \times 4\)-tensor with entries in \(\mathbb {R}\), or as a \( 3 \times 3\)-matrix of linear forms in 4 variables. The determinant of the latter matrix defines the cubic surface in \(\mathbb {P}^3\) that is the blow-up of the projective plane \(\mathbb {P}^2\) at the six points. The apolar ideal \(f^\perp \) is generated by seven cubics, and \(I_T \subset f^\perp \) is generated by four of these.
Mukai [29] showed that \(\mathrm{VSP}(f)\) is a Fano threefold of type \(V_{22}\), and a more detailed study of this threefold was undertaken by Schreyer in [36]. The topology of the real points in that Fano threefold was studied by Kollár and Schreyer in [24]. Inside that real locus lives the semialgebraic set we are interested in. Namely, \(\mathrm{SSP}(f)_\mathbb {R}\) represents the set of radical ideals \(I_T\), arising from tensors \(T \in \mathbb {R}^{3 \times 3 \times 4}\), such that \(I_T \subset f^\perp \) and the variety \(V(I_T)\) consists of six real points in \(\mathbb {P}^2\). This is equivalent to saying that the cubic surface of T has 27 real lines.
Disregarding the condition \(I_T \subset f^\perp \) for the moment, this reality requirement defines a full-dimensional, connected semialgebraic region in the tensor space \(\mathbb {R}^{3 \times 3 \times 4}\). The algebraic boundary of that region is defined by the hyperdeterminant \(\mathrm{Det}(T)\), which is an irreducible homogeneous polynomial of degree 48 in the 36 entries of T. Geometrically, this hyperdeterminant is the Hurwitz form in [38, Example 4.3]. This is Proposition 2.7 for \(m=n=3\).
Theorem 4.1
The algebraic boundary \(\partial _\mathrm{alg}( \mathcal {R}_4)\) is a reducible hypersurface in the \(\mathbb {P}^{14}\) of quartics. One of its irreducible components has degree 51; that component divides the quartics of signature (5, 1). Another irreducible component divides the region of hyperbolic quartics.
Proof
We claim that \( \mathrm{Bdisc}(f)\) is an irreducible component of \(\partial _\mathrm{alg}( \mathcal {R}_4)\). Let f be a general quartic of signature (5, 1). Then \(\mathrm{det}(C(f)) \) is negative, and the quartic \(\Omega (f)\) is non-singular. We claim that \({\hbox {rk}_{\mathbb {R}}}(f) = 6\) if and only if the curve \(\Omega (f)\) has a real point. The only-if direction is proved in a more general context in Lemma 6.4. For the if-direction, we note that the anti-polar quartic curve divides \(\mathbb {P}_\mathbb {R}^2\) into regions where \(\Omega (f)\) has opposite signs. Hence, we can find \(\ell \) such that \(\mathrm{det}\bigl (C(f + \ell ^4) \bigr )=0\), and therefore \({\hbox {rk}_{\mathbb {R}}}(f) = 6\). Examples in [6, §5.1] show that \({\hbox {rk}_{\mathbb {R}}}(f)\) can be either 6 or 7. We conclude that, among quartics of signature (5, 1), the boundary of \(\mathcal {R}_4\) is given by the Blekherman discriminant \(\mathrm{Bdisc}(f)\) of degree 51.
For positive parameters t, the discriminant of \(f_t\) is nonzero, until t reaches \(\tau _1 = 6243.83\ldots \). This means that \(f_t\) is smooth hyperbolic for real parameters t between 0 and \(\tau _1\). On the other hand, the rank of the middle catalecticant \(C(f_t)\) drops from 6 to 5 when t equals \(\tau _0 = 3103.22\ldots \). Hence, for \(\tau _0< t < \tau _1\), the quartics \(f_t\) are hyperbolic and of signature (4, 2). By [6, Corollary 4.8], these quartics have real rank at least 7. This means that the half-open interval given by \((0,\tau _0]\) crosses the boundary of \(\mathcal {R}_4\) in a new irreducible component.\(\square \)
Remark 4.2
One of the starting points of this project was the question whether \({\hbox {rk}_{\mathbb {R}}}(f) \ge 7\) holds for all hyperbolic quartics f. This was shown to be false in [6, Remark 4.9]. The above quartic \(f_0\) is an alternative counterexample, with an explicit rank 6 decomposition over \(\mathbb {Q}\).
We believe that, in the proof above, the crossing takes place at \(\tau _0\), and that this newly discovered component is simply the determinant of the catalecticant \(\mathrm{det}(C(f))\). But we have not been able to certify this. Similar examples suggest that also the discriminant \(\mathrm{disc}(f)\) itself appears in the real rank boundary. Based on this, we propose the following conjecture.
Conjecture 4.3
The construction of the Blekherman discriminant extends to the case when f is a sextic or octic; see Lemma 6.4. For quartics f, we can use it to prove \({\hbox {rk}_{\mathbb {R}}}(f) > 6\) also when the signature is (4, 2) or (3, 3). We illustrate this for the quartic given by four distinct lines.
Example 4.4
If f is a general ternary quartic of real rank 6, then \(\mathrm{SSP}(f)_\mathbb {R}\) is an open semialgebraic set inside the threefold \(\mathrm{VSP}(f)_\mathbb {R}\). Our next goal is to derive an algebraic description of this set. We begin by reviewing some of the relevant algebraic geometry found in [17, 27, 29, 33, 36].
Lemma 4.5
The Fano threefold \(\,\mathrm{VSP}(f)\) of degree 22 is the intersection of the Grassmannian \(\mathrm{Gr}(4,7)\) with the linear space \(\mathbb {P}^{13}_A\). Its defining ideal is generated by 45 quadrics, namely the 140 quadratic Plücker relations defining \(\mathrm{Gr}(4,7)\) modulo the 21 linear relations in (23).
Proof
This description of the Fano threefold \(V_{22}\) was given by Ranestad and Schreyer in [33] and by Dinew, Kapustka and Kapustka in [17, Section 2.3]. We verified the numbers 22 and 45 by a direct computation.\(\square \)
It is important to note that we can turn this construction around and start with any three general skew-symmetric \(7 \times 7\)-matrices \(A_1,A_2,A_3\). Then the \(6 \times 6\)-sub-Pfaffians of \(xA_1+yA_2+zA_3\) generate a Gorenstein ideal whose socle generator is a ternary quartic f.
We are now ready to extend the real geometry in Corollary 2.6 from quadrics to quartics. Let \(V = (v_{ij}) \) be a \(4 {\times } 3\)-matrix of unknowns. These serve as affine coordinates on \(\mathrm{Gr}(4,7)\). Each point is the row span of the \(4 {\times } 7\)-matrix \(U = \begin{pmatrix} \,\mathrm{Id}_4&V\,\, \end{pmatrix}\). This is analogous to (11).
Theorem 4.6
Let f be a general ternary quartic of real rank 6. Using the affine coordinates \(v_{ij}\) on \(\mathrm{Gr}(4,7)\), the threefold \(\mathrm{VSP}(f)_\mathbb {R}\) is defined by nine quadratic equations in \(\mathbb {R}^{12}\). If f has signature (6, 0) then \(\mathrm{SSP}(f)_\mathbb {R}\) equals \( \mathrm{VSP}(f)_\mathbb {R}\). If \(\overline{\mathrm{SSP}(f)_\mathbb {R}}\) is a proper subset of \(\mathrm{VSP}(f)_\mathbb {R}\) then its algebraic boundary has degree 84. It is the hyperdeterminant of the \(4 \times 3 \times 3\)-tensor T.
Proof
The description of \(\mathrm{VSP}(f)\) in affine coordinates follows from Lemma 4.5. The equations in (23) mean that the linear map given by A vanishes on the kernel of U. This translates into the condition that the lower right \(3 \times 3\)-matrix in (24) is zero. Each of the 3 coefficients of the 3 upper diagonal matrix entries must vanish, for a total of 9 quadratic equations.
If f has signature (6, 0) then we know from Proposition 1.3 that \(\mathrm{SSP}(f)_\mathbb {R}= \mathrm{VSP}(f)_\mathbb {R}\). In general, a point \((v_{ij})\) of \(\mathrm{VSP}(f)_\mathbb {R}\) lies in \(\mathrm{SSP}(f)_\mathbb {R}\) if and only if all six zeros of the ideal \(I_T\) are real points in \(\mathbb {P}^2\). The boundary of \(\mathrm{SSP}(f)_\mathbb {R}\) is given by those \((v_{ij})\) for which two of these zeros come together in \(\mathbb {P}^2\) and form a complex conjugate pair. The Zariski closure of that boundary is the hypersurface defined by the hyperdeterminant \(\mathrm{Det}(T)\), by Proposition 2.7.
The hyperdeterminant of format \(4 \times 3 \times 3\) has degree 48 in the tensor entries. For our tensor T, the entries are inhomogeneous polynomials of degree 2, so the degree of \(\mathrm{Det}(T)\) is bounded above by \(96 = 2 \times 48\). A direct computation reveals that the actual degree is 84. The degree drop from 96 to 84 is analogous to the drop from 24 to 20 witnessed in (14).\(\square \)
At present, we do not know whether the hyperdeterminantal boundary always exists:
Conjecture 4.7
If the quartic f has real rank 6 and its signature is (3, 3), (4, 2) or (5, 1), then the semialgebraic set \(\,\overline{\mathrm{SSP}(f)_\mathbb {R}} \) is strictly contained in the variety \(\mathrm{VSP}(f)_\mathbb {R}\).
Proposition 4.8
Among the 36 pairs of topological types (26) of smooth quartic curves in the real projective plane \(\mathbb {P}^2_\mathbb {R}\), at least 30 pairs are realized by a quartic f and its Aronhold quartic \(S(f)\). Every pair not involving the hyperbolic type is realizable as \(\bigl (f,S(f) \bigr )\).
Proof
Conjecture 4.9
If a smooth quartic f on \(\mathbb {P}^2_\mathbb {R}\) is hyperbolic then its Aronhold quartic \(S(f)\) is either empty or has two ovals. If f consists of three or four ovals then \(S(f)\) is not hyperbolic.
Let \(D = q_1 + q_2 + q_3 + q_{12} + q_{13} + q_{23}\) be a divisor on the Aronhold quartic \(S(f)\). The biscribed triangle \(\ell _{12} \ell _{13} \ell _{23}\) is a contact cubic [32, §2], and 2D is its intersection divisor with \(S(f)\). The associated theta characteristic is given by \(\theta \sim q_{12} + q_{13} + q_{1} - q_{23}\). Each of the points \(q_{12},q_{13},q_{23} \in S(f)\) represents a line on the Fano threefold \(\mathrm{VSP}(f) \subset \mathbb {P}^{13}_A\). The pairs \((q_{12},q_{13})\), \((q_{12},q_{23})\), \((q_{13},q_{23})\) lie in the Scorza correspondence, as defined in [19, 36]. Indeed, the corresponding second derivatives of f are \(\ell _{12}^2\), \(\ell _{13}^2\) and \(\ell _{23}^2\), so the lines \(q_{12},q_{13},q_{23}\) on \(\mathrm{VSP}(f)\) intersect pairwise. In fact, there is a point of \(\mathrm{VSP}(f)\) on all three lines, namely (27).
Example 4.10
Proposition 4.11
There exist quartics f of real rank 6 such that \(\,\mathrm{SSP}(f)^\mathrm{Muk}_\mathbb {R}\) is empty.
Proof

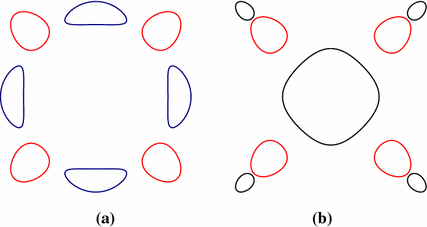

Left picture shows a Blum–Guinand quartic in blue and its Aronhold quartic in red. The Aronhold quartic does not meet the sextic covariant, shown in black on the right (color figure online)
Example 4.12
5 Quintics and septics
Algorithm 5.1
- 1.
Compute the apolar ideal \(f^{\perp }\). It is generated by one quartic and four cubics \(g_1,g_2,g_3,g_4\).
- 2.
Compute the syzygies of \(f^{\perp }\). Find the unique linear syzygy \((l_1,l_2,l_3,l_4)\) on the cubics.
- 3.
Compute a vector \((c_1,c_2,c_3,c_4) \in \mathbb {R}^4 \backslash \{0\}\) that satisfies \(c_1 l_1 + c_2 l_2 + c_3 l_3 + c_4 l_4 = 0\).
- 4.
Let J be the ideal generated by the cubics \(\,c_2 g_1 - c_1 g_2\), \(\,c_3 g_2 - c_2 g_3\,\) and \(\,c_4 g_3 - c_3 g_4\). Compute the variety V(J) in \(\mathbb {P}^2\). It consists precisely of the points dual to \(\ell _1,\ell _2,\ldots ,\ell _7\).
Proposition 5.2
Algorithm 5.1 computes the unique decomposition of a general quintic f. In the resulting representation (28), no six of the seven lines \(\ell _i\) are tangent to a conic.
Proof
It is easy to decide whether the real rank of a given ternary quintic f is 7 or not. Namely, one computes the unique complex decomposition (28) and checks whether it is real. The real rank boundary corresponds to transition points where two of the linear forms in (28) come together and form a complex conjugate pair. The following is our main result on quintics.
Theorem 5.3
Proof
The parametrization (31) defines a unirational variety Y in \(\mathbb {P}^{20}\). The Jacobian of this parametrization is found to have corank 1. This means that Y has codimension 1 in \(\mathbb {P}^{20}\). Hence Y is an irreducible hypersurface, defined by a unique (up to sign) irreducible homogeneous polynomial \(\Phi \) in 21 unknowns, namely the coefficients of a ternary quintic.
Let g be a real quintic (31) that is a general point in Y. For \(\epsilon \rightarrow 0\), the real quintics \((\ell _6+\epsilon \ell _7)^5-\ell _6^5\) and \((i\ell _6+\epsilon \ell _7)^5+(-i\ell _6+\epsilon \ell _7)^5\) converge to the special quintic \(\ell _6^4 \ell _7\) in \(\mathbb {P}^{20}_\mathbb {R}\). Hence any small neighborhood of g in \(\mathbb {P}^{20}_\mathbb {R}\) contains quintics of real rank 7 and quintics of real rank \(\ge 8\). This implies that Y lies in the algebraic boundary \(\partial _\mathrm{alg}( \mathcal {R}_5)\). Since Y is irreducible and has codimension 1, it follows that \(\partial _\mathrm{alg}( \mathcal {R}_5)\) exists and has Y as an irreducible component.
We carried out an explicit computation to determine that the (possibly reducible) hypersurface \(\partial _\mathrm{alg}( \mathcal {R}_5)\) has degree 168. This was done as follows. Fix the field \(K = \mathbb {Q}(t)\), where t is a new variable. We picked random quintics \(f_1\) and \(f_2\) in \(\mathbb {Q}[x,y,z]_5\), and we ran Algorithm 5.1 for \(f = f_1 + t f_2 \in K[x,y,z]_5\). Step 4 returned a homogeneous ideal J in K[x, y, z] that defines 7 points in \(\mathbb {P}^2\) over the algebraic closure of K. By eliminating each of the three variables, we obtain binary forms of degree 7 in K[x, y], K[x, z] and K[y, z]. Their coefficients are polynomials of degree 35 in t. The discriminant of each binary form is a polynomial in \(\mathbb {Q}[t]\) of degree \(420 = 12 \times 35\). The greatest common divisor of these three discriminants is a polynomial \(\Psi (t)\) of degree 168. We checked that \(\Psi (t)\) is irreducible in \(\mathbb {Q}[t]\).
By definition, \(\Phi \) is an irreducible homogeneous polynomial with integer coefficients in the 21 coefficients of a general quintic f. Its specialization \(\Phi (f_1 + t f_2)\) is a non-constant polynomial in \(\mathbb {Q}[t]\), of degree \(\mathrm{deg}(X)\) in t. That polynomial divides \(\Psi (t)\). Since the latter is irreducible, we conclude that \(\Phi (f_1 + t f_2) = \gamma \cdot \Psi (t)\), where \(\gamma \) is a nonzero rational number. Hence \(\Phi \) has degree 168. We conclude that \(\mathrm{deg}(Y) = 168\), and therefore \( Y = \partial _\mathrm{alg}( \mathcal {R}_5)\).\(\square \)
Theorem 5.3 was stated for a very special situation, namely ternary quintics. We shall now describe a geometric generalization. Let X be any irreducible projective variety in the complex projective space \(\mathbb {P}^N\) that is defined over \(\mathbb {R}\) and whose real points are Zariski dense. We set \(d = \mathrm{dim}(X)\). The generic rank is the smallest integer r such that the rth secant variety \(\sigma _r(X)\) equals \(\mathbb {P}^N\). Given \(f \in \mathbb {P}^N\), we define \(\mathrm{VSP}_X(f)\) to be the closure in the Hilbert scheme \(\mathrm{Hilb}_r(X)\) of the set of configurations of r distinct points in X whose span contains f. Now, \(\mathrm{VSP}\) stands for variety of sums of points. This object agrees with that studied by Gallet, Ranestad and Villamizar in [23]. It differs from more inclusive definitions seen in other articles. In particular, if \(N = \left( {\begin{array}{c}d+2\\ 2\end{array}}\right) -1\) and \(X = \nu _d(\mathbb {P}^2)\) is the dth Veronese surface then \(\mathrm{VSP}_X(f) = \mathrm{VSP}(f)\). In this case, we recover the familiar variety of sums of powers.
The objects of real algebraic geometry studied in this paper generalize in a straightforward manner. We write \(\mathrm{VSP}_X(f)_\mathbb {R}\) for the variety of real points in \(\mathrm{VSP}_X(f)\), and we define \(\mathrm{SSP}_X(f)_\mathbb {R}\) to be the semialgebraic subset of all f that lie in an \((r-1)\)-plane spanned by r real points in X. Following Blekherman and Sinn [9], we are interested in generic points in \(\mathbb {P}^N_\mathbb {R}\) whose real rank equals the generic complex rank. These comprise the semialgebraic set \(\mathcal {R}_X = \{f \in \mathbb {P}^N_\mathbb {R}: \mathrm{SSP}_X(f)_\mathbb {R}\not = \emptyset \}\). The topological boundary \(\partial \mathcal {R}_X\) is the closure of \(\mathcal {R}_X\) minus the interior of that closure. If X has more than one typical real rank, then \(\partial \mathcal {R}_X\) is non-empty and its Zariski closure \(\partial _\mathrm{alg}( \mathcal {R}_X)\) is a hypersurface in \(\mathbb {P}^N\). This hypersurface is the real rank boundary we are interested in.
Example 5.4
Let \(N = 20\) and \(X = \nu _5(\mathbb {P}^2)\) the fifth Veronese surface in \(\mathbb {P}^{20}\). Then \(r= 7\) and \(\partial _\mathrm{alg} (\mathcal {R}_X)\) equals the irreducible hypersurface of degree 168 described in Theorem 5.3.
Conjecture 5.5
Suppose \(rd+r = N\) and \(\,\mathrm{VSP}_X(f)\) is finite for general f. Then \(\sigma _{r-2}(X) \star \tau (X)\) is an irreducible component of \(\partial _\mathrm{alg} (\mathcal {R}_X)\). Equality holds when \(\mathrm{VSP}_X(f)\) is a point.
One difficulty in proving this conjecture is that we do not know how to control interactions among the distinct decompositions \(f = f_1 + \cdots + f_r\) of a general point \(f \in \mathbb {P}^N\) into r points \(f_1,\ldots ,f_r \) on the variety X. Moreover, we do not even know that \( \partial _\mathrm{alg}( \mathcal {R}_X)\) is non-empty.
To illustrate Conjecture 5.5, we prove it in the case when X is the 7th Veronese surface. The parameters are \(d=2, N = 35\), and \(r=12\). We return to the previous notation, so f is a general ternary form in \(\mathbb {R}[x,y,z]_7\). Here we can show that 13 is indeed a typical real rank.
Proposition 5.6
The real rank boundary \(\partial _\mathrm{alg}( \mathcal {R}_7)\) is a non-empty hypersurface in \(\mathbb {P}^{35}\) with one of the components equal to the join of the tenth secant variety and the tangential variety.
Proof
Our algorithm for septics f computes the five elements in \(\mathrm{VSP}(f)\) along with the 12 linear forms in each of the five decompositions \(f = \sum _{i=1}^{12} \ell _i^7\). It outputs 60 points in \(\mathbb {P}^2\). These come in 5 unlabeled groups of 12 unlabeled points in \(\mathbb {P}^2\). Here are two concrete instances.
Example 5.7
6 Sextics
We now consider ternary forms of degree six. The generic complex rank for sextics is \(R(6) = 10\). Our first result states that both 10 and 11 are typical real ranks, in the sense of [6, 7, 16].
Theorem 6.1
The algebraic boundary \(\partial _\mathrm{alg}( \mathcal {R}_6)\) is a hypersurface in the \(\mathbb {P}^{27}\) of ternary sextics. One of its irreducible components is the dual to the Severi variety of rational sextics.
Proof
We use notation and results from [8]. Let \(P_{3,6}\) denote the convex cone of nonnegative rational sextics and \(\Sigma _{3,6}\) the subcone of sextics that are sums of squares of cubics over \(\mathbb {R}\). The dual cone \(\Sigma _{3,6}^\vee \) consists of sextics f whose middle catalecticant C(f) is positive semidefinite. Its subcone \(P_{3,6}^\vee \) is spanned by sixth powers of linear forms. It is known as the Veronese orbitope. The difference \(\Sigma _{3,6}^\vee \backslash P_{3,6}^\vee \) is a full-dimensional semialgebraic subset of \(\mathbb {R}[x,y,z]_6\).
We claim that general sextics f in that set have real rank \(\ge 11\). Let f be a general sextic in \(\Sigma _{3,6}^\vee \backslash P_{3,6}^\vee \). Suppose that \({\hbox {rk}_{\mathbb {R}}}(f) = 10\). The middle catalecticant C(f) is positive definite. Proposition 1.3 tells us that the signature of any representation (1) is (10, 0). This means that f lies in the Veronese orbitope \(P_{3,6}^\vee \). This is a contradiction to the hypothesis, and we conclude \({\hbox {rk}_{\mathbb {R}}}(f) \ge 11\). Using [6, Theorem 1.1], this means that 11 is a typical rank.
Consider the algebraic boundary of the Veronese orbitope \(P_{3,6}^\vee \). One of its two components is the determinant of the catalecticant C(f), which is the algebraic boundary of the spectrahedron \(\Sigma _{3,6}^\vee \). The other component is the dual of the Zariski closure of the set of extreme rays of \(P_{3,6} \backslash \Sigma _{3,6}\). That Zariski closure was shown in [8, Theorem 2] to be equal to the Severi variety of rational sextics, which has codimension 10 and degree 26312976 in \(\mathbb {P}^{27}\). Every generic boundary point of \(P_{3,6}^\vee \) that is not in the spectrahedron \(\Sigma _{3,6}^\vee \) represents a linear functional whose maximum over \(P_{3,6}\) occurs at a point in the Severi variety.
A result of Choi, Lam and Reznick (cf. [8, Proposition 7]) states that every general supporting hyperplane of \(P_{3,6}^\vee \) touches the Veronese surface in precisely 10 rays. Every form in the cone spanned by these rays has real rank \(\le 10\). Consider the subset of \(P_{3,6}^\vee \) obtained by replacing each of the 10 rays by a small neighborhood. This defines a full-dimensional subset of forms \(f \in P_{3,6}^\vee \) that satisfy \({\hbox {rk}_{\mathbb {R}}}(f) = 10\). By construction, this subset must intersect the boundary of \(P_{3,6}^\vee \) in a relatively open set. Its Zariski closure is the hypersuface dual to the Severi variety. We conclude that this dual is an irreducible component of \(\partial _\mathrm{alg}( \mathcal {R}_6)\).\(\square \)
Remark 6.2
The same proof applies also for octics \((d=8)\), ensuring that the algebraic boundary \(\partial _\mathrm{alg}( \mathcal {R}_8)\) exists. Indeed, \(R(8) = 15\) coincides with the size of the middle catalecticant f, and we can conclude that every octic in \(\Sigma _{3,8}^\vee \backslash P_{3,8}^\vee \) has real rank bigger than 15. However, for even integers \(d \ge 10\), this argument no longer works, because the generic complex rank exceeds the size of the middle catalecticant. In symbols, \(R(d) > \left( {\begin{array}{c}d/2+2\\ 2\end{array}}\right) \). New ideas are needed to establish the existence of the hypersurface \(\partial _\mathrm{alg}( \mathcal {R}_d)\) for \(d \ge 9\).
We record the following upper bounds on the real ranks of general ternary forms.
Proposition 6.3
Proof
The same argument as in [6, Proposition 6.2] shows \(m(d) \le m(d -1)+d\). The binomial bound follows by induction. The bound 2R(d) comes from [10, Theorem 3].\(\square \)
Lemma 6.4
Let f be a general ternary form of degree \(d\in \{4,6,8\}\) that is not in the cone \(P_d^\vee \) spanned by dth powers. If \(\Omega (f)\) has no real zeros than the real rank of f exceeds R(d).
Proof
Suppose that f is of minimal generic rank R(d). Since f is not a sum of dth powers of linear forms over \(\mathbb {R}\), by Proposition 1.3, there exists a real linear form \(\ell = ax + by + cz\) such that the catalecticant matrix of \( f + \ell ^d\) is degenerate; hence, \(\Omega (f)(\ell )=-\mathrm{det}\bigl (C(f) \bigr )\). On the other hand, there exists \(\ell '\) such that the catalecticant matrix of \(-f+\ell '^d\) also drops rank, so \(\Omega (f)(\ell ')=-\Omega (-f)(\ell ')=\mathrm{det}\bigl (C(f) \bigr )\). Hence the real curve defined by \(\Omega (f)\) is non-empty.\(\square \)
Proposition 6.5
For any sextic f , we can compute the surface \(\mathrm{VSP}(f)\) explicitly, by the method explained for quadrics in Example 2.5. Namely, as in (11), we introduce local coordinates on \(\mathrm{Gr}(5,9)\). The equations defining \(\mathbb {P}^{20}_A\) translate into quadrics in the 20 local coordinates. In analogy to (13), we transform the \(9 \times 9\)-matrix A into \( \begin{pmatrix} \star &{} T \,\, \\ -T^t &{} 0 \,\, \end{pmatrix}\). Here T is a \(5 \times 4\)-matrix of linear forms whose \(4 \times 4\) minors define the ten points in \(\mathbb {P}^2\) in the representation \(f = \sum _{i=1}^{10} \ell _i^6\). We can study \(\mathrm{SSP}(f)_\mathbb {R}\) and its boundary inside the real K3 surface \(\mathrm{VSP}(f)_\mathbb {R}\) by means of the hyperdeterminant for \(m=4\) in Corollary 2.8. The following example demonstrates this.
Example 6.6
The upper right \(5 \times 4\)-submatrix of A drops rank precisely on the ten points \((i:j:k) \in \mathbb {P}^2\) where \(i+j+k=3\) in nonnegative integers.
In the paper, we focused on general ternary forms. Special cases are also very interesting:
Example 6.7
At present we do not know whether the real rank of f is 11, 12 or 13. The argument above can be extended to establish the following result: if \({\hbox {rk}_{\mathbb {R}}}(f) \le 12\) then there exists a decomposition (1) whose points \((a_i:b_i:c_i)\) all lie on the Fermat cubic \(\,V(x^3+y^3+z^3)\).
Can we find real constants a, b, c, d, e such that all 12 solutions to the equations (34) are real? If the answer is “yes” then we can conclude \({\hbox {rk}_{\mathbb {R}}}(f) \le 12\). Otherwise, we cannot reach a conclusion. A systematic approach to this real root classification problem is via the discriminant of the system (34). This discriminant is a polynomial of degree 24 in a, b, c, d, e. We would need to explore the connected components of the complement of this hypersurface in \(\mathbb {R}^5\). For further reading on the rank geometry of monomials, we refer to [12, 13]. \(\diamondsuit \)
Notes
Acknowledgments
We are grateful to Greg Blekherman for his help with this project. We also thank Giorgio Ottaviani and Frank-Olaf Schreyer for valuable discussions. Bernd Sturmfels was supported by the US National Science Foundation (DMS-1419018) and the Einstein Foundation Berlin. Mateusz Michałek is a PRIME DAAD fellow and acknowledges the support of Iuventus Plus Grant 0301/IP3/2015/73 of the Polish Ministry of Science.
References
- 1.Abo, H., Seigal, A., Sturmfels, B.: Eigenconfigurations of tensors. In: Harrington, H., Omar, M., Wright, M., (eds.) Algebraic and Geometric Methods in Discrete Mathematics. American Mathematical Society, Contemporary Mathematics, to appearGoogle Scholar
- 2.Alexander, J., Hirschowitz, A.: Polynomial interpolation in several variables. J. Algebr. Geom. 4, 201–222 (1995)MathSciNetMATHGoogle Scholar
- 3.Artebani, M., Dolgachev, I.: The Hesse pencil of plane cubic curves. Enseign. Math. 55, 235–273 (2009)MathSciNetCrossRefMATHGoogle Scholar
- 4.Banchi, M.: Rank and border rank of real ternary cubics. Boll. dell’Unione Mat. Ital. 8, 65–80 (2015)MathSciNetCrossRefMATHGoogle Scholar
- 5.Björner, A., Las Vergnas, M., Sturmfels, B., White, N., Ziegler, G.: Oriented Matroids, Encyclopedia of Mathematics and its Applications, vol 46. Cambridge University Press, Cambridge (1993)Google Scholar
- 6.Bernardi, A., Blekherman, G., Ottaviani. G.: On real typical ranks. arXiv:1512.01853
- 7.Blekherman, G.: Typical real ranks of binary forms. Found. Comput. Math. 15, 793–798 (2015)MathSciNetCrossRefMATHGoogle Scholar
- 8.Blekherman, G., Hauenstein, J., Ottem, J.C., Ranestad, K., Sturmfels, B.: Algebraic boundaries of Hilbert’s SOS cones. Compos. Math. 148, 1717–1735 (2012)MathSciNetCrossRefMATHGoogle Scholar
- 9.Blekherman, G., Sinn, R.: Real rank with respect to varieties. Linear Algebra Appl. 505, 344–360 (2016)MathSciNetCrossRefMATHGoogle Scholar
- 10.Blekherman, G., Teitler, Z.: On maximum, typical and generic ranks. Math. Ann. 362, 1021–1031 (2015)MathSciNetCrossRefMATHGoogle Scholar
- 11.Blum, R., Guinand, A.P.: A quartic with 28 real bitangents. Can. Math. Bull. 7, 399–404 (1964)MathSciNetCrossRefMATHGoogle Scholar
- 12.Buczyńska, W., Buczyński, J., Teitler, Z.: Waring decompositions of monomials. J. Algebra 378, 45–57 (2013)MathSciNetCrossRefMATHGoogle Scholar
- 13.Carlini, E., Catalisano, M.V., Geramita, A.V.: The solution to Waring’s problem for monomials and the sum of coprime monomials. J. Algebra 370, 5–14 (2012)MathSciNetCrossRefMATHGoogle Scholar
- 14.Carlini, E., Kummer, M., Oneto, A., Ventura, E.: On the real rank of monomials. arXiv:1602.01151
- 15.Chan, M., Sturmfels, B.: Elliptic curves in honeycomb form, Algebraic and combinatorial aspects of tropical geometry, Contemp. Math., vol. 589, Am. Math. Soc., Providence, RI, pp. 87–107 (2013)Google Scholar
- 16.Comon, P., Ottaviani, G.: On the typical rank of real binary forms. Linear Multilinear Algebra 60, 657–667 (2012)MathSciNetCrossRefMATHGoogle Scholar
- 17.Dinew, S., Kapustka, G., Kapustka, M.: Remarks on Mukai threefolds admitting \({\mathbb{C}}^*\) action. arXiv:1506.03286
- 18.Dixon, A., Stuart, T.: On the reduction of the ternary quintic and septimic to their canonical forms. Proc. Lond. Math. Soc. 2(4), 160–168 (1906)MathSciNetMATHGoogle Scholar
- 19.Dolgachev, I., Kanev, V.: Polar covariants of plane cubics and quartics. Adv. Math. 98, 216–301 (1993)MathSciNetCrossRefMATHGoogle Scholar
- 20.Dolgachev, I.: Dual homogeneous forms and varieties of power sums. Milan J. Math. 72, 163–187 (2004)MathSciNetCrossRefMATHGoogle Scholar
- 21.Dolgachev, I.: Classical Algebraic Geometry: A Modern View. Cambridge University Press, Cambridge (2012)CrossRefMATHGoogle Scholar
- 22.Gel’fand, I.M., Kapranov, M.M., Zelevinsky, A.V.: Discriminants, Resultants and Multidimensional Determinants. Birkhäuser, Boston (1994)CrossRefMATHGoogle Scholar
- 23.Gallet, M., Ranestad, K., Villamizar, N.: Varieties of apolar subschemes of toric surfaces. arXiv:1601.00694
- 24.Kollár, J., Schreyer, F.-O.: Real Fano \(3\)-folds of type \(V_{22}\), The Fano Conference, pp. 515–531. Univ. Torino, Turin (2004)Google Scholar
- 25.Lee, H., Sturmfels, B.: Duality of multiple root loci. J. Algebra 446, 499–526 (2016)MathSciNetCrossRefMATHGoogle Scholar
- 26.Mella, M.: Base loci of linear systems and the Waring problem. Proc. Am. Math. Soc. 137, 91–98 (2009)MathSciNetCrossRefMATHGoogle Scholar
- 27.Mukai, S.: Fano 3-folds, Complex Projective Geometry, London Math. Soc. Lecture Notes, vol. 179. Cambridge University Press, pp. 255–263 (1992)Google Scholar
- 28.Mukai, S.: Polarized K3 surfaces of genus 18 and 20, Complex Projective Geometry, London Math. Soc. Lecture Notes, vol. 179. Cambridge University Press, pp. 264–276 (1992)Google Scholar
- 29.Mukai, S.: Plane Quartics and Fano Threefolds of Genus Twelve. The Fano Conference, pp. 563–572. University of Torino, Turin (2004)Google Scholar
- 30.Oeding, L., Ottaviani, G.: Eigenvectors of tensors and algorithms for Waring decomposition. J. Symb. Comput. 54, 9–35 (2013)MathSciNetCrossRefMATHGoogle Scholar
- 31.Ottaviani, G.: Introduction to the Hyperdeterminant and to the Rank of Multidimensional Matrices. Commutative Algebra, pp. 609–638. Springer, New York (2013)Google Scholar
- 32.Plaumann, D., Sturmfels, B., Vinzant, C.: Quartic curves and their bitangents. J. Symb. Comput. 46, 712–733 (2011)MathSciNetCrossRefMATHGoogle Scholar
- 33.Ranestad, K., Schreyer, F.-O.: Varieties of sums of powers. J. Reine Angew. Math. 525, 147–181 (2000)MathSciNetMATHGoogle Scholar
- 34.Ranestad, K., Schreyer, F.-O.: The variety of polar simplices. Doc. Math. 18, 469–505 (2013)MathSciNetMATHGoogle Scholar
- 35.Reznick, B.: Sums of even powers of real linear forms. Memoirs of the AMS 96, no. 463 (1992)Google Scholar
- 36.Schreyer, F.-O.: Geometry and algebra of prime Fano \(3\)-folds of genus \(12\). Compos. Math. 127, 297–319 (2001)MathSciNetCrossRefMATHGoogle Scholar
- 37.Silverman, J.: Advanced Topics in the Arithmetic of Elliptic Curves, Graduate Texts in Mathematics, vol. 151. Springer, New York (1994)CrossRefGoogle Scholar
- 38.Sturmfels, B.: The Hurwitz form of a projective variety. J. Symb. Comput. (2016). doi: 10.1016/j.jsc.2016.08.012 (in press)
- 39.Sturmfels, B., Uhler, C.: Multivariate Gaussians, semidefinite matrix completion, and convex algebraic geometry. Ann. Inst. Stat. Math. 62, 603–638 (2010)CrossRefMATHGoogle Scholar
Copyright information
Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
