Limnology

, Volume 11, Issue 2, pp 115–124 | Cite as

Analysis of stream water temperature changes during rainfall events in forested watersheds

  • Luki Subehi
  • Takehiko Fukushima
  • Yuichi Onda
  • Shigeru Mizugaki
  • Takashi Gomi
  • Ken’ichirou Kosugi
  • Shinya Hiramatsu
  • Hikaru Kitahara
  • Koichiro Kuraji
  • Tomomi Terajima
Research paper

Abstract

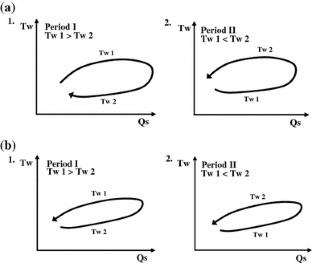

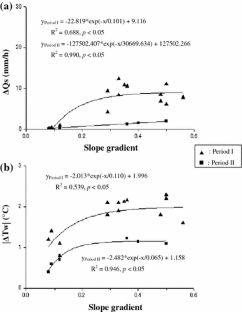

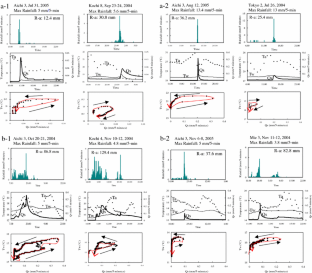

Despite continued interest in stream water temperature (Tw) analysis, there are few studies of Tw response to rainfall events at forested watersheds. We examined 61 sets of data on Tw for 21 rainfall events at 16 watersheds with various slope gradients (from 0.08 to 0.56) in four regions of Japan from June 2004 to December 2005. The investigation focused on the changes of specific discharge (ΔQs) and ΔTw at medium-sized watersheds (0.5–100 ha). The results clearly demonstrated different flow patterns expressed by Qs vs. Tw hysteretic loops. Those were clockwise in Period I (April–September) and counterclockwise in Period II (October–March), except for lower slope gradient at Aichi, where counterclockwise loops were observed in both periods. These differences in hysteretic loops could be explained by the differences in Tw and in response times to rainfall between surface/subsurface and groundwater flows. The response times were probably determined by the slope gradient and the vertical level of groundwater. We also found that the changes in air temperature (ΔTa) influenced ΔTw to a lesser degree than Qs. The average rainfall intensities in Period I and Period II (9.3 ± 1.7 and 5.4 ± 0.2 mm/h, respectively) affected the average values of ΔQs and ΔTw (6.62 ± 4.08 mm/h and 1.7 ± 0.4°C; 0.85 ± 0.68 mm/h and 0.9 ± 0.3°C, respectively). This indicates that slope gradient and Qs influenced ΔTw by changing the relative proportions of flow paths. In addition, the water table changes influenced the percentage of groundwater flow to the stream.

Keywords

Stream water temperature changes Specific discharge Hysteretic loop Rainfall event Slope gradient

Notes

Acknowledgments

This research was supported by Japan Science and Technology Agency, Core Research for Evolutional Science and Technology. We express our thanks to all members involved in this project.

References

  1. Becker MW, Georgian T, Ambrose H, Siniscalchi J, Fredrick K (2004) Estimating flow and flux of groundwater discharge using water temperature and velocity. J Hydrol 296:221–233CrossRefGoogle Scholar
  2. Bogan T, Stefan HG, Mohseni O (2004) Imprints of secondary heat sources on the stream temperature/equilibrium temperature relationship. Water Resour Res 40:1–16CrossRefGoogle Scholar
  3. Bras RL (1990) Hydrology, an introduction to hydrologic science, chap 7. Groundwater flow in saturated porous media. Addison-Wesley, US, pp 283–312Google Scholar
  4. Brown LE, Hannah DM (2007) Alpine stream temperature response to storm events. J Hydrometeorol 8:952–967CrossRefGoogle Scholar
  5. Brown LE, Hannah DM, Milner AM (2006) Hydroclimatological influences on water column and streambed thermal dynamics in an alpine river system. J Hydrol 325:1–20CrossRefGoogle Scholar
  6. Brutsaert W (2006) Hydrology, an introduction. Cambridge University Press, UK, p 605Google Scholar
  7. Caissie D (2006) The thermal regime of rivers: a review. Freshw Biol 51:1389–1406CrossRefGoogle Scholar
  8. Dunham J, Schroeter R, Rieman B (2003) Influence of maximum water temperature on occurrence of Lahontan cutthroat trout within streams. North Am J Fish Manag 23:1042–1049CrossRefGoogle Scholar
  9. Eaton GJ, Scheller RM (1996) Effects of climate warming on fish thermal habitat in stream of the United States. Limnol Oceanogr 41:1109–1115CrossRefGoogle Scholar
  10. Edinger JR, Duttweiler DW, Geyer JC (1968) The response of water temperature to meteorological conditions. Water Resour Res 4:1137–1143CrossRefGoogle Scholar
  11. Fukushima T, Ozaki N, Kaminishi H, Harasawa H, Matsushige K (2000) Forecasting the changes in lake water quality in response to climate changes, using past relationships between meteorological conditions and water quality. Hydrol Process 14:593–604CrossRefGoogle Scholar
  12. Gu RR, Li Y (2002) River temperature sensitivity to hydraulic and meteorological parameters. J Environ Manag 66:43–56CrossRefGoogle Scholar
  13. Hannah DM, Malcolm IA, Soulsby C, Youngson AF (2004) Heat exchanges and temperatures within a salmon spawning stream in the Cairngorms, Scotland: seasonal and sub-seasonal dynamics. River Res Appl 20:635–652CrossRefGoogle Scholar
  14. Hawkins CP, Hogue JN, Decker LM, Feminella JW (1997) Channel morphology, water temperature, and assemblage structure of stream insects. J North Am Benthol Soc 16:728–749CrossRefGoogle Scholar
  15. Herb WR, Janke B, Mohseni O, Stefan HG (2008) Ground surface temperature simulation for different land covers. J Hydrol 356:327–343CrossRefGoogle Scholar
  16. Herschy RW (1985) Stream measurements, stream flow measurements. Elsevier, LondonGoogle Scholar
  17. Huang M, Liang X, Leung LR (2008) A generalized subsurface flow parameterization considering subgrid spatial variability of recharge and topography. J Hydrometeorol 9:1151–1171CrossRefGoogle Scholar
  18. Jensen AJ, Johnsen BO, Saksgard L (1989) Temperature requirements in Atlantic salmon (Salmo salar), brown trout (Salmo trutta), and Arctic char (Salvelinus alpinus) from hatching to initial feeding compared with geographic-distribution. Can J Fish Aquat Sci 46:786–789Google Scholar
  19. Kobayashi D (1985) Separation of the snowmelt hydrograph by stream temperatures. J Hydrol 76:155–162CrossRefGoogle Scholar
  20. Kobayashi D, Ishii Y, Kodama Y (1999) Stream temperature, specific conductance and runoff process in mountain watersheds. Hydrol Process 13:865–876CrossRefGoogle Scholar
  21. Lambs L (2004) Interactions between groundwater and surface water at river banks and the confluence of rivers. J Hydrol 288:312–326CrossRefGoogle Scholar
  22. Meyer JL, Sale MJ, Mulholland PJ, Poff NL (1999) Impacts of climate change on aquatic ecosystem functioning and health. J Am Water Resour Assoc 35:1373–1386CrossRefGoogle Scholar
  23. Mohseni O, Stefan HG (1999) Stream temperature/air temperature relationship: a physical interpretation. J Hydrol 218:128–141CrossRefGoogle Scholar
  24. O’Driscoll MA, DeWalle DR (2006) Stream-air temperature relations to classify stream-ground water interactions in a karst setting, central Pennsylvania, USA. J Hydrol 329:140–153CrossRefGoogle Scholar
  25. Onda Y, Yukawa N (1994) The influence of understories and litter layer on the infiltration of forested hillslopes. In: Proceeding of the international symposium on forest hydrology, Tokyo, Japan, Oct 1994, pp 107–114Google Scholar
  26. Ozaki N, Fukushima T, Harasawa H, Kojiri T, Kawashima K, Ono M (2003) Statistical analyses on the effects of air temperature fluctuations on river water qualities. Hydrol Process 17:2837–2853CrossRefGoogle Scholar
  27. Resh VH, Brown AV, Covich AP, Gurtz ME, Li HW, Minshall GW, Riece SR, Sheldon AL, Wallace JB, Wissmar RC (1988) The role of disturbance in stream ecology. J North Am Benthol Soc 7:433–455CrossRefGoogle Scholar
  28. Shanley JB, Peters NE (1988) Preliminary observations of streamflow generation during storms in a forested Piedmont watershed using temperature as a tracer. J Contam Hydrol 3:349–365CrossRefGoogle Scholar
  29. Sinokrot BA, Gulliver JS (2000) In-stream flow impact on river water temperatures. J Hydraul Res 38:339–349Google Scholar
  30. Sophocleous M (2002) Interactions between groundwater and surface water: the state of the science. Hydrogeol J 10:52–67CrossRefGoogle Scholar
  31. Subehi L, Fukushima T, Onda Y, Mizugaki S, Gomi T, Terajima T, Kosugi K, Hiramatsu S, Kitahara H, Kuraji K, Ozaki N (2009) Influences of forested watershed conditions on fluctuations in stream water temperature with special reference to watershed area and forest type. Limnology 10:33–45CrossRefGoogle Scholar
  32. Sugita M (1983) Changes in river water temperature with rainfall. Geogr Rev Jpn 56(12):835–843Google Scholar
  33. Tanco R, Kruse E (2001) Prediction of seasonal water table fluctuations in La Pampa and Buenos Aires, Argentina. Hydrogeol J 9:339–347CrossRefGoogle Scholar
  34. Tani M (1997) Runoff generation processes estimated from hydrological observations on a steep forested hillslope with a thin soil layer. J Hydrol 200:84–109CrossRefGoogle Scholar
  35. Todd DK, Mays LW (2005) Groundwater hydrology, chap 7. Quality of groundwater. Wiley, US, pp 329–357Google Scholar
  36. Tung CP, Lee TY, Yang YC (2006) Modelling climate-change impacts on stream temperature of Formosan landlocked salmon habitat. Hydrol Process 20:1629–1649CrossRefGoogle Scholar
  37. Uchida T, Asano Y, Onda Y, Miyata S (2005) Are headwaters just the sum of hillslopes? Hydrol Process 19:3251–3261CrossRefGoogle Scholar
  38. Vannote RL, Sweeney BW (1980) Geographic analysis of thermal equilibria: a conceptual model for evaluating the effect of natural and modified thermal regimes on aquatic insect communities. Am Nat 115:667–695CrossRefGoogle Scholar
  39. Ward JV (1985) Thermal characteristics of running waters. Hydrobiologia 125:31–46CrossRefGoogle Scholar
  40. Ward RC, Robinson M (2000) Principles of hydrology. McGraw-Hill, UK, p 450Google Scholar
  41. Webb BW, Clack PD, Walling DE (2003) Water–air temperature relationships in a Devon river system and the role of flow. Hydrol Process 17:3069–3083CrossRefGoogle Scholar
  42. Webb BW, Hannah DM, Moore RD, Brown LE, Nobilis F (2008) Recent advances in stream and river temperature research. Hydrol Process 22:902–918CrossRefGoogle Scholar
  43. Westhoff MC, Savenije HHG, Luxemburg WMJ, Stelling GS, van de Giesen NC, Selker JS, Pfister L, Uhlenbrook S (2007) A distributed stream temperature model using high resolution temperature observations. Hydrol Earth Syst Sci 11:1469–1480CrossRefGoogle Scholar
