Differential Expression of Genes within the Cochlea as Defined by a Custom Mouse Inner Ear Microarray

  • Ken A. Morris
  • Einat Snir
  • Celine Pompeia
  • Irina V. Koroleva
  • Bechara Kachar
  • Yoshihide Hayashizaki
  • Piero Carninci
  • M. Bento Soares
  • Kirk W. Beisel
Original Article
First Online:
Received:
Accepted:

Abstract

Microarray analyses have contributed greatly to the rapid understanding of functional genomics through the identification of gene networks as well as gene discovery. To facilitate functional genomics of the inner ear, we have developed a mouse inner-ear-pertinent custom microarray chip (CMA-IE1). Nonredundant cDNA clones were obtained from two cDNA library resources: the RIKEN subtracted inner ear set and the NIH organ of Corti library. At least 2000 cDNAs unique to the inner ear were present on the chip. Comparisons were performed to examine the relative expression levels of these unique cDNAs within the organ of Corti, lateral wall, and spiral ganglion. Total RNA samples were obtained from the three cochlear-dissected fractions from adult CF-1 mice. The total RNA was linearly amplified, and a dendrimer-based system was utilized to enhance the hybridization signal. Differentially expressed genes were verified by comparison to known gene expression patterns in the cochlea or by correlation with genes and gene families deduced to be present in the three tissue types. Approximately 22–25% of the genes on the array had significant levels of expression. A number of differentially expressed genes were detected in each tissue fraction. These included genes with known functional roles, hypothetical genes, and various unknown or uncharacterized genes. Four of the differentially expressed genes found in the organ of Corti are linked to deafness loci. None of these are hypothetical or unknown genes.

Keywords

differential expression cochlea organ of Corti spiral ganglion lateral wall deafness genes

Introduction

The majority of genes related to hearing loss can be classified into three major groups. In general, these are based on their functional roles, which are (1) stereocilia-based mechanoelectrical transduction, (2) K+ recirculation and conductances, and (3) the compositional integrity and function of basement membranes. These genes are mainly expressed in the sensory epithelium, their surrounding supporting cells, or the cellular components of the cochlear lateral wall (composed primarily of the stria vascularis and spiral ligament). The set of genes that are involved in stereociliary development and homeostasis is suggested to comprise a network of interactive proteins, which include myosin VIIa, harmonin, cadherin 23, protocadherin 15, whirlin, and Sans (Boeda et al. 2002; Ahmed et al. 2003; Kikkawa et al. 2003; Mburu et al. 2003; Weil et al. 2003; Siemens et al. 2004). Many of the deafness genes initially appeared to be uniquely expressed in the inner ear, but subsequent data showed that their expression is not restricted to the inner ear. These genes are nonetheless pertinent for inner ear function (Beisel et al. 2004). Hearing loss genes are grouped into syndromic and nonsyndromic forms based on the clinical manifestations of gene mutations. It is estimated that over 50% of the several hundred deafness loci are still unknown or uncharacterized. In the mouse, there exist at least 175 spontaneous or genetically manipulated hearing-impaired mutant lines carrying defective genes, with more being identified from the large-scale ENU-mutagenesis screen (Nolan et al. 2000; Kiernan et al. 2002; Rhodes et al. 2003). Studies of these genes and their effects require techniques spanning from behavior to the analysis of unique cell types of the ear and their structure–function aspects. An essential strategy for such an analysis requires the examination of all genes expressed in the ear that are potentially affected and is exemplified by microarray technologies.

DNA microarray analysis does provide a means to study genes at a whole-genome level and can be used to (1) estimate expression levels, (2) begin characterizing previously unknown genes, (3) analyze differential gene expression among tissues, cells types, or specific treatments, (4) analyze mutational variations of a gene, and (5) identify gene interactions through clustering. Although limited in number, microarray studies of the inner ear have ranged from being more general discussions of utilization of these techniques and approaches for the investigation of the inner ear (Lomax et al. 2000; Chen and Corey 2002a,b) to more specific applications involving gene discovery, tissue comparison, and clustering analyses for gene network identification (Chen and Corey 2002a,b; Cho et al. 2002; Abe et al. 2003; Hawkins et al. 2003; Hertzano et al. 2004; Iijima et al. 2004). These studies demonstrate the general use and benefit of microarray analysis as an analytical tool for such analyses.

A common problem of all these studies is the lack of cDNAs or oligonucleotides exclusively representing inner ear transcripts. This impacts on the identification of genes involved in the development and function of the inner ear in both overabundance of uninformative genes as well as the absence of relevant genes. Another major difficulty in microarray assessment is the necessity of obtaining sufficient quantities of starting tissue for the generation of microarray probes. This requirement has mandated the use of whole inner ear/cochlear preparations, which can effectively “dilute out” the identification and quantification of pertinent transcripts. Recent technical advances in amplification of transcripts (Baugh et al. 2001; Badiee et al. 2003) and probe signal (Capaldi et al. 2000) have drastically reduced the required amount of starting material.

Recently, various cDNA libraries specific to the ear were constructed and analyzed (Beisel et al. 2004; Pompeia et al. 2004) as well as the mouse cDNA encyclopedia (Okazaki et al. 2002). We constructed a cDNA microarray chip derived from cDNA libraries produced from the inner ear. Herein, we report the validation and utilization of this “inner-ear-pertinent” cDNA microarray chip to identify the relative expression levels of known deafness genes and potential inner-ear-pertinent transcripts. Through the use of dissected fractions from the mouse cochlea representing the organ of Corti (OC), the lateral wall containing the stria vascularis (LW), and the spiral ganglion neurons (SG), differentially expressed genes were identified and their relationship to deafness loci was assessed.

Materials and methods

DNA preparation for printing

Bacteria cultures in 96-well plates were allowed to thaw at room temperature for approximately 30 min. Five microliters of each culture was added to a 96-well thin-wall PCR plate containing TE buffer (10 mM Tris, 1 mM EDTA). The plate was then heated to 95°C for 10 min, and an aliquot, 5 l, of each supernatant was transferred to a fresh 96-well PCR plate and used to amplify the cDNA inserts.

Clone inserts were amplified in a Peltier thermal cycler (MJ Research, Inc., Waltham, MA) using a modified M13 primer set as described (Hegde et al. 2000). Amplification was performed in 26 cycles with an annealing temperature of 55°C. The extension time was 6 min for the RIKEN inserts and 3 min for the NIH inserts. Following amplification, 5 l of each sample was run out on a 1% agarose gel, which was used to determine the percentage of inserts that produced a product and the number of products with multiple PCR bands. The remainder of each sample was precipitated and then stored at 4°C until printing.

Slide preparation and printing

Dry PCR products were resuspended in sterile water (Sigma-Aldrich, Corp., St. Louis, MO), and 5 l was transferred using a Biomek FX robot (Beckman Coulter, Inc., Fullerton, CA) into 384-well plates containing 5 l DMSO (Sigma). The samples were printed in triplicate on Corning UltraGAPS slides with a Cartesian ProSys printer (Genomic Solutions, Ann Arbor, MI) and TeleChem Stealth pins (TeleChem International, Inc., Sunnyvale, CA). The relative humidity during the print was controlled at 40%. A total of 21,888 spots were printed (7296 unique spots) with a center to center distance of 200 m. The printed arrays were then UV cross-linked at 250 mJ using a Stratalinker (Strategene) and stored in a desiccator at room temperature until used. An expiration date of 6 months was used for all microarray chips.

Experimental design

Three sets of comparisons were made: OC vs. LW, OC vs. SG, and LW vs. SG. Table 1 depicts each comparison and the usage of the tissue samples from four individual animals, designated as mice A–D. The experiments were designed to provide both biological and technical replications and to be compatible with various methods of data analysis (Churchill 2002).
Table 1

Experimental microarray design: sample comparisons

Mouse IDa

Dissect fraction comparisons

OC vs. SG

OC vs. LW

LW vs. SG

A

OCb-Alexa647; SG-Cy3

OC-Cy3; LWb-Alexa647

LW-Cy3; SGb-Alexa647

B

OC-Alexa647; SG-Cy3

OC-Cy3; LW-Alexa647

LW-Cy3; SG-Alexa647

C

OC-Cy3; SG-Alexa647

OC-Alexa647; LW-Cy3

LW-Alexa647; SG-Cy3

D

OC-Cy3; SG-Alexa647

OC-Alexa647; LW-Cy3

LW-Alexa647; SG-Cy3

aNote that tissue samples were isolated and RNA was amplified separately from each of the four mice listed.

bThe material isolated from one mouse (e.g., mouse A) was used in three comparisons, as indicated.

RNA extraction

Tympanic bullae from four normal hearing “outbred” CF-1 male mice (4–5 weeks) (Harlan, Indianapolis, IA) were dissected and immediately placed in cold Minimum Essential Medium (Invitrogen Corp., Carlsbad, CA) for fine dissection. Following removal of the temporal bone, the cochleae were dissected at 4°C to obtain large portions of the lateral wall (composed mostly of the stria vascularis and spiral ligament) and spiral ganglia and the whole OC, as represented in Figure 1. The samples were placed in tubes containing RNA Later (Ambion, Inc., Austin, TX) and stored at −20°C. Note that tissue samples from different mice and from different cochlear regions were not combined. Rather, each sample was processed separately in all of the succeeding steps (RNA isolation, amplification, and probe generation).
Open image in new window

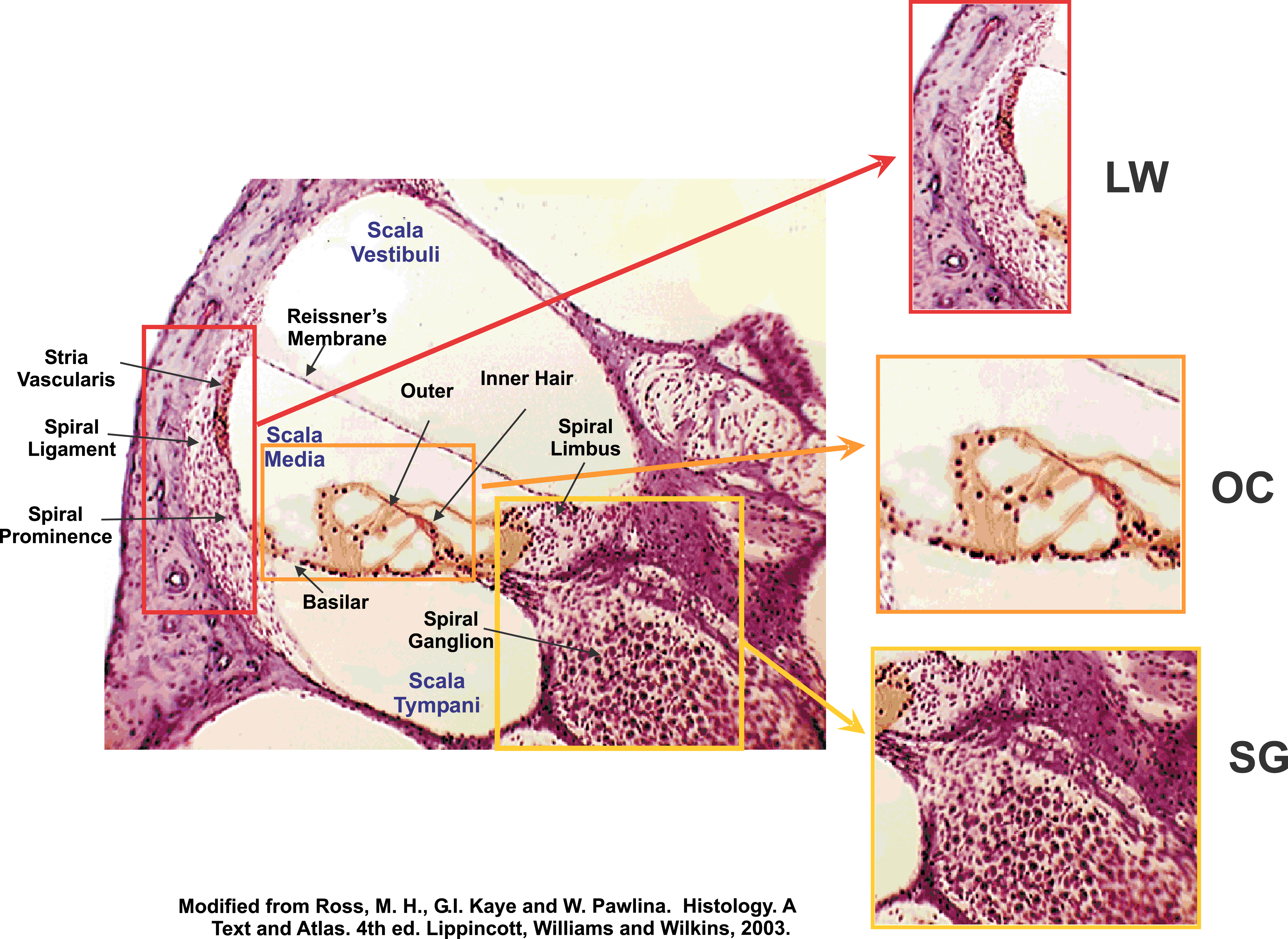

Fig. 1

Dissection of the mouse cochlea. A histological representation of the dissected fractions of the mouse inner ear is depicted. Three functionally distinct regions of the cochlea were chosen for isolation and represent the lateral wall (LW) comprising the stria vascularis, spiral ligament and spiral prominence, the organ of Corti (OC), and the spiral ganglion (SG) neurons. All samples are comprised of tissue from all three turns including the basal hook region.

For RNA isolation, tissue samples were transferred to lysis buffer, disrupted, and then homogenized using a QIAshredder column (QIAGEN Sciences, Inc., Germantown, MD). Total RNA was isolated using the Qiagen RNeasy Mini kit following the manufacturer’s standard protocol. DNase treatment was performed on the column as described in the manufacturer’s protocol. RNA integrity was verified using the Agilent 2100 Bioanalyzer with an RNA Pico Chip (Agilent Technologies, Palo Alto, CA) (see Figs. 2A and B). RNA concentration was determined with a UV spectrophotometer and also estimated with the Bioanalyzer.
Open image in new window

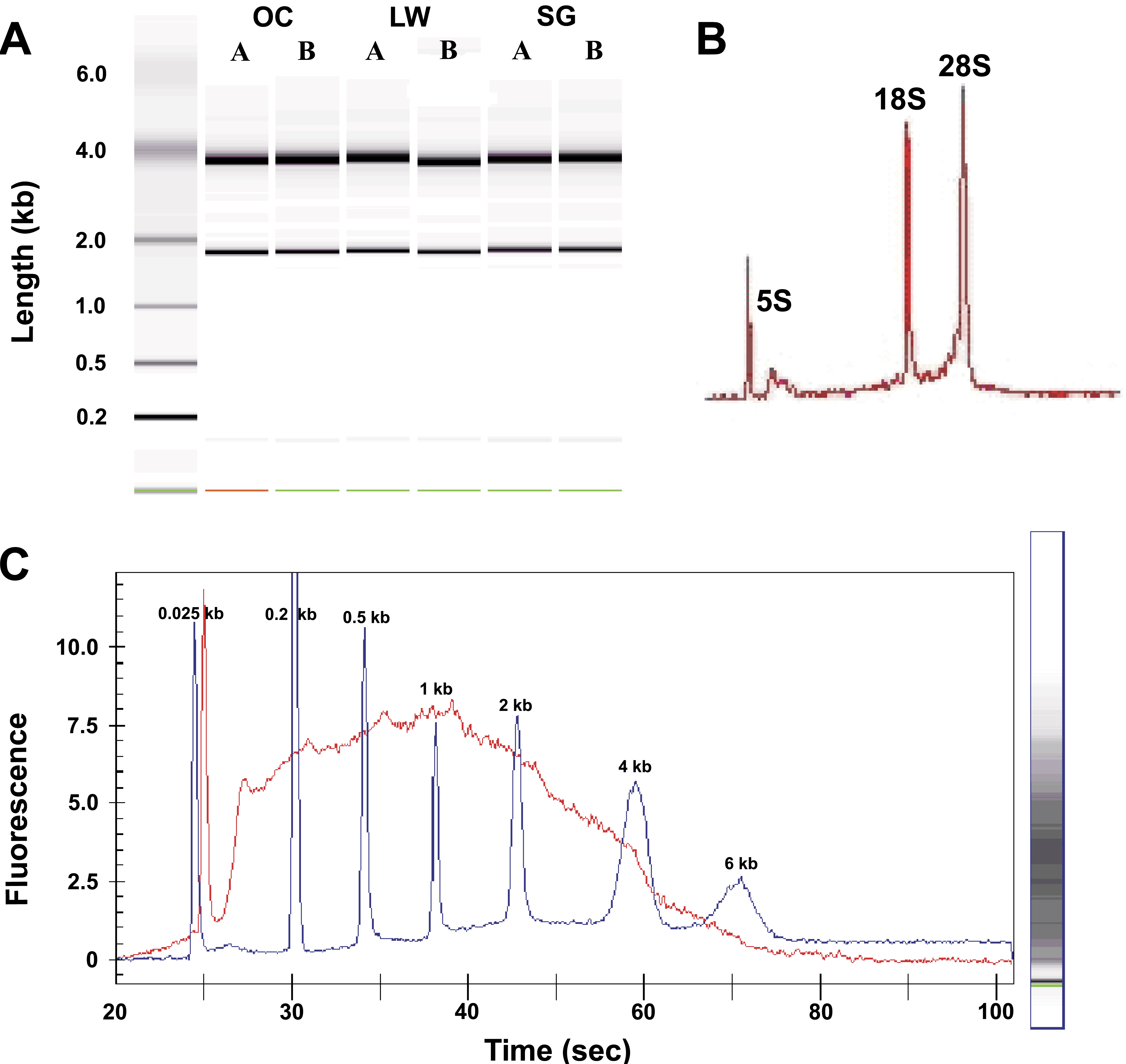

Fig. 2

Assessment of total RNA and amplified RNA samples. Quality assessment of total and amplified RNA. Bioanalyzer gel image (A) of total RNAs is represented by duplicated samples from each of the three dissected cochlear regions. In each sample, the 28S, 18S, and 5S ribosomal bands are visible, and this is depicted by the bioanalyzer electropherogram (B) of total RNA isolated from the OC. (C) Bioanalyzer electropherogram of 1× amplified RNA (aRNA) from the OC overlaid on the corresponding electropherogram of a 6-kb RNA ladder (Ambion, Inc., Austin, TX). For all aRNA samples, the size range was about 100–6000 bases, with a midpoint of about 1000 bp.

RNA amplification

Amplified RNA (aRNA) was synthesized using one round of a T7-based linear amplification protocol as described (Van Gelder et al. 1990; Baugh et al. 2001). Specifically, approximately 50 ng of total RNA was combined with 100 pmol of a T7 Oligo(dT) primer (Ambion), and the sample was denatured at 70°C for 10 min. First-strand cDNA synthesis was performed by adding 5× first-strand buffer (250 mM Tris–HCl, pH 8.3; 375 mM KCl; 15 mM MgCl2), 1 l of 10 mM dNTPs, 20 U of RNasin (Promega Corp., Madison, WI), 2 l of 100 mM DTT, and 200 U of Superscript II (Invitrogen). The reaction was incubated at 42°C for 2 h with the addition of another 200 U of Superscriptase II after 1 h. The reaction was then heat inactivated at 60°C for 15 min. Second-strand synthesis was performed using 5× second-strand buffer [100 mM Tris–HCl, pH 6.9; 450 mM KCl; 23 mM MgCl2; 0.75 mM beta-nicotinamide adenine dinucleotide (β-NAD+); 50 mM (NH4)2SO4], 4 l of 10 mM dNTPs, 20 U Escherichia coli DNA Polymerase I (Invitrogen), 10 U E. coli DNA Ligase (Invitrogen), and 2 U ribonuclease H (Invitrogen). The reaction was incubated at 16°C for 2 h. Afterwards, the cDNA was purified and concentrated using the DNAclear kit (Ambion).

In vitro transcription was performed using the MEGAscript T7 kit (Ambion) by adding NTPs, 10× reaction buffer, and T7 enzyme to the purified cDNA. The resulting solution was incubated at 37°C for 14 h. Afterwards, the aRNA was purified using the RNeasy Mini Kit (QIAGEN). RNA integrity was verified, and the concentration was determined as described above (see Fig. 2C). We were able to achieve greater than a thousand-fold amplification of the mRNA. Linear amplification of these samples was validated by their global expression data and comparing genes that are comparably expressed, such as housekeeping and ribosomal protein genes.

Probe synthesis, hybridization, and laser scanning

A probe was generated for each of the 12 aRNA samples. A series of hybridizations was performed, with each probe being used in exactly two hybridization experiments as indicated in Table 1. For probe generation and hybridizations, we used the 3DNA 350 RP Kit (Genisphere Inc., Hatfield, PA), which utilizes a dendrimer-based strategy to enhance the signal (Capaldi et al. 2000). We followed the standard protocol for probe generation for a dual channel experiment, beginning with 200 ng of each aRNA sample. Briefly, RNA from each tissue was reverse-transcribed into cDNA using unlabeled dNTPs. A capture sequence, which serves as the binding site for the fluorescent dendrimer, was ligated to the cDNA. The probes were combined and successive hybridizations were performed, first of the cDNA to the glass slide, then of the dendrimer mix to the cDNA. In both hybridization mixes, 3 l Mouse Cot1 DNA (Invitrogen) was added, and 16 g poly d(A)40–60 (Amersham Bioscience, Piscataway, NJ) was substituted for the dT blocker supplied in the kit. Both hybridizations were performed using the 2× formamide-based hybridization buffer at 50°C. The hybridization times and posthybridization washes followed the recommendations in the protocol. Following hybridization, the slides were scanned with a GenePix 4000B laser scanner (Axon Instruments, Union City, CA) to determine the amount of each fluorescent cDNA that hybridized. Initial spot analysis and background subtraction were performed using the GenePix Pro 5.0 software (Axon Instruments).

Normalization and background subtraction

Background was calculated using a local feature background median, which was subtracted from each spot. Using this method, a background value is calculated for each feature individually based on the median intensity of pixels immediately surrounding the feature. A positive signal was defined as those spots with intensity levels greater than two standard deviations above background. The background-subtracted ratio of medians (635/532) was calculated for each spot. These data were then normalized using locally weighted print-tip normalization (Yang et al. 2002) to transform each ratio into a log value.

Data analysis

Log-transformed values from locally weighted normalization were input into the Significance Analysis of Microarrays (SAM) program (Tusher et al. 2001). Each comparison was input as a one class experiment, utilizing block permutations for the replicate spots on each chip. The delta value, which is used to set the cutoff point for significance, was adjusted to maximize the number of genes deemed significant while minimizing the number of false positives determined by the program. We found that there was a very narrow range for the delta value if we wanted to keep the number of false positives to a minimum.

Results

Microarray characterization

Our mouse inner ear-pertinent custom microarray chip (designated CMA-IE1) is derived from the subtracted version of the RIKEN adult inner ear set (Unigene Library ID: 9974) and the NIH organ of Corti library (Unigene Library ID: 10920). As summarized in Table 2, the array is composed of 5758 of the RIKEN clones and 1288 NIH clones, all spotted in triplicate. The majority of the NIH clones on the array consist of unknown or uncharacterized ESTs to facilitate gene discovery. Clones were also added, both from the NIH library and from our own collections that are involved in important auditory pathways. In addition, the array contains a number of controls (buffer, mouse Cot1, polyA) and spikes for the purposes of normalization and data analysis. We define spikes as genes added to the array from various species (e.g., Xenopus laevis, Anopheles gambiae, Schistosoma mansoni, and Apis mellifera) that have been shown not to hybridize to any known mouse transcript. Approximately 60 different spikes were added to the microarray chip. Spikes can serve as negative controls or included in the hybridization mix to quantify the sensitivity of the assay.
Table 2

Microarray statistical analysis

Clone origin

Total number of clones

Number amplifieda

OC vs. SG

OC vs. LW

LW vs. SG

NIH clones

1288

1182

355 (30.0%)

320 (27.1%)

365 (30.9%)

RIKEN clones

5758

4589

1069 (23.3%)

912 (19.9%)

1120 (24.4%)

“Lab” clones

35

35

4 (11.4%)

4 (11.4%)

3 (8.6%)

Total

7081

5806

1424 (24.5%)

1232 (27.1%)

1488 (25.6%)

aNot all the clones from the two libraries were represented on the microarray because the corresponding cDNA inserts could not be amplified using the combined rolling circle and PCR protocol of Hegde et al. (2000).

Depending on the comparison, around 22–25% of the clones represented on the array showed positive signals greater than two standard deviations above background. This varied based on the cDNA source. Specifically, about 27–31% of the clones from the NIH library were detected at this level compared with about 19–24% of the RIKEN clones. For each comparison, the ratio of NIH to RIKEN clones detected was nearly the same. For the most part, we expected to see a fairly low level of detection. This is because the RIKEN inner ear set is highly subtracted and therefore consists of many genes expressed at low levels and/or only in specific tissues or cell types. The NIH organ of Corti unknown and/or uncharacterized cDNA clones ranged from being singletons to those which are moderately expressed. Singletons are defined as cDNAs that were isolated only once in a given cDNA library. In addition, we expect many genes from the NIH library to be detectable in the immature ear of postnatal mice (postnatal days 5–13) and not in the adult cochlea because these cDNAs originate from mice at various developmental stages.

In general, low-frequency transcripts (10–25 copies/cell) were detected, whereas rare transcripts (<10 copies/cell) were not significantly above signal threshold to be classified as detectable. The limits of detection as defined by cellular transcript frequencies were ascertained by comparisons with the relative expression levels of housekeeping genes observed in reference control samples along with the clone frequency observed in the organ of Corti library (Pompeia et al. 2004). Because the organ of Corti library was not subtracted, the relative frequency of housekeeping and ribosomal protein transcripts within this library could also be inferred and compared with the corresponding cDNAs and their relative expression levels. One example of our microarray assay limit of detection is the observed expression of the nicotinic acetylcholine receptor α9 (Chrna9), which can be difficult to detect by in situ hybridization. Neither prestin nor Chrna10 was detected, and these genes are expressed at very low levels in the organ of Corti (Judice et al. 2002). This is consistent with microarray experiments in general. There is usually a cutoff point for detection that is dependent on many factors, including the number of copies of a gene present in the probe and the methods used for labeling and hybridization. The cutoff point can be estimated using spike controls (Badiee et al. 2003), which requires a great deal of planning, effort, and validation. Instead, we propose utilizing genes for ribosomal protein cDNAs present on the array as an internal standard. These genes were chosen because there are a relatively large number of them, and, for the most part, they are ubiquitously expressed. In addition, the mitochondrial ribosomal protein transcripts are considered to be rare transcripts. We found that the ribosomal protein gene expression levels could be used as an additional internal standard for estimating relative transcript frequency levels (Fig. 3). Interestingly, the relative expression levels observed in the microarray corresponded, in general, to the number of sequences of each of the ribosomal protein EST identified in the GenBank database. It must be recognized that their expression levels may vary among the different cell and tissue types, but their relative expression levels should not vary when comparing similar cellular or tissue samples. These factors also enable one to set up a QPCR standard curve to quantify expression levels of genes on the array based on their intensity levels. Genes for ribosomal proteins can also provide a good measure of overall assay sensitivity by comparing the intensity levels observed in any microarray experiment (Fig. 3). However, it is important that the lack of significant hybridization signal in our studies should not be taken to mean that there is no gene expression because the expression levels may be below the level of detection relative to other low-frequency transcripts.
Open image in new window

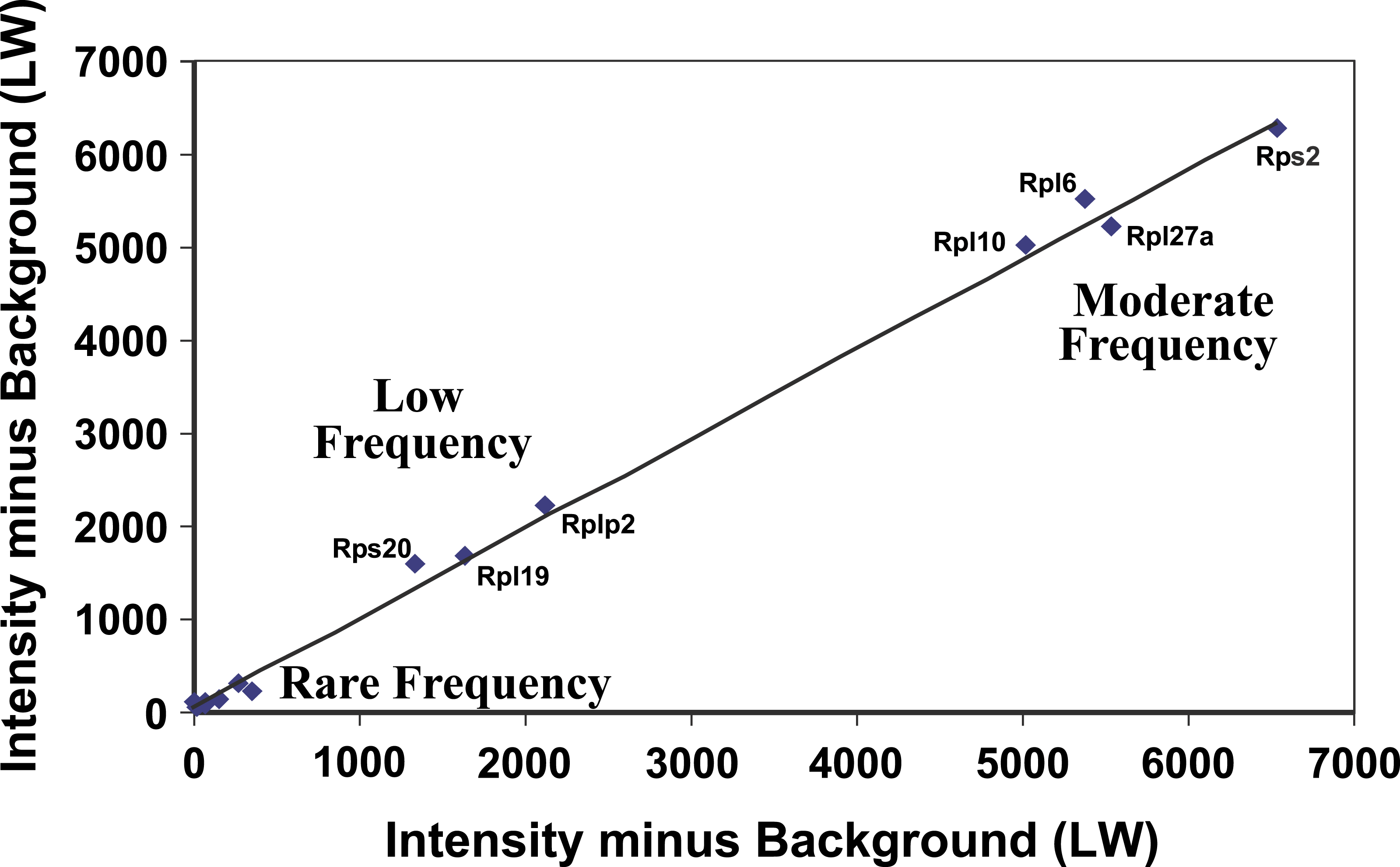

Fig. 3

Utilization of genes specifying ribosomal proteins in normalization assessment. Intensity levels of a large set of genes specifying ribosomal proteins present on the array were examined. Data are for one of the organ of Corti versus spiral ganglion comparisons, but similar results were observed across all experiments. The ribosomal protein genes were categorized into high (>1000 ESTs), moderate (>500 ESTs), and low (<250 ESTs) expression levels based on the number of ESTs in the entire mouse GenBank database. Genes with moderate and low expression levels were cytoplasmic ribosomal proteins and are designated. Those with background signal levels were mitochondrial ribosomal protein genes and are Mrpl10, Mrpl51, Mrps9, Mrps16, and Mrps19a.

Differential expression analyses

For each comparison, locally weighted normalization produced at least 12 log-transformed values (4 hybridizations multiplied by 3 spots per slide) for every cDNA represented (see Fig. 4). These values were input into the SAM program and used to generate plots that determined which genes were significantly differentially expressed. Figure 5 shows SAM plots for each of the three comparisons. The delta values were adjusted to minimize the number of false positives while maximizing biological significance. The median false significant values were less than 0.5, indicating that our data are reliable. In each case, slightly more than 200 genes were characterized as differentially expressed. However, this included genes that were represented on the array more than once. The number of unique genes characterized as differentially expressed was around 150 for each comparison. The OC showed the highest number of unique upregulated genes, followed by the LW, and then the SG. This makes sense considering the source of the cDNA spotted onto the array. In addition, the OC has a larger diversity of cell types and functions compared with the other two tissues.
Open image in new window

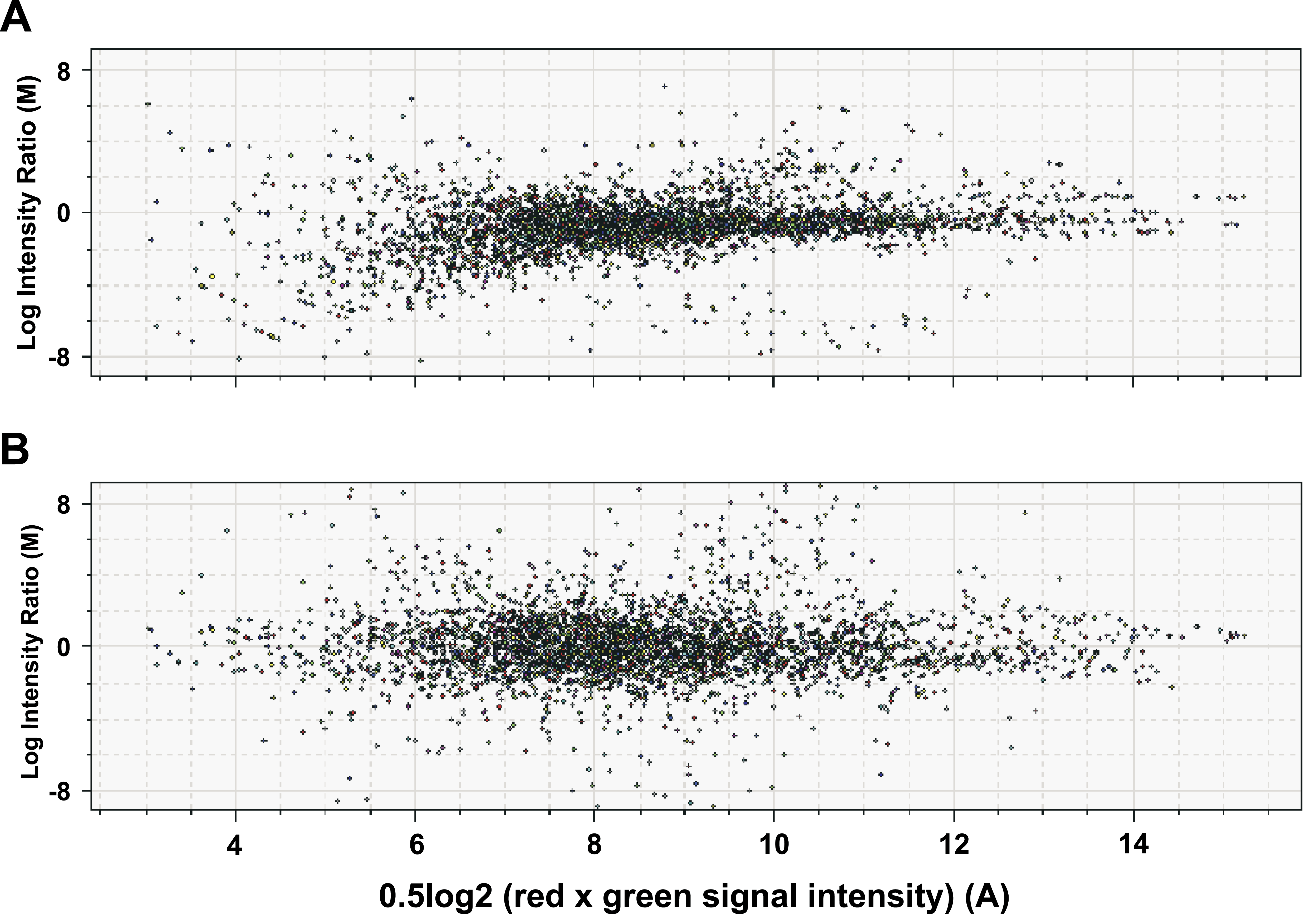

Fig. 4

Locally weighted (lowess) log ratio normalization of microarray data. A microarray comparison between SG (red signal) and LW (green signal) is shown. (A) A typical M versus A scatter plot of unnormalized microarray data. The x-axis is 0.5log2 (red intensity × green intensity) or A. The y-axis is log intensity ratio or M. The log ratio values are skewed to the negative, especially at low intensities. (B) M versus A scatter plot of normalized microarray data. The distribution is now symmetrical about zero at all intensity values. Data are typical for all comparisons performed.

Open image in new window

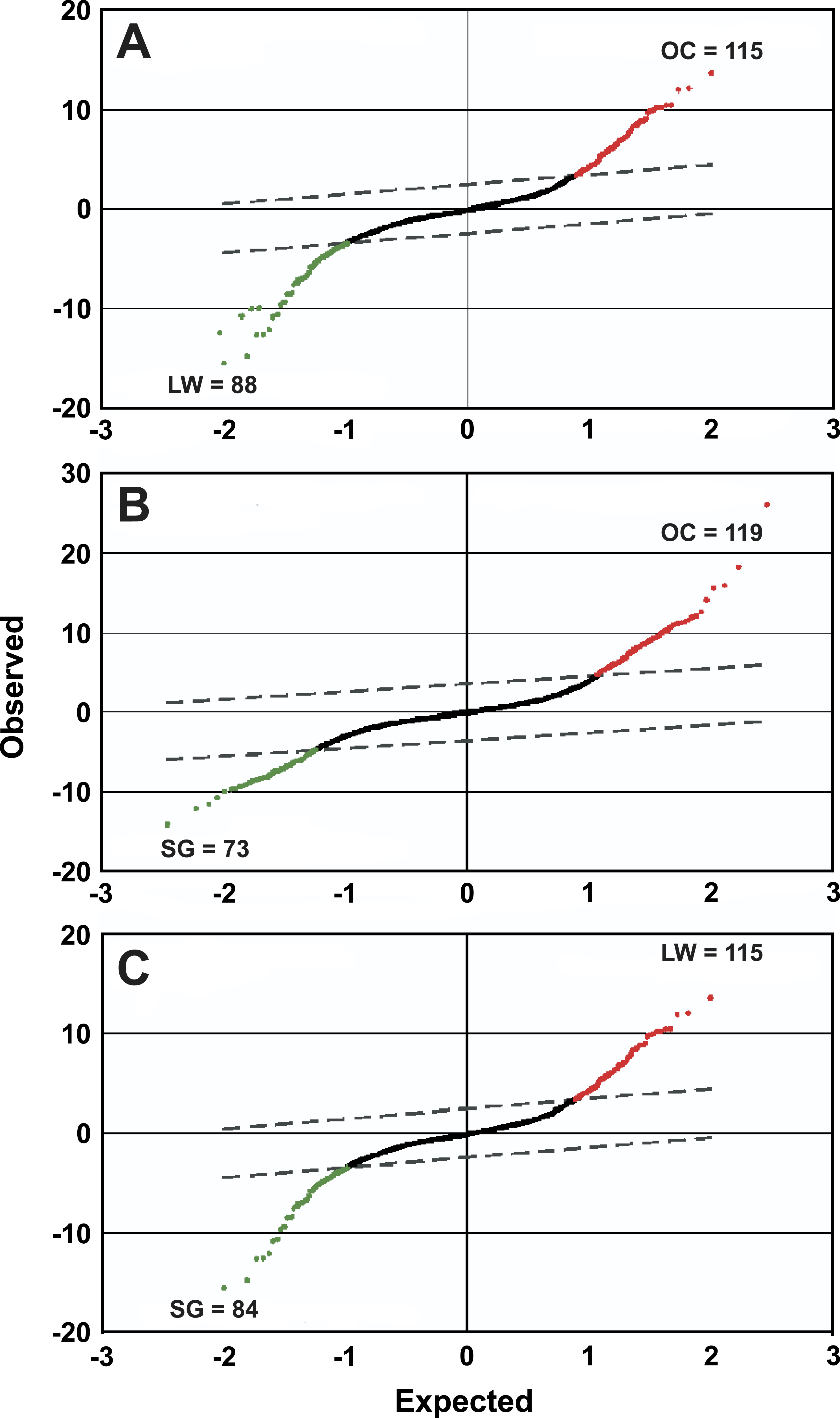

Fig. 5

SAM plots for cochlear dissected fraction expression comparisons. Comparisons were made between LW vs. OC (A), SG vs. OC (B), and SG vs. LW (C). For each comparison, the total number significant, median number false significant, and delta value are shown. Significant differentially expressed genes are represented by either green (tissue 1) or red (tissue 2) data points shown outside of the delta cutoff lines. The delta value is set to maximize the significant data points and minimize the false significant.

Genes were identified that showed significantly higher expression in one tissue type compared with the other two. For example, genes upregulated in the OC for both the OC vs. LW and OC vs. SG comparisons were put into a group. We surmised that these genes may play an important functional role in their respective tissues. Table 3 shows the results of these data. Included are normalized SAM scores to compare the relative levels of differential expression. The OC group consists of several genes that do or may play crucial roles in hearing. These include otoancorin (Otoa) and transmembrane serine protease 3 (Tmprss3), which are both implicated in autosomal recessive deafness (Scott et al. 2001; Zwaenepoel et al. 2002). Also included are otoraplin (Otor), a possible deafness gene associated with the otic capsule (Cohen-Salmon et al. 2000), and otospiralin (Otos), which leads to hair cell degeneration and deafness in guinea pigs when downregulated (Delprat et al. 2002). The remaining genes in this group play diverse functional roles in the OC, and many have been shown to be expressed at relatively high levels in the OC compared with surrounding regions. One example is Skp1a, also known as organ of Corti protein 2 (Ocp2), which is part of a novel SCF ubiquitin ligase complex involved in cochlear homeostasis (Liang et al. 1997).
Table 3

Organ of Corti differentially expressed genes

Unigene ID

Name

No. Clones on array

Average SAM score (SG vs. OC)

Average SAM score (OC vs. LW)

Mm.244514a

LOC327956: hypothetical LOC327956

1

15.8

15.9

Mm.55948

P2rx2: purinergic receptor P2X, ligand-gated ion channel, 2

1

11.9

15.6

Mm.260192a

LOC330483: similar to carcinoembryonic antigen-related cell adhesion molecule 1 (biliary glycoprotein)

4

11.9

13.9

Mm.46561

Lect1: leukocyte cell derived chemotaxin 1

3

16.7

5.5

Mm.259380

St7l: suppression of tumorigenicity 7-like

1

10.3

11.5

Mm.231416a

Similar to hypothetical protein FLJ38281, clone MGC:38507 IMAGE:5352880 (zinc finger protein)

1

11.0

10.4

Mm.219545

Otos: otospiralinb

2

13.6

7.0

Mm.148886

Dspg3: dermatan sulfate proteoglycan 3

4

11.8

8.2

Mm.256058a

MGC58343: hypothetical protein MGC58343–ARM repeat structure containing protein

1

11.2

6.2

Mm.221073

Otoa: otoancorinb

5

7.2

9.3

Mm.330277a

0 day neonate eyeball cDNA, RIKEN full-length enriched library, clone: E130318F19 product: unclassifiable, full insert sequence

1

9.2

7.1

Mm.21109

Gsn: gelsolin

2

7.2

8.6

Mm.42944

Skp1a: S-phase kinase-associated protein 1A

1

8.6

6.6

Mm.27227a

5730469M10Rik: RIKEN cDNA 5730469M10 gene

2

6.4

8.1

Mm.29236

Lu: Lutheran blood group (Auberger b antigen included)

2

6.3

8.1

Mm.214638

Tmprss3: transmembrane protease serine 3b

2

6.1

8.2

Mm.309867

Ptk9: PTK9 protein tyrosine kinase 9

1

6.1

8.2

Mm.29646

Cn2: cytosolic nonspecific dipeptidase

2

6.6

7.5

Mm.103738

Cldn9: claudin 9

1

5.9

7.5

Mm.157751

Oto2r: otoraplinb

2

6.8

6.2

Mm.33849a

B630005N14Rik: RIKEN cDNA B630005N14 gene

1

4.8

8.2

Mm.250438a

2310046G15Rik: RIKEN cDNA 2310046G15 gene

1

5.0

7.7

Mm.131074

Btbd14a: BTB (POZ) domain containing 14A

2

5.4

6.6

gi99h09

No Unigene ID

1

10.3

11.9

gi33a02

No Unigene ID

1

10.6

8.4

gi26a03

No Unigene ID

1

8.9

8.8

gi14c11

No Unigene ID

1

8.8

8.6

gi35a07

No Unigene ID

1

5.9

7.7

F930021H19

No Unigene ID

1

5.5

7.1

aThese Unigene clusters represent hypothetical proteins.

bDeafness genes are indicated.

The SG group consists of a large proportion of myelin-related genes, including Plp, Cnp1, Mal, Mpz, and Fth. There are also a number of genes with other neuronal functions. For example, Ptgds is responsible for synthesis of brain-type prostaglandin D2, which is an abundant prostanoid in the central nervous system and a potent sleep-promoting substance in mammals (Onoe et al. 1988). Another example is Nrp, a receptor that mediates sensory pathfinding in the developing nervous system (He and Tessier-Lavigne 1997). This selection of myelin-related and neuronal genes is consistent with our expectations for the SG, which is composed of nerve fibers innervating the hair cells of the OC. Based on expression analyses of Mpz, Plp, and Erbb3 (Knipper et al. 1998; Lee et al. 2001; Hume et al. 2003), these genes should be highly expressed in SGs compared with the other dissected fractions. Similar to the immunostaining results, Erbb3 was present at higher levels in the SG compared with the OC fraction and was not detectable in the LW. A similar expression pattern was observed with Plp, which had significantly lower levels in the OC than the SG and was just above background in the LW. In situ hybridization studies demonstrated Plp mRNA in the cochlear oligodendrocytes but not in OC or LW (Knipper et al. 1998). Interestingly, a novel splice variant of collagen 1a1 (Col1a1), which uses an alternative polyadenylation signal, was identified and appears to be specific for the SG. It is listed in Table 4 under RIKEN clone ID F930112H09. The “typical” 3NCR of Col1a1 is present in all three dissected fragments at about the same levels. The functional importance, if any, of this novel splice variant is unknown.
Table 4

Spiral ganglion differentially expressed genes

Unigene

Name

No. of clones on array

Average SAM score (SG vs. OC)

Average SAM score (SG vs. LW)

Mm.1268

Plp: proteolipid protein (myelin)

2

15.8

13.1

Mm.347465

Mpz: myelin protein zero

4

10.5

16.7

Mm.56769

Dcn: decorin

1

10.2

10.4

Mm.39040

Mal: myelin and lymphocyte protein, T-cell differentiation protein

1

9.1

10.1

Mm.30837

Ndr1: N-myc downstream regulated 1

1

6.1

12.5

Mm.15711

Cnp1: cyclic nucleotide phosphodiesterase 1

8

9.2

9.3

Mm.1491

Fxyd1: FXYD domain-containing ion transport regulator 1

1

6.4

10.4

Mm.42095

Sfrp4: secreted frizzled-related sequence protein 4

1

9.2

7.2

Mm.29358a

2700055K07Rik: RIKEN cDNA 2700055K07 gene

1

11

5.1

Mm.1008

Ptgds: prostaglandin D2 synthase (brain)

3

8.7

6.9

Mm.290822

Erbb2: erythroblastic leukemia viral oncogene homolog 2

1

9.7

5.2

Mm.271745

Nrp: neuropilin

1

8.9

5.9

Mm.41904a

LOC382857: similar to hypothetical protein FLJ90798

1

7.5

6.9

Mm.1776

Fth: ferritin heavy chain

2

8

6.2

Mm.196269

Golga7: golgi autoantigen, golgin subfamily a, 7

2

7.8

6.3

Mm.806

Cd81: CD 81 antigen

1

7.7

5.6

Mm.5167

Nov: nephroblastoma overexpressed gene

1

6.5

5.3

F930109M07

No Unigene ID

1

8.4

15.6

F930112H09

No Unigene ID

1

14.7

7.9

gi41a12

No Unigene ID

1

10.5

9.8

gi38f04

No Unigene ID

1

6.8

9.2

gi125h03

No Unigene ID

1

6.4

8.5

gi16d09

No Unigene ID

1

6.5

7.6

aThese Unigene clusters represent hypothetical proteins.

In the LW set, two major functional groups of genes were identified. The first group is involved in maintaining ion concentration and regulation of fluids within the inner ear. These include Car2, Car14, Slc4a11, Ppp1r1b, and Atp1b3. The second group of genes is involved in cell growth, proliferation, and differentiation. These genes include Tgfbr2, Qscn6, and Ndr3. Again, these groups of genes are consistent with our expectations for the LW, which is involved in homeostasis of cochlear fluids and endolymph secretion, among other things.

Discussion

To expand utilization of global expression analyses, baseline data of the normal relative levels and patterns of gene expression still need to be established for developmental stages and specific regions or cell types of the inner ear. Our custom microarray chip, CMA-IE1, represents an initial attempt at using a microarray designed specifically for the global expression of inner ear genes. cDNAs were primarily obtained from cDNA libraries with 20,000 clones being analyzed (Beisel et al. 2004; Pompeia et al. 2004), where approximately 2000 transcripts were identified only in the inner ear and likely representing rare to low-frequency inner ear transcripts. These unique ESTs represent 2–3% of the current mouse transcriptome encyclopedia (Okazaki et al. 2002; Carninci et al. 2003) and are not currently represented by any commercial microarray chip. This microarray increases our chances of finding new or novel genes involved in hearing or in development of the ear. As demonstrated in this study, four differentially expressed genes, Otoa, Otor, Otos, and Tmprss3, were identified that are associated with hearing impairment (Cohen-Salmon et al. 2000; Robertson et al. 2000; Ben-Yosef et al. 2001; Masmoudi et al. 2001; Scott et al. 2001; Delprat et al. 2002; Zwaenepoel et al. 2002). Although a number of unidentified singletons exhibited differential expression in the LW, OC, or SG, none were found to colocalize with a deafness locus (Beisel et al. 2004; Pompeia et al. 2004). Identification of functionally pertinent genes demonstrates the overall utility of the CMA-IE1 chip for further studies in spatiotemporal expression differences in normal and diseased inner-ear end organs, especially considering the representation of a large number of unidentified singletons and clusters. Reduction of the cellular complexity of the compared samples should also facilitate global expression analyses. Our goal is to develop a comprehensive set of transcripts pertaining to the inner ear on the array for identification of gene networks and arrangement of genes into functional clusters. Characterizing such pathways under normal or altered conditions requires the ability to screen many candidate genes simultaneously at different time points and under different experimental conditions.

A major hurdle for global expression analyses is the threshold of detection and the sensitivity of the microarray system to discriminate significant changes in expression of rare to low-frequency transcripts. Although a large number of low-frequency genes (10–25 transcripts/cell) can be detected, a number of inner-ear-pertinent genes are at or below this level of detection. The identification of both rare transcripts at <10 copies per cell and transcripts with limited but restricted expression within the different inner-ear cell types can be masked by assay noise generated by the general population. Limiting the transcript repertoire to a single cell population is a valid approach. However, obtaining a pristine cell population of at least 500 cells represents a technical challenge (Glowatzki et al. 1995; Zheng et al. 2000) and also requires linear amplification of the transcript repertoire. Linear amplification from a small number of cells does result in loss of specificity because of the production of shorter and shorter probes with each round of amplification (Scherer et al. 2003; Wilson et al. 2004). Biologically significant changes may still be undetectable by global analyses in the expression levels of inner-ear-pertinent genes. Nevertheless, quantitative PCR analyses for individual genes would be the method of choice to quantify these transcripts (Liberman et al. 2002; Stankovic and Corfas 2003).

Currently, only limited data are available for comparing our study with other inner-ear microarray studies, which primarily utilize commercially available chips. Expression analyses have been performed with an Atlas expression array (Clontech, Palo Alto, CA) containing 588 cDNAs, using 8- to 12-week-old rat whole cochlea and dissected fractions representing the modulus (MOD) and a combination of organ of Corti and lateral wall (OC–LW) (Cho et al. 2002). Sixteen differentially expressed genes were observed between rat MOD and OC–LW, and of these, only five genes (P2rx2, Plp, Pmp22, Limk1, and Nnat) were shared in common with our microarray. P2x purinogenic receptor 2 (P2rx2) was expressed at significantly higher levels in the mouse OC and rat OC–LW than in the SG, LW, or MOD. As suggested by immunohistochemical data (Housley et al. 1999; Jarlebark et al. 2002), this channel is expressed in OHCs, Deiters, and SG type I cells and is upregulated in response to noise (Wang et al. 2003). The remaining genes are primarily associated with neuronal tissue. We found myelin proteolipid protein (Plp) and neuronatin (Nnat) differentially expressed in the SG, whereas both Pmp22 and Limk1 transcripts were not significantly above background in all three dissected fractions.

Another study used the mouse Mu30K chip (Affymetrix, Santa Clara, CA) to examine differential expression between P2 and P32 mouse whole cochlea (Chen and Corey 2002a,b). There was little overlap between the Mu30 array and our CMA-IE1 chip. Only three genes could be compared that were developmentally upregulated in adult mice (Chen and Corey 2002a,b). These were connexin43 (Gja1), a twin-pore potassium ion channel (Kcnk1), and the Na+, K+-activated ATP phosphohydrolase α1 subunit (Atp1a1). These genes appear to play a role, to varying degrees, in K+ recirculation in the inner ear (Estevez et al. 2001; Liu et al. 2001; Wangemann 2002; Nicolas et al. 2003). We found higher levels of Gja1 transcripts in the SG and LW compared with the OC. This reflects the tissue distribution of connexin43 within the cochlea, in which these channels are mainly localized in the stria vascularis and spiral limbus (a component of the spiral ganglion fraction) (Suzuki et al. 2003; Cohen-Salmon et al. 2004). Both ATP1a1 and Kcnk1 (also designated as Twik-1) are ubiquitously expressed in all tissues (Orlowski and Lingrel 1988; Lesage et al. 1997) and are found in the ganglion, vestibular end organs, and the cochlea of the inner ear. However, immunohistochemistry studies have demonstrated that ATP1a1 and Kcnk1 are highly expressed in the marginal and vestibular dark cells. Both these proteins were shown at lower levels in the organ of Corti and spiral ganglion neurons (Zuo et al. 1995; Nicolas et al. 2003). We found higher levels of both these transcripts in the SG and OC compared with the LW, which does not appear to fit the protein expression patterns. Whole mount in situ hybridization and immunohistochemistry in combination with quantitative RT-PCR should help to resolve these discrepancies between transcript and protein expression levels as well as their associated cellular distribution patterns. Ideally, SAGE analyses (Gunnersen et al. 2002) of dissected cochlear fractions from adult mice should provide a more accurate depiction of the global transcript frequencies in these three fractions. Although these different semiquantitative expression platforms may provide limited comparative data, they still have demonstrated the usefulness of global expression analysis in the inner ear.

Our data demonstrate that differentially expressed genes can be identified among the three cochlear fragments and, in general, reflect their cellular, structural, cytoarchitectural, and functional disparities. Both the SG and LW fractions have a more limited cellular diversity compared with the OC. As noted in differential expression analyses, the cellular diversity is further reflected in the three groups of differentially expressed genes presented in Tables 3 4–5. We categorized these genes from their general functional descriptors associated with their “gene ontology (GO) terms,” which is based on function, process, and component characteristics of the gene products (Deng et al. 2004; Harris et al. 2004). The majority (11/16; 68.8%) of differentially expressed genes in the SG are associated with neuronal tissues with three additional clones, secreted frizzled-related protein 4 (Sfrp4), chemokine ligand 12 (Cycl12), and breast cancer metastasis-suppressor 1-like (Brms1l), representing molecules involved in cellular development and proliferation. In the LW fraction, genes related to ion regulation and transport (8/23; 32%) and those involved in cellular development and proliferation (6/23; 24%) constitute the majority of differentially expressed genes. Both carbonic anhydrase genes (Car2 and Car14) and Na+, K+ ATPase (Atp1b3) are all expressed in the lateral wall spiral ligament fibrocytes and are thought to play a role in cochlear fluid and ion homeostasis (Ichimiya et al. 1994; Spicer et al. 1997). K+ homeostasis function of the marginal cells is mediated through the action of membrane proteins, such as Na+, K+ ATPases, protein phosphatase inhibitors, and Na+, K+, Cl co-transporters (Zhao et al. 1994; Agrup et al. 1997; Spicer et al. 1997; Delpire et al. 1999; Dixon et al. 1999; Wangemann 2002). In the LW, we found a differentially expressed subunit of the protein phosphatase 1 regulatory (inhibitor) protein, Ppp1r1b. This gene is likely associated with marginal cells. Another ion transporter, a sodium bicarbonate transporter (Slc4a11), was also identified in the lateral wall. One member of this family of genes, Slc4a7, was found to result in blindness and auditory impairment in mice that carry the targeted disrupted Slc4a7 gene (Bok et al. 2003) and was localized to fibroblasts in the spiral ligament, spiral prominence, and the suprastrial region. The functional properties of the differentially expressed genes associated with the OC were fairly diverse and likely are a reflection of the number and disparity of different cell types within the OC. As such, no one group of genes could be readily identified as being prevalent. To approximate the transcript frequency of the OC differentially expressed genes, we used the frequency of clones derived from the NIH organ of Corti cDNA library. By and large, gene expression levels ranged from moderate [<10% of all the clones: otospiralin (Otos), otoraplin (Otor), and S-phase associated protein 1A (Skp1)], low to moderate [10–30%: claudin 9 (Cldn9), dermatan sulfate proteoglycan 3 (Gspg3), and gelsolin (Gsn)], and the remainder, which were at a low level of occurrence. OC differentially expressed genes were also represented by three apparently low-frequency transcripts: nonspecific dipeptidase (Cn2) and two hypothetical proteins, MGC58343 and E130318F19Rik. These three genes were identified in the RIKEN subtracted library cDNAs but not in the organ of Corti cDNA clusters (Pompeia et al. 2004). Thus discrimination of differentially expressed transcripts could be detected regardless of the corresponding frequency.
Table 5

Lateral wall differentially expressed genes

Unigene

Name

No. of clones on array

Average SAM score (SG vs. LW)

Average SAM score (OC vs. LW)

Mm.226860a

A430104C18Rik: RIKEN cDNA A430104C18 gene

2

13

16.9

Mm.1186

Car2: carbonic anhydrase 2

1

15.2

11.5

Mm.210543

Slc4a11: solute carrier family 4, sodium bicarbonate transporter-like, member 11

5

10.4

16.1

Mm.45372

Ppp1r1b: protein phosphatase 1, regulatory (inhibitor) subunit 1B

1

13.1

11.6

Mm.44195a

1110011D13Rik: RIKEN cDNA 2810003C17 gene

7

13.4

10.6

Mm.291826a

1110001I14Rik: RIKEN cDNA 1110001I14 gene

1

12.5

8.1

Mm.277661

Lrpap1: low-density lipoprotein receptor-related protein associated protein 1

1

10.3

9.8

Mm.193539

Hist1h1c: histone 1, H1c

2

9.4

10

Mm.24838a

2810003C17Rik: RIKEN cDNA 2810003C17 gene

2

8.6

10

Mm.306954

Car14: carbonic anhydrase 14

2

9.7

8

Mm.41653

Rlbp1: retinaldehyde binding protein 1

2

8.6

7.6

Mm.248616

Mus musculus transcribed sequences

2

6.7

8.6

Mm.227912

Itpr1: inositol 1,4,5-triphosphate receptor 1

1

8.9

6

Mm.27035

Qscn6: quiescin Q6

2

6.3

8

Mm.172346

Tgfbr2: transforming growth factor, beta receptor II

1

6.7

7.5

Mm.279256

Ndr3: N-myc downstream regulated 3

1

6

8.1

Mm.20948

Tcn2: transcobalamin 2

3

7

6.8

Mm.18526

Ehd3: EH-domain containing 3

1

6.6

6.8

Mm.424

Atp1b3: ATPase, Na+, K+ transporting, beta 3 polypeptide

1

5.2

8.1

Mm.33240

Eva: epithelial V-like antigen

2

7.6

5.5

Mm.97885

Bace2: beta-site APP-cleaving enzyme 2

2

6.9

5.5

Mm.293605a

1110029F20Rik: RIKEN cDNA 1110029F20 gene

2

5.8

5.8

Mm.9075

Ephx1: epoxide hydrolase 1, microsomal

1

5.2

6.3

F930001L18

No Unigene ID

1

9.1

9.6

F930113A03

No Unigene ID

1

6.4

10.8

gi36b05

No Unigene ID

1

8.2

8.5

gi25b04

No Unigene ID

1

9.7

6.0

aThese Unigene clusters represent hypothetical proteins.

Although the array was validated through differential expression analyses, detection of cell-unique and rare transcripts is still a major issue and is dependent on the complexity of the sample as well as quantity of starting material necessary for the generation of microarray probes. The small quantities of material obtained from either cells or dissected cochlear tissues necessitate a twofold approach: the amplification of total RNA (Van Gelder et al. 1990; Baugh et al. 2001; Xiang et al. 2003) and a signal amplification of fluorescence signals using dendrimer technology (Stears et al. 2000). Both these strategies were incorporated in our studies. Because of the large number of different cell types and the low percentage of target cell types (e.g., hair cells) within the cochlea, it must be recognized that important rare to low-frequency inner-ear-pertinent transcripts are consequently diluted out in the sample. Methodologies for analysis of small sample sizes, representing single cell to small populations of a single cell type, are still evolving. Because of sampling error, the use of pristine populations of specific cell types is more desirable than single cell samples. Similarly, the statistical methods and approaches for normalization of the raw data and subsequent evaluation of microarray generated data (Tusher et al. 2001; Yang et al. 2002; Dudoit et al. 2003) require sufficient replication, which is difficult with single cell samples.

Microarrays can be used to identify genes that are expressed as well as upregulated or downregulated in the cochlea or its subsections to identify potential candidate deafness genes (Lomax et al. 2000; Chen and Corey 2002a,b; Iijima et al. 2004). Studies could also be designed to examine the expression profiles of mutants versus their wild-type counterparts to facilitate the discovery of genes involved in a hearing-related disorder. There are also a wide variety of developmental pathways and gene networks in the ear that could be delineated with microarray studies. Some examples are primary neuron formation and differentiation (Fritzsch and Beisel 2003) and the identification of downstream targets of transcription factors involved in hair cell formation and differentiation (Bryant et al. 2002; Hertzano et al. 2004). We will work to continually identify and add genes to the array representing unknown and/or uncharacterized transcripts from cochlear libraries to facilitate studies such as these.

Notes

Acknowledgments

This work was supported in part by NIH grants R01 DC05009 (K.W.B, M.B.S.), DC04279 (K.W.B.), and a grant for the RIKEN Genome Exploration Research Project from the MEXT of the Japanese Government (Y.H.). We thank Dr. Bernd Fritzsch and Dr. Richard Hallworth for their comments and advice on this manuscript. We are also grateful to the technical assistance of Christine H. Halgard and Feng Feng.

References

  1. Abe, S, Katagiri, T, Saito-Hisaminato, A, Usami, S, Inoue, Y, Tsunoda, T, Nakamura, Y 2003Identification of CRYM as a candidate responsible for nonsyndromic deafness, through cDNA microarray analysis of human cochlear and vestibular tissuesAm. J. Hum. Genet.727382PubMedGoogle Scholar
  2. Agrup, C, Bagger-Sjoback, D, Fryckstedt, J 1997Protein kinase and protein phosphatase presence in the stria vascularisPflugers Arch.433603608PubMedGoogle Scholar
  3. Ahmed, ZM, Riazuddin, S, Ahmad, J, Bernstein, SL, Guo, Y, Sabar, MF, Sieving, P, Griffith, AJ, Friedman, TB, Belyantseva, IA,  et al. 2003PCDH15 is expressed in the neurosensory epithelium of the eye and ear and mutant alleles are responsible for both USH1F and DFNB23Hum. Mol. Genet.1232153223PubMedGoogle Scholar
  4. Badiee, A, Eiken, HG, Steen, VM, Lovlie, R 2003Evaluation of five different cDNA labeling methods for microarrays using spike controlsBMC Biotechnol.323PubMedGoogle Scholar
  5. Baugh, LR, Hill, AA, Brown, EL, Hunter, CP 2001Quantitative analysis of mRNA amplification by in vitro transcriptionNucleic Acids Res.29E29PubMedGoogle Scholar
  6. Beisel, KW, Shiraki, T, Morris, KA, Pompeia, C, Kachar, B, Arakawa, T, Bono, H, Kawai, J, Hayashizaki, Y, Carninci, P 2004Identification of unique transcripts from a mouse full-length, subtracted inner ear cDNA libraryGenomics8310121023PubMedGoogle Scholar
  7. Ben-Yosef, T, Wattenhofer, M, Riazuddin, S, Ahmed, ZM, Scott, HS, Kudoh, J, Shibuya, K, Antonarakis, SE, Bonne-Tamir, B, Radhakrishna, U,  et al. 2001Novel mutations of TMPRSS3 in four DFNB8/B10 families segregating congenital autosomal recessive deafnessJ. Med. Genet.38396400PubMedGoogle Scholar
  8. Boeda, B, El-Amraoui, A, Bahloul, A, Goodyear, R, Daviet, L, Blanchard, S, Perfettini, I, Fath, KR, Shorte, S, Reiners, J,  et al. 2002Myosin VIIa, harmonin and cadherin 23, three Usher I gene products that cooperate to shape the sensory hair cell bundleEMBO J.2166896699PubMedGoogle Scholar
  9. Bok, D, Galbraith, G, Lopez, I, Woodruff, M, Nusinowitz, S, BeltrandelRio, H, Huang, W, Zhao, S, Geske, R, Montgomery, C,  et al. 2003Blindness and auditory impairment caused by loss of the sodium bicarbonate cotransporter NBC3Nat. Genet.34313319PubMedGoogle Scholar
  10. Bryant, J, Goodyear, RJ, Richardson, GP 2002Sensory organ development in the inner ear: molecular and cellular mechanismsBr. Med. Bull.633957PubMedGoogle Scholar
  11. Capaldi, S, Getts, RC, Jayasena, SD 2000Signal amplification through nucleotide extension and excision on a dendritic DNA platformNucleic Acids Res.28E21PubMedGoogle Scholar
  12. Carninci, P, Waki, K, Shiraki, T, Konno, H, Shibata, K, Itoh, M, Aizawa, K, Arakawa, T, Ishii, Y, Sasaki, D,  et al. 2003Targeting a complex transcriptome: the construction of the mouse full-length cDNA encyclopediaGenome Res.1312731289PubMedGoogle Scholar
  13. Chen, ZY, Corey, DP 2002An inner ear gene expression databaseJ. Assoc. Res. Otolaryngol.3140148PubMedGoogle Scholar
  14. Chen, ZY, Corey, DP 2002Understanding inner ear development with gene expression profilingJ. Neurobiol.53276285PubMedGoogle Scholar
  15. Cho, Y, Gong, TW, Stover, T, Lomax, MI, Altschuler, RA 2002Gene expression profiles of the rat cochlea, cochlear nucleus, and inferior colliculusJ. Assoc. Res. Otolaryngol.35467PubMedGoogle Scholar
  16. Churchill, GA 2002Fundamentals of experimental design for cDNA microarraysNat. Genet.32490495PubMedGoogle Scholar
  17. Cohen-Salmon, M, Frenz, D, Liu, W, Verpy, E, Voegeling, S, Petit, C 2000Fdp, a new fibrocyte-derived protein related to MIA/CD-RAP, has an in vitro effect on the early differentiation of the inner ear mesenchymeJ. Biol. Chem.2754003640041PubMedGoogle Scholar
  18. Cohen-Salmon, M, Maxeiner, S, Kruger, O, Theis, M, Willecke, K, Petit, C 2004Expression of the connexin43- and connexin45-encoding genes in the developing and mature mouse inner earCell Tissue Res.3161522PubMedGoogle Scholar
  19. Delpire, E, Lu, J, England, R, Dull, C, Thorne, T 1999Deafness and imbalance associated with inactivation of the secretory Na–K–2Cl co-transporterNat. Genet.22192195PubMedGoogle Scholar
  20. Delprat, B, Boulanger, A, Wang, J, Beaudoin, V, Guitton, MJ, Venteo, S, Dechesne, CJ, Pujol, R, Lavigne-Rebillard, M, Puel, JL,  et al. 2002Downregulation of otospiralin, a novel inner ear protein, causes hair cell degeneration and deafnessJ. Neurosci.2217181725PubMedGoogle Scholar
  21. Deng, M, Tu, Z, Sun, F, Chen, T 2004Mapping gene ontology to proteins based on protein–protein interaction dataBioinformatics20895902PubMedGoogle Scholar
  22. Dixon, MJ, Gazzard, J, Chaudhry, SS, Sampson, N, Schulte, BA, Steel, KP 1999Mutation of the Na–K–Cl co-transporter gene Slc12a2 results in deafness in miceHum. Mol. Genet.815791584PubMedGoogle Scholar
  23. Dudoit S, Gentleman RC, Quackenbush J. Open source software for the analysis of microarray data. BioTechniques (Suppl.):45–51, 2003.Google Scholar
  24. Estevez, R, Boettger, T, Stein, V, Birkenhager, R, Otto, E, Hildebrandt, F, Jentsch, TJ 2001Barttin is a Cl− channel beta-subunit crucial for renal Cl− reabsorption and inner ear K+ secretionNature414558561PubMedGoogle Scholar
  25. Fritzsch, B, Beisel, KW 2003Molecular conservation and novelties in vertebrate ear developmentCurr. Top. Dev. Biol.57144CrossRefPubMedGoogle Scholar
  26. Glowatzki, E, Wild, K, Brandle, U, Fakler, G, Fakler, B, Zenner, HP, Ruppersberg, JP 1995Cell-specific expression of the alpha 9 n-ACh receptor subunit in auditory hair cells revealed by single-cell RT-PCRProc. R. Soc. Lond., B Biol. Sci.262141147Google Scholar
  27. Gunnersen, JM, Augustine, C, Spirkoska, V, Kim, M, Brown, M, Tan, SS 2002Global analysis of gene expression patterns in developing mouse neocortex using serial analysis of gene expressionMol. Cell. Neurosci.19560573PubMedGoogle Scholar
  28. Harris, MA, Clark, J, Ireland, A, Lomax, J, Ashburner, M, Foulger, R, Eilbeck, K, Lewis, S, Marshall, B, Mungall, C,  et al. 2004The gene ontology (GO) database and informatics resourceNucleic Acids Res.32D258D261PubMedGoogle Scholar
  29. Hawkins, RD, Bashiardes, S, Helms, CA, Hu, L, Saccone, NL, Warchol, ME, Lovett, M 2003Gene expression differences in quiescent versus regenerating hair cells of avian sensory epithelia: implications for human hearing and balance disordersHum. Mol. Genet.1212611272PubMedGoogle Scholar
  30. He, Z, Tessier-Lavigne, M 1997Neuropilin is a receptor for the axonal chemorepellent Semaphorin IIICell90739751PubMedGoogle Scholar
  31. Hegde, P, Qi, R, Abernathy, K, Gay, C, Dharap, S, Gaspard, R, Hughes, JE, Snesrud, E, Lee, N, Quackenbush, J 2000A concise guide to cDNA microarray analysisBioTechniques29548550552–544, 556 passimPubMedGoogle Scholar
  32. Hertzano R, Montcouquiol M, Rashi-Elkeles S, Elkon R, Yucel R, Frankel WN, Rechavi G, Moroy T, Friedman TB, Kelley MW, et al. Transcription profiling of inner ears from Pou4f3ddl/ddl identifies Gfi1 as a target of the Pou4f3 deafness gene. Hum. Mol. Genet, 2004.Google Scholar
  33. Housley, GD, Kanjhan, R, Raybould, NP, Greenwood, D, Salih, SG, Jarlebark, L, Burton, LD, Setz, VC, Cannell, MB, Soeller, C,  et al. 1999Expression of the P2X(2) receptor subunit of the ATP-gated ion channel in the cochlea: implications for sound transduction and auditory neurotransmissionJ. Neurosci.1983778388PubMedGoogle Scholar
  34. Hume, CR, Kirkegaard, M, Oesterle, EC 2003ErbB expression: the mouse inner ear and maturation of the mitogenic response to heregulinJ. Assoc. Res. Otolaryngol.4422443PubMedGoogle Scholar
  35. Ichimiya, I, Adams, JC, Kimura, RS 1994Immunolocalization of Na+, K(+)-ATPase, Ca(++)-ATPase, calcium-binding proteins, and carbonic anhydrase in the guinea pig inner earActa Otolaryngol.114167176PubMedGoogle Scholar
  36. Iijima, N, Suzuki, N, Oguchi, T, Hashimoto, S, Takumi, Y, Sugahara, K, Okuda, T, Yamashita, H, Usami, S 2004The effect of hypergravity on the inner ear: CREB and syntaxin are up-regulatedNeuroReport15965969PubMedGoogle Scholar
  37. Jarlebark, LE, Housley, GD, Raybould, NP, Vlajkovic, S, Thorne, PR 2002ATP-gated ion channels assembled from P2X2 receptor subunits in the mouse cochleaNeuroReport1319791984PubMedGoogle Scholar
  38. Judice, TN, Nelson, NC, Beisel, CL, Delimont, DC, Fritzsch, B, Beisel, KW 2002Cochlear whole mount in situ hybridization: identification of longitudinal and radial gradientsBrain Res. Brain Res. Protoc.96576PubMedGoogle Scholar
  39. Kiernan, AE, Erven, A, Voegeling, S, Peters, J, Nolan, P, Hunter, J, Bacon, Y, Steel, KP, Brown, SD, Guenet, JL 2002ENU mutagenesis reveals a highly mutable locus on mouse chromosome 4 that affects ear morphogenesisMamm. Genome13142148PubMedCrossRefGoogle Scholar
  40. Kikkawa, Y, Shitara, H, Wakana, S, Kohara, Y, Takada, T, Okamoto, M, Taya, C, Kamiya, K, Yoshikawa, Y, Tokano, H,  et al. 2003Mutations in a new scaffold protein Sans cause deafness in Jackson shaker miceHum. Mol. Genet.12453461PubMedGoogle Scholar
  41. Knipper, M, Bandtlow, C, Gestwa, L, Kopschall, I, Rohbock, K, Wiechers, B, Zenner, HP, Zimmermann, U 1998Thyroid hormone affects Schwann cell and oligodendrocyte gene expression at the glial transition zone of the VIIIth nerve prior to cochlea functionDevelopment12537093718PubMedGoogle Scholar
  42. Lee, MJ, Calle, E, Brennan, A, Ahmed, S, Sviderskaya, E, Jessen, KR, Mirsky, R 2001In early development of the rat mRNA for the major myelin protein P(0) is expressed in nonsensory areas of the embryonic inner ear, notochord, enteric nervous system, and olfactory ensheathing cellsDev. Dyn.2224051PubMedGoogle Scholar
  43. Lesage, F, Lauritzen, I, Duprat, F, Reyes, R, Fink, M, Heurteaux, C, Lazdunski, M 1997The structure, function and distribution of the mouse TWIK-1 K+ channelFEBS Lett.4022832PubMedGoogle Scholar
  44. Liang, Y, Chen, H, Asher, JH,Jr., Chang, CC, Friedman, TB 1997Human inner ear OCP2 cDNA maps to 5q22–5q35.2 with related sequences on chromosomes 4p16.2–4p14, 5p13–5q22, 7pter–q22, 10 and 12p13–12qterGene184163167PubMedGoogle Scholar
  45. Liberman, MC, Gao, J, He, DZ, Wu, X, Jia, S, Zuo, J 2002Prestin is required for electromotility of the outer hair cell and for the cochlear amplifierNature419300304PubMedGoogle Scholar
  46. Liu, XZ, Xia, XJ, Adams, J, Chen, ZY, Welch, KO, Tekin, M, Ouyang, XM, Kristiansen, A, Pandya, A, Balkany, T,  et al. 2001Mutations in GJA1 (connexin 43) are associated with non-syndromic autosomal recessive deafnessHum. Mol. Genet.1029452951PubMedGoogle Scholar
  47. Lomax, MI, Huang, L, Cho, Y, Gong, TL, Altschuler, RA 2000Differential display and gene arrays to examine auditory plasticityHear. Res.147293302PubMedGoogle Scholar
  48. Masmoudi, S, Antonarakis, SE, Schwede, T, Ghorbel, AM, Gratri, M, Pappasavas, MP, Drira, M, Elgaied-Boulila, A, Wattenhofer, M, Rossier, C,  et al. 2001Novel missense mutations of TMPRSS3 in two consanguineous Tunisian families with non-syndromic autosomal recessive deafnessHuman Mutat.18101108Google Scholar
  49. Mburu, P, Mustapha, M, Varela, A, Weil, D, El-Amraoui, A, Holme, RH, Rump, A, Hardisty, RE, Blanchard, S, Coimbra, RS,  et al. 2003Defects in whirlin, a PDZ domain molecule involved in stereocilia elongation, cause deafness in the whirler mouse and families with DFNB31Nat. Genet.34421428PubMedGoogle Scholar
  50. Nicolas, MT, Barhanin, J, Reyes, R, Dememes, D 2003Cellular localization of TWIK-1, a two-pore-domain potassium channel in the rodent inner earHear. Res.1812026PubMedGoogle Scholar
  51. Nolan, PM, Peters, J, Vizor, L, Strivens, M, Washbourne, R, Hough, T, Wells, C, Glenister, P, Thornton, C, Martin, J,  et al. 2000Implementation of a large-scale ENU mutagenesis program: towards increasing the mouse mutant resourceMamm. Genome11500506PubMedGoogle Scholar
  52. Okazaki, Y, Furuno, M, Kasukawa, T, Adachi, J, Bono, H, Kondo, S, Nikaido, I, Osato, N, Saito, R, Suzuki, H,  et al. 2002Analysis of the mouse transcriptome based on functional annotation of 60,770 full-length cDNAsNature420563573PubMedGoogle Scholar
  53. Onoe, H, Ueno, R, Fujita, I, Nishino, H, Oomura, Y, Hayaishi, O 1988Prostaglandin D2, a cerebral sleep-inducing substance in monkeysProc. Natl. Acad. Sci. USA.8540824086PubMedGoogle Scholar
  54. Orlowski, J, Lingrel, JB 1988Tissue-specific and developmental regulation of rat Na,K-ATPase catalytic alpha isoform and beta subunit mRNAsJ. Biol. Chem.2631043610442PubMedGoogle Scholar
  55. Pompeia, C, Hurle, B, Belyantseva, IA, Noben-Trauth, K, Beisel, K, Gao, J, Buchoff, J, Wistow, G, Kachar, B 2004Gene expression profile of the mouse organ of Corti at the onset of hearingGenomics8310001011PubMedGoogle Scholar
  56. Rhodes, CR, Parkinson, N, Tsai, H, Brooker, D, Mansell, S, Spurr, N, Hunter, AJ, Steel, KP, Brown, SD 2003The homeobox gene Emx2 underlies middle ear and inner ear defects in the deaf mouse mutant pardonJ. Neurocytol.3211431154PubMedGoogle Scholar
  57. Robertson, NG, Heller, S, Lin, JS, Resendes, BL, Weremowicz, S, Denis, CS, Bell, AM, Hudspeth, AJ, Morton, CC 2000A novel conserved cochlear gene, OTOR: identification, expression analysis, and chromosomal mappingGenomics66242248PubMedGoogle Scholar
  58. Scherer, A, Krause, A, Walker, JR, Sutton, SE, Seron, D, Raulf, F, Cooke, MP 2003Optimized protocol for linear RNA amplification and application to gene expression profiling of human renal biopsiesBioTechniques34546550552–544, 556PubMedGoogle Scholar
  59. Scott, HS, Kudoh, J, Wattenhofer, M, Shibuya, K, Berry, A, Chrast, R, Guipponi, M, Wang, J, Kawasaki, K, Asakawa, S,  et al. 2001Insertion of beta-satellite repeats identifies a transmembrane protease causing both congenital and childhood onset autosomal recessive deafnessNat. Genet.275963PubMedGoogle Scholar
  60. Siemens, J, Lillo, C, Dumont, RA, Reynolds, A, Williams, DS, Gillespie, PG, Muller, U 2004Cadherin 23 is a component of the tip link in hair-cell stereociliaNature428950955PubMedGoogle Scholar
  61. Spicer, SS, Gratton, MA, Schulte, BA 1997Expression patterns of ion transport enzymes in spiral ligament fibrocytes change in relation to strial atrophy in the aged gerbil cochleaHear. Res.11193102PubMedGoogle Scholar
  62. Stankovic, KM, Corfas, G 2003Real-time quantitative RT-PCR for low-abundance transcripts in the inner ear: analysis of neurotrophic factor expressionHear. Res.18597108PubMedGoogle Scholar
  63. Stears, RL, Getts, RC, Gullans, SR 2000A novel, sensitive detection system for high-density microarrays using dendrimer technologyPhysiol. Genomics39399PubMedGoogle Scholar
  64. Suzuki, T, Takamatsu, T, Oyamada, M 2003Expression of gap junction protein connexin43 in the adult rat cochlea: comparison with connexin26J. Histochem. Cytochem.51903912PubMedGoogle Scholar
  65. Tusher, VG, Tibshirani, R, Chu, G 2001Significance analysis of microarrays applied to the ionizing radiation responseProc. Natl. Acad. Sci. USA9851165121PubMedGoogle Scholar
  66. Gelder, RN, Zastrow, ME, Yool, A, Dement, WC, Barchas, JD, Eberwine, JH 1990Amplified RNA synthesized from limited quantities of heterogeneous cDNAProc. Natl. Acad. Sci. USA8716631667PubMedGoogle Scholar
  67. Wang, JC, Raybould, NP, Luo, L, Ryan, AF, Cannell, MB, Thorne, PR, Housley, GD 2003Noise induces up-regulation of P2X2 receptor subunit of ATP-gated ion channels in the rat cochleaNeuroReport14817823PubMedGoogle Scholar
  68. Wangemann, P 2002K+ cycling and the endocochlear potentialHear. Res.16519PubMedGoogle Scholar
  69. Weil, D, El-Amraoui, A, Masmoudi, S, Mustapha, M, Kikkawa, Y, Laine, S, Delmaghani, S, Adato, A, Nadifi, S, Zina, ZB,  et al. 2003Usher syndrome type I G (USH1G) is caused by mutations in the gene encoding SANS, a protein that associates with the USH1C protein, harmoninHum. Mol. Genet.12463471PubMedGoogle Scholar
  70. Wilson, CL, Pepper, SD, Hey, Y, Miller, CJ 2004Amplification protocols introduce systematic but reproducible errors into gene expression studiesBioTechniques36498506PubMedGoogle Scholar
  71. Xiang, CC, Chen, M, Ma, L, Phan, QN, Inman, JM, Kozhich, OA, Brownstein, MJ 2003A new strategy to amplify degraded RNA from small tissue samples for microarray studiesNucleic Acids Res.31e53PubMedGoogle Scholar
  72. Yang, YH, Dudoit, S, Luu, P, Lin, DM, Peng, V, Ngai, J, Speed, TP 2002Normalization for cDNA microarray data: a robust composite method addressing single and multiple slide systematic variationNucleic Acids Res.30e15PubMedGoogle Scholar
  73. Zhao, H, Star, RA, Muallem, S 1994Membrane localization of H+ and HCO3-transporters in the rat pancreatic ductJ. Gen. Physiol.1045785PubMedGoogle Scholar
  74. Zheng, J, Shen, W, He, DZ, Long, KB, Madison, LD, Dallos, P 2000Prestin is the motor protein of cochlear outer hair cellsNature405149155PubMedGoogle Scholar
  75. Zuo, J, Curtis, LM, Yao, X, Cate, WJ, Rarey, KE 1995Expression of Na, K-ATPase alpha and beta isoforms in the neonatal rat cochleaActa Otolaryngol.115497503PubMedGoogle Scholar
  76. Zwaenepoel, I, Mustapha, M, Leibovici, M, Verpy, E, Goodyear, R, Liu, XZ, Nouaille, S, Nance, WE, Kanaan, M, Avraham, KB,  et al. 2002Otoancorin, an inner ear protein restricted to the interface between the apical surface of sensory epithelia and their overlying acellular gels, is defective in autosomal recessive deafness DFNB22Proc. Natl. Acad. Sci. USA9962406245PubMedGoogle Scholar

Copyright information

© Association for Research in Otolaryngology 2005

Authors and Affiliations

  • Ken A. Morris
    • 1
  • Einat Snir
    • 2
  • Celine Pompeia
    • 3
  • Irina V. Koroleva
    • 2
  • Bechara Kachar
    • 3
  • Yoshihide Hayashizaki
    • 4
  • Piero Carninci
    • 4
  • M. Bento Soares
    • 2
  • Kirk W. Beisel
    • 1
  1. 1.Department of Biomedical SciencesCreighton UniversityOmahaUSA
  2. 2.Pediatrics-GeneticsIowa UniversityIowaUSA
  3. 3.Section on Structural Cell BiologyNIDCD/NIHBethesdaUSA
  4. 4.Laboratory for Genome Exploration Research GroupRIKEN Genomic Sciences CenterTsukubaJapan

Personalised recommendations
