Altered mucosal DNA methylation in parallel with highly active Helicobacter pylori-related gastritis
Chronic inflammation triggered by Helicobacter pylori causes altered DNA methylation in stomach mucosae, which is deeply involved in gastric carcinogenesis. This study aimed to elucidate the correlation between altered mucosal DNA methylation levels and activity of H. pylori-related gastritis, because inflammatory activity shows particular correlations with the development of diffuse-type cancer.
Methylation levels in stomach mucosae of 78 healthy volunteers were determined by real-time methylation-specific PCR or bisulfite pyrosequencing. Examined loci were the promoter CpG islands of six genes (FLNc, HAND1, THBD, p41ARC, HRASLS, and LOX) and the CpG sites of non-coding repetitive elements (Alu and Satα) that are reportedly altered by H. pylori infection. Activity of H. pylori-related gastritis was evaluated using two serum markers: H. pylori antibody titer and pepsinogen II.
Methylation levels of the six CpG islands were consistently increased, and those of the two repetitive elements were consistently decreased in a stepwise manner with the activity of gastric inflammation as represented by serum marker levels. Each serum marker level was well correlated with the overall DNA methylation status of stomach mucosa, and these two serologic markers were additive in the detection of the mucosa with severely altered DNA methylation.
Alteration in mucosal DNA methylation level was closely correlated with activity of H. pylori-related gastritis as evaluated by serum markers. The observed correlation between altered DNA methylation levels and activity of H. pylori-related gastritis appears to be one of the relevant molecular mechanisms underlying the development of diffuse-type cancer.
KeywordsGastric cancer Helicobacter pylori Carcinogenesis Active gastritis DNA methylation
- H. pylori
Epidemiological studies have revealed that long-lasting inflammation in specific organs is associated with increased risks of cancers, such as ulcerative colitis (UC)-associated colon cancer , liver cancer , and gastric cancer . Accumulation of genetic and epigenetic alterations induced by chronic inflammation appears to contribute to cancer development . In addition, activity of chronic inflammation has been shown to be associated with the incidence of cancer development [5, 6, 7]. In long-standing UC, patients with highly active inflammation during the disease course are more likely to develop dysplasia or cancer than those without . Likewise, in viral hepatitis, patients with high serum alanine aminotransferase levels are more likely to develop hepatocellular carcinoma than those without [6, 7].
In stomach mucosae, chronic inflammation is triggered by Helicobacter pylori (H. pylori) infection and causes a predisposition toward gastric cancer development . In terms of correlations between activity of H. pylori-related gastritis and incidence of gastric cancer, two serum markers have been evaluated: H. pylori antibody and pepsinogen (PG) II [9, 10]. Both the titer of serum H. pylori antibody, which is usually used for determining the current status of the bacterial infection, and PG II, an aspartic protease also known as an inactive precursor of pepsin C produced mainly by the stomach mucosae, have been shown to correlate with the activity of H. pylori-related gastritis [11, 12]. In addition, our previous reports have indicated that individuals with H. pylori antibody titers >500 U/ml or PG II levels >30 ng/ml are at high risk of developing gastric cancer, particularly diffuse-type cancer according to Lauren’s histopathological classification [10, 13]. Ito et al.  also reported that patients with PG II >30 ng/ml show an increased risk of diffuse-type gastric cancer.
DNA methylation is a covalent chemical modification resulting in the addition of a methyl group at the C5 position of cytosine in the sequence context 5′-CG-3′ . This epigenetic effect plays pivotal roles in carcinogenesis [16, 17]. In the context of cancer development and progression, two types of DNA methylation have been identified: CpG island (CGI) hypermethylation and global hypomethylation . CGI hypermethylation occurs within promoter CGIs and is often associated with a loss of protein expression by transcription repression . On the other hand, global hypomethylation, which is observed in repetitive elements such as Alu, LINE-1, and Satα has been shown to be associated with genomic instability [20, 21].
DNA methylation is also deeply involved in chronic inflammation-mediated carcinogenesis. As shown in our previous studies [22, 23], aberrant DNA methylation has been observed in H. pylori-infected stomach mucosae as well as liver with viral infection  or colorectal mucosae with UC . Altered DNA methylation in noncancerous inflammatory tissues has been considered to be one of the early steps toward neoplastic change. The accumulation of DNA methylation along with inflammation contributes to the development of cancer, according to the hypothesis of ‘an epigenetic field for cancerization’ [17, 26].
A recent study showed a correlation between highly active inflammation and altered mucosal DNA methylation in UC . That report suggested that higher methylation levels induced by active inflammation were associated with inflammation-related cancer development. In contrast, correlations between activity of gastritis and altered mucosal DNA methylation levels have not been reported. Activity of gastritis is reportedly correlated with the development of diffuse-type gastric cancer [10, 13]. We therefore hypothesized that the degree of altered DNA methylation in stomach mucosae is correlated with activity of gastritis, since methylation observed in inflammatory stomach mucosae would directly or indirectly induce diffuse-type cancer development.
This study therefore aimed to clarify whether aberrant DNA methylation levels are correlated with inflammation activity in H. pylori-infected stomach mucosae. To this end, we measured and evaluated methylation levels of promoter CGIs of six genes (FLNc, HAND1, THBD, p41ARC, HRASLS, and LOX), and two repetitive elements (Alu and Satα), all of which have been shown to be hyper- or hypomethylated in H. pylori-related gastritis in our previous reports [22, 28] in human stomach mucosae according to the inflammation status evaluated by H. pylori-antibody titers and serum PG II levels.
Materials and methods
Cases, samples, and DNA extraction
Seventy-eight healthy volunteers were recruited after providing informed consent during an endoscopic screening program for gastric cancer under the approval of the Institutional Review Board of Wakayama Medical University. Fast blood samples were collected as part of the routine laboratory tests. Aliquots of the separated sera were stored below −20 °C until use. All study subjects were confirmed to be free from any previous history of gastric cancer, surgical resection of the stomach, or chronic renal failure. Subjects likewise had no history of H. pylori eradication therapy and had not been prescribed medications that might affect gastrointestinal function, such as proton pump inhibitors, adrenocortical steroids, or nonsteroidal antiinflammatory drugs. Stomach mucosae samples were collected by endoscopic biopsy of the antral and the corpus regions in the lesser curvature with sterilized biopsy forceps (Olympus, Tokyo, Japan), immediately frozen in liquid nitrogen, and stored at −80 °C until extraction of genomic DNA. High molecular weight DNA was extracted using the phenol/chloroform method.
Anti-H. pylori immunoglobulin (Ig)G antibody titers were measured using an enzyme-linked immunosorbent assay (ELISA) (MBL, Nagoya, Japan). Subjects with antibody titers >50 U/ml were classified as H. pylori positive, and those with antibody titers 50 U/ml were regarded as infection negative. The H. pylori-positive group was further divided into two groups according to the antibody titer: 500 U/ml as a low-titer group and >500 U/ml as a high-titer group.
Serum pepsinogen levels were measured using PG I/PG II RIA-based kits (Dainabbot, Tokyo, Japan), which involved a modified radioimmunoassay method that we previously established . Subjects were divided into three groups according to PG II level: group II-0, PG II ≤10 ng/ml; group II-10, PG II >10 ng/ml and ≤30 ng/ml; group II-30, PG II >30 ng/ml. These thresholds were determined in a previous study according to the risk of gastric cancer .
Sodium bisulfite modification, quantitative real-time methylation-specific PCR, and bisulfite pyrosequencing
Bisulfite modification was performed using 1 μg of BamHI-digested genomic DNA as previously described . The modified DNA was suspended in 40 μl of Tris-EDTA buffer, and an aliquot of 1 μl was used for quantitative real-time methylation-specific PCR (qMSP) and bisulfite pyrosequencing.
The qMSP was performed as described previously . Briefly, real-time PCR with a primer set specific to methylated (M) or unmethylated (U) sequences was undertaken using SYBR® Green I (BioWhittaker Molecular Applications, Rockland, ME, USA) and an iCycler Thermal Cycler (Bio-Rad Laboratories, Hercules, CA, USA). Standard DNA was prepared by cloning PCR products into the pGEM-T Easy vector (Promega, Madison, WI, USA). The number of molecules in a sample was determined by comparing its amplification with those of standard DNA that contained exact numbers of molecules (101–106 molecules). Based on the numbers of M molecules and U molecules for a genomic region, a methylation level of the region was calculated as the fraction of M molecules among the total number of DNA molecules (no. of M molecules + no. of U molecules).
Bisulfite pyrosequencing was performed as described previously . Briefly, biotinylated PCR product with designed bisulfite PCR primers was purified and made single stranded. PCR products were bound to streptavidin-coated Sepharose beads, purified, washed, and denatured using a 0.2 ml/l of NaOH solution. Thereafter, those products were annealed to 0.2 μM pyrosequencing primers, and pyrosequencing was undertaken using the PSQ 96 Pyrosequencing System (Qiagen, Valencia, CA, USA). A methylation level was obtained using PSQ Assay Design software (Qiagen). The primers used in qMSP and bisulfite pyrosequencing have been described in previous reports [22, 28].
The methylation score was determined as 1, 2, or 3 at each locus according to the methylation level: 1, degree of altered methylation within the lowest one-third of all subjects; 3, degree of altered methylation within the highest one-third, with the remaining categorized as 2. Comprehensive methylation status of each individual was determined by accumulating ‘the methylation score’ of six CGIs and three loci of two repetitive elements.
Correlations between serum H. pylori antibody titers and serum PG II levels were analyzed using Spearman’s rank correlation coefficient. Differences in median methylation levels among the three groups according to serum levels of H. pylori antibody titer or PG II were analyzed using the Kruskal-Wallis test. When the Kruskal-Wallis test showed a significant difference, a multiple comparison was performed using the Steel-Dwass test. All analyses were performed using JMP version 9.0 software (SAS Institute, Cary, NC, USA), and the results were considered significant for values of p < 0.05.
Background characteristics of the individuals analyzed
Background characteristics of the individuals
All individuals (N = 78)
39 (50 %)
39 (50 %)
H. pylori antibody titer
Negative (≤50 U/ml)
37 (47 %)
Low titer (>50, ≤500 U/ml)
28 (36 %)
High titer (>500 U/ml)
13 (17 %)
PG II level
II-0 (≤10 U/ml)
27 (35 %)
II-10 (>10, ≤30 U/ml)
36 (46 %)
II-30 (>30 U/ml)
15 (19 %)
Mucosal DNA methylation levels in stomach and serum H. pylori antibody titers

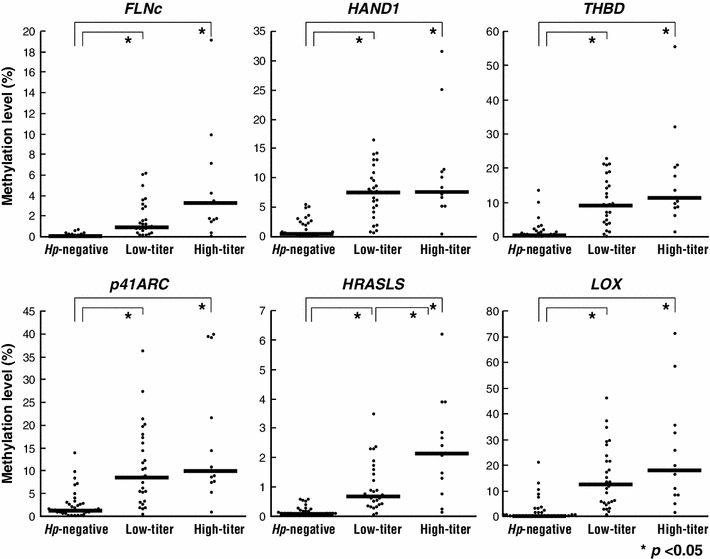

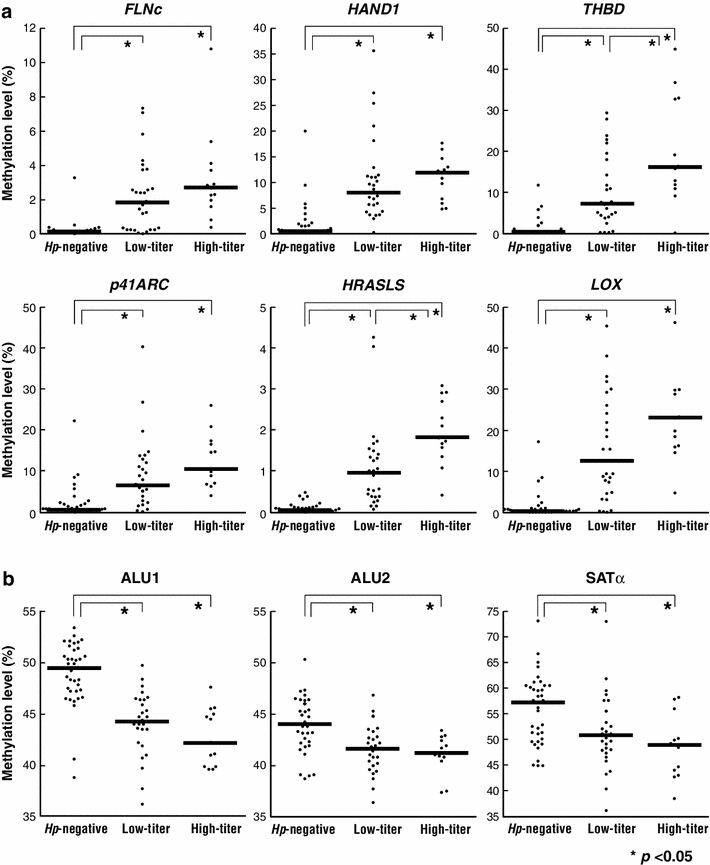

Methylation levels in the stomach mucosae of the 78 subjects were determined. Six promoter CGIs (FLNc, HAND1, THBD, p41ARC, HRASLS, and LOX) and two non-coding repetitive elements (Alu and Satα) were examined by qMSP and bisulfite pyrosequencing, respectively.
As for repetitive elements of Alu and Satα, methylation levels were consistently reduced in a stepwise manner with the elevation of H. pylori antibody titers in the antral region (Fig. 1b) (Kruskal-Wallis test: p < 0.05). Differences in methylation level at all these loci in the antral region were significant both between the H. pylori-negative and low-titer groups and between the H. pylori-negative and high-titer groups (Steel-Dwass test: p < 0.05). A similar trend was also observed with analysis using the samples of the corpus regions (data not shown), although the statistical significance could not be confirmed because of the smaller number of samples.

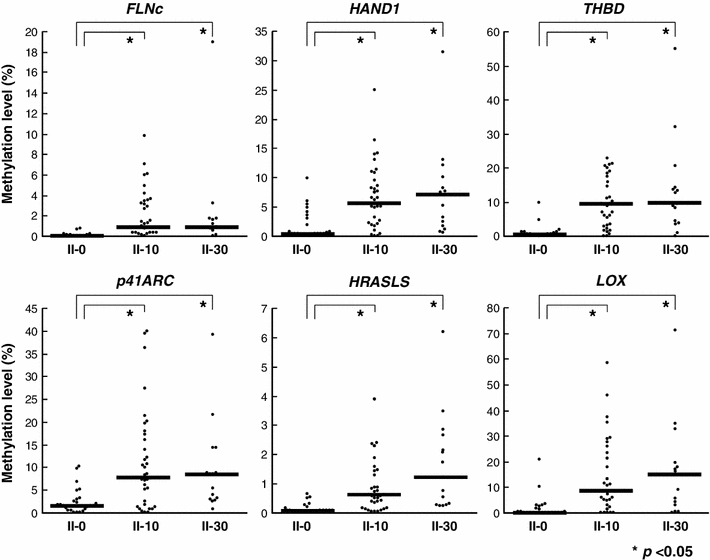

Mucosal DNA methylation levels in stomach and serum PG II levels

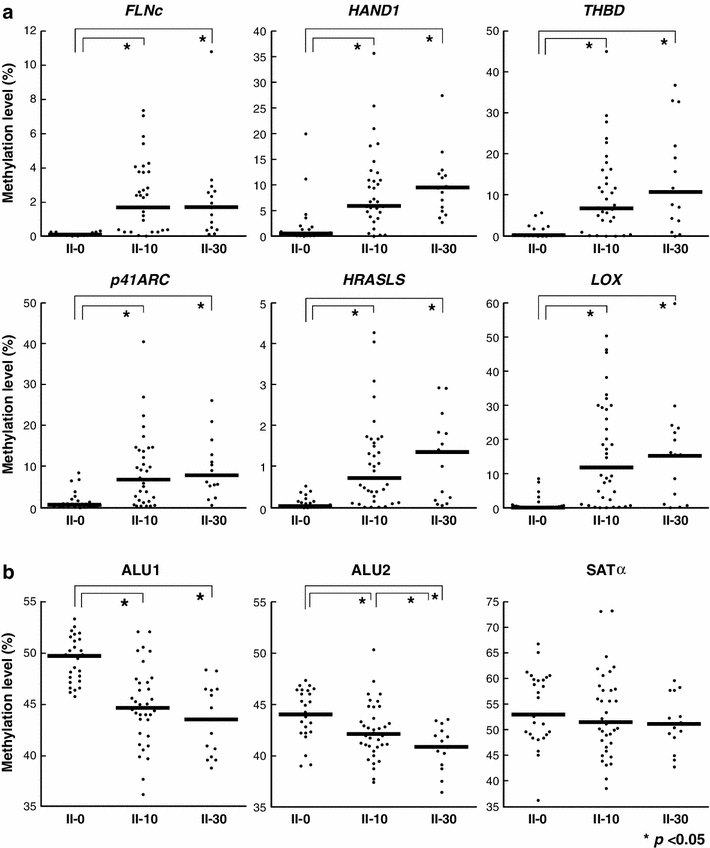

Methylation levels of repetitive elements at Alu and Satα were consistently reduced in a stepwise manner with elevations in PG II level, although the difference at Satα was not significant (Kruskal-Wallis test) (Fig. 3b).
Serum PG levels are generally used for the detection of H. pylori-infection related atrophic gastritis on the basis of the previously described PG test positive criteria (PG I ≤70 ng/ml and PG I/II ratio ≤3.0) . Then we compared with methylation levels between subjects with and without gastric atrophy according to the criteria. Among the 41 H. pylori-infected subjects (low-titer group and high-titer group), 19 subjects were classified as those with atrophic gastritis. The median methylation levels were not affected by the presence or absence of atrophy. The methylation levels in the high PG II subjects (group II-30) were also similar between the subjects with and without atrophy.
Spectrum of methylation status for individual subjects

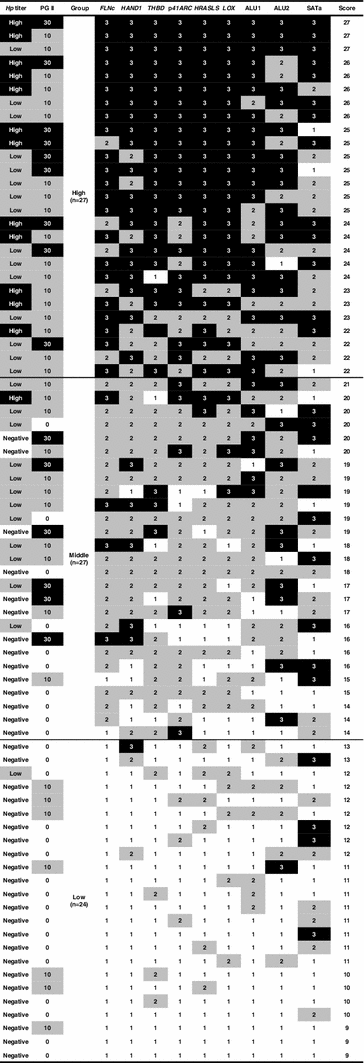

Lastly, we comprehensively overviewed the methylation status and serum markers of all participating individuals. Methylation status was stratified proportionally into three categories (high, middle, and low) according to the accumulated methylation scores of the nine examined loci as mentioned in the “Materials and methods.”
The present results clearly indicated that active H. pylori-related gastritis induces alteration in DNA methylation evenly in various CGIs and repetitive elements. Observed levels of altered DNA methylation increased in a stepwise manner with increases in serum levels of PG II or H. pylori antibody titers as markers of active gastritis [12, 31]. Many reports have examined altered DNA methylation in inflammatory tissues in terms of cancer risk in the fields of viral hepatitis, UC, and H. pylori-related gastritis [32, 33, 34]. However, attention has rarely been paid to the correlations between the degree of altered DNA methylation and activity of inflammation, probably because of difficulties in quantitatively evaluating inflammation in tissues. The diagnosis of gastritis is based on histopathology of the stomach mucosa. However, since H. pylori-related gastritis is a multifocal process, it is difficult to accurately diagnose the degree of active inflammation in the whole stomach based on a few endoscopic biopsy samples. Furthermore, histological diagnosis of gastritis depends on subjective judgment without a gold standard . The present study therefore used two serum tests as more objective surrogate markers of gastric inflammation, and this is the first report to show a close correlation between the activity of gastritis as reflected by these two serum markers and the degree of altered methylation.
The antibody titers of the two serum markers, PG II and H. pylori, were additive in the detection of mucosa with severely altered DNA methylation. In addition, discrepancies were apparent between grades of serum levels of the two markers, particularly among subjects with mucosal DNA methylation categorized as middle grade. These results suggest that differences exist in inflammatory status as identified by each of these two markers; while H. pylori antibody levels reflect the complex interactions between bacterial infection and immunological host response, PG II levels are considered to reflect local mucosal reaction. These two serum tests thus appear to reflect two different aspects of H. pylori infection, and subjects with high levels of both H. pylori antibody and PG II seem highly likely to have the highest activities of gastritis and highest degree of altered DNA methylation.
Regarding the H. pylori-related carcinogenesis, distinct pathways have been proposed for two histological types of gastric cancer: intestinal type and diffuse type . Intestinal-type cancer is considered to develop in a multistep process starting from chronic active gastritis and progressing through chronic atrophic gastritis, intestinal metaplasia, and dysplasia . In contrast, diffuse-type cancer develops in the stomach following chronic active inflammation without passing through the intermediate steps of atrophic gastritis or intestinal metaplasia. Of particular note, the activity of mucosal inflammation is proposed for a risk of diffuse-type cancer [9, 10, 38]. To date, studies about DNA methylation in gastric carcinogenesis have been mainly focused on the intestinal type [22, 23, 28, 39]. In reality, among H. pylori-negative subjects, including those with past infection, subjects with gastric cancer, particularly those with multiple gastric cancers, have stomach mucosae with more highly altered DNA methylation than those without [22, 39]. The finding in this report, in contrast, showed that the degree of altered DNA methylation parallels the activity of gastritis and appears to be deeply involved in active inflammation-mediated carcinogenesis leading to the development of diffuse-type cancer. Furthermore, recent evidence indicates that alterations in the DNA methylation of various gene regions including the CDH1 (E-cadherin) promoter are frequently observed in diffuse-type cancer and are deeply involved in the development of this type of gastric cancer [40, 41].
Some limitations in the study methods must be considered when interpreting the present findings. First, differences in DNA methylation levels among all stratified groups were insufficient to show statistical significance because of the relatively small number of samples. However, methylation levels were consistently altered in the same manner among CGI hypermethylation or hypomethylation of repetitive elements along with increases in serum marker levels. We thus believe that DNA methylation levels are tightly correlated with both markers reflecting the activity of gastritis. Second, some clinical factors that affect DNA methylation alteration might not have been completely excluded. For example, Epstein-Barr virus infection is known to enhance the DNA methylation in gastric cancer tissues . However, H. pylori infection is a major factor in the alteration of DNA methylation in stomach mucosae of healthy volunteers, as repeatedly shown in previous studies [22, 42]. Indeed, the CGI methylation level was almost zero among H. pylori-negative subjects in the present study. Third, the small amount of samples led to no histological evaluations on H. pylori-related gastritis including the degree of intestinal metaplasia or stromal inflammatory cells. Although those mucosal findings in biopsy samples could affect the alteration in DNA methylation , the degree of the alterations might be modest or dependent on genes as suggested in some previous reports [34, 44]. In contrast, alterations in DNA methylation in parallel with the severity of gastritis were considerable and consistently observed in the present study. Thus, we believe that bias due to those factors on the present results might be marginal.
In conclusion, the results of this study strongly indicate that DNA methylation levels in stomach mucosae are closely correlated with inflammatory activity in stomach mucosae. In terms of H. pylori-related stomach carcinogenesis, highly altered DNA methylation correlated with highly active gastritis appears to represent one of the relevant molecular mechanisms underlying the development of diffuse-type gastric cancer. The evaluation of altered DNA methylation in stomach mucosa is thus likely to be useful in predicting the risk of gastric cancer, particularly for diffuse-type cancer. We are now carrying out a long-term follow-up study of subjects from the present study for cancer development.
This work was supported by Grant-in-Aid for Scientific Research (c) of Japan Society for the Promotion of Science.
Conflict of interest
All authors disclose no financial or personal relationships with other people or organizations that could inappropriately influence the present work.
