Facet shapes and thermo-stabilities of H2SO4•HNO3 hydrates involved in polar stratospheric clouds

Original Paper
First Online:
Received:
Accepted:

Abstract

The nucleation, ice crystal shapes and thermodynamic stability of polar stratospheric clouds particles are interesting concerns owing to their implication in the ozone layer destruction. Some of these particles are formed by conformers of H2O, HNO3, and H2SO4. We carried out calculations using density functional theory (DFT) to obtain optimized structures. Several stable trimers are achieved —divided in two groups, one with HNO3 moiety, second with H2SO4 moiety— after pre-optimization at B3LYP/6-31G and subsequently optimization at B3LYP/aug-cc-pVTZ level of theory. For both most stable conformers five H2O molecules are added to their optimized trimers to calculate hydrated geometries. The OH stretching harmonic frequencies are provided for all aggregates. The zero-point energy correction (ZEPC), relative electronic energies (∆E), relative reaction Gibbs free energies ∆(∆G)k-relative, and cooling constant (K cooling ) are reported at three temperatures: 188 K, 195 K, and 210 K. Shapes given in our calculations are compared with various experimental shapes as well as comparisons with their thermo-stabilities.

Graphical Abstract

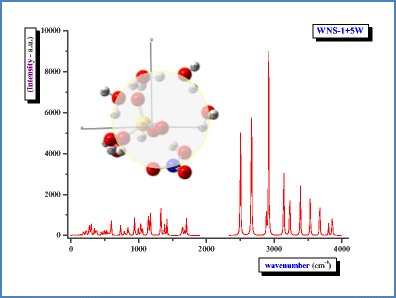

Facet shapes and thermo-stabilities of H2SO4•HNO3 hydrates involved in polar stratospheric clouds. IR spectrum of WNS-1+5W structure and its circular facet

Keywords

DFT B3LYP/aug-cc-pVTZ IR spectra Harmonic frequencies Structures Geometries Ice shapes Ice crystals Internal parameters Inter parameters Thermochemistry Thermostability Polar Stratospheric Clouds: PSCs Sulfuric acid hydrates Nitric acid hydrates Hydrates Cooling constant Gibbs free energy Electronic energy Relative Gibbs free energy Nitric acid Sulfuric acid Water hydrates Hexagonal crystals Pentagonal crystals Corone crystals Spherical crystals STS Supercooled Ternary solution
