Monatshefte für Chemie - Chemical Monthly

, Volume 150, Issue 12, pp 2021–2023 | Cite as

Simple and efficient synthesis of 2,2′-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) derivatives

  • Ágnes Magyar
  • Zoltán HellEmail author
Open Access
Short Communication
  • 312 Downloads

Abstract

A simple and efficient method for the synthesis of 2,2′-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) derivatives using 4 Å molecular sieves as catalyst is described. This approach offers several advantages such as high yields, mild reaction conditions, easily accessible, and reusable catalyst, and simple work-up procedure.

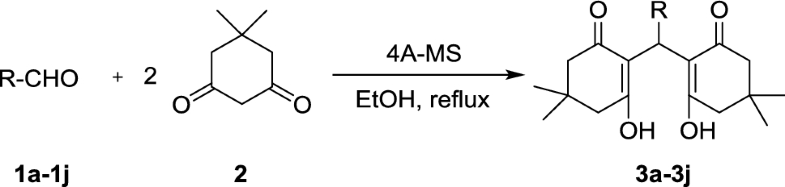

Graphic abstract

Keywords

2,2′-Arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) Heterogeneous catalysis Condensation reaction Green chemistry Three-component reaction Molecular sieves

Introduction

2,2′-Arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) derivatives are important ring-opening precursors for the synthesis of different xanthenes [1, 2, 3, 4] and acridinediones [5, 6, 7, 8] (Scheme 1). They also show significant biological and therapeutic activities such as lipoxygenase inhibition [9, 10], antioxidant activity [9], and tyrosinase inhibition [11].
The simplest approach for the preparation of 2,2′-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) derivatives involves the condensation of aromatic aldehydes (1 eq.) with 1,3-cyclohexanediones (2 eq.) under different conditions (Scheme 2). Several synthetic methods have been reported for the synthesis in the literature applying different types of catalysts such as l-histidine in ionic liquid [12], silica-diphenic acid [13], Pd(0) nanoparticles in water [14], Ni(0) nanoparticles anchored on acid-activated montmorillonite [15], urea under ultrasound irradiation [16], Cu(0) nanoparticles on silica [17], immobilized Ni–Zn–Fe layered double hydroxide [18], and Yb(OTf)3–SiO2 [19].

The abovementioned protocols are undoubtedly valuable, but suffer from one or more disadvantages; many of the catalysts are not readily available and need to be prepared through a long procedure sometimes using expensive and/or toxic reagents. Due to the biological and synthetic importance of 2,2′-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) compounds, the development of a mild and efficient method for their synthesis still has an importance.

As the main research profile, our research group deals with the elaboration of new supported metal catalysts and investigates their applicability in different organic chemical reactions. Several 4 Å molecular sieves (MS-4A) supported metal catalysts have been used successfully in a wide range of organic chemical syntheses, such as iron [20], titanium [21, 22], lanthanum [23, 24], zinc [25], and copper [26]. In this communication, we present a simple and efficient method for the synthesis of 2,2′-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) derivatives using MS-4A as a cheap, readily available, and reusable catalyst.

Results and discussion

Recently, we have reported the efficient synthesis of 9-aryl-hexahydroacridine-1,8-diones via one-pot four-component reaction in the presence of a molecular sieves supported iron catalyst [20]. During our reactions, we observed the formation of the respective 2,2′-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) derivatives, the well-known intermediates of the synthesis. This observation prompted us to set these compounds as target molecules during our further work.

To optimize the reaction conditions, we investigated the model reaction of dimedone (2 eq.) and 4-chlorobenzaldehyde without catalyst, as well as in the presence of different MS-4A supported metal catalysts and unmodified molecular sieves 4A and 5A. Taking into account our previous results [20], we led the reactions in refluxing ethanol. Without catalyst the reaction was incomplete after 5 h, this may confirm the catalytic effect of MS-4A. Considerable amount of starting material could also be detected by TLC and 1H NMR, when the reaction was carried out in the presence of MS-5A. We also tested the model reaction in refluxing toluene and xylene, but at higher temperature, some tarry byproducts have also formed. Thus, we have chosen ethanol for our further reactions, as it is a simple, easily removable, and environmentally safe solvent. In the presence of Fe3+/4A and La3+/4A, the product was obtained with good yield, but the unmodified MS-4A also proved to be efficient in the synthesis. Taking into account that this way the application of expensive metals and a possible metal contamination can be avoided, we further examined the application of MS-4A. This molecular sieve is a cheap and readily available material, which is widely used in synthetic laboratories to dry gases, solvents, and liquid reagents; it can also be applied for the absorption of water in condensation reactions [27, 28], furthermore, its physicochemical properties make it possible to use it as support for catalysts. MS-4A is a basic material; its pH is 10.42. MS-5A is also used as drying agent in synthetic laboratories, but it has a lower basicity (pH 8.8). As the result obtained with MS-5A was weaker than with MS-4A, the acidity or basicity of the catalyst may not be crucial in the reaction. Since MS-4A is a microporous zeolite and the reaction may occur on the surface of the catalyst, the interactions between the surface and the reactants may be important. Moreover, the water formed in the reaction can be adsorbed readily by the pores in the vicinity.

A wide range of aromatic aldehydes were reacted with dimedone in the MS-4A catalyzed synthesis of 2,2′-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) derivatives. The results are summarized in Table 1.
Table 1
The synthesis of 2,2′-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) derivatives in the presence of MS-4A
Open image in new window

Entry

R

Product

Yielda/%

M.p./°C/Lit. m.p./°C

1

C6H5

3a

90

186–188/190–192 [12]

2

3-BrC6H4

3b

98

178–180/184–186 [12]

3

4-BrC6H4

3c

98

166–168/172–174 [12]

4

4-ClC6H4

3d

97

135–136/137–138 [16]

5

4-CH3C6H4

3e

99

122–124/126–128 [12]

6

4-OCH3C6H4

3f

96

138–140/142–144 [12]

7

3-NO2C6H4

3g

97

186–188/190–190 [16]

8

4-NO2C6H4

3h

99

164–166/169–171 [12]

9

4-(CH3)2NC6H4

3i

97

174–175/181–183 [12]

10

CH3(CH2)2

3j

98

126–128/133 [29]

Reaction conditions: 2 mmol dimedone, 1 mmol aldehyde, 0.1 g MS-4A, 3 cm3 EtOH, reflux, 5 h

aIsolated yield

Benzaldehyde and various substituted aromatic aldehydes containing electron-withdrawing or electron-donating groups were examined in the reaction and gave the desired products with excellent yields. No significant substituent effect could be observed. As aliphatic aldehyde, we tested butyraldehyde in the reaction (Table 1, entry 10). The desired product 3j was also formed with excellent yield. The work-up of the reaction mixture was very easy; after the filtration of the catalyst and evaporation of the solvent, the product was obtained with excellent purity.

The reusability of the catalyst was examined in the reaction of dimedone (2 eq.) and 3-bromobenzaldehyde. After the 5 h reaction time, the reaction mixture was worked up (see Experimental section for details), then the catalyst was heated at ca. 120 °C for 1 h. It was reused in two more runs without significant loss in its activity. The isolated yields for the two successive runs were both 96%, which clearly demonstrates the practical recyclability of the catalyst.

Conclusion

As a summary, 4 Å molecular sieves proved to be efficient green catalyst for the synthesis of 2,2′-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) derivatives under mild conditions. The desired products were formed with excellent yields (90–99%). The catalyst is a commercially available and cheap material, which is widely used as a drying agent in synthetic laboratories. It can be easily recovered from the reaction mixture and reused several times.

Experimental

1H NMR spectra were obtained on BRUKER Avance-500 instrument using TMS as an internal standard in CDCl3. Melting points were determined on Gallenkamp apparatus. All compounds and solvents were purchased from Merck Hungary, Ltd.

General procedure for the preparation of 2,2′-arylmethylenebis(3-hydroxy-5,5-dimethyl-2-cyclohexene-1-one) derivatives

A typical reaction was carried out in a 10 cm3 flask. Dimedone (2 mmol), aldehyde (1 mmol), 0.1 g MS-4A, and 3 cm3 ethanol were stirred at reflux temperature for 5 h. The catalyst was heated at 120 °C for 1 h before the reaction to remove the traces of water. The progression of the reaction was monitored by TLC. After completion, the solid was filtered and washed with ethanol and then the filtrate was evaporated. The product was subjected to 1H NMR spectroscopy and its melting point was measured.

All products are known compounds and have satisfactory melting points and spectral data (1H NMR) which are identical with those reported in the literature [12, 16, 29].

Notes

Acknowledgements

Open access funding provided by Budapest University of Technology and Economics (BME). Á. M. is grateful to the József Varga Foundation for the financial support. The research reported in this paper has been supported by the National Research, Development and Innovation Fund (TUDFO/51757/2019-ITM, Thematic Excellence Program).

Supplementary material

706_2019_2515_MOESM1_ESM.docx (673 kb)
Supplementary material 1 (DOCX 672 kb)

References

  1. 1.
    Song G, Wang B, Luo H, Yang L (2007) Catal Commun 8:673CrossRefGoogle Scholar
  2. 2.
    Jin T-S, Zhang J-S, Xiao J-C, Wang A-Q, Li T-S (2004) Synlett 5:366Google Scholar
  3. 3.
    Jin T-S, Zhang J-S, Wang A-Q, Li T-S (2005) Synth Commun 35:2339CrossRefGoogle Scholar
  4. 4.
    Saha M, Dey J, Ismail K, Pal AK (2011) Lett Org Chem 8:554CrossRefGoogle Scholar
  5. 5.
    Shanmugasundaram P, Prabahar KJ, Ramakrishnan VT (1993) J Heterocycl Chem 30:1003CrossRefGoogle Scholar
  6. 6.
    Srividya N, Ramamurthy P, Shanmugasundaram P, Ramakrishnan VT (1996) J Org Chem 61:5083CrossRefGoogle Scholar
  7. 7.
    Josephrajan T, Ramakrishnan VT, Kathiravan G, Muthumary J (2005) Arkivoc 11:124Google Scholar
  8. 8.
    Josephrajan T, Ramakrishnan VT (2007) Can J Chem 85:572CrossRefGoogle Scholar
  9. 9.
    Maharvi GM, Ali S, Riaz N, Afza N, Malik A, Ashraf M, Iqbal L, Lateef M (2008) J Enzyme Inhib Med Chem 23:62CrossRefGoogle Scholar
  10. 10.
    Ali S, Maharvi GM, Riaz N, Afza N, Malik A, Rehman AU, Lateef M, Iqbal L (2009) West Indian Med J 58:92PubMedGoogle Scholar
  11. 11.
    Khan KM, Maharvi GM, Khan MTH, Shaikh AJ, Perveen S, Begum S, Choudhary MI (2006) Bioorg Med Chem 14:344CrossRefGoogle Scholar
  12. 12.
    Zhang Y, Shang Z (2010) Chin J Chem 28:1184CrossRefGoogle Scholar
  13. 13.
    Vaid R, Gupta M, Kant R, Gupta VK (2016) J Chem Sci 128:967CrossRefGoogle Scholar
  14. 14.
    Saha M, Pal AK, Nandi S (2012) RSC Adv 2:6397CrossRefGoogle Scholar
  15. 15.
    Rahmani S, Zeynizadeh B (2019) Res Chem Int 45:1227CrossRefGoogle Scholar
  16. 16.
    Li J-T, Li Y-W, Song Y-L, Chen G-F (2012) Ultrason Sonochem 19:1CrossRefGoogle Scholar
  17. 17.
    Gupta M, Gupta M (2016) J Chem Sci 128:849CrossRefGoogle Scholar
  18. 18.
    Gilanizadeh M, Zeynizadeh B (2018) New J Chem 42:8553CrossRefGoogle Scholar
  19. 19.
    Rao VK, Kumar MM, Kumar A (2011) Indian J Chem 50B:1128Google Scholar
  20. 20.
    Magyar Á, Hell Z (2019) Catal Lett 149:2528CrossRefGoogle Scholar
  21. 21.
    Magyar Á, Hell Z (2019) Synlett 30:89CrossRefGoogle Scholar
  22. 22.
    Magyar Á, Nagy B, Hell Z (2015) Catal Lett 145:1876CrossRefGoogle Scholar
  23. 23.
    Magyar Á, Hell Z (2016) Catal Lett 146:1153CrossRefGoogle Scholar
  24. 24.
    Magyar Á, Hell Z (2017) Period Polytech Chem Eng 61:278CrossRefGoogle Scholar
  25. 25.
    Magyar Á, Hell Z (2018) Green Proc Synth 7:316CrossRefGoogle Scholar
  26. 26.
    Magyar Á, Hell Z (2016) Monatsh Chem 147:1583CrossRefGoogle Scholar
  27. 27.
    Han X, Ma C, Wu Z, Huang G (2016) Synthesis 48:351Google Scholar
  28. 28.
    Esmaeili AA, Ghalandarabad SA, Zangouei M (2012) Tetrahedron Lett 53:5605CrossRefGoogle Scholar
  29. 29.
    Ramachary DB, Kishor M (2007) J Org Chem 72:5056CrossRefGoogle Scholar
