Microchimica Acta

, Volume 180, Issue 3–4, pp 235–242 | Cite as

Solid-phase preconcentration of cadmium(II) using amino-functionalized magnetic-core silica-shell nanoparticles, and its determination by hydride generation atomic fluorescence spectrometry

Original Paper
First Online:
Received:
Accepted:

Abstract

We report on the synthesis and evaluation of aminated-CoFe2O4/SiO2 nanoparticles that can serve as a selective solid-phase sorbent for the extraction of cadmium ion. The nanoparticles consist of a magnetic CoFe2O4 core and an amino-modified silica shell. They can efficiently extract cadmium(II) ion and then can be isolated from the sample solution due to the magnetic nature of the core. The effects of the experimental conditions on the extraction process were optimized. Cadmium was then quantified by hydride generation atomic fluorescence spectrometry. The resulting calibration curve is linear in the concentration range of 0.01–10 μg L−1, the instrumental detection limits (3σ) is 3.15 ng L−1 and the relative standard deviation is 4.9 % at the 1.0 μg L−1 level (for n = 11). The enrichment factor is 50 (for 50 mL samples), and the adsorbent can be used for at least 45 cycles of preconcentration and elution. The method was applied to the determination of cadmium in environmental water samples, and successfully validated by analyzing two certified reference materials.

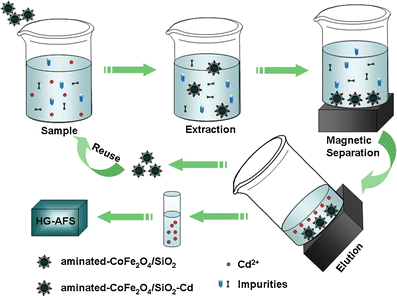

Figure

Magnetic solid-phase extraction coupled with hydride generation atomic fluorescence spectrometry for the determination of cadmium is described.

Keywords

Solid-phase extraction Hydride generation atomic fluorescence spectrometry Aminated-CoFe2O4/SiO2 magnetic nanoparticles Cadmium
This is a preview of subscription content, log in to check access.

Notes

Acknowledgments

This work was supported by the National Natural Science Foundation of China (21205103, 21275124), Jiangsu Provincial Nature Foundation of China (BK2012258), the Key Laboratory Foundation of Environmental Material and Engineering of Jiangsu Province (JHCG201004), and a Project Funded by the Priority Academic Program Development of Jiangsu Higher Education Institutions.

Supplementary material

604_2012_924_MOESM1_ESM.doc (944 kb)
ESM 1 (DOC 944 kb)

References

  1. 1.
    Waalkes MP (2000) Cadmium carcinogenesis in review. J Inorg Biochem 79:241CrossRefGoogle Scholar
  2. 2.
    Gallego SM, Pena LB, Barcia RA, Azpilicueta CE, Iannone MF, Rosales EP, Zawoznik MS, Groppa MD, Benavides MP (2012) Unravelling cadmium toxicity and tolerance in plants: insight into regulatory mechanisms. Environ Exp Bot 83:33CrossRefGoogle Scholar
  3. 3.
    Tian Y, Xie ZM, Chen ML, Wang JH (2011) Cadmium preconcentration with bean-coat as a green adsorbent with detection by electrothermal atomic absorption spectrometry. J Anal At Spectrom 26:1408CrossRefGoogle Scholar
  4. 4.
    Yang T, Liu LH, Liu JW, Chen ML, Wang JH (2012) Cyanobacterium metallothionein decorated graphene oxide nanosheets for highly selective adsorption of ultra-trace cadmium. J Mater Chem 22:21909CrossRefGoogle Scholar
  5. 5.
    Yang T, Zhang XX, Chen ML, Wang JH (2012) Highly selective preconcentration of ultra-trace cadmium by yeast surface engineering. Analyst 137:4193CrossRefGoogle Scholar
  6. 6.
    Li ZX, Zhou LP (2006) Interferences removal for cadmium determination in samples with complex matrices by hydride generation coupled with non-dispersive atomic fluorescence spectrometry. Anal Sci 22:123CrossRefGoogle Scholar
  7. 7.
    Li ZX, Zhou LP (2008) Rapid and low cost determination of cadmium in whole blood by hydride generation atomic fluorescence spectrometry after ultrasound-assisted sample preparation. J Braz Chem Soc 19:1347CrossRefGoogle Scholar
  8. 8.
    Faraji M, Yamini Y, Saleh A, Rezaee M, Ghambarian M, Hassani R (2010) A nanoparticle-based solid-phase extraction procedure followed by flow injection inductively coupled plasma-optical emission spectrometry to determine some heavy metal ions in water samples. Anal Chim Acta 659:172CrossRefGoogle Scholar
  9. 9.
    Zhang N, Peng HY, Wang S, Hu B (2011) Fast and selective magnetic solid phase extraction of trace Cd, Mn and Pb in environmental and biological samples and their determination by ICP-MS. Microchim Acta 175:121CrossRefGoogle Scholar
  10. 10.
    Ferreira SLC, de Andrade JB, Korn MGA, Pereira MG, Lemos VA, Santos WNL, Rodrigues FM, Souza AS, Ferreira HS, da Silva EGP (2007) Review of procedures involving separation and preconcentration for the determination of cadmium using spectrometric techniques. J Hazard Mater 145:358CrossRefGoogle Scholar
  11. 11.
    Zhang XX, Tang SS, Chen ML, Wang JH (2012) Iron phosphate as a novel sorbent for selective adsorption of chromium(III) and chromium speciation with detection by ETAAS. J Anal At Spectrom 27:466CrossRefGoogle Scholar
  12. 12.
    Chen BB, Heng SJ, Peng HY, Hu B, Yu X, Zhang ZL, Pang DW, Yue X, Zhu Y (2010) Magnetic solid phase microextraction on a microchip combined with electrothermal vaporization-inductively coupled plasma mass spectrometry for determination of Cd, Hg and Pb in cells. J Anal At Spectrom 25:1931CrossRefGoogle Scholar
  13. 13.
    Huang CZ, Hu B (2008) Silica-coated magnetic nanoparticles modified with γ-mercaptopropyltrimethoxysilane for fast and selective solid phase extraction of trace amounts of Cd, Cu, Hg, and Pb in environmental and biological samples prior to their determination by inductively coupled plasma mass spectrometry. Spectrochim Acta B 63:437CrossRefGoogle Scholar
  14. 14.
    Wang JH, Zheng SR, Shao Y, Liu JL, Xu ZY, Zhu DQ (2010) Amino-functionalized Fe3O4@SiO2 core-shell magnetic nanomaterial as a novel adsorbent for aqueous heavy metals removal. J Colloid Interface Sci 349:293CrossRefGoogle Scholar
  15. 15.
    Xin XD, Wei Q, Yang J, Yan LG, Feng R, Chen GD, Du B, Li H (2012) Highly efficient removal of heavy metal ions by amine-functionalized mesoporous Fe3O4 nanoparticles. Chem Eng J 184:132CrossRefGoogle Scholar
  16. 16.
    Huang SH, Chen DH (2009) Rapid removal of heavy metal cations and anions from aqueous solutions by an amino-functionalized magnetic nano-adsorbent. J Hazard Mater 163:174CrossRefGoogle Scholar
  17. 17.
    Huang CZ, Xie W, Li X, Zhang JP (2011) Speciation of inorganic arsenic in environmental waters using magnetic solid phase extraction and preconcentration followed by ICP-MS. Microchim Acta 173:165CrossRefGoogle Scholar
  18. 18.
    Huang YF, Li Y, Jiang Y, Yan XP (2010) Magnetic immobilization of amine-functionalized magnetite microspheres in a knotted reactor for on-line solid-phase extraction coupled with ICP-MS for speciation analysis of trace chromium. J Anal At Spectrom 25:1467CrossRefGoogle Scholar
  19. 19.
    Gyergyek S, Drofenik M, Makovec D (2012) Oleic-acid-coated CoFe2O4 nanoparticles synthesized by co-precipitation and hydrothermal synthesis. Mater Chem Phys 133:515CrossRefGoogle Scholar
  20. 20.
    Stöber W, Fink A, Bohn E (1968) Controlled growth of monodisperse silica spheres in the micron size range. J Colloid Interface Sci 26:62CrossRefGoogle Scholar
  21. 21.
    Wang H, Huang J, Ding LY, Li DP, Han Y (2011) A facile synthesis of monodisperse CoFe2O4/SiO2 nanoparticles. Appl Surf Sci 257:7107CrossRefGoogle Scholar
  22. 22.
    Limaye MV, Singh SB, Date SK, Kothari D, Reddy VR, Gupta A, Sathe V, Choudhary RJ, Kulkarni SK (2009) High coercivity of oleic acid capped CoFe2O4 nanoparticles at room temperature. J Phys Chem B 113:9070CrossRefGoogle Scholar
  23. 23.
    Shen HY, Pan SD, Zhang Y, Huang XL, Gong HX (2012) A new insight on the adsorption mechanism of amino-functionalized nano-Fe3O4 magnetic polymers in Cu(II), Cr(VI) co-existing water system. Chem Eng J 183:180CrossRefGoogle Scholar
  24. 24.
    Golbedaghi R, Jafari S, Yaftian MR, Azadbakht R, Salehzadeh S, Jaleh B (2012) Determination of cadmium(II) ion by atomic absorption spectrometry after cloud point extraction. J Iran Chem Soc 9:251CrossRefGoogle Scholar
  25. 25.
    Zeng CJ, Hu Y, Luo JW (2012) Ionic liquid-based hollow fiber supported liquid membrane extraction combined with thermospray flame furnace AAS for the determination of cadmium. Microchim Acta 177:53CrossRefGoogle Scholar
  26. 26.
    Şahin ÇA, Durukan İ (2011) Ligandless-solidified floating organic drop microextraction method for the preconcentration of trace amount of cadmium in water samples. Talanta 85:657CrossRefGoogle Scholar
  27. 27.
    Mahpishanian S, Shemirani F (2010) Preconcentration procedure using in situ solvent formation microextraction in the presence of ionic liquid for cadmium determination in saline samples by flame atomic absorption spectrometry. Talanta 82:471CrossRefGoogle Scholar
  28. 28.
    Méndez JÁ, García JB, Crecente RMP, Martín SG, Latorre CH (2011) A new flow injection preconcentration method based on multiwalled carbon nanotubes for the ETA-AAS determination of Cd in urine. Talanta 85:2361CrossRefGoogle Scholar
  29. 29.
    Afkhami A, Madrakian T, Ahmadi R, Bagheri H, Tabatabaee M (2011) Chemically modified alumina nanoparticles for selective solid phase extraction and preconcentration of trace amounts of Cd(II). Microchim Acta 175:69CrossRefGoogle Scholar
  30. 30.
    Mashhadizadeh MH, Karami Z (2011) Solid phase extraction of trace amounts of Ag, Cd, Cu, and Zn in environmental samples using magnetic nanoparticles coated by 3-(trimethoxysilyl)-1-propantiol and modified with 2-amino-5-mercapto-1,3,4-thiadiazole and their determination by ICP-OES. J Hazard Mater 190:1023CrossRefGoogle Scholar
  31. 31.
    Zhang N, Peng HY, Hu B (2012) Light-induced pH change and its application to solid phase extraction of trace heavy metals by high-magnetization Fe3O4@SiO2@TiO2 nanoparticles followed by inductively coupled plasma mass spectrometry detection. Talanta 94:278CrossRefGoogle Scholar
  32. 32.
    Bagheri H, Afkhami A, Saber-Tehrani M, Khoshsafar H (2012) Preparation and characterization of magnetic nanocomposite of Schiff base/silica/magnetite as a preconcentration phase for the trace determination of heavy metal ions in water, food and biological samples using atomic absorption spectrometry. Talanta 97:87CrossRefGoogle Scholar
  33. 33.
    Shishehbore MR, Afkhami A, Bagheri H (2011) Salicylic acid functionalized silica-coated magnetite nanoparticles for solid phase extraction and preconcentration of some heavy metal ions from various real samples. Chem Cent J 5:41CrossRefGoogle Scholar

Copyright information

© Springer-Verlag Wien 2012

Authors and Affiliations

  1. 1.College of Chemistry and Chemical EngineeringYangzhou UniversityYangzhouChina
