Microchimica Acta

, Volume 180, Issue 1–2, pp 59–64 | Cite as

Fluorometric sensing of DNA using curcumin encapsulated in nanoparticle-assembled microcapsules prepared from poly(diallylammonium chloride-co-sulfur dioxide)

Original Paper
First Online:
Received:
Accepted:

Abstract

We report on the synthesis of microcapsules (MCs) containing self-assembled nanoparticles formed from poly[diallylammonium chloride-co-(sulfur dioxide)] in the presence of citrate and silica sol nanoparticles. The MCs are spherical, and SEM and optical microscopy reveal them to have micrometer size. The fluorescent probe curcumin was encapsulated in the MCs and found to be located in the shell. The fluorescence of curcumin in the MCs is altered depending on their microenvironment. Effects of pH and ammonia on the fluorescence of curcumin in the MCs also were studied. The brightness of the probe in the MCs increases on addition of DNA. The effect was used to determine DNA from fish sperm by fluorometry. The association constant (K) is 4 000 mL.g−1, and the number of binding sites is ~1.0.

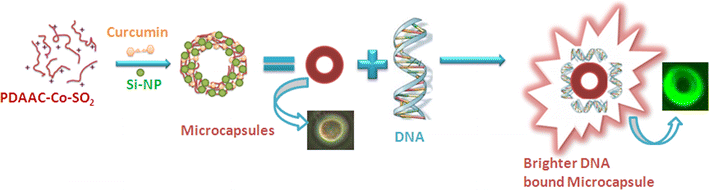

Figure

Synthesis of microcapsule containing self-assembled nanoparticles by using Poly(diallyl ammonium chloride-co-SO2 in the presence of trisodium citrate and silica sol nanoparticles is achieved. Change in the photo-physical properties of the probe molecule suggests a different environment inside the microcapsule. The curcumin encapsulated microcapsules strongly bind to DNA by increasing the brightness with an association constant of 3.98 × 103 mL/g. DNA could be successfully determined using the prepared curcumin encapsulated microcapsules.

Keywords

PDAAC-SO2 Curcumin Nanoparticles Microcapsules DNA sensor
This is a preview of subscription content, log in to check access.

Notes

Acknowledgement

Financial support provided by American University of Beirut, Lebanon and Lebanese National Council of Scientific Research (LNCSR), Lebanon to carry out this work is greatly acknowledged.

Supplementary material

604_2012_903_MOESM1_ESM.docx (653 kb)
ESM 1 (DOCX 652 kb)

References

  1. 1.
    Shenhar R, Rotello VM (2003) Nanoparticles: scaffolds and building blocks. Acc Chem Res 36:549–561CrossRefGoogle Scholar
  2. 2.
    Whitesides GM, Boncheva M (2002) Beyond molecules: self-assembly of mesoscopic and macroscopic components. Proc Natl Acd Sci USA 99:4769–4774CrossRefGoogle Scholar
  3. 3.
    Mann S, Ozin GA (1996) Synthesis of inorganic materials with complex form. Nature 382:313–318CrossRefGoogle Scholar
  4. 4.
    Hassenkam T, Norgaard K, Iversen L, Kiely CJ, Brust M, Bjornholm T (2002) Fabrication of 2D gold nanowires by self-assembly of gold nanoparticles on water surfaces in the presence of surfactants. Adv Mater 14:1126–1130CrossRefGoogle Scholar
  5. 5.
    Murray CB, Kagan CR, Bawendi MG (1995) Self-organization of CdSe nanocrystallites into three-dimensional quantum dot superlattices. Science 270:1335–1338CrossRefGoogle Scholar
  6. 6.
    Wong MS, Cha JN, Choi KS, Deming TJ, Stucky GD (2002) Assembly of nanoparticles into hollow spheres using block copolypeptides? Nano Lett 2:583–587CrossRefGoogle Scholar
  7. 7.
    Boal AK, Ilhan F, DeRouchey JE, Thurn-Albrecht T, Russell TP, Rotello VM (2000) Self-assembly of nanoparticles into structured spherical and network aggregates. Nature 404:746–748CrossRefGoogle Scholar
  8. 8.
    Bagariaa HG, Wong MS (2011) Polyamine–salt aggregate assembly of capsules as responsive drug delivery vehicles. J Mater Chem 21:9454–9466CrossRefGoogle Scholar
  9. 9.
    Patra D, Amali AJ, Rana RK (2009) Preparation and photophysics of HPTS-based nanoparticle-assembled microcapsules. J Mater Chem 19:4017–4021CrossRefGoogle Scholar
  10. 10.
    Amali AJ, Awwad NH, Rana RK, Patra D (2011) Nanoparticle assembled microcapsules for application as pH and ammonia sensor. Anal Chim Acta 708:75–83CrossRefGoogle Scholar
  11. 11.
    Amali AJ, Rangaraj N, Patra D, Rana RK (2012) Pyranine-3 in Poly(L-Lysine)-mediated nanoparticle–assembled microcapsules: its pH sensitive release while acting as a ratiometric optical pH sensor. Chem Comm 48:856–858CrossRefGoogle Scholar
  12. 12.
    Ausubel FM, Brent R, Kingston RE, Moore DD, Seidman JG, Smith JA, Struhl K (1998) Current protocols in molecular biology. Wiley, New York, pp A.3D1–A.3D.8, and reference cited thereinGoogle Scholar
  13. 13.
    Karsten U, Wollenberger A (1977) Improvements in the ethidium bromide method for direct fluorometric estimation of DNA and RNA in cell and tissue homogenates. Anal Biochem 77:464–470CrossRefGoogle Scholar
  14. 14.
    Tanious A, Veal JM, Buczak H, Ratmeyer LS, Wilson WD (1992) Biochemistry 31:3103–3112CrossRefGoogle Scholar
  15. 15.
    Singer VL, Jones LJ, Yue ST, Haugland RP (1997) Anal Biochem 249:228–238CrossRefGoogle Scholar
  16. 16.
    Vitzthum F, Geiger G, Bisswanger H, Brunner H, Bernhagen J (1999) A quantitative fluorescence-based microplate assay for the determination of double-standarded DNA using SYBR Green I and a standard ultraviolet transillumaniting gel imaging system. Anal Biochem 276:59–64CrossRefGoogle Scholar
  17. 17.
    Gong H, Cai C, Ma Y, Chen X (2012) Detection of DNA hybridization by various spectroscopic methods using the copper tetraphenylprophrin complex as a probe. Microchim Acta 177:95–101CrossRefGoogle Scholar
  18. 18.
    Ammon HPT, Wahl MA (1991) Pharmacology of Curcuma longa. Planta Med 57:1–7CrossRefGoogle Scholar
  19. 19.
    Pizzo P, Scapin C, Vitadello M, Florean C, Gorza L (2010) Grp 94 acts as a mediator of curcumin-induced antioxidant defence in myogenic cells. J Cell Mol Med 14:970–981CrossRefGoogle Scholar
  20. 20.
    Sugiyama Y, Kawakishi S, Osawa T (1996) Involvement of the diketone moiety in the antioxidative mechanism of tetrahydrocurcumin. Biochem Pharmacol 52:519–525CrossRefGoogle Scholar
  21. 21.
    Yang F, Lim GP, Begum AN, Ubeda OJ, Simmons MR, Ambegaokar SS, Chen P, Kayed R, Glabe CG, Frautschy SA, Cole GM (2005) J Biol Chem 280:5892–5901CrossRefGoogle Scholar
  22. 22.
    Shishodia S, Chaturvedi MM, Aggarwal BB (2007) Role of curcumin in cancer therapy. Curr Probl Cancer 31:243–305CrossRefGoogle Scholar
  23. 23.
    Qureshi S, Shah AH, Ageel AM (1992) Toxicity studies on Alpinia galanga and Curcuma longa. Planta Med 58:124–127CrossRefGoogle Scholar
  24. 24.
    Lao CD, Ruffin TT, Normolle D, Heath DD, Murray SI, Bailey JM, Boggs ME, Crowell J, Rock CL, Brenner DE (2006) Dose escalation of a curcuminoid formulation. BMC Complement Altern Med 6:10CrossRefGoogle Scholar
  25. 25.
    Patra D, Barakat C (2011) Synchronous fluorescence spectroscopic study of solvatochromic curcumin dye. Spectrochimica Acta A Mol Biomol Spectrosc 79:1034–1041CrossRefGoogle Scholar
  26. 26.
    Patra D, Barakat C (2011) Unique role of ionic liquid [bmin][BF4] during curcumin–surfactant association and micellization of cationic, anionic and non-ionic surfactant solutions. Spectrochimica Acta A Mol Biomol Spectrosc 79:1823–1828CrossRefGoogle Scholar
  27. 27.
    Patra D, El Khoury E, Ahmadieh D, Darwish S, Tafech RM (2012) Effect of Curcumin on Liposome: Curcumin as a Molecular Probe for Monitoring Interaction of Ionic Liquids with 1,2-Dipalmitoyl-sn-glycero-3-phosphocholine Liposome. Photochem Photobiol 88:317–327CrossRefGoogle Scholar
  28. 28.
    Patra D, Barakat C, Tafech RM (2012) Study on effect of lipophilic curcumin on sub-domain IIA site of human serum albumin during unfolded and refolded states: a synchronous fluorescence spectroscopic study. Colloids Surf B: Biointerfaces 94:354–361CrossRefGoogle Scholar
  29. 29.
    Patra D, Barakat C (2012) Time-resolved fluorescence study during denaturation and renaturation of curcumin-myoglobin complex. Int J Biol Macromol 50:885–890CrossRefGoogle Scholar
  30. 30.
    Shen L, Ji HF (2007) Theoretical study on physiochemical properties of curcumin. Spectrochimica Acta A Mol Biomol Spectrosc 67:619–623CrossRefGoogle Scholar
  31. 31.
    Connors KA (1987) Binding constants. The measurements of molecular complex stability. Wiley, New YorkGoogle Scholar

Copyright information

© Springer-Verlag Wien 2012

Authors and Affiliations

  1. 1.Department of Chemistry, Faculty of Arts and SciencesAmerican University of BeirutRiad El Solh, BeirutLebanon
