Microchimica Acta

, Volume 177, Issue 3–4, pp 449–456 | Cite as

Iodide-induced adsorption of lead(II) ion on a glassy carbon electrode modified with ferroferric oxide nanoparticles

Original Paper
First Online:
Received:
Accepted:

Abstract

Spherical Fe3O4 nanoparticles (NPs) were prepared by hydrothermal synthesis and characterized by scanning electron microscopy and X-ray diffraction. A glassy carbon electrode was modified with such NPs to result in a sensor for Pb(II) that is based on the strong inducing adsorption ability of iodide. The electrode gives a pair of well-defined redox peaks for Pb(II) in pH 5.0 buffer containing 10 mM concentrations of potassium iodide, with anodic and cathodic peak potentials at −487 mV and −622 mV (vs. Ag/AgCl), respectively. The amperometric response to Pb(II) is linear in the range from 0.10 to 44 nM, and the detection limit is 40 pM at an SNR of 3. The sensor exhibits high selectivity and reproducibility.

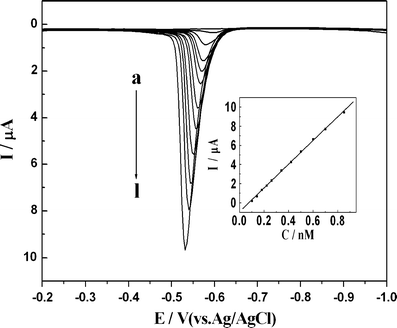

Figure

An electrochemical sensor for Pb2+ was fabricated based on the glassy carbon electrode modified with Fe3O4 NPs and the strong inducing adsorption ability of I−. The sensor had excellent stability, high sensitivity, ease of construction and utilization for Pb(II) determination

Keywords

Pb2+ I− Fe3O4 nanoparticles Inducing adsorption Amperometric sensor
This is a preview of subscription content, log in to check access.

Notes

Acknowledgments

We thank the National Natural Science Foundation of China (grant no. 20775002) for financial support. The work was supported by Program for Innovative Research Team in Anhui Normal University

References

  1. 1.
    Bridgewater BM, Parkin G (2000) Lead poisoning and the inactivation of 5-aminolevulinate dehydratase as modeled by the tris(2-mercapto-1-phenylimidazolyl)hydroborato lead complex, {[TmPh]Pb}[ClO4]. J Am Chem Soc 122:7140CrossRefGoogle Scholar
  2. 2.
    Chen JR, Xiao SM, Wu XH, Fang KM, Liu WH (2005) Determination of lead in water samples by graphite furnace atomic absorption spectrometry after cloud point extraction. Talanta 67:992CrossRefGoogle Scholar
  3. 3.
    Wang HL, Ou LML, Suo YR, Yu HZ (2011) Computer-readable DNAzyme assay on disc for ppb-level lead detection. Anal Chem 83:1557CrossRefGoogle Scholar
  4. 4.
    Di Nezio MS, Palomeque ME, Fernández Band BS (2004) A sensitive spectrophotometric method for lead determination by flow injection analysis with on-line preconcentration. Talanta 63:405CrossRefGoogle Scholar
  5. 5.
    Rifai N, Cohen G, Wolf M, Cohen L, Faser C, Savory J, Depalma L (1993) Incidence of lead poisoning in young children from inner-city, suburban, and rural communities. Ther Drug Monit 15:71CrossRefGoogle Scholar
  6. 6.
    Lanphear BP, Hornung R, Khoury J, Yolton K, Baghurst P, Bellinger DC, Canfield RL, Dietrich KN, Bornschein R, Greene T, Rothenberg SJ, Needleman HL, Schnaas L, Wasserman G, Graziano J, Roberts R (2005) Low-level environmental lead exposure and children’s intellectual function: an international pooled analysis. Environ Health Persp 113:894CrossRefGoogle Scholar
  7. 7.
    Sun D, Wan C, Li G, Wu KB (2007) Electrochemical determination of lead(II) using a montmorillonite calcium-modified carbon paste electrode. Microchim Acta 158:255CrossRefGoogle Scholar
  8. 8.
    Krasnodebska-Ostrega B, Piekarska J (2005) Determination of lead and cadmium at silver electrode by subtractive anodic stripping voltammetry in plant materials containing Tl. Electroanalysis 17:815CrossRefGoogle Scholar
  9. 9.
    Wan QJ, Yu F, Zhu LN, Wang XX, Yang NJ (2010) Bucky-gel coated glassy carbon electrodes, for voltammetric detection of femtomolar leveled lead ions. Talanta 82:1820CrossRefGoogle Scholar
  10. 10.
    Cao L, Jia J, Wang Z (2008) Sensitive determination of Cd and Pb by differential pulse stripping voltammetry with in situ bismuth-modified zeolite doped carbon paste electrodes. Electrichim Acta 53:2177CrossRefGoogle Scholar
  11. 11.
    Hwang GH, Han WK, Park JS, Kang SG (2008) Determination of trace metals by anodic stripping voltammetry using a bismuthmodified carbon nanotube electrode. Talanta 76:301CrossRefGoogle Scholar
  12. 12.
    Anson FC, Barclay DJ (1968) Anion induced adsorption of cadmium(II) on mercury from iodide and bromide media. Anal Chem 40:1791CrossRefGoogle Scholar
  13. 13.
    O’Dom GW, Murray RW (1968) Chronocoulometric measurement of indium (III) adsorption from thiocyanate medium. J Electroanal Chem 16:327CrossRefGoogle Scholar
  14. 14.
    Barclay DJ, Anson FC (1970) Some aspects of anion-induced adsorption of white metal cations on mercury. J Electroanal Chem 28:71CrossRefGoogle Scholar
  15. 15.
    Li G, Wan CD, Ji ZM, Wu KB (2007) An electrochemical sensor for Cd2+ based on the inducing adsorption ability of I−. Sensors and Actuators B 124:1CrossRefGoogle Scholar
  16. 16.
    Li G, Ji ZM, Wu KB (2006) Square wave anodic stripping voltammetric determination of Pb2+ using acetylene black paste electrode based on the inducing adsorption ability of I−. Anal Chim Acta 577:178CrossRefGoogle Scholar
  17. 17.
    Girija TC, Sangaranarayanan MV (2005) Anion-induced adsorption of thallium complex on silver electrodes. J Colloid Interface Sci 282:92CrossRefGoogle Scholar
  18. 18.
    Murray RW, Gross DJ (1966) Inhibition of electrode reactions by adsorbed lead iodide, bromide, and thiocyanate. Anal Chem 38:393CrossRefGoogle Scholar
  19. 19.
    Anson FC, Christie JH, Osteryoung RA (1967) Anion induced adsorption of cadmium(II) on mercury from iodide and bromide Media. J Electroanal Chem 13:343CrossRefGoogle Scholar
  20. 20.
    Parsons R (1951) General equations for the kinetics of electrode processes. Trans Faraday Soc 47:1332CrossRefGoogle Scholar
  21. 21.
    Hepel T (1984) Lateral exchange interactions in sub-monolayer films of co-adsorbed species. J Electroanal Chem 175:15CrossRefGoogle Scholar
  22. 22.
    Weaver MJ, Anson FC (1975) Electrode kinetics with specifically adsorbed reactants: the reduction of some isothiocyanato complexes of Cr(III) on mercury electrodes. J Electroanal Chem 58:95CrossRefGoogle Scholar
  23. 23.
    Lovric M (2010) Stripping voltammetry. In: Scholz F (ed) Electroanalytical methods, 2nd edn. Springer, Berlin/New York, pp 201–221CrossRefGoogle Scholar
  24. 24.
    Komorsky-Loric S, Loric M, Branica M (1988) Coadsorption of Bi(III) and Cl− at a mercury electrode. J Electroanal Chem 241:329CrossRefGoogle Scholar
  25. 25.
    Lovric M (1989) Influence of anion-induced adsorption on D.C. polarography of metal ions. Anal Chim Acta 218:7CrossRefGoogle Scholar
  26. 26.
    Yin ZJ, Wu JJ, Yang ZS (2010) A sensitive mercury (II) sensor based on CuO nanoshuttles/poly(thionine) modified glassy carbon electrode. Microchim Acta 170:307CrossRefGoogle Scholar
  27. 27.
    Chen BH, Wang LS, Huang XJ, Wu PX (2011) Glassy carbon electrode modified with organic–inorganic pillared montmorillonites for voltammetric detection of mercury. Microchim Acta 172:335CrossRefGoogle Scholar
  28. 28.
    Sánchez A, Morante-Zarcero S, Pérez-Quintanilla D, Sierra I, Hierro ID (2010) Development of screen-printed carbon electrodes modified with functionalized mesoporous silica nanoparticles: Application to voltammetric stripping determination of Pb(II) in non-pretreated natural waters. Electrochim Acta 55:6983CrossRefGoogle Scholar
  29. 29.
    Dobson J (2006) Magnetic nanoparticles for drug delivery. Drug Dev Res 67:55CrossRefGoogle Scholar
  30. 30.
    Mornet S, Vasseur S, Grasset F, Duguet E (2004) Magnetic nanoparticle design for medical diagnosis and therapy. J Mater Chem 14:2161CrossRefGoogle Scholar
  31. 31.
    Mirzabekov T, Kontos H, Farzan M, Marasco W, Sodroski J (2000) Paramagnetic proteoliposomes containing a pure, native, and oriented seven-transmembrane segment protein, CCR5. J Nat Biotechnol 18:649CrossRefGoogle Scholar
  32. 32.
    Woo K, Hong J, Choi S, Lee H, Ahn J, Kim CS, Lee SW (2004) Easy synthesis and magnetic properties of iron oxide nanoparticles. Chem Mater 16:2814CrossRefGoogle Scholar
  33. 33.
    Hogemann D, Ntziachristos V, Josephson L, Weissleder R (2002) High throughput magnetic resonance imaging for evaluating. Bioconjugate Chem 13:116CrossRefGoogle Scholar
  34. 34.
    Cheng Y, Liu Y, Huang J, Li K, Xian Y, Zhang W, Jin L (2009) Amperomeric tyrosinase biosensor based on Fe3O4 nanoparticles-coated carbon nanotubes nanocomposite for rapid detection of coliforms. Electrochim Acta 54:2588CrossRefGoogle Scholar
  35. 35.
    Zhang ZX, Zhu H, Wang XL, Yang XR (2011) Sensitive electrochemical sensor for hydrogen peroxide using Fe3O4 magnetic nanoparticles as a mimic for peroxidase. Microchim Acta 174:183CrossRefGoogle Scholar
  36. 36.
    Yina HS, Zhou YL, Ma Q, Ai SY, Chen QP, Zhu LS (2010) Electrocatalytic oxidation behavior of guanosine at graphene, chitosan and Fe3O4 nanoparticles modified glassy carbon electrode and its determination. Talanta 82:1193CrossRefGoogle Scholar
  37. 37.
    Hu P, Yu LJ, Zuo AH, Guo CY, Yuan FL (2009) Fabrication of monodisperse magnetite hollow spheres. J Phys Chem C 113:900CrossRefGoogle Scholar
  38. 38.
    Herman HB, McNeely RL, Surana P, Elliott CM, Murray RW (1974) Surface solubility and reaction inhibition in lead bromide and iodide adsorbed on mercury electrodes. Anal Chem 46:1258CrossRefGoogle Scholar
  39. 39.
    Yang GJ, Qu XL, Shen M, Wang CY, Qu QS, Hu XY (2008) Electrochemical behavior of lead(II) at poly(phenol red) modified glassy carbon electrode, and its trace determination by differential pulse anodic stripping voltammetry. Microchim Acta 160:275CrossRefGoogle Scholar
  40. 40.
    Senthilkumar S, Saraswathi R (2009) Electrochemical sensing of cadmium and lead ions at zeolite-modified electrodes: optimization and field measurements. Sensors Actuators B 141:65CrossRefGoogle Scholar

Copyright information

© Springer-Verlag 2012

Authors and Affiliations

  1. 1.College of Chemistry and Materials Science, Anhui Key Laboratory of chemo-BiosensingAnhui Normal UniversityWuhuPeople’s Republic of China
