Microchimica Acta

, Volume 176, Issue 1–2, pp 117–122 | Cite as

Homogeneous immunoassay for human IgG using oriented hen egg IgY immobilized on gold sol nanoparticles

  • Hermine E. Yeritsyan
  • Vardan K. GasparyanEmail author
Original Paper


Homogeneous immunoassays using (red) gold nanoparticles represent an attractive detection scheme because of the option of photometric readout. We have applied oriented immobilization of hen egg immunoglobulin Y (IgY) on gold nanoparticles when developing a homogeneous immunoassay for human IgG. In oriented immobilization, as opposed to random immobilization, the antigen binding capabilities of the antibodies are retained. It is shown that such immunoassay has significantly better sensitivity in comparison with methods based on conventional immobilization of affinity-purified antibodies. It is also shown that hen egg IgY is better suited than rabbit antibodies, because much more antibody can be immobilized on gold nanoparticles without any destabilization, probably because of the more acidic nature of these antibodies. In addition, hen egg IgY can be supplied in higher quantity and can be prepared more easily than IgG from rabbits. Bleeding and slaughtering of animals is not needed. The assay presented here has a wide detection range (30–500 ng .mL−1) and a limit of detection as low as 30 ng.mL−1 of human IgG.

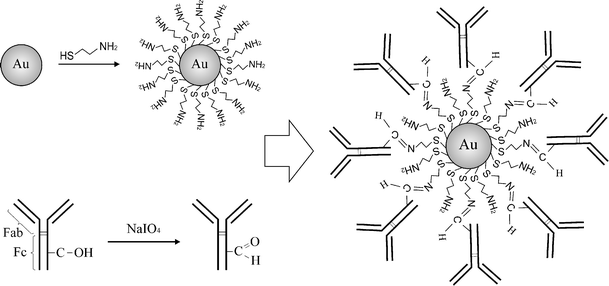

Nanoparticles are treated by thiol for formation of monolayer with exposed NH2 groups. IgY molecule is oxidized by periodate for formation of aldehyde group in Fc fragment. Consequent addition of such antibodies to gold nanoparticles results in binding of IgY molecules to gold nanoparticles via Fc fragment providing oriented immobilization.


Gold nanoparticle Immunoassay Immunoglobulin Y Oriented immobilization



Authors acknowledge to Dr. Mariam Mikaelyan for attentive study of manuscript and for language support. We acknowledge to Dr. Hayk Harutyunyan for support in graphical works.


  1. 1.
    Wisdom GB (1976) Enzyme immunoassay. Clin Chem 22:1243–1255Google Scholar
  2. 2.
    Liu X, Huo Q (2009) A washing-free and amplification-free one-step homogeneous assay for protein detection using gold nanoparticle probes and dynamic light scattering. J Immunol Meth 349:38–44CrossRefGoogle Scholar
  3. 3.
    Sun Y, Xia Y (2003) Gold and silver nanoparticles: a class of chromophores with colors tunable in the range from 400–750 nm. Analyst 128:686–691CrossRefGoogle Scholar
  4. 4.
    Nehl CL, Liao H, Hafner JH (2006) Optical properties of star-shaped gold nanoparticles. Nano Lett 6:683–688CrossRefGoogle Scholar
  5. 5.
    Tong L, Wei Q, Wei A, Cheng J-X (2009) Gold nanorods as contrast agents for biological imaging: optical properties, surface conjugation and photothermal effects. Photochem Photobiol 85:21–32CrossRefGoogle Scholar
  6. 6.
    Song C, Zhao G, Zhang P, Rosi NL (2010) Expeditious synthesis and assembly of sub-100 nm hollow spherical gold nanoparticle superstructures. J Am Chem Soc 132:14033–14035CrossRefGoogle Scholar
  7. 7.
    Oh E, Susumu K, Goswami R, Mattoussi H (2010) One-phase synthesis of water-soluble gold nanoparticles with control over size and surface functionalities. Langmuir 26:7604–7613CrossRefGoogle Scholar
  8. 8.
    Gasparyan VK (2009) Gold and silver nanoparticles in bioassay, cell visualization and therapy. Curr Clin Pharmacol 4:159–163CrossRefGoogle Scholar
  9. 9.
    Schofield CL, Haines AH, Field RA, Russell DA (2006) Silver and gold glyconanoparticles for colorimetric bioassays. Langmuir 22:6707–6711CrossRefGoogle Scholar
  10. 10.
    Leuvering JHW, Thal PJHM, Van Der Waart M, Schuurs AHWM (1981) A sol particle agglutination assay for human chorionic gonadotropin. J Immunol Meth 45:183–194CrossRefGoogle Scholar
  11. 11.
    Leuvering JHW (1983) Sol particle immunoassay. J Immunoassay 1:77–91Google Scholar
  12. 12.
    Geoghegan WD, Ambeaonkas S, Calvanico N (1980) Passive gold agglutination: an alternative to passive hemagglutination. J Immunol Meth 34:11–21CrossRefGoogle Scholar
  13. 13.
    Englebienne P, VanHoonacki A, Valsamis J (2000) Rapid homogeneous immunoassay for human ferritin in the Cobas Mira using colloidal gold as the reporter reagent. Clin Chem 46:2000–2003Google Scholar
  14. 14.
    Thanh NT, Rosenzweig Z (2002) Development of an aggregation based immunoassay for anti-protein A using gold nanoparticles. Anal Chem 74:1624–1628CrossRefGoogle Scholar
  15. 15.
    Coille I, Gauglitz G, Hoebeke J (2002) Characterization of antibodies and analytes by surface plasmon resonance for the optimization of a competitive immunoassay based on energy transfer. Anal Bioanal Chem 372:293–300CrossRefGoogle Scholar
  16. 16.
    Mikaelyan MV, Poghosyan GG, Gasparyan VK (2008) A photometric approach for detection of interaction of cells with their ligands based on lectin conjugated gold nanoparticles. Anal Lett 41:1200–1207CrossRefGoogle Scholar
  17. 17.
    Bain CD, Evall J, Whitesides GM (1989) Formation of monolayers by the Coadsorption of thiols on gold: variation in the head group, tail group, and solvent. J Am Chem Soc 111:7155–7164CrossRefGoogle Scholar
  18. 18.
    Frasconi M, Mazzei F, Ferri T (2010) Protein immobilization at gold-thiol surfaces and potential for biosensing. Anal Bioanal Chem 398(4):1545–1564CrossRefGoogle Scholar
  19. 19.
    Daniel M-C, Astruc D (2004) Gold nanoparticles: assembly, supramolecular chemistry, quantum-size-related properties, and applications toward biology, catalysis, and nanotechnology. Chem Rev 104:293–346CrossRefGoogle Scholar
  20. 20.
    Schofield CL, Field RA, Russell DA (2007) Glyconanoparticles for the colorimetric detection of Cholera toxin. Anal Chem 79:1356–1361CrossRefGoogle Scholar
  21. 21.
    Ojea-Jimenez I, Puntes V (2009) Instability of cationic gold nanoparticle bioconjugates: the role of citrate ions. J Am Chem Soc 131:13320–13327CrossRefGoogle Scholar
  22. 22.
    Gasparyan VK (2005) Hen egg immunoglobulin Y in colloidal gold agglutination assay: comparison with rabbit immunoglobulin G. J Clin Lab Anal 19:124–127CrossRefGoogle Scholar
  23. 23.
    Gottstein B, Hemmeler E (1985) Egg yolk immunoglobulin Y as an alternative antibody in the serology of echinococcosis. Z Parasitenkd 71:273–276CrossRefGoogle Scholar
  24. 24.
    Gassmann M, Thömmes P, Weiser T, Hübscher U (1990) Efficient production of chicken egg yolk antibodies against a conserved mammalian protein. FASEB J 4:2528–2532Google Scholar
  25. 25.
    Hansen P, Scoble JA, Hanson B, Hoogenraad NJ (1998) Isolation and purification of immunoglobulins from chicken eggs using thiophilic interaction chromatography. J Immunol Meth 215:1–7CrossRefGoogle Scholar
  26. 26.
    Polson A, Coetrer T, Kruger J, VonMaltrahn E (1985) Improvement in the isolation of IgY from yolks of eggs laid by immunized hen. Immunol Investig 14:323–327CrossRefGoogle Scholar
  27. 27.
    Ouchterlony O (1958) Diffusion-in-gel methods for immunological analysis. Prog Allergy 5:1–78Google Scholar
  28. 28.
    Dean PDG, Johnson WS, Middle FA (1985) Affinity chromatography. IRL, OxfordGoogle Scholar
  29. 29.
    Frens G (1973) Controlled nucleation for the regulation of the particle size in monodisperse gold suspension. Nature Physical Sci 241:20–24Google Scholar
  30. 30.
    Wang H, Liu Y, Yang Y, Deng T, Shen G, Yu R (2004) A protein A-based orientation-controlled immobilization strategy for antibodies using nanometer-sized gold particles and plasma-polymerized film. Anal Biochem 324:219–226CrossRefGoogle Scholar
  31. 31.
    Karyakin AA, Presnova GV, Rubtsova MY, Egorov AM (2000) Oriented immobilization of antibodies onto the gold surfaces via their native thiol groups. Anal Chem 72:3805–3811CrossRefGoogle Scholar
  32. 32.
    Wang H, Wu J, Li J, Ding Y, Shen G, Yu R (2005) Nanogold particle-enhanced oriented adsorption of antibody fragments for immunosensing platforms. Biosens Bioelectron 20:2210–2217CrossRefGoogle Scholar

Copyright information

© Springer-Verlag 2011

Authors and Affiliations

  1. 1.H. Buniatian Institute of BiochemistryNational Academy of SciencesYerevanRepublic of Armenia
