Microchimica Acta

, Volume 175, Issue 3–4, pp 315–322 | Cite as

A nanocomposite made from conducting organic polymers and multi-walled carbon nanotubes for the adsorption and separation of gold(III) ions

  • Mohammad Reza Nabid
  • Roya Sedghi
  • Roya Hajimirza
  • Hossein Abdi Oskooie
  • Majid M. Heravi
Original Paper
First Online:
Received:
Accepted:

Abstract

We describe a new method for the separation and preconcentration of traces of Au(III) in environmental samples. Sorbents made from modified multiwalled carbon nanotubes and conducting polymers (PANI and PEDOT) were used for solid-phase extraction. The Au(III) ions are adsorbed as a result of the interaction with the electron pairs of =N- and -S- groups. Effects of pH value, flow rate and volume of sample, type, volume and concentration of eluent, and the adsorption capacity were investigated. The maximum adsorption capacity of MWCNTs/PANI and MWCNTs/PEDOT are 159 and 176 mg g−1, and the detection limits of this method are below 0.3 and 0.5 ng mL−1, respectively. The procedure was successfully applied to the determination of traces of Au(III) in a reference material and in environmental samples.

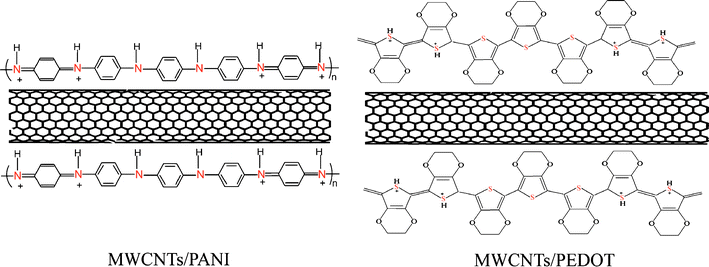

Figure

The multiwalled carbon nanotubes/conducting polymers (PANI and PEDOT) were used for solid-phase extraction of Au(III) ions. The Au(III) adsorbed on macromolecules chains; resulting from sharing an electron pair of = N– and –S– groups of conducting polymers with gold ions. The final results demonstrate that nanocomposites are convenient for preconcentration and determination of gold from environmental samples.

Keywords

MWCNTs/PANI nanocomposite MWCNTs/PEDOT nanocomposite Solid phase extraction Gold
This is a preview of subscription content, log in to check access.

Notes

Acknowledgements

Special thanks to Dr. Shant Shahbazian for his assistance in preparing the manuscript. We gratefully acknowledge financial support from the Research Council of Shahid Beheshti University.

Supplementary material

604_2011_680_MOESM1_ESM.doc (96 kb)
ESM 1 (DOC 95 kb)

References

  1. 1.
    World gold council, The world of gold, http://www.gold.org/index.html, 22 August 2005
  2. 2.
    Murthy DSR (1990) Microbially enhanced thiourea leaching of gold and silver from lead-zinc sulphide flotation tailings. Hydrometallurgy 25:51–60CrossRefGoogle Scholar
  3. 3.
    Aworn A, Thiravetyan P, Nakbanpote W (2005) Recovery of gold from gold slag by wood shaving fly ash. J Colloid Interf Sci 287:394–400CrossRefGoogle Scholar
  4. 4.
    Marsden J, House I (1992) The chemistry of gold extraction. Horwood, New YorkGoogle Scholar
  5. 5.
    Safavi A, Iranpoor N, Saghir N, Momeni S (2006) Glycerol-silica gel: a new solid sorbent for preconcentration and determination of traces of cobalt(II) ion. Anal Chim Acta 569:139–144CrossRefGoogle Scholar
  6. 6.
    Tuzen M, Saygi KO, Soylak M (2008) Novel solid phase extraction procedure for gold(III) on Dowex M 4195 prior to its flame atomic absorption spectrometric determination. J Hazard Mater 156:591–595CrossRefGoogle Scholar
  7. 7.
    Pyrzynska K (2005) Recent developments in the determination of gold by spectrometry techniques. Spectrochim Acta Part B 60:1316–1322CrossRefGoogle Scholar
  8. 8.
    Aydemir T, Güçe Ş (1996) The determination of cadmium and lead in urine by flame atomic absorption spectrometry after activated carbon enrichment. Chem Anal 41:829–838Google Scholar
  9. 9.
    Ensafi AA, Khayamian T, Karbasi MH (2003) On-line preconcentration system for lead (II) determination in waste water by atomic absorption spectrometry using active carbon loaded with pyrogallol red. Anal Sci 19:953–956CrossRefGoogle Scholar
  10. 10.
    Ferreira AC, Korn MDA, Ferreira SLC (2004) Multivariate optimization in preconcentration procedure for manganese determination in seawater samples by FAAS. Microchim Acta 146:271–278CrossRefGoogle Scholar
  11. 11.
    Monser L, Adhoum N (2002) Modified activated carbon for the removal of copper, zinc, chromium and cyanide from wastewater. Sep Purif Technol 26:137–146CrossRefGoogle Scholar
  12. 12.
    Gentscheva G, Vassileva P, Tzvetkova P, Lakov L, Peshev O, Ivanova E (2008) Activated carbon sorbent with thioetheric sites-preparation and characterization. J Porous Mater 15:331–334CrossRefGoogle Scholar
  13. 13.
    Chang PR, Zheng PW, Liu BX et al (2011) Characterization of magnetic soluble starch-functionalized carbon nanotubes and its application for the adsorption of the dyes. J Hazard Mater 186:2144–2150CrossRefGoogle Scholar
  14. 14.
    Salimi A, Mamkhezri H, Mohebbi S (2006) Electroless deposition of vanadium-Schiff base complex onto carbon nanotubes modified glassy carbon electrode: application to the low potential detection of iodate, periodate, bromate and nitrite. Electrochem Commun 8:688–696CrossRefGoogle Scholar
  15. 15.
    Shahrokhian S, Ghalkhani M, Adeli M et al (2009) Multi-walled carbon nanotubes with immobilised cobalt nanoparticle for modification of glassy carbon electrode: application to sensitive voltammetric determination of thioridazine. Sensor Actuat B-Chem 24:3235–3241Google Scholar
  16. 16.
    Salimi A, Noorbakhsh A, Ghadermarzi M (2007) Amperometric detection of nitrite, iodate and periodate at glassy carbon electrode modified with catalase and multi-wall carbon nanotubes. Sensor Actuat B-Chem 123:530–537CrossRefGoogle Scholar
  17. 17.
    El-Sheikh AH, Sweileh JA, Al-Degs YS (2007) Effect of dimensions of multi-walled carbon nanotubes on its enrichment efficiency of metal ions from environmental waters. Anal Chim Acta 604:119–126CrossRefGoogle Scholar
  18. 18.
    Barbosa AF, Segatelli MG, Pereira AC et al (2007) Solid-phase extraction system for Pb(II) ions enrichment based on multiwall carbon nanotubes coupled on-line to flame atomic absorption spectrometry. Talanta 71:1512–1519CrossRefGoogle Scholar
  19. 19.
    Afzali D, Mostafavi A (2008) Potential of modified multiwalled carbon nanotubes with 1-(2-pyridylazo)-2-naphtol as a new solid sorbent for the preconcentration of trace amounts of cobalt (II) ion. Anal Sci 24:1135–1139CrossRefGoogle Scholar
  20. 20.
    Shao DD, Ren XM, Hu J et al (2010) Preconcentration of Pb2+ from aqueous solution using poly (acrylamide) and poly (N, N-dimethylacrylamide) grafted multiwalled carbon nanotubes. Colloid Surface A 360:74–84CrossRefGoogle Scholar
  21. 21.
    Zhou QX, Xiao JP, Wang WD (2006) Using multi-walled carbon nanotubes as solid phase extraction adsorbents to determine dichlorodiphenyltrichloroethane and its metabolites at trace level in water samples by high performance liquid chromatography with UV detection. J Chromatogr A 1125:152–158CrossRefGoogle Scholar
  22. 22.
    Shao DD, Hu J, Jiang ZQ et al (2011) Removal of 4,4 ′-dichlorinated biphenyl from aqueous solution using methyl methacrylate grafted multiwalled carbon nanotubes. Chemosphere 82:751–758CrossRefGoogle Scholar
  23. 23.
    Shao DD, Hu J, Chen CL et al (2010) Polyaniline multiwalled carbon nanotube magnetic composite prepared by plasma-induced graft technique and its application for removal of aniline and phenol. J Phys Chem C 114:21524–21530CrossRefGoogle Scholar
  24. 24.
    Du D, Wang M, Zhang J, Cai J, Tu H, Zhang A (2008) Application of multiwalled carbon nanotubes for solid-phase extraction of organophosphate pesticide. Electrochem Commun 10:85–89CrossRefGoogle Scholar
  25. 25.
    Fang GZ, He JX, Wang S (2006) Multiwalled carbon nanotubes as sorbent for on-line coupling of solid-phase extraction to high-performance liquid chromatography for simultaneous determination of 10 sulfonamides in eggs and pork. J Chromatogr A 1127:12–17CrossRefGoogle Scholar
  26. 26.
    Quillard S, Louarn G, Lefrant S, MacDiarmid AG (1994) Vibrational analysis of polyaniline: a comparative study of leucoemeraldine, emeraldine, and pernigraniline bases. Phys Rev B 50:12496–12508CrossRefGoogle Scholar
  27. 27.
    Furukawa Y, Ueda F, Hyodo Y, Harada I, Nakajima T, Kawagoe T (1988) Vibrational spectra and structure of polyaniline. Macromolecules 21:1297–1305CrossRefGoogle Scholar
  28. 28.
    Wang F, Wang G, Yang S, Li C (2008) Layer-by-layer assembly of aqueous dispersible, highly conductive poly(aniline-co-o-anisidine)/poly(sodium 4-styrenesulfonate)/MWCNTs core–shell nanocomposites. Langmuir 24:5825–5831CrossRefGoogle Scholar
  29. 29.
    Nabid MR, Sedghi R, Jamaat PR, Safari N, Entezami AA (2007) Catalytic oxidative polymerization of aniline by usingtransition-metal tetrasulfonated phthalocyanine. Appl Catal A 328:52–57CrossRefGoogle Scholar
  30. 30.
    Rumbau V, Pomposo JA, Eleta A, Rodriguez J, Grande H, Mecerreyes D, Ochoteco E (2007) First enzymatic synthesis of water-soluble conducting poly(3,4- ethylenedioxythiophene). Biomacromolecules 8:315–317CrossRefGoogle Scholar
  31. 31.
    Liang P, Zhao E, Ding Q, Du D (2008) Multiwalled carbon nanotubes micro column preconcentration and determination of gold in geological and water samples by flame atomic absorption spectrometry. Spectrochim Acta B 63:714–717CrossRefGoogle Scholar
  32. 32.
    Tuzen M, Saygi KO, Soylak M (2008) Novel solid phase extraction procedure for gold (III) on Dowex M 4195 prior to its flame atomic absorption spectrometric determination. J Hazard Mater 156:591–595CrossRefGoogle Scholar

Copyright information

© Springer-Verlag 2011

Authors and Affiliations

  • Mohammad Reza Nabid
    • 1
  • Roya Sedghi
    • 1
    • 2
  • Roya Hajimirza
    • 1
  • Hossein Abdi Oskooie
    • 2
  • Majid M. Heravi
    • 2
  1. 1.Department of ChemistryShahid Beheshti UniversityTehranIran
  2. 2.Department of Chemistry, School of ScienceAzzahra UniversityTehranIran
