Preparation and characterization of molecularly imprinted microspheres for selective extraction of trace melamine from milk samples

  • Bin Wang
  • Yuzhen Wang
  • Hong Yang
  • Junqing Wang
  • Anping Deng
Original Paper
First Online:
Received:
Accepted:

Abstract

We describe molecularly imprinted microspheres (MIMs) for the selective extraction of melamine from milk. The MIMs were made from melamine as the template molecule, methacrylic acid as the functional monomer, and ethylene glycol dimethacrylate as the linking agent. The MIMs were synthesized by suspension polymerization and characterized by rebinding experiments. They displayed high adsorption capacity, fast rebinding kinetics, and highly specific rebinding of melamine. The imprinting factor is 4.1. Scatchard analysis revealed a one-type rebinding behavior, the dissociation constant and maximum rebinding capacity being 37.59 g L−1 and 30.85 μmol g−1, respectively. The MIMs exhibited a 25% cross-reactivity towards atrazine, but less than 3.0% towards prometryn, clenbuterol and metronidazole. In addition, a MIM-based solid phase extraction (MISPE) column for melamine was prepared by packing MIMs into a common SPE cartridge. The MISPE extraction gave recoveries of 89.8 to 100.6% of melamine, with relative standard deviations of 5.9 to 7.5%. There was no significant loss of rebinding capacity after more than 60 repeated uses, thus demonstrating the high stability of the MISPE column. The MSPE column also was applied to the extraction of melamine from spiked liquid and powdered milk with satisfying accuracy and precision.

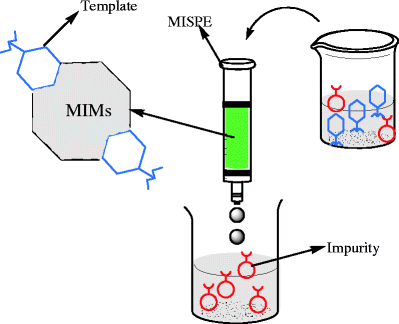

Figure

The melamine molecularly imprinted microsphere (MIMs) prepared by suspension polymerization displayed high adsorption capacity quick rebinding kinetic and highly specific rebinding. The MIMs-based solid phase extraction (MISPE) column was prepared by packing MIMs into a common SPE cartridge. The recoveries of MISPE for extracting melamine from milk samples were 76.26–90.95%.

Keywords

Molecular imprinted microspheres (MIMs) Melamine Extraction Milk sample
This is a preview of subscription content, log in to check access.

Notes

Acknowledgements

The authors thank the National Natural Science Foundation of China (NSFC) for financial support of this study (contact no. 20675054 and no. 20835003).

Supplementary material

604_2011_613_MOESM1_ESM.doc (184 kb)
ESM 1 (DOC 183 kb)

References

  1. 1.
    Ishiwata H, Inoue T, Yamazaki T, Yoshihira K (1987) Liquid chromatographic determination of melamine in beverages. J Assoc Off Anal Chem 70:457–460Google Scholar
  2. 2.
    Sancho JV, Ibanez M, Grimalt S, Pozo OJ, Hernandez F (2005) Residue determination of cyromazine and its metabolite melamine in chard samples by ion-pair liquid chromatography coupled to electrospray tandem mass spectrometry. Anal Chim Acta 530:237–243CrossRefGoogle Scholar
  3. 3.
    Pushner B, Poppenga RH, Lowenstine LJ, Filigenzi MS, Pesavento PA (2007) Assessment of melamine and cyanuric acid toxicity in cats. J Vet Diagn Invest 19:616–624CrossRefGoogle Scholar
  4. 4.
    http://www.inchem.org/pages/sids.html; OECD Screening Information Data Set (SIDS) Analysis: Melamine, United Nations Environment Program, 2002
  5. 5.
    Filigenzi MS, Puschner B, Aston LS, Poppenga RH (2008) Diagnostic determination of melamine and related compounds in kidney tissue by liquid chromatography/tandem mass spectrometry. J Agric Food Chem 56:7593–7599CrossRefGoogle Scholar
  6. 6.
    Brown CA, Jeong KS, Poppenga RH, Puschner B, Miller DM, Ellis AE, Kang K, Sum S, Cistola AM, Brown SA (2007) Outbreaks of renal failure associated with melamine and cyanuric acid in dogs and cats in 2004 and 2007. J Vet Diagn Invest 19:525–531CrossRefGoogle Scholar
  7. 7.
    Yan N, Zhou L, Zhu Z, Chen X (2009) Determination of melamine in dairy products, fish feed, and fish by capillary zone electrophoresis with diode array detection. J Agric Food Chem 57:807–811CrossRefGoogle Scholar
  8. 8.
    Yokley RA, Mayer LC, Rezaaiyan R, Manuli ME, Cheung J (2000) Analytical method for the determination of cyromazine and melamine residues in soil using LC-UV and GC-MSD. J Agric Food Chem 48:3352–3358CrossRefGoogle Scholar
  9. 9.
    NY/T 1372-2007, Determination of melamine in feedstuffs, Chinese Ministry of Agriculture StandardGoogle Scholar
  10. 10.
    GB/22388-2008, Determination of melamine in raw milk and dairy products, Chinese National StandardsGoogle Scholar
  11. 11.
    Xu XM, Ren YP, Zhu Y, Cai ZX, Han JL, Huang BF, Zhu Y (2009) Direct determination of melamine in dairy products by gas chromatography/mass spectrometry with coupled column separation. Anal Chim Acta 650:39–43CrossRefGoogle Scholar
  12. 12.
    Xia X, Ding SY, Li XW (2009) Validation of a confirmatory method for the determination of melamine in egg by gas chromatography-mass spectrometry and ultra-performance liquid chromatography-tandem mass spectrometry. Anal Chim Acta 651:196–200CrossRefGoogle Scholar
  13. 13.
    Matuszewski BK, Constanzer ML, Chavez-Eng CM (2003) Strategies for the assessment of matrix effect in quantitative bioanalytical methods based on HPLC−MS/MS. Anal Chem 75:3019–3030CrossRefGoogle Scholar
  14. 14.
    Meng L, Shen GJ, Hou XL (2009) Strategies for the assessment of matrix effect in quantitative bioanalytical methods based on HPLC−MS/MS. Chromatographia 70:991–994CrossRefGoogle Scholar
  15. 15.
    Cook HA, Klampfl CW, Buchberger W (2005) Analysis of melamine resins by capillary zone electrophoresis with electrospray ionization-mass spectrometric detection. Electrophoresis 26:1576–1583CrossRefGoogle Scholar
  16. 16.
    Valdés MG, Valdés González AC, García Calzón JA, Díaz-García ME (2009) Analytical nanotechnology for food analysis. Microchim Acta 166:1–19CrossRefGoogle Scholar
  17. 17.
    Shea KJ, Sasaki DY (1991) An analysis of small-molecule binding to functionalized synthetic polymers by 13C CP/MAS NMR and FT-IR spectroscopy. J Am Chem Soc 113:4109–4120CrossRefGoogle Scholar
  18. 18.
    Wulff G, Schauhoff S (1991) Racemic resolution of free sugars with macroporous polymers prepared by molecular imprinting selectivity dependence on the arrangement of functional groups versus spatial requirements. J Org Chem 56:395–400CrossRefGoogle Scholar
  19. 19.
    Yang GL, Liu HY, Wang MM (2006) Chromatographic characterization and solid-phase extraction on diniconazole-imprinted polymers stationary phase. React Funct Polym 66:579–583CrossRefGoogle Scholar
  20. 20.
    Piletsky SA, Piletskaya EV (1995) Atrazine sensing by molecularly imprinted membranes. Biosens Bioelectron 10:959–964CrossRefGoogle Scholar
  21. 21.
    Alexander C, Davidson L, Hayes W (2003) Imprinted polymers: artificial molecular recognition materials with applications in synthesis and catalysis. Tetrahedron 59:2025–2057CrossRefGoogle Scholar
  22. 22.
    Klaus M, Yihua Y, Jens A, Lei Y (2001) Generation of new enzyme inhibitors using imprinted binding sites: the anti-idiotypic approach, a step toward the next generation of molecular imprinting. J Am Chem Soc 123:12420–12421CrossRefGoogle Scholar
  23. 23.
    Hu SG, Wang SW, He XW (2003) An amobarbital molecularly imprinted microsphere for selective solid-phase extraction of phenobarbital from human urine and medicines and their determination by high-performance liquid chromatography. Analyst 128:1485–1489CrossRefGoogle Scholar
  24. 24.
    Baggiani C, Anfossi L, Giovannoli C (2007) Solid phase extraction of food contaminants using molecular imprinted polymers. Anal Chim Acta 591:29–39CrossRefGoogle Scholar
  25. 25.
    Tamayo FG, Turiel E, Martín-Esteban A (2007) Molecularly imprinted polymers for solid-phase extraction and solid-phase microextraction: recent developments and future trends. J Chromatogr A 1152:32–40CrossRefGoogle Scholar
  26. 26.
    Yang T, Li YF, Wei S, Li Y, Deng AP (2008) Development of a selective molecularly imprinted polymer-based solid-phase extraction for indomethacin from water samples. Anal Bioanal Chem 391:2905–2914CrossRefGoogle Scholar
  27. 27.
    Li YF, Yang T, Qi XL, Qiao YW, Deng AP (2008) Development of a group selective molecularly imprinted polymers based solid phase extraction of malachite green from fish water and fish feed samples. Anal Chim Acta 624:317–325CrossRefGoogle Scholar
  28. 28.
    Jin GY, Tang YW (2009) Evaluation of a novel silica-susupported sol–gel sorbent prepared by a surface molecular imprinting technique for the selective separation of estazolam from human plasma. Microchim Acta 165:143–149CrossRefGoogle Scholar
  29. 29.
    Liang RN, Zhang RM, Qin W (2009) Potentiometric sensor based on molecularly imprinted polymer for determination of melamine in milk. Sens Actuators B 141:544–550CrossRefGoogle Scholar
  30. 30.
    Yu JH, Zhang CC, Dai P, Ge SG (2009) Highly selective molecular recognition and high throughput detection of melamine based on molecularly imprinted sol–gel film. Anal Chim Acta 651:209–214CrossRefGoogle Scholar
  31. 31.
    Pietrzyk A, Kutner W, Chitta R, Zandler ME, D’Souza F, Sannicolo F, Mussini PR (2009) Melamine acoustic chemosensor based on molecularly imprinted polymer film. Anal Chem 81:10061–10070CrossRefGoogle Scholar
  32. 32.
    He LM, Su YJ, Zheng YQ, Huang XH, Wu L, Liu YH, Zeng ZL, Chen ZL (2009) Novel cyromazine imprinted polymer applied to the solid-phase extraction of melamine from feed and milk samples. J Chromatogr A 1216:6196–6203CrossRefGoogle Scholar
  33. 33.
    Yang HH, Zhou WH, Guo XC, Chen FR, Zhao HQ, Lin LM, Wang XR (2009) Molecularly imprinted polymer as SPE sorbent for selective extraction of melamine in dairy products. Talanta 80:821–825CrossRefGoogle Scholar
  34. 34.
    Ye L, Surugiu I, Haupt K (2002) Scintillation proximity assay using molecularly imprinted microspheres. Anal Chem 74:959–964CrossRefGoogle Scholar
  35. 35.
    Lai JP, Niessner R, Knopp D (2004) Benzo[a]pyrene imprinted polymers: synthesis, characterization and SPE application in water and coffee samples. Anal Chim Acta 522:137–144CrossRefGoogle Scholar
  36. 36.
    Zhu QZ, Degelmann P, Niessner R, Knopp D (2002) Selective trace analysis of sulfonylurea herbicides in water and soil samples based on solid-phase extraction using a molecularly imprinted polymer. Environ Sci Technol 36:5411–5420CrossRefGoogle Scholar
  37. 37.
    Yoshizako K, Hosoya K, Iwakoshi Y, Kimata K, Tanaka N (1998) Porogen imprinting effects. Anal Chem 70:386–386CrossRefGoogle Scholar
