# Dragonfly algorithm: a new meta-heuristic optimization technique for solving single-objective, discrete, and multi-objective problems

## Abstract

A novel swarm intelligence optimization technique is proposed called dragonfly algorithm (DA). The main inspiration of the DA algorithm originates from the static and dynamic swarming behaviours of dragonflies in nature. Two essential phases of optimization, exploration and exploitation, are designed by modelling the social interaction of dragonflies in navigating, searching for foods, and avoiding enemies when swarming dynamically or statistically. The paper also considers the proposal of binary and multi-objective versions of DA called binary DA (BDA) and multi-objective DA (MODA), respectively. The proposed algorithms are benchmarked by several mathematical test functions and one real case study qualitatively and quantitatively. The results of DA and BDA prove that the proposed algorithms are able to improve the initial random population for a given problem, converge towards the global optimum, and provide very competitive results compared to other well-known algorithms in the literature. The results of MODA also show that this algorithm tends to find very accurate approximations of Pareto optimal solutions with high uniform distribution for multi-objective problems. The set of designs obtained for the submarine propeller design problem demonstrate the merits of MODA in solving challenging real problems with unknown true Pareto optimal front as well. Note that the source codes of the DA, BDA, and MODA algorithms are publicly available at http://www.alimirjalili.com/DA.html.

### Keywords

Optimization Multi-objective optimization Constrained optimization Binary optimization Benchmark Swarm intelligence Evolutionary algorithms Particle swarm optimization Genetic algorithm## 1 Introduction

Nature is full of social behaviours for performing different tasks. Although the ultimate goal of all individuals and collective behaviours is survival, creatures cooperate and interact in groups, herds, schools, colonies, and flocks for several reasons: hunting, defending, navigating, and foraging. For instance, Wolf packs own one of the most well-organized social interactions for hunting. Wolves tend to follow a social leadership to hunt preys in different steps: chasing preys, circling preys, harassing preys, and attacking preys [1, 2]. An example of collective defence is schools of fishes in oceans. Thousands of fishes create a school and avoid predators by warning each other, making the predation very difficult for predators [3]. The majority of predators have evolved to divide such schools to sub-schools by attacking them and eventually hunting the separated individuals.

Navigation is another reason for some of the creature to swarm. Birds are the best examples of such behaviours, in which they migrate between continents in flocks conveniently. It has been proven that the v-shaped configuration of flight highly saves the energy and equally distribute drag among the individuals in the flock [4]. Last but not least, foraging is another main reason of social interactions of many species in nature. Ants and bees are the best examples of collective behaviours with the purpose of foraging. It has been proven that ants and bees are able to find and mark the shortest path from the nest/hive to the source of food [5]. They intelligently search for foods and mark the path utilizing pheromone to inform and guide others.

It is very interesting that creatures find the optimal situations and perform tasks efficiently in groups. It is obvious that they have been evolved over centuries to figure out such optimal and efficient behaviours. Therefore, it is quite reasonable that we inspire from them to solve our problems. This is then main purpose of a field of study called swarm intelligence (SI), which was first proposed by Beni and Wang in 1989 [6]. SI refers to the artificial implementation/simulation of the collective and social intelligence of a group of living creatures in nature [7]. Researchers in this field try to figure out the local rules for interactions between the individuals that yield to the social intelligence. Since there is no centralized control unit to guide the individuals, finding the simple rules between some of them can simulate the social behaviour of the whole population.

The ant colony optimization (ACO) algorithm is one of the first SI techniques mimicking the social intelligence of ants when foraging in an ant colony [8, 9]. This algorithm has been inspired from the simple fact that each ant marks its own path towards to food sources outside of the nest by pheromone. Once an ant finds a food source, it goes back to the nest and marks the path by pheromone to show the path to others. When other ants realize such pheromone marks, they also try to follow the path and leave their own pheromones. The key point here is that they might be different paths to the food source. Since a longer path takes longer time to travel for ants, however, the pheromone vaporizes with higher rate before it is re-marked by other ants. Therefore, the shortest path is achieved by simply following the path with stronger level of pheromone and abandoning the paths with weaker pheromone levels. Doringo first inspired from these simple rules and proposed the well-known ACO algorithm [10].

The particle swarm optimization (PSO) algorithm is also another well-regarded SI paradigm. This algorithm mimics the foraging and navigation behaviour of bird flocks and has been proposed by Eberhart and Kennedy [11]. The main inspiration originates from the simple rules of interactions between birds: birds tend to maintain their fly direction towards their current directions, the best location of food source obtained so far, and the best location of the food that the swarm found so far [12]. The PSO algorithm simply mimics these three rules and guides the particles towards the best optimal solutions by each of the individuals and the swarm simultaneously.

The artificial bee colony (ABC) is another recent and popular SI-based algorithm. This algorithm again simulates the social behaviour of honey bees when foraging nectar and has been proposed by Karaboga [13]. The difference of this algorithm compared to ACO and PSO is the division of the honey bees to scout, onlooker, and employed bees [14]. The employed bees are responsible for finding food sources and informing others by a special dance. In addition, onlookers watch the dances, select one of them, and follow the path towards the selected food sources. Scouters discover abandoned food sources and substitute them by new sources.

Since the proposal of these algorithms, a significant number of researchers attempted to improve or apply them in to different problems in diverse fields [15, 16, 17, 18, 19, 20]. The successful application of these algorithms in science and industry evidences the merits of SI-based techniques in practice. The reasons are due to the advantages of SI-based algorithms. Firstly, SI-based techniques save information about the search space over the course of iteration, whereas such information is discarded by evolutionary algorithms (EA) generation by generation. Secondly, there are fewer controlling parameters in SI-based algorithm. Thirdly, SI-based algorithm is equipped with less operators compared to EA algorithms. Finally, SI-based techniques benefit from flexibility, which make them readily applicable to problems in different fields.

Despite the significant number of recent publications in this field [21, 22, 23, 24, 25, 26, 27, 28, 29], there are still other swarming behaviours in nature that have not gained deserved attention. One of the fancy insects that rarely swarm are dragonflies. Since there is no study in the literature to simulate the individual and social intelligence of dragonflies, this paper aims to first find the main characteristics of dragonflies’ swarms. An algorithm is then proposed based on the identified characteristics. The no free lunch (NFL) [30] theorem also supports the motivation of this work to propose this optimizer since this algorithm may outperform other algorithms on some problems that have not been solved so far. The rest of the paper is organized as follows:

Section 2 presents the inspiration and biological foundations of the paper. The mathematical models and the DA algorithm are provided in Sect. 3. This section also proposes binary and multi-objective versions of DA. A comprehensive comparative study on several benchmark functions and one real case study is provided in Sect. 4 to confirm and verify the performances of DA, BDA, and MODA algorithms. Finally, Sect. 5 concludes the work and suggests some directions for future studies.

## 2 Inspiration

Dragonflies are considered as small predators that hunt almost all other small insects in nature. Nymph dragonflies also predate on other marine insects and even small fishes. The interesting fact about dragonflies is their unique and rare swarming behaviour. Dragonflies swarm for only two purposes: hunting and migration. The former is called static (feeding) swarm, and the latter is called dynamic (migratory) swarm.

In static swarm, dragonflies make small groups and fly back and forth over a small area to hunt other flying preys such as butterflies and mosquitoes [32]. Local movements and abrupt changes in the flying path are the main characteristics of a static swarm. In dynamic swarms, however, a massive number of dragonflies make the swarm for migrating in one direction over long distances [33].

The main inspiration of the DA algorithm originates from static and dynamic swarming behaviours. These two swarming behaviours are very similar to the two main phases of optimization using meta-heuristics: exploration and exploitation. Dragonflies create sub-swarms and fly over different areas in a static swarm, which is the main objective of the exploration phase. In the static swarm, however, dragonflies fly in bigger swarms and along one direction, which is favourable in the exploitation phase. These two phases are mathematically implemented in the following section.

## 3 Dragonfly algorithm

### 3.1 Operators for exploration and exploitation

Separation, which refers to the static collision avoidance of the individuals from other individuals in the neighbourhood.

Alignment, which indicates velocity matching of individuals to that of other individuals in neighbourhood.

Cohesion, which refers to the tendency of individuals towards the centre of the mass of the neighbourhood.

Each of these behaviours is mathematically modelled as follows:

*X*is the position of the current individual,

*X*

_{j}shows the position

*j*-th neighbouring individual, and

*N*is the number of neighbouring individuals.

*X*

_{j}shows the velocity of

*j*-th neighbouring individual.

*X*is the position of the current individual,

*N*is the number of neighbourhoods, and

*X*

_{j}shows the position

*j*-th neighbouring individual.

*X*is the position of the current individual, and

*X*

^{+}shows the position of the food source.

*X*is the position of the current individual, and

*X*

^{−}shows the position of the enemy.

*X*) and position (

*X*). The step vector is analogous to the velocity vector in PSO, and the DA algorithm is developed based on the framework of the PSO algorithm. The step vector shows the direction of the movement of the dragonflies and defined as follows (note that the position updating model of artificial dragonflies is defined in one dimension, but the introduced method can be extended to higher dimensions):

*s*shows the separation weight,

*S*

_{i}indicates the separation of the

*i*-th individual,

*a*is the alignment weight,

*A*is the alignment of

*i*-th individual,

*c*indicates the cohesion weight,

*C*

_{i}is the cohesion of the

*i*-th individual,

*f*is the food factor,

*F*

_{i}is the food source of the

*i*-th individual,

*e*is the enemy factor,

*E*

_{i}is the position of enemy of the

*i*-th individual,

*w*is the inertia weight, and

*t*is the iteration counter.

*t*is the current iteration.

*s*,

*a*,

*c*,

*f*, and

*e*), different explorative and exploitative behaviours can achieved during optimization. Neighbours of dragonflies are very important, so a neighbourhood (circle in a 2D, sphere in a 3D space, or hyper-sphere in an nD space) with a certain radius is assumed around each artificial dragonfly. An example of swarming behaviour of dragonflies with increasing neighbourhood radius using the proposed mathematical model is illustrated in Fig. 3.

*s*,

*a*,

*c*,

*f*,

*e*, and

*w*) during optimization.

A question may rise here as to how the convergence of dragonflies is guaranteed during optimization. The dragonflies are required to change their weights adaptively for transiting from exploration to exploitation of the search space. It is also assumed that dragonflies tend to see more dragonflies to adjust flying path as optimization process progresses. In other word, the neighbourhood area is increased as well whereby the swarm become one group at the final stage of optimization to converge to the global optimum. The food source and enemy are chosen from the best and worst solutions that the whole swarm is found so far. This causes convergence towards promising areas of the search space and divergence outward non-promising regions of the search space.

*t*is the current iteration, and

*d*is the dimension of the position vectors.

*r*

_{1},

*r*

_{2}are two random numbers in [0,1],

*β*is a constant (equal to 1.5 in this work), and

*σ*is calculated as follows:

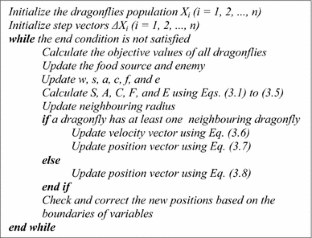

### 3.2 The DA algorithm for single-objective problems

*X*and ∆

*X*vectors, neighbourhood of each dragonfly is chosen by calculating the Euclidean distance between all the dragonflies and selecting

*N*of them. The position updating process is continued iteratively until the end criterion is satisfied. The pseudo-codes of the DA algorithm are provided in Fig. 5.

It is worth discussing here that the main differences between the DA and PSO algorithm are the consideration of separation, alignment, cohesion, attraction, distraction, and random walk in this work. Although there are some works in the literature that attempted to integrate separation, alignment, and cohesion to PSO [36, 37, 38], this paper models the swarming behaviour of dragonflies by considering all the possible factors applied to individuals in a swarm. The concepts of static and dynamic swarms are quite novel as well. The proposed model of this work is also completely different from the current improved PSO in the literature cited above.

### 3.3 The DA algorithm for binary problems (BDA)

Optimization in a binary search space is very different than a continuous space. In continuous search spaces, the search agents of DA are able to update their positions by adding the step vectors to the position vectors. In a binary search space, however, the position of search agents cannot be updated by adding step vectors to *X* since the position vectors of search agents can only be assigned by 0 or 1. Due to the similarity of DA and other SI techniques, the current methods for solving binary problems in the literature are readily applicable to this algorithm.

*r*is a number in the interval of [0,1].

*s*,

*a*,

*c*,

*f*, and

*e*) as well as the inertia weigh (

*w*). The pseudo-codes of the BDA algorithm are presented in Fig. 7.

### 3.4 The DA algorithm for multi-objective problems (MODA)

*o*is the number of objectives,

*m*is the number of inequality constraints,

*p*is the number of equality constraints, and [

*L*

_{i},

*U*

_{i}] are the boundaries of

*i*-th variable.

Due to the nature of multi-objective problems, the comparison between different solutions cannot be done by arithmetic relational operators. In this case, the concepts of Pareto optimal dominance allow us to compare two solutions in a multi-objective search space. The definitions of Pareto dominance and Pareto optimality are as follows [43]:

**Definition 1**

*Pareto dominance*:

Suppose that there are two vectors such as: \(\vec{x} = \left( {x_{1} ,x_{2} , \ldots ,x_{k} } \right)\) and \(\vec{y} = \left( {y_{1} ,y_{2} , \ldots ,y_{k} } \right)\).

*x*dominates vector

*y*(denote as \(x \succ y\)) iff:

It can be seen in Eq. (3.17) that a solution dominates the other if it shows better or equal values on all objectives (dimensions) and has better value in at last one of the objectives. The definition of Pareto optimality is as follows [44]:

**Definition 2**

*Pareto optimality*:

According to the definition 2, two solutions are non-dominated with respect to each other if neither of them dominates the other. A set including all the non-dominated solutions of a problem is called Pareto optimal set and defined as follows:

**Definition 3**

*Pareto optimal set*:

A set containing the corresponding objective values of Pareto optimal solutions in Pareto optimal set is called Pareto optimal front. The definition of the Pareto optimal front is as follows:

**Definition 4**

*Pareto optimal front*:

In order to solve multi-objective problems using meta-heuristics, an archive (repository) is widely used in the literature to maintain the Pareto optimal solutions during optimization. Two key points in finding a proper set of Pareto optimal solutions for a given problem are convergence and coverage. Convergence refers to the ability of a multi-objective algorithm in determining accurate approximations of Pareto optimal solutions. Coverage is the distribution of the obtained Pareto optimal solutions along the objectives. Since most of the current multi-objective algorithms in the literature are *posteriori*, the coverage and number of solutions are very important for decision making after the optimization process [45]. The ultimate goal for a multi-objective optimizer is to find the most accurate approximation of true Pareto optimal solutions (convergence) with uniform distributions (coverage) across all objectives.

*c*is a constant number greater than one, and

*N*

_{i}is the number of obtained Pareto optimal solutions in the

*i*-th

*s*egment.

This equations allows the MODA algorithm to have higher probability of choosing food sources from the less populated segments. Therefore, the artificial dragonflies will be encouraged to fly around such regions and improve the distribution of the whole Pareto optimal front.

*c*is a constant number greater than one, and

*N*

_{i}is the number of obtained Pareto optimal solutions in the

*i*-th

*s*egment.

The archive should be updated regularly in each iteration and may become full during optimization. Therefore, there should be a mechanism to manage the archive. If a solution is dominated by at least one of the archive residences, it should be prevented from entering the archive. If a solution dominates some of the Pareto optimal solutions in the archive, they all should be removed from the archive, and the solution should be allowed to enter the archive. If a solution is non-dominated with respect to all of the solutions in the archive, it should be added to the archive. If the archive is full, one or more than one solutions may be removed from the most populated segments to accommodate new solution(s) in the archive. These rules are taken from the work of Coello Coello et al. [47]. Figure 8 shows the best candidate hyper-sphere (segments) to remove solutions (enemies) from in case the archive become full.

## 4 Results and discussion

In this section, a number of test problems and one real case study are selected to benchmark the performance of the proposed DA, BDA, and MODA algorithms.

### 4.1 Results of DA algorithm

Three groups of test functions with different characteristics are selected to benchmark the performance of the DA algorithm from different perspectives. As shown in Appendix 1, the test functions are divided the three groups: unimodal, multi-modal, and composite functions [48, 49, 50, 51]. As their names imply, unimodal test functions have single optimum, so they can benchmark the exploitation and convergence of an algorithm. In contrast, multi-modal test functions have more than one optimum, which make them more challenging than unimodal functions. One of the optima is called global optimum, and the rest are called local optima. An algorithm should avoid all the local optima to approach and approximate the global optimum. Therefore, exploration and local optima avoidance of algorithms can be benchmarked by multi-modal test functions.

The last group of test functions, composite functions, are mostly the combined, rotated, shifted, and biased version of other unimodal and multi-modal test functions [52, 53]. They mimic the difficulties of real search spaces by providing a massive number of local optima and different shapes for different regions of the search space. An algorithm should properly balance exploration and exploitation to approximate the global optimum of such test functions. Therefore, exploration and exploitation combined can be benchmarked by this group of test functions.

Statistical results of the algorithms on the test functions

Test function | DA | PSO | GA | |||
---|---|---|---|---|---|---|

Ave | Std | Ave | Std | Ave | Std | |

TF1 | 2.85E−18 | 7.16E−18 | 4.2E−18 | 1.31E−17 | 748.5972 | 324.9262 |

TF2 | 1.49E−05 | 3.76E−05 | 0.003154 | 0.009811 | 5.971358 | 1.533102 |

TF3 | 1.29E−06 | 2.1E−06 | 0.001891 | 0.003311 | 1949.003 | 994.2733 |

TF4 | 0.000988 | 0.002776 | 0.001748 | 0.002515 | 21.16304 | 2.605406 |

TF5 | 7.600558 | 6.786473 | 63.45331 | 80.12726 | 133307.1 | 85,007.62 |

TF6 | 4.17E−16 | 1.32E−15 | 4.36E−17 | 1.38E−16 | 563.8889 | 229.6997 |

TF7 | 0.010293 | 0.004691 | 0.005973 | 0.003583 | 0.166872 | 0.072571 |

TF8 | −2857.58 | 383.6466 | −7.1E+11 | 1.2E+12 | −3407.25 | 164.4776 |

TF9 | 16.01883 | 9.479113 | 10.44724 | 7.879807 | 25.51886 | 6.66936 |

TF10 | 0.23103 | 0.487053 | 0.280137 | 0.601817 | 9.498785 | 1.271393 |

TF11 | 0.193354 | 0.073495 | 0.083463 | 0.035067 | 7.719959 | 3.62607 |

TF12 | 0.031101 | 0.098349 | 8.57E−11 | 2.71E−10 | 1858.502 | 5820.215 |

TF13 | 0.002197 | 0.004633 | 0.002197 | 0.004633 | 68,047.23 | 87,736.76 |

TF14 | 103.742 | 91.24364 | 150 | 135.4006 | 130.0991 | 21.32037 |

TF15 | 193.0171 | 80.6332 | 188.1951 | 157.2834 | 116.0554 | 19.19351 |

TF16 | 458.2962 | 165.3724 | 263.0948 | 187.1352 | 383.9184 | 36.60532 |

TF17 | 596.6629 | 171.0631 | 466.5429 | 180.9493 | 503.0485 | 35.79406 |

TF18 | 229.9515 | 184.6095 | 136.1759 | 160.0187 | 118.438 | 51.00183 |

TF19 | 679.588 | 199.4014 | 741.6341 | 206.7296 | 544.1018 | 13.30161 |

*p* values of the Wilcoxon ranksum test over all runs

| DA | PSO | GA |
---|---|---|---|

TF1 | N/A | 0.045155 | 0.000183 |

TF2 | N/A | 0.121225 | 0.000183 |

TF3 | N/A | 0.003611 | 0.000183 |

TF4 | N/A | 0.307489 | 0.000183 |

TF5 | N/A | 0.10411 | 0.000183 |

TF6 | 0.344704 | N/A | 0.000183 |

TF7 | 0.021134 | N/A | 0.000183 |

TF8 | 0.000183 | N/A | 0.000183 |

TF9 | 0.364166 | N/A | 0.002202 |

TF10 | N/A | 0.472676 | 0.000183 |

TF11 | 0.001008 | N/A | 0.000183 |

TF12 | 0.140465 | N/A | 0.000183 |

TF13 | N/A | 0.79126 | 0.000183 |

TF14 | N/A | 0.909654 | 0.10411 |

TF15 | 0.025748 | 0.241322 | N/A |

TF16 | 0.01133 | N/A | 0.053903 |

TF17 | 0.088973 | N/A | 0.241322 |

TF18 | 0.273036 | 0.791337 | N/A |

TF19 | N/A | 0.472676 | N/A |

As per the results of the algorithms on the unimodal test functions (TF1–TF7), it is evident that the DA algorithm outperforms PSO and GA on the majority of the cases. The *p* values in Table 5 also show that this superiority is statistically significant since the *p* values are less than 0.05. Considering the characteristic of unimodal test functions, it can be stated that the DA algorithm benefits from high exploitation. High exploitation assists the DA algorithm to rapidly converge towards the global optimum and exploit it accurately.

The results of the algorithms on multi-modal test functions (TF8–TF13) show that again the DA algorithm provides very competitive results compared to PSO. The *p* values reported in Table 2 also show that the DA and PSO algorithms show significantly better results than GA. Considering the characteristics of multi-modal test functions and these results, it may be concluded that the DA algorithm has high exploration which assist it to discover the promising regions of the search space. In addition, the local optima avoidance of this algorithm is satisfactory since it is able to avoid all of the local optima and approximate the global optima on the majority of the multi-modal test functions.

The results of composite test functions (TF14–TF19) show that the DA algorithm provides very competitive results and outperforms others occasionally. However, the *p* values show that the superiority is not as significant as those of unimodal and multi-modal test functions. This is due to the difficulty of the composite test functions that make them challenging for algorithms employed in this work. Composite test functions benchmark the exploration and exploitation combined. Therefore, these results prove that the operators of the DA algorithm appropriately balance exploration and exploitation to handle difficulty in a challenging search space. Since the composite search spaces are highly similar to the real search spaces, these results make the DA algorithm potentially able to solve challenging optimization problems.

For further observing and analysing the performance of the proposed DA algorithm, four new metrics are employed in the following paragraphs. The main aims of this experiment is to confirm the convergence and predict the potential behaviour of the DA algorithm when solving real problems. The employed quantitative metrics are the position of dragonflies from the first to the last iteration (search history), the value of a parameter from the first to the last iteration (trajectory), the average fitness of dragonflies from the first to the last iteration, and the fitness of the best food source obtained from the first to the last iteration (convergence).

Tracking the position of dragonflies during optimization allows us to observe whether and how the DA algorithm explores and exploits the search space. Monitoring the value of a parameter during optimization assists us to observe the movement of candidate solutions. Preferably, there should be abrupt changes in the parameters in the exploration phase and gradual changes in the exploitation phase. The average fitness of dragonflies during optimization also shows the improvement in the fitness of the whole swarm during optimization. Finally, the fitness of the food source shows the improvement of the obtained global optimum during optimization.

Figure 11 illustrates the trajectory of the first variable of the first artificial dragonfly over 150 iterations. It can be observed that there are abrupt changes in the initial iterations. These changes are decreased gradually over the course of iterations. According to Berg et al. [57], this behaviour can guarantee that an algorithm eventually convergences to a point and search locally in a search space.

Figures 12 and 13 show the average fitness of all dragonflies and the food source, respectively. The average fitness of dragonflies shows a decreasing behaviour on all of the test functions. This proves that the DA algorithm improves the overall fitness of the initial random population. A similar behaviour can be observed in the convergence curves. This also evidences that the approximation of the global optimum becomes more accurate as the iteration counter increases. Another fact that can be seen is the accelerated trend in the convergence curves. This is due to the emphasis on local search and exploitation as iteration increases which highly accelerate the convergence towards the optimum in the final steps of iterations.

As summary, the results of this section proved that the proposed DA algorithm shows high exploration and exploitation. For one, the proposed static swarm promotes exploration, assists the DA algorithm to avoid local optima, and resolves local optima stagnation when solving challenging problems. For another, the dynamic swarm of dragonflies emphasizes exploitation as iteration increases, which causes a very accurate approximation of the global optimum.

### 4.2 Results of BDA algorithm

Statistical results of the binary algorithms on the test functions

Test function | BDA | BPSO | BGSA | |||
---|---|---|---|---|---|---|

Ave | Std | Ave | Std | Ave | Std | |

TF1 | 0.281519 | 0.417723 | 5.589032 | 1.97734 | 82.95707 | 49.78105 |

TF2 | 0.058887 | 0.069279 | 0.196191 | 0.052809 | 1.192117 | 0.228392 |

TF3 | 14.23555 | 22.68806 | 15.51722 | 13.68939 | 455.9297 | 271.9785 |

TF4 | 0.247656 | 0.330822 | 1.895313 | 0.483579 | 7.366406 | 2.213344 |

TF5 | 23.55335 | 34.6822 | 86.44629 | 65.82514 | 3100.999 | 2927.557 |

TF6 | 0.095306 | 0.129678 | 6.980524 | 3.849114 | 106.8896 | 77.54615 |

TF7 | 0.012209 | 0.014622 | 0.011745 | 0.006925 | 0.03551 | 0.056549 |

TF8 | −924.481 | 65.68827 | −988.565 | 16.66224 | −860.914 | 80.56628 |

TF9 | 1.805453 | 1.053829 | 4.834208 | 1.549026 | 10.27209 | 3.725984 |

TF10 | 0.388227 | 0.5709 | 2.154889 | 0.540556 | 2.786707 | 1.188036 |

TF11 | 0.193437 | 0.113621 | 0.47729 | 0.129354 | 0.788799 | 0.251103 |

TF12 | 0.149307 | 0.451741 | 0.407433 | 0.231344 | 9.526426 | 6.513454 |

TF13 | 0.035156 | 0.056508 | 0.306925 | 0.241643 | 2216.776 | 5663.491 |

*p* values of the Wilcoxon ranksum test over all runs

| BDA | BPSO | BGSA |
---|---|---|---|

TF1 | N/A | 0.000183 | 0.000183 |

TF2 | N/A | 0.001706 | 0.000183 |

TF3 | N/A | 0.121225 | 0.000246 |

TF4 | N/A | 0.000211 | 0.000183 |

TF5 | N/A | 0.009108 | 0.000183 |

TF6 | N/A | 0.000183 | 0.000183 |

TF7 | 0.472676 | N/A | 0.344704 |

TF8 | 0.064022 | N/A | 0.000583 |

TF9 | N/A | 0.000583 | 0.000183 |

TF10 | N/A | 0.00033 | 0.00044 |

TF11 | N/A | 0.000583 | 0.00033 |

TF12 | N/A | 0.002827 | 0.000183 |

TF13 | N/A | 0.000583 | 0.000183 |

Table 3 shows that the proposed algorithm outperforms both BPSO and BGSA on the majority of binary test cases. The discrepancy of the results is very evident as per the *p* values reported in Table 4. These results prove that the BDA algorithm inherits high exploration and exploitation from the DA algorithm due to the use of the v-shaped transfer function.

### 4.3 Results of MODA algorithm

*n*is the number of true Pareto optimal solutions, and

*d*

_{i}indicates the Euclidean distance between the

*i*-th true Pareto optimal solution and the closest obtained Pareto optimal solutions in the reference set.

Results of the multi-objective algorithms on ZDT1

Algorithm | IGD | ||||
---|---|---|---|---|---|

Ave | Std | Median | Best | Worst | |

MODA | 0.00612 | 0.002863 | 0.0072 | 0.0024 | 0.0096 |

MOPSO | 0.00422 | 0.003103 | 0.0037 | 0.0015 | 0.0101 |

NSGA-II | 0.05988 | 0.005436 | 0.0574 | 0.0546 | 0.0702 |

Results of the multi-objective algorithms on ZDT2

Algorithm | IGD | ||||
---|---|---|---|---|---|

Ave | Std | Median | Best | Worst | |

MODA | 0.00398 | 0.001604244 | 0.0033 | 0.0023 | 0.006 |

MOPSO | 0.00156 | 0.000174356 | 0.0017 | 0.0013 | 0.0017 |

NSGA-II | 0.13972 | 0.026263465 | 0.1258 | 0.1148 | 0.1834 |

Results of the multi-objective algorithms on ZDT3

Algorithm | IGD | ||||
---|---|---|---|---|---|

Ave | Std | Median | Best | Worst | |

MODA | 0.02794 | 0.004021 | 0.0302 | 0.02 | 0.0304 |

MOPSO | 0.03782 | 0.006297 | 0.0362 | 0.0308 | 0.0497 |

NSGA-II | 0.04166 | 0.008073 | 0.0403 | 0.0315 | 0.0557 |

Results of the multi-objective algorithms on ZDT1 with linear front

Algorithm | IGD | ||||
---|---|---|---|---|---|

Ave | Std | Median | Best | Worst | |

MODA | 0.00616 | 0.005186 | 0.0038 | 0.0022 | 0.0163 |

MOPSO | 0.00922 | 0.005531 | 0.0098 | 0.0012 | 0.0165 |

NSGA-II | 0.08274 | 0.005422 | 0.0804 | 0.0773 | 0.0924 |

Results of the multi-objective algorithms on ZDT2 with three objectives

Algorithm | IGD | ||||
---|---|---|---|---|---|

Ave | Std | Median | Best | Worst | |

MODA | 0.00916 | 0.005372 | 0.0063 | 0.0048 | 0.0191 |

MOPSO | 0.02032 | 0.001278 | 0.0203 | 0.0189 | 0.0225 |

NSGA-II | 0.0626 | 0.017888 | 0.0584 | 0.0371 | 0.0847 |

As per the results presented in Tables 5, 6, 7, 8, and 9, the MODA algorithm tends to outperform NSGA-II and provides very competitive results compared to MOPSO on the majority of the test functions. Figures 14, 15, 16, 17, and 18 also show that the convergence and coverage of the Pareto optimal solutions obtained by MODA algorithm are mostly better than NSGA-II. High convergence of the MODA originates from the accelerated convergence of search agents around the food sources selected from the archive over the course of iterations. Adaptive values for *s*, *a*, *c*, *f*, *e*, and *w* in MODA allow its search agents to converge towards the food sources proportional to the number of iterations. High coverage of the MODA algorithm is due to the employed food/enemy selection mechanisms. Since the foods and enemies are selected from the less populated and most populated hyper-spheres, respectively, the search agents of the MODA algorithm tend to search the regions of the search space that have Pareto optimal solutions with low distribution and avoid highly distributed regions in Pareto front. Therefore, the distribution of the Pareto optimal solutions is adjusted and increased along the obtained Pareto optimal front. The maintenance mechanism for a full archive also assists the MODA algorithm to discard excess Pareto optimal solutions (enemies) in populated segments and allows adding new food sources in less populated regions. These results evidence the merits of the proposed MODA in solving multi-objective problems as a posteriori algorithm.

*η*is efficiency,

*V*is cavitation,

*T*is thrust, RPM is rotation per second of the propeller,

*Z*is the number of blades,

*D*is the diameter of the propeller (m),

*d*is the diameter of hub (m), and

*S*is the ship speed (m/s).

This real case study is solved by the MODA algorithm equipped with 200 artificial dragonflies over 300 iterations. Since the problem of submarine propeller design has many constraints, MODA should be equipped with a constraint-handling method. For simplicity, a death penalty is utilized, which assign very low efficiency and large cavitation to the artificial dragonflies that violate any of the constraints. Therefore, they are dominated automatically when finding non-dominated solutions in the next iteration.

## 5 Conclusion

This paper proposed another SI algorithm inspired by the behaviour of dragonflies’ swarms in nature. Static and dynamic swarming behaviours of dragonflies were implemented to explore and exploit the search space, respectively. The algorithm was equipped with five parameters to control cohesion, alignment, separation, attraction (towards food sources), and distraction (outwards enemies) of individuals in the swarm. Suitable operators were integrated to the proposed DA algorithm for solving binary and multi-objective problems as well. A series of continuous, binary, and multi-objective test problems were employed to benchmark the performance of the DA, BDA, and MODA algorithms from different perspectives. The results proved that all of the proposed algorithms benefits from high exploration, which is due to the proposed static swarming behaviour of dragonflies. The convergence of the artificial dragonflies towards optimal solutions in continuous, binary, and multi-objective search spaces was also observed and confirmed, which are due to the dynamic swarming pattern modelled in this paper.

The paper also considered designing a real propeller for submarines using the proposed MODA algorithm, which is a challenging and highly constrained CFD problem. The results proved the effectiveness of the multi-objective version of DA in solving real problems with unknown search spaces. As per the finding of this comprehensive study, it can be concluded that the proposed algorithms are able to outperform the current well-known and powerful algorithms in the literature. Therefore, they are recommended to researchers from different fields as open-source optimization tools. The source codes of DA, BDA, and MODA are publicly available at http://www.alimirjalili.com/DA.html.

For future works, several research directions can be recommended. Hybridizing other algorithms with DA and integrating evolutionary operators to this algorithm are two possible research avenues. For the BDA algorithm, the effects of transfer functions on the performance of this algorithm worth to be investigated. Applying other multi-objective optimization approaches (non-dominated sorting for instance) to MODA will also be valuable contributions. The DA, BDA, and MODA algorithm can all be tuned and employed to solve optimization problems in different fields as well.

## Notes

### Acknowledgments

The author would like to thank Mehrdad Momeny for providing his outstanding dragonfly photo.

## Supplementary material

### References

- 1.Mirjalili S, Mirjalili SM, Lewis A (2014) Grey wolf optimizer. Adv Eng Softw 69:46–61CrossRefGoogle Scholar
- 2.Muro C, Escobedo R, Spector L, Coppinger R (2011) Wolf-pack (
*Canis lupus*) hunting strategies emerge from simple rules in computational simulations. Behav Process 88:192–197CrossRefGoogle Scholar - 3.Jakobsen PJ, Birkeland K, Johnsen GH (1994) Swarm location in zooplankton as an anti-predator defence mechanism. Anim Behav 47:175–178CrossRefGoogle Scholar
- 4.Higdon J, Corrsin S (1978) Induced drag of a bird flock. Am Nat 112(986):727–744Google Scholar
- 5.Goss S, Aron S, Deneubourg J-L, Pasteels JM (1989) Self-organized shortcuts in the Argentine ant. Naturwissenschaften 76:579–581CrossRefGoogle Scholar
- 6.Beni G, Wang J (1993) Swarm intelligence in cellular robotic systems. In: Dario P, Sandini G, Aebischer P (eds) Robots and biological systems: towards a new bionics? NATO ASI series, vol 102. Springer, Berlin, Heidelberg, pp 703–712Google Scholar
- 7.Bonabeau E, Dorigo M, Theraulaz G (1999) Swarm intelligence: from natural to artificial systems. Oxford University Press, OxfordMATHGoogle Scholar
- 8.Dorigo M, Stützle T (2003) The ant colony optimization metaheuristic: algorithms, applications, and advances. In: Glover F, Kochenberger GA (eds) Handbook of metaheuristics. International series in operations research & management science, vol 57. Springer, USA, pp 250–285Google Scholar
- 9.Dorigo M, Maniezzo V, Colorni A (1996) Ant system: optimization by a colony of cooperating agents. Syst Man Cybern Part B Cybern IEEE Trans 26:29–41CrossRefGoogle Scholar
- 10.Colorni A, Dorigo M, Maniezzo V (1991) Distributed optimization by ant colonies. In: Proceedings of the first European conference on artificial life, pp 134–142Google Scholar
- 11.Eberhart RC, Kennedy J (1995) A new optimizer using particle swarm theory. In: Proceedings of the sixth international symposium on micro machine and human science, pp 39–43Google Scholar
- 12.Eberhart RC, Shi Y (2001) Particle swarm optimization: developments, applications and resources. In: Proceedings of the 2001 congress on evolutionary computation, pp 81–86Google Scholar
- 13.Karaboga D (2005) An idea based on honey bee swarm for numerical optimization. In: Technical report-tr06, Erciyes university, engineering faculty, computer engineering departmentGoogle Scholar
- 14.Karaboga D, Basturk B (2007) A powerful and efficient algorithm for numerical function optimization: artificial bee colony (ABC) algorithm. J Global Optim 39:459–471MathSciNetCrossRefMATHGoogle Scholar
- 15.AlRashidi MR, El-Hawary ME (2009) A survey of particle swarm optimization applications in electric power systems. Evolut Comput IEEE Trans 13:913–918CrossRefGoogle Scholar
- 16.Wei Y, Qiqiang L (2004) Survey on particle swarm optimization algorithm. Eng Sci 5:87–94Google Scholar
- 17.Chandra Mohan B, Baskaran R (2012) A survey: ant colony optimization based recent research and implementation on several engineering domain. Expert Syst Appl 39:4618–4627CrossRefGoogle Scholar
- 18.Dorigo M, Stützle T (2010) Ant colony optimization: overview and recent advances. In: Gendreau M, Potvin J-Y (eds) Handbook of metaheuristics. International series in operations research & management science, vol 146. Springer, USA, pp 227–263Google Scholar
- 19.Karaboga D, Gorkemli B, Ozturk C, Karaboga N (2014) A comprehensive survey: artificial bee colony (ABC) algorithm and applications. Artif Intell Rev 42:21–57CrossRefGoogle Scholar
- 20.Sonmez M (2011) Artificial Bee Colony algorithm for optimization of truss structures. Appl Soft Comput 11:2406–2418CrossRefGoogle Scholar
- 21.Wang G, Guo L, Wang H, Duan H, Liu L, Li J (2014) Incorporating mutation scheme into krill herd algorithm for global numerical optimization. Neural Comput Appl 24:853–871CrossRefGoogle Scholar
- 22.Wang G-G, Gandomi AH, Alavi AH (2014) Stud krill herd algorithm. Neurocomputing 128:363–370CrossRefGoogle Scholar
- 23.Wang G-G, Gandomi AH, Alavi AH (2014) An effective krill herd algorithm with migration operator in biogeography-based optimization. Appl Math Model 38:2454–2462MathSciNetCrossRefGoogle Scholar
- 24.Wang G-G, Gandomi AH, Alavi AH, Hao G-S (2014) Hybrid krill herd algorithm with differential evolution for global numerical optimization. Neural Comput Appl 25:297–308CrossRefGoogle Scholar
- 25.Wang G-G, Gandomi AH, Zhao X, Chu HCE (2014) Hybridizing harmony search algorithm with cuckoo search for global numerical optimization. Soft Comput. doi:10.1007/s00500-014-1502-7
- 26.Wang G-G, Guo L, Gandomi AH, Hao G-S, Wang H (2014) Chaotic krill herd algorithm. Inf Sci 274:17–34MathSciNetCrossRefGoogle Scholar
- 27.Wang G-G, Lu M, Dong Y-Q, Zhao X-J (2015) Self-adaptive extreme learning machine. Neural Comput Appl. doi:10.1007/s00521-015-1874-3
- 28.Mirjalili S (2015) The ant lion optimizer. Adv Eng Softw 83:80–98Google Scholar
- 29.Mirjalili S, Mirjalili SM, Hatamlou A (2015) Multi-Verse Optimizer: a nature-inspired algorithm for global optimization. Neural Comput Appl. doi:10.1007/s00521-015-1870-7
- 30.Wolpert DH, Macready WG (1997) No free lunch theorems for optimization. Evolut Comput IEEE Trans 1(1):67–82CrossRefGoogle Scholar
- 31.Thorp JH, Rogers DC (2014) Thorp and Covich’s freshwater invertebrates: ecology and general biology. Elsevier, AmsterdamGoogle Scholar
- 32.Wikelski M, Moskowitz D, Adelman JS, Cochran J, Wilcove DS, May ML (2006) Simple rules guide dragonfly migration. Biol Lett 2:325–329CrossRefGoogle Scholar
- 33.Russell RW, May ML, Soltesz KL, Fitzpatrick JW (1998) Massive swarm migrations of dragonflies (Odonata) in eastern North America. Am Midl Nat 140:325–342CrossRefGoogle Scholar
- 34.Reynolds CW (1987) Flocks, herds and schools: a distributed behavioral model. ACM SIGGRAPH Comput Gr 21:25–34CrossRefGoogle Scholar
- 35.Yang X-S (2010) Nature-inspired metaheuristic algorithms, 2nd edn. Luniver PressGoogle Scholar
- 36.Cui Z, Shi Z (2009) Boid particle swarm optimisation. Int J Innov Comput Appl 2:77–85CrossRefGoogle Scholar
- 37.Kadrovach BA, Lamont GB (2002) A particle swarm model for swarm-based networked sensor systems. In: Proceedings of the 2002 ACM symposium on applied computing, pp 918–924Google Scholar
- 38.Cui Z (2009) Alignment particle swarm optimization. In: Cognitive informatics, 2009. ICCI’09. 8th IEEE international conference on, pp 497–501Google Scholar
- 39.Mirjalili S, Lewis A (2013) S-shaped versus V-shaped transfer functions for binary particle swarm optimization. Swarm Evolut Comput 9:1–14CrossRefGoogle Scholar
- 40.Saremi S, Mirjalili S, Lewis A (2014) How important is a transfer function in discrete heuristic algorithms. Neural Comput Appl:1–16Google Scholar
- 41.Mirjalili S, Wang G-G, Coelho LDS (2014) Binary optimization using hybrid particle swarm optimization and gravitational search algorithm. Neural Comput Appl 25:1423–1435CrossRefGoogle Scholar
- 42.Mirjalili S, Lewis A (2015) Novel performance metrics for robust multi-objective optimization algorithms. Swarm Evolut Comput 21:1–23CrossRefGoogle Scholar
- 43.Coello CAC (2009) Evolutionary multi-objective optimization: some current research trends and topics that remain to be explored. Front Comput Sci China 3:18–30CrossRefGoogle Scholar
- 44.Ngatchou P, Zarei A, El-Sharkawi M (2005) Pareto multi objective optimization. In: Intelligent systems application to power systems, 2005. Proceedings of the 13th international conference on, pp 84–91Google Scholar
- 45.Branke J, Kaußler T, Schmeck H (2001) Guidance in evolutionary multi-objective optimization. Adv Eng Softw 32:499–507CrossRefMATHGoogle Scholar
- 46.Coello Coello CA, Lechuga MS (2002) MOPSO: A proposal for multiple objective particle swarm optimization. In: Evolutionary computation, 2002. CEC’02. Proceedings of the 2002 congress on, pp 1051–1056Google Scholar
- 47.Coello CAC, Pulido GT, Lechuga MS (2004) Handling multiple objectives with particle swarm optimization. Evolut Comput IEEE Trans 8:256–279CrossRefGoogle Scholar
- 48.Yao X, Liu Y, Lin G (1999) Evolutionary programming made faster. Evolut Comput IEEE Trans 3:82–102CrossRefGoogle Scholar
- 49.Digalakis J, Margaritis K (2001) On benchmarking functions for genetic algorithms. Int J Comput Mathematics 77:481–506MathSciNetCrossRefMATHGoogle Scholar
- 50.Molga M, Smutnicki C (2005) Test functions for optimization needs. Test functions for optimization needs. http://www.robertmarks.org/Classes/ENGR5358/Papers/functions.pdf
- 51.Yang X-S (2010) Test problems in optimization. arXiv preprint arXiv:1008.0549
- 52.Liang J, Suganthan P, Deb K (2005) Novel composition test functions for numerical global optimization. In: Swarm intelligence symposium, 2005. SIS 2005. Proceedings 2005 IEEE, pp 68–75Google Scholar
- 53.Suganthan PN, Hansen N, Liang JJ, Deb K, Chen Y, Auger A et al (2005) Problem definitions and evaluation criteria for the CEC 2005 special session on real-parameter optimization. In: KanGAL Report, vol 2005005Google Scholar
- 54.Kennedy J, Eberhart R (1995) Particle swarm optimization. In: Neural networks, 1995. Proceedings, IEEE International conference on, pp 1942–1948Google Scholar
- 55.John H (1992) Holland, adaptation in natural and artificial systems. MIT Press, CambridgeGoogle Scholar
- 56.Derrac J, García S, Molina D, Herrera F (2011) A practical tutorial on the use of nonparametric statistical tests as a methodology for comparing evolutionary and swarm intelligence algorithms. Swarm Evolut Comput 1:3–18CrossRefGoogle Scholar
- 57.van den Bergh F, Engelbrecht A (2006) A study of particle swarm optimization particle trajectories. Inf Sci 176:937–971MathSciNetCrossRefMATHGoogle Scholar
- 58.J. Kennedy J, Eberhart RC (1997) A discrete binary version of the particle swarm algorithm. In: Systems, man, and cybernetics, 1997. computational cybernetics and simulation, 1997 IEEE international conference on, pp 4104–4108Google Scholar
- 59.Rashedi E, Nezamabadi-Pour H, Saryazdi S (2010) BGSA: binary gravitational search algorithm. Nat Comput 9:727–745MathSciNetCrossRefMATHGoogle Scholar
- 60.Zitzler E, Deb K, Thiele L (2000) Comparison of multiobjective evolutionary algorithms: empirical results. Evol Comput 8:173–195CrossRefGoogle Scholar
- 61.Sierra MR, Coello Coello CA (2005) Improving PSO-based multi-objective optimization using crowding, mutation and ∈-dominance. In: Coello Coello CA, Hernández Aguirre A, Zitzler E (eds) Evolutionary multi-criterion optimization. Lecture notes in computer science, vol 3410. Springer, Berlin, Heidelberg, pp 505–519Google Scholar
- 62.Van Veldhuizen DA, Lamont GB (1998) Multiobjective evolutionary algorithm research: a history and analysis (Final Draft) TR-98-03Google Scholar
- 63.Deb K, Pratap A, Agarwal S, Meyarivan T (2002) A fast and elitist multiobjective genetic algorithm: NSGA-II. Evolut Comput IEEE Trans 6:182–197CrossRefGoogle Scholar
- 64.Carlton J (2012) Marine propellers and propulsion. Butterworth-Heinemann, OxfordGoogle Scholar
