Colloid and Polymer Science

, Volume 293, Issue 1, pp 257–265 | Cite as

Comparison of spontaneous wetting and drop impact dynamics of aqueous surfactant solutions on hydrophobic polypropylene surfaces: scaling of the contact radius

Original Contribution
First Online:
Received:
Revised:
Accepted:

Abstract

In this paper, we comparatively investigated the spontaneous wetting and the impact dynamics of surfactant-laden drops on hydrophobic polypropylene surfaces. We used the organic anionic surfactant sodium dodecyl sulfate (SDS) and two silicone-based nonionic surfactants, one of which was a so-called superspreader. The wetting dynamics during spontaneous spreading could be divided into an early inertia-dominated stage and a later viscosity-dominated stage. Both could be described by power laws with different exponents. Further, wetting dynamics during the faster inertial stage was independent of surfactant properties, while surfactants played a role in the slower viscous stage. During drop impact, regardless of the impact speed the early wetting stage was controlled by inertial and capillary forces only. But, different from spontaneous spreading, surfactants influenced the wetting dynamics of this early stage. After the drops reached the maximum spreading radius r max they started recoiling and reducing again their contact radius. We observed, however, that despite reducing the static surface tension of the water drops, not all surfactants promoted them to spread out to a larger radius than the pure water drops during the early impact stage. We thus introduced a new time scale, \( \tau =\sqrt{\rho {r}_{\max}^3/\gamma } \), that uses the maximum spreading radius of the drops upon impact and that allows rescaling the durations of the inertial wetting stages to a universal master curve. Finally, we observed that only those drops containing superspreader re-started wetting the surface after recoiling, but the dynamics is not yet completely clear.

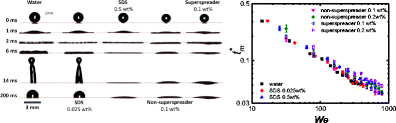

Graphical abstract

ᅟ

Keywords

Superspreader Surfactant Spontaneous wetting Drop impact
This is a preview of subscription content, log in to check access.

References

  1. 1.
    Young T (1805) Philos Trans R Soc Lond 95:65CrossRefGoogle Scholar
  2. 2.
    de Gennes PG (1985) Rev Mod Phys 57:827CrossRefGoogle Scholar
  3. 3.
    Bird JC, Mandre S, Stone HA (2008) Phys Rev Lett 100:234501CrossRefGoogle Scholar
  4. 4.
    Chen L, Bonaccurso E, Shanahan MER (2013) Langmuir 29:1893CrossRefGoogle Scholar
  5. 5.
    Biance AL, Clanet C, Quere D (2004) Phys Rev E 69:016301CrossRefGoogle Scholar
  6. 6.
    Soboleva OA, Summ BD, Raud EA (1989) Kolloidn Zh 51:1204Google Scholar
  7. 7.
    Chen L, Auernhammer GK, Bonaccurso E (2011) Soft Matter 7:9084CrossRefGoogle Scholar
  8. 8.
    de Gennes PG (1984) C R Acad Sci II 298:111Google Scholar
  9. 9.
    Tanner LH (1979) J Phys D Appl Phys 12:1473CrossRefGoogle Scholar
  10. 10.
    Cazabat AM, Cohen-Stuart MA (1986) J Phys Chem 90:5845CrossRefGoogle Scholar
  11. 11.
    Huh C, Scriven LE (1971) J Colloid Interface Sci 35:85CrossRefGoogle Scholar
  12. 12.
    Lavi B, Marmur A (2004) Colloids Surf A Physicochem Eng Asp 250:409CrossRefGoogle Scholar
  13. 13.
    Marmur A, Lelah MD (1981) Chem Eng Commun 13:133CrossRefGoogle Scholar
  14. 14.
    Lopez J, Miller CA, Ruckenstein E (1976) J Colloid Interface Sci 56:460CrossRefGoogle Scholar
  15. 15.
    McHale G, Brown CV, Sampara N (2013) Nat Commun 4:1605CrossRefGoogle Scholar
  16. 16.
    Rein M (1993) Fluid Dyn Res 12:61CrossRefGoogle Scholar
  17. 17.
    Rioboo R, Tropea C, Marengo M (2001) Atomization Sprays 11:155CrossRefGoogle Scholar
  18. 18.
    Yarin AL (2006) In Annual Review of Fluid Mechanics, pp. 159Google Scholar
  19. 19.
    Wirth W, Storp S, Jacobsen W (1991) Pestic Sci 33:411CrossRefGoogle Scholar
  20. 20.
    Worthington AM (1876) Proc R Soc Lond 25:261CrossRefGoogle Scholar
  21. 21.
    Madejski J (1976) Int J Heat Mass Transf 19:1009CrossRefGoogle Scholar
  22. 22.
    Sikalo S, Ganic EN (2006) Exp Thermal Fluid Sci 31:97CrossRefGoogle Scholar
  23. 23.
    Fukai J, Shiiba Y, Yamamoto T, Miyatake O, Poulikakos D, Megaridis CM, Zhao Z (1995) Phys Fluids 7:236CrossRefGoogle Scholar
  24. 24.
    Harlow FH, Shannon JP (1967) J Appl Phys 38:3855CrossRefGoogle Scholar
  25. 25.
    Rioboo R, Marengo M, Tropea C (2002) Exp Fluids 33:112CrossRefGoogle Scholar
  26. 26.
    Clanet C, Beguin C, Richard D, Quere D (2004) J Fluid Mech 517:199CrossRefGoogle Scholar
  27. 27.
    Fukai J, Zhao Z, Poulikakos D, Megaridis CM, Miyatake O (1993) Phys Fluids A Fluid Dyn 5:2588CrossRefGoogle Scholar
  28. 28.
    Ananthapadmanabhan KP, Goddard ED, Chandar P (1990) Colloids Surf 44:282CrossRefGoogle Scholar
  29. 29.
    Chengara A, Nikolov AD, Wasan DT (2007) Ind Eng Chem Res 46:2987CrossRefGoogle Scholar
  30. 30.
    Nikolov AD, Wasan DT, Chengara A, Koczo K, Policello GA, Kolossvary I (2002) Adv Colloid Interf Sci 96:325CrossRefGoogle Scholar
  31. 31.
    Hill RM, He MT, Davis HT, Scriven LE (1994) Langmuir 10:1724CrossRefGoogle Scholar
  32. 32.
    Zhang XG, Basaran OA (1997) J Colloid Interface Sci 187:166CrossRefGoogle Scholar
  33. 33.
    PasandidehFard M, Qiao YM, Chandra S, Mostaghimi J (1996) Phys Fluids 8:650CrossRefGoogle Scholar
  34. 34.
    Crooks R, Cooper-Whitez J, Boger DV (2001) Chem Eng Sci 56:5575CrossRefGoogle Scholar
  35. 35.
    Marmottant P, Villermaux E, Clanet C (2000) J Colloid Interface Sci 230:29CrossRefGoogle Scholar
  36. 36.
    Aytouna M, Bartolo D, Wegdam G, Bonn D, Rafai S (2010) Exp Fluids 48:49CrossRefGoogle Scholar
  37. 37.
    Cooper-White JJ, Crooks RC, Boger DV (2002) Colloids Surf A Physicochem Eng Asp 210:105CrossRefGoogle Scholar
  38. 38.
    Mourougou-Candoni N, Prunet-Foch B, Legay F, Vignes-Adler M, Wong K (1999) Langmuir 15:6563CrossRefGoogle Scholar
  39. 39.
    Gatne KP, Jog MA, Manglik RM (2009) Langmuir 25:8122CrossRefGoogle Scholar
  40. 40.
    Fell D, Sokuler M, Lembach A, Eibach T, Liu C, Bonaccurso E, Auernhammer G, Butt H-J (2013) Colloid Polym Sci 291:1963CrossRefGoogle Scholar
  41. 41.
    Chen L, Bonaccurso E (2014) Phys Rev E 90:022401CrossRefGoogle Scholar
  42. 42.
    Wang X, Chen L, Bonaccurso E, Venzmer J (2013) Langmuir 29:14855CrossRefGoogle Scholar
  43. 43.
    Stoebe T, Hill RM, Ward MD, Davis HT (1997) Langmuir 13:7276CrossRefGoogle Scholar
  44. 44.
    Dutschk V, Sabbatovskiy KG, Stolz M, Grundke K, Rudoy VM (2003) J Colloid Interface Sci 267:456CrossRefGoogle Scholar
  45. 45.
    Dukhin SS, Kretzschmar G, Miller R (1995) Elsevier, Amsterdam, HollandGoogle Scholar
  46. 46.
    Chang CH, Franses EI (1995) Colloids Surf A Physicochem Eng Asp 100:1CrossRefGoogle Scholar
  47. 47.
    Tiberg F, Cazabat AM (1994) Europhys Lett 25:205CrossRefGoogle Scholar
  48. 48.
    Smith MI, Bertola V (2010) Phys Rev Lett 104:154502CrossRefGoogle Scholar
  49. 49.
    Bertola V (2010) Colloids Surf A Physicochem Eng Asp 363:135CrossRefGoogle Scholar
  50. 50.
    Bergeron V, Bonn D, Martin JY, Vovelle L (2000) Nature 405:772CrossRefGoogle Scholar

Copyright information

© Springer-Verlag Berlin Heidelberg 2014

Authors and Affiliations

  1. 1.Center of Smart InterfacesTechnische Universität DarmstadtDarmstadtGermany
  2. 2.School of Physical and Mathematical ScienceNanyang Technological UniversitySingaporeSingapore
  3. 3.Airbus Group InnovationsMunichGermany
