Predictions of the life for micro multi-punch die using neural network
- 147 Downloads
- 1 Citations
Abstract

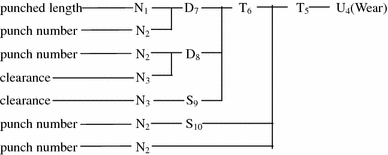

The design of packaging bags for passive components is becoming increasingly difficult because these components are being miniaturized. In this study, packaging for passive components was manufactured by a punching process. A single 12-punch die set was utilized experimentally with the aim of improving production efficiency. The neural network was applied to establish a model based on the relationship between a variety of factors: position number of micro multi-punch die set, total punched lengths, clearance, and wear. A simulated annealing (SA) optimization algorithm with a performance index was applied to the neural network. This determined the optimal punching parameters and resulted in a satisfactory outcome. Engineers can utilize this technique in practice to find optimal processing parameters, thus avoiding poor design of punching die and the need for lengthy repairs. The neural network can predict individual wear of each punch (or die cavity) under any clearance at a specific punch-length. Accurate prediction of punch/die wear means that worn components may be replaced in a timely manner, avoiding the fabrication of poor-quality products. Engineers can utilize the results on the factory floor to find optimal clearance conditions. This avoids poor design of punching die and the need for lengthy repairs.
Keywords
Micro punch/die Clearance Wear Abductive network Simulated annealingReferences
- 1.Sanchez LR, Weimann KJ, Gerdeen JC (1988) Deformation behavior and force analysis of sheet metal between circular draw-bends, 16th NAMRC 1988, pp 252–258Google Scholar
- 2.Liu F, Sowerby R (1991) The determination of optimum blank shapes when deep drawing prismatic cups. J Mater Shaping Technol 9(3):153–159CrossRefGoogle Scholar
- 3.Aita S, Di Pasqual E, Haug E (1991) Sheet metal forming simulation and process optimization methodology. ESI (Engineering Systems International) PAM ’91 Seminar paper, pp 91–99Google Scholar
- 4.Tai CC, Lin JC (1998) The optimization deep-draw clearance design for deep-draw dies. Int J Adv Manuf Technol 14:390–398CrossRefGoogle Scholar
- 5.Lin JC, Tai CC (1999) The application of neural network in the prediction of spring-back in an L-shaped bend. Int J Adv Manuf Technol 15:163–170CrossRefGoogle Scholar
- 6.Luo SY (1999) Effect of the geometry and the surface treatment of punching tools on the tool life and wear conditions in the piercing of thick steel plate. J Mater Process Technol 88:122–133CrossRefGoogle Scholar
- 7.Cheung CF, Lee WB, Chiu WM (2000) An investigation of tool wear in the dam-bar cutting of integrated circuit packages. Wear 23:274–282CrossRefGoogle Scholar
- 8.Chiou HN (1992) Punching operation and burr treatment. Machinery Monthly Taiwan 18(11):113–122Google Scholar
- 9.Montgomery GJ, Drake KC (1991) Abductive reasoning network. Neurocomputing 2:97–104CrossRefGoogle Scholar
- 10.Ivakhnenko AG (1971) Polynomial theory of complex systems. IEEE Trans Syst Man Cyber 1(4):364–378CrossRefMathSciNetGoogle Scholar
- 11.Barron AR (1984) Predicted square error: a criterion for automatic model selection, self-organizing methods in modeling. In: Farlow SJ (ed) GMDH type algorithms. Marcel-Dekker, New YorkGoogle Scholar
- 12.Metropolis N, Rosenbluth A, Rosenbluth M, Teller A, Teller E (1953) Equation of state calculation by fast computing machines. J Chem Phys 21:1087–1092CrossRefGoogle Scholar
- 13.Kirkpatrick S, Gelatt CD Jr, Vecchi MP (1983) Optimization by simulated annealing. Science 220(4598):671–680CrossRefMathSciNetGoogle Scholar
