The optimal treatment of an infectious disease with two strains

Several infectious diseases that pose a pressing problem in developing countries exist in multiple strains, including tuberculosis, HIV, Lyme disease, Human Papillomavirus, Helicobacter pylori and influenza (Balmer and Tanner 2011). Where resources are limited, a uniform treatment policy at the national level may be the most efficient way to tackle these diseases. This paper addresses the following question: what is the optimal treatment policy for an infectious disease that has two strains, which differ in their infectiousness? We take a standard model in epidemiology, the Susceptible-Infected-Susceptible (SIS) model, and extend it to include two strains of infection with different transmission probabilities. In the standard SIS model, individuals move between two states, susceptible and infected, based on exogenous probabilities. The probability of an individual catching a disease when he encounters an infected person depends on an infectivity or transmission parameter. This parameter is usually assumed to be homogeneous, which does not allow for policy differentiation if the disease exists in several strains.

The SIS model is often used to describe sexually transmitted diseases such as chlamydia. Chlamydia trachomatis is an organism that has three human strains: one strain causes trachoma, which is an infection of the eyes; a second strain causes sexually transmitted urethritis, often referred to simply as chlamydia, while a third strain causes the sexually transmitted lymphogranuloma venereum (LGV) (Byrne 2010). Chlamydia, caused by serovars D-K, is also the most common sexually transmitted disease in the United States and the United Kingdom, with over 1.2 million infections detected in the former and over 200 thousand in the latter.¹ It can result in serious complications, such as pelvic inflammatory disease, which can lead to infertility if left untreated (Shaw et al. 2011). There are currently no vaccines for chlamydia, and treatment with antibiotics, usually with azithromycin or doxycycline, is necessary (Shaw et al. 2011). LGV is also treated with doxycycline (McLean et al. 2007), while trachoma is treated with azithromycin (Tabbara et al. 1996). Therefore, the optimal treatment mix for the various strains of chlamydia trachomatis is an important public health concern. It has been established in the literature that LGV strains are more infectious than trachoma strains, and that there may even be variation in virulence among trachoma strains (Pearce and Prain 1986; Kari et al. 2008). Reinfection with chlamydia is possible and superinfection does not appear to occur in practise (Heijne et al. 2011; Heiligenberg et al. 2014). Therefore, chlamydia trachomatis satisfies the assumptions of the model analysed in this paper, and as such, the results can provide guidance on the optimal treatment of the diseases that it causes.

We analyse the optimal treatment policy of a two-strain SIS disease, both analytically and numerically. We assume that the two strains differ in their infectivities, and neither superinfection nor eradication of the disease is possible. The policymaker can perfectly observe and target both strains with two separate treatment instruments. First, we provide theoretical results on the possible equilibria of this model. There are two sets of equilibria: non-boundary equilibria, where the two strains co-exist, and boundary equilibria, where one of the strains is endemic while the other is eliminated asymptotically. The feasibility of these equilibria depends on parameter conditions. Broadly speaking, when the infectivities of the two strains are very different, only the boundary equilibria can be achieved, and in particular those where the more infective strain prevails and the less infective strain is asymptotically eradicated. When the strains are quite similar, all equilibria are feasible. We demonstrate that in the coexistence equilibria, the more infective strain must receive more treatment than the less infective strain. These results lie in contrast to the equilibrium with no intervention, when the less infectious strain dies out.

We provide numerical examples where we simulate the model and look for optimal treatment policy along the path to the fixed points. We find that policy exhibits switch points along the path, implying that policy flexibility is beneficial, and that a static model would be too restrictive. We are unable to find a path towards a coexistence equilibrium that is optimal, in the sense of not being a spiral. We tentatively conclude that the coexistence equilibria can never be the end points of optimal paths, and that the boundary equilibria are always the optimal ones.

The ideas in this paper relate closely to the theory of competitive exclusion in ecology, which postulates that the coexistence of two or more species limited by one resource (in our case, two strains limited by one host population) is not possible (Armstrong and McGehee 1980). For example, Iggidr et al. (2006) demonstrate in the context of multiple-strain malaria that an equilibrium is either disease-free or has at most one surviving strain.

However, this is not always the case, provided some assumptions are relaxed, such as allowing for cycles in the persistence of species (Armstrong and McGehee 1980). In a model of renewable natural resources, coexistence of species is possible, with the stocks of the two resources higher in a mutualistic than a competitive equilibrium (Ströbele and Wacker 1991). In the case of an SIS model, coexistence of two strains is possible if one allows for superinfection and age structure (Li et al. 2010). Elbasha and Galvani (2005), in a model of two-strain Human Papillomavirus vaccines, show that when individuals are vaccinated for only one of the two strains, the equilibrium depends on whether the strains are synergistic (in which case vaccination also reduces the prevalence of the non-targeted strain) or antagonistic (where vaccination increases the prevalence of the other strain). Castillo-Chavez et al. (1999) demonstrate in a two-strain two-sex SIS model of a sexually transmitted disease that a unique coexistence equilibrium can occur under certain conditions. We show that in our two-strain SIS model, it is sometimes feasible for both strains to coexist, especially if they are not too different in their infectiousness. If one strain is much more infectious than the other, then it is only feasible to strive for the eradication of the less infectious strain, while allowing the more infectious strain to be endemic.

This paper builds on the economic epidemiology literature, which examines optimal intervention in tackling infectious diseases. Rowthorn et al. (2009) examine the optimal way to treat a disease with spatial dynamics, while Rowthorn (2006) considers the optimal treatment of a disease when policymakers have limited funds. There are important tradeoffs between treatment and vaccination as two instruments available to a policymaker (Rowthorn and Toxvaerd 2015). In general, a lack of intervention yields to inefficiently low uptake of vaccination (Chen and Toxvaerd 2014). While there is a rich literature that describes disease dynamics in the absence of intervention, the study of optimal intervention is still in its early stages, and this paper contributes to that literature.

The biology literature has shown the pervasiveness of diseases that exist in multiple strains, for which treatment and vaccination may have to vary. Lyme disease has at least 14 known strains.² Seinost et al. (1999) present strong evidence that strains of Lyme disease have different infectivities. Other multiple-strain infections include Human Papillomavirus, which includes high-risk strains that are a leading cause of cervical cancer and low-risk strains that do not cause cancer, as well as tuberculosis, where some strains are particularly drug resistant (Castillo-Chavez and Feng 1997).³ Influenza is a multiple-strain disease: Truscott et al. (2012) argue that accurate modelling of influenza should not neglect the presence of several strains. HIV also exists in two forms: HIV-1 and HIV-2. Studies show that the less common HIV-2 strain is also less infectious than its counterpart for most of its infectious period.⁴ Accurate measurement of the transmission rate is the key to realistic simulations of HIV/AIDS prevalence rates for the USA and Africa (Oster 2005), which highlights both the importance of the transmission rate in describing an infection and the particular relevance of this paper to developing countries.

The paper proceeds as follows. Section 2 provides an overview of some theoretical concepts while Sect. 3 outlines the SIS model with two strains. Section 4 discusses the equilibria of the model and Sect. 5 provides examples of simulations. Section 6 concludes.

It is useful to review some relevant concepts before the central analysis of the paper. The SIS model belongs to the category of transmission system models, which are built on differential equations that describe the evolution of disease prevalence over time as a function of parameters. It has become standard to assume random mixing in models of this type: agents are equally likely to encounter any other agent in the population.⁵ There are two possible states: individuals are either susceptible or infected. They can move between the two states an unlimited number of times. Agents are homogeneous and the population is closed. If a susceptible agent encounters an infected agent, the susceptible agent becomes infected with a certain probability, termed the transmission probability. Typically, these models assume a homogeneous transmission parameter for all agents. The standard SIS model is in continuous time. At every time increment, a proportion of infected individuals is treated with a certain success rate of treatment (which can be interpreted as a rate of recovery). There is also the possibility of spontaneous or natural recovery.

Our model differs from the standard SIS model in two key ways: the disease has two strains with distinct transmission rates and the policymaker has two policy instruments. We make three further assumptions about the nature of the disease: transmission is through human-to-human contact rather than vector-borne, superinfection is not possible and agents can recover fully from the disease. SIS models are often used to describe sexually transmitted diseases (Keeling and Eames 2005), and chlamydia is an appropriate example of an SIS disease with multiple strains (Byrne 2010).

Optimal policy determines what proportion of individuals to treat at each point in time subject to the cost of treatment, the value of susceptible and infected individuals to social welfare, as well as the transmission dynamics. Studies focus on deriving equilibria and looking for policy switches over time. Policy generally takes the form of a Most Rapid Approach Path (MRAP)—the policy that takes the system the fastest way to the desired equilibrium. Another point of interest is Skiba points or curves, which delineate points where the policymaker is indifferent between policies.⁶

An analysis of optimal treatment in the one-strain SIS model can be found in Rowthorn (2006) and Goldman and Lightwood (2002). We summarise their results here as a brief indication of what one might expect from a two-strain model. Two types of equilibria of the model exist: the policy instrument is either at a boundary, where no one or everyone is treated, or policy is interior, with partial treatment of the population. It is never optimal to treat partially; it can be shown that optimal policy will always take on one of the two boundary values. Whether it is optimal to treat everyone or no one depends on the parameters at hand.

The model has the following characteristics. The two variants of the infection are High (H, high infectivity) and Low (L, low infectivity). The more infectious variant H has transmission rate \(\beta _{H}\) while the less infectious variant L is characterised by transmission rate \(\beta _{L} \).⁷ The two policy instruments are \(f_{H},f_{L}\in [0,1]\), which measure the proportion of the infectees in each strain that are treated. The success rate of treatment is \(\alpha \in (0,1]\). We assume that the policymaker has perfect information about the prevalence of each strain in the population and can therefore target treatment of each strain perfectly.⁸

Individuals can catch either strain at the outset. When infected, they transmit the strain that they themselves are infected with. There is a possibility of exogenous recovery at rate \(\tau \in (0,1]\). If individuals recover, they are again susceptible to either infection strain. The proportion of the total population infected with the High strain is \(I_{H}\). The proportion infected with the Low strain is \(I_{L}\). To ease calculations, the total population is normalised to size 1: \(I_{H}+I_{L}+S=1\), where S denotes the population of healthy individuals (susceptibles). All parameters are strictly positive. The policymaker places value p on healthy individuals, value 0 on infected individuals and discounts the future at rate \(\delta \). She also faces a constant marginal cost c of treatment.

In order to choose the optimal policy mix of \(f_{H}\) and \(f_{L}\), the policymaker maximises the social welfare function

$$\begin{aligned} V(I_{H}^{0},I_{L}^{0})=\int _{0}^{\infty }e^{-\delta t}(p*(1-I_{H} (t)-I_{L}(t))-c*(f_{H}(t)I_{H}(t)+f_{L}(t)I_{L}(t)))dt, \end{aligned}$$

(1)

subject to the equations of motion for the two infection types:

$$\begin{aligned} \dot{I}_{H}= & {} I_{H}(t)\left[ \beta _{H}(1-I_{H}(t)-I_{L}(t))-\tau -\alpha f_{H}(t)\right] , \end{aligned}$$

(2)

$$\begin{aligned} \dot{I}_{L}= & {} I_{L}(t)\left[ \beta _{L}(1-I_{H}(t)-I_{L}(t))-\tau -\alpha f_{L}(t)\right] . \end{aligned}$$

(3)

Thus, the population of individuals infected with H increases at rate \(\beta I_{H}S\), which is a direct consequence of the assumption of random mixing, and decreases at rate \(I_{H}(\tau +\alpha f_{H})\). The population of agents infected with L changes in a symmetric way. We further assume that

Open image in new window

(4)

Thus, we assume that the population begins with a positive level of prevalence of each strain. Assumption (4) states that the infection probability in an encounter between a healthy individual and a sick individual is higher than the probability of a treated sick individual recovering. This ensures that neither variant of the disease can be eliminated, even asymptotically, by treating all infected people (see Sect. 4.4 for a proof of this). Thus, \(I_{H}(t),I_{L}(t)>0\) for all t.

In the analysis of dynamic models, of primary interest are the equilibria or fixed points of the model. In this section, we discuss the fixed points of the system and under which conditions they are attainable.

4.6 Feasibility

4.6.1 Summary of regimes of feasible equilibria

In this section we plot the feasible equilibria for each regime of K. Recall that if \(K<1\), the set of feasible equilibria is \(Z_{K<1}=\{F^{low} ,F^{high},A_{L}^{high},A_{H}^{high},A_{H}^{low}\}\). If \(K=1\), the set of feasible equilibria is \(Z_{K=1}=\{F^{int},A_{H}^{high},A_{H}^{low}\}\). If \(K>1\), the set of feasible equilibria is \(Z_{K>1}=\{A_{H}^{high},A_{H} ^{low}\}\). As K increases, the set of feasible equilibria falls: there are fewer ways in which the disease can be contained. This is because a higher K occurs when treatment is ineffective or when the strains differ substantially in their infectivities, making it difficult to control both of them.

As K increases, the minimum attainable equilibrium prevalence of \(I_{H}\) rises. This makes intuitive sense, as K is increasing in \(\beta _{H}\) and in the difference between \(\beta _{H}\) and \(\beta _{L}\). Where this difference is very large, \(K>1\) and the only feasible equilibrium is the AFP where \(I_{L}\) tends asymptotically towards zero and \(I_{H}\) prevails at a positive level. In contrast, when \(\beta _{H}\) is low, \(K<1\) and one can attain equilibria such as \(F^{low}\), where the equilibrium prevalence of \(I_{H}\) can be close to zero.

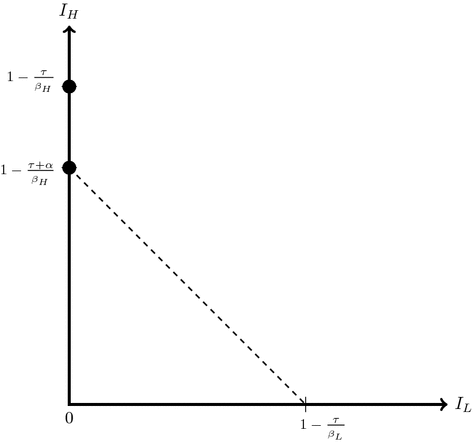

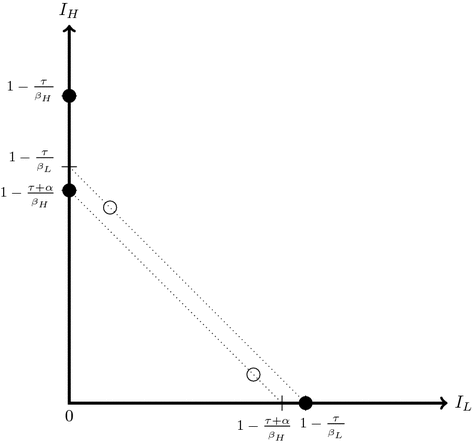

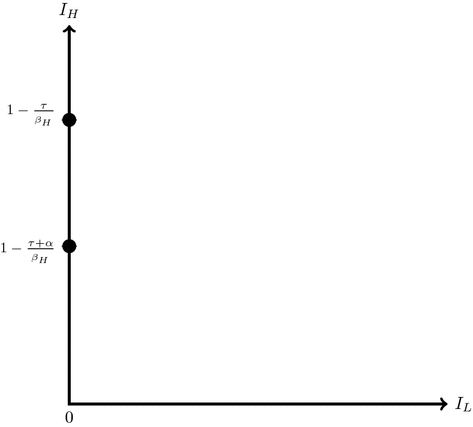

The set of feasible equilibria can be depicted graphically. Figure 1 shows the set of feasible equilibria when \(K>1\). The feasible set when \(K=1\) is shown in Fig. 2. Figure 3 shows the set of feasible equilibria when \(K<1\).¹¹ The graphs clearly illustrate the rising number of feasible equilibria as K falls.

Open image in new window

Open image in new window

Open image in new window

4.6.2 An intuitive explanation and some examples

It is useful to introduce some parameter values in order to better understand the policy implications of these results. There are, in total, five individual fixed points: three non-boundary fixed points (one of which is in fact a continuum of feasible fixed points with the same total prevalence across the two strains) and two asymptotic fixed points. Feasibility depends on the value of \(K=\left( \frac{\beta _{H}-\beta _{L}}{\beta _{L}}\right) \frac{\tau }{\alpha }\). In order for the interior fixed points to exist, we require \(K\le 1\). If \(K<1\) and \(K<\frac{\delta }{\alpha }\), then two non-boundary fixed points exist, which suggest the existence of a Skiba line. A further consideration is whether the assumption \(\beta _{H}>\beta _{L}>\tau +\alpha \) is satisfied, which ensures that the disease cannot be eradicated, even asymptotically.

Generally, the existence of a non-boundary fixed point with positive equilibrium prevalence of the disease requires the following conditions, where (a) to (c) ensure the existence of the non-boundary fixed points and (d) ensures that at this non-boundary fixed point, the disease is not eradicated.

1. (a)

   The relative difference between the infectivities, \(\frac{\beta _{H}-\beta _{L}}{\beta _{L}}\), is not too high.


2. (b)

   The natural recovery rate is not too high relative to the success rate of treatment: \(\frac{\tau }{\alpha }\) is not too high.


3. (c)

   The future is not discounted too highly: \(\delta \) is high enough.


4. (d)

   The infectivity probabilities, \(\beta _{H}\) and \(\beta _{L}\), are high relative to the recovery probabilities, \(\tau \) and \(\alpha \)



We can interpret these conditions in an intuitive way. In order for both strains of the disease to co-exist in equilibrium, we require that their infectivities are not too different. This is because if the High strain is much more infectious, then individuals will be much more susceptible to it relative to the Low strain, so that the Low strain will eventually die out (asymptotically). On the other hand, if the infection probabilities are similar but low, relative to the recovery probabilities, then both strains will die out, because the rate of reinfection is not high enough to ensure the survival of the disease. The magnitude of the natural recovery rate relative to the success rate of treatment is important because a high natural recovery rate will likely lead to the elimination of both strains of the disease, while a low value of \(\alpha \) will imply that treatment is ineffective (and a particular level of treatment is required to ensure that the disease survives at a positive, constant level in equilibrium). Finally, the condition on the discount rate arises because economic logic requires \(\lambda _{L}^{*}<0\) in the non-boundary fixed point \(F^{high}\); otherwise, the marginal social value of an additional infected person would be positive. Intuitively, not discounting the future too highly ensures that the impact of an additional infected person is felt for a longer period of time, hence ensuring that the marginal social impact of this infected person is negative at the fixed point.

Let us consider two examples that illustrate these points. First, suppose that \(\beta _{H}=0.9\), \(\beta _{L}=0.1\): the High strain is very infectious, relative to the Low strain. In order for \(K<1\), we require \(\tau <\frac{\alpha }{8} \): the treatment needs to be very effective, relative to the natural rate of recovery. In addition, we require \(\tau +\alpha <0.1\), in order for the disease to not be eradicated. One possible set of values for \((\tau ,\alpha )\) is (0.004, 0.04). Thus, in the example of a disease where the High strain is very infectious, the only way that both strains can co-exist in a non-boundary fixed point is when both the natural rate of recovery and the success rate of treatment are extremely low. Note that this example also requires a value of \(\delta >0.8\), which is reasonable, given that the economics literature usually assumes a discount rate of 0.95 or 0.99 (the latter is implied by an annual interest rate of 4%). If natural recovery is somewhat higher, e.g. if \(\tau =\alpha =0.04\), then we will end up in the situation where the Low strain is asymptotically eradicated, and the High strain prevails in equilibrium. If either the natural recovery rate or the treatment success are high, e.g. if \(\alpha =0.2\), even if \(\tau =0.004\), then both strains will be (asymptotically) eradicated.

Second, suppose that we have a very effective form of treatment with \(\alpha =0.9\), but individuals naturally recover from the disease only rarely, so that \(\tau =0.1\). In this case, the disease will be eradicated, because the condition \(\beta _{H}>\beta _{L}>\tau +\alpha \) can never be satisfied. Suppose that instead we have a disease where \(\alpha =0.8\) and \(\tau =0.1\). Here, we require \(\beta _{H}>\beta _{L}>0.9\), so that infection is almost guaranteed when a susceptible individual meets an infected individual of either strain. One combination of values of \(\left( \beta _{H},\beta _{L}\right) \) that ensures coexistence of both strains in equilibrium is (0.99, 0.95). This set of parameters requires \(\delta >0.004\), which is easily satisfied.

The general lesson from these examples is that where treatment is very successful, the disease needs to be highly infectious in order to prevail. An interesting finding is that the rate of natural recovery relative to the success of treatment is also important: coexistence of both strains is more likely when natural recovery is low, but the treatment is very successful. Finally, coexistence of both strains is more likely when they are similar in their infectivities. This makes sense intuitively, as the bigger the difference, the more likely that the infectivity of the High strain will cause the Low strain to die out.

4.6.3 Feasible policies along the path to the fixed points

Another area where restrictions on feasibility may apply is the choice of treatment policy along the path to the non-boundary fixed points. Policies along the path towards the fixed points will always be boundary policies (i.e. 0 or 1), as these are Most Rapid Approach Paths. We take each of the boundary policies in turn and examine the feasibility conditions required for \(I_{H}\) and \(I_{L}\) to converge to their equilibrium values if this is the chosen policy. Different feasibility constraints will exist depending on whether the system begins below or above each equilibrium; below means beginning at an initial level \(I_{H}^{0}+I_{L}^{0}<I_{H}^{*}+I_{L}^{*}\), which requires \(I_{H}\) and \(I_{L}\) to increase to their equilibrium values, while beginning above implies an initial prevalence \(I_{H}^{0}+I_{L}^{0}>I_{H}^{*}+I_{L}^{*}\), which requires \(I_{H}\) and \(I_{L}\) to decrease to their equilibrium values. Letting \(P^{ab}\) denote the policy \(f_{H}=a\), \(f_{L}=b\), the feasibility restrictions are summarised in Table 1. Derivations can be found in Appendix C.

Table 1

Feasible policies along the path

	\(\dot{I}_{H},\dot{I}_{L}>0\)	\(\dot{I}_{H},\dot{I}_{L}<0\)
\(P^{00}\)	\(1-\frac{\tau }{\beta _{L}}>I_{H}+I_{L}\)	\(1-\frac{\tau }{\beta _{H}}<I_{H}+I_{L}\)
\(P^{10}\)	\(1-\frac{\tau }{\beta _{L}}>I_{H}+I_{L}\)	\(1-\frac{\tau +\alpha }{\beta _{H}}<I_{H}+I_{L}\)
\(P^{11}\)	\(1-\frac{\tau +\alpha }{\beta _{L}}>I_{H}+I_{L}\)	\(1-\frac{\tau +\alpha }{\beta _{H}}<I_{H}+I_{L}\)
\(P^{01}\)	\(1-\frac{\tau +\alpha }{\beta _{L}}>I_{H}+I_{L}\)	\(1-\frac{\tau }{\beta _{H}}<I_{H}+I_{L}\)

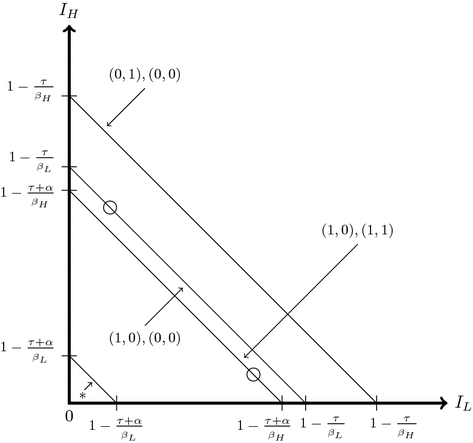

The table is interpreted as follows. If the system begins below \(I_{H}^{*}+I_{L}^{*}\), \(I_{H}\) and \(I_{L}\) need to increase. Not all policies can achieve this at all times: the range where the policy \(f_{H}=0,f_{L}=0\) will allow \(I_{H}\) and \(I_{L}\) to increase is given by the top left entry in the table. There is an upper bound on \(I_{H}+I_{L}\); if this condition is not satisfied, then setting \(f_{H}=0,f_{L}=0\) will cause the system to move away from an equilibrium. The conditions in the table are more clearly shown in graphical form in Fig. 4.

Open image in new window

The message of this figure is that when one starts below an equilibrium, feasible policies to reach the equilibrium usually involve treating no one or just one strain. This allows total prevalence to increase. On the other hand, when one starts above an equilibrium, feasible policies that ensure the equilibrium is reached treat at least one group, in order to ensure that prevalence falls. Thus, \(F^{high}\) and \(F^{low}\) can be reached from above with the policies \((f_{H},f_{L})=(1,0)\) and (1, 1), while they can be reached from below with the policies (1, 0) and (0, 0).

In this section, we provide examples of optimal policy under various parameter combinations. When \(K>1\), the candidate equilibria are \(A_{H}^{high}\) and \(A_{H}^{low}\). Simulations can tell us, under particular parameter values, which equilibrium it is optimal to go to, and what is the best way to get there. We explore the case when \(K>1\) in the first part of this section. Next, we consider the situation when \(K<1\). In this case, there is a wide set of feasible equilibria, and it is not possible to simulate an optimal choice of equilibrium because the derivations of optimal policy are only correct in the neighbourhood of each equilibrium. Instead, we suppose that it is optimal to go to the non-boundary fixed point \(F^{low}\), and simulate optimal policy towards this point. We find that, in all the simulations that we estimate, optimal policy involves a spiral. We argue that this suggests that the interior fixed points are unlikely to ever be an optimal target for the policymaker.¹²

5.1 Optimal policy when \(K>1\)

The values used for the parameters in the simulations are given in Table 3.

Table 3

Parameter values for K > 1

Parameter	Value
\(\beta _{H}\)	0.95
\(\beta _{L}\)	0.4
\(\tau \)	0.15
\(\alpha \)	0.2
p	1
\(\delta \)	0.111

Some relevant concepts ought to be explained at this stage. First, we examine both optimal fixed and optimal variable policy. Optimal fixed policy compares the social welfare from choosing various policies at the beginning and not changing them until equilibrium. Optimal variable policy uses the Hamiltonian optimality conditions (5) and (6) to evaluate optimal policy at each time increment, using a fourth-order Runge-Kutta procedure. Paths with optimal variable policy are described as Hamiltonian paths because they satisfy these Hamiltonian optimality conditions. In the case of variable policy, we examine both forward and backward paths. This means that, starting from an initial prevalence, we simulate the system both towards and away from the fixed point. This is carried out by setting time increments equal to \(+1\) and \(-1\) respectively. As a result, it is possible to describe a longer optimal path than if we were to only simulate the system towards equilibrium.

5.1.1 Fixed policy

In this first set of simulations, we assume that policy is fixed along the entire path to equilibrium. This is a special case that can guide intuition, as policy may not always have the benefit of full flexibility. We assume that the policymaker chooses \(f_{L}^{*}=1\), and compare social welfare V when \(f_{H}^{*}=1\) or \(f_{H}^{*}=0\). When the system begins, the policymaker chooses whether to treat everyone or no one infected with the High strain. The optimal policy is the choice of \(f_{H}^{*}\) that gives the highest value of social welfare.¹³ The simulations set \(t=90\). Each time increment can be interpreted as one day, which implies that the results simulate an infection evolving over 90 days. The initial prevalence of the Low strain is set to 0.1.

Results are shown in Table 4. Optimal policy depends on costs. Where costs are low, it is optimal to treat everyone infected with the High strain. As costs rise, it becomes optimal to treat no one with the High strain. There is a unique optimal policy in regions I and III; in region II, optimal policy depends on the initial prevalence of the High strain. If the High strain is very prevalent, it is optimal to treat no one. If it is not, it is optimal to treat everyone. This strongly suggests that there exists a value of \(I_{H}^{0}\) that is a Skiba point in Region II. By varying \(I_{H}^{0}\) by small increments in region II and evaluating social welfare at each initial value for the two candidate policies, we find that a Skiba point exists when \(I_{H}^{0}=0.7125\). At this point, the social welfare from selecting \(f_{H}^{*}=1\) or \(f_{H}^{*}=0\) is equal.¹⁴

Table 4

Optimal fixed policy as cost varies

Region	c	\(f_{H}^{*}\)	\(f_{L}^{*}\)
I (low costs)	\(c<0.2875\)	1	1
II (intermediate costs)	\(0.2875\le c\le 0.3006\)	0 or 1, depending on \(I_{H}^{0}\)	1
III (high costs)	\(c>0.3006\)	0	1

5.1.2 Variable policy

In this set of simulations we allow policy to vary optimally over time. We look for strictly Hamiltonian paths; that is, we look for paths that are optimal because they satisfy the first-order conditions on \(\lambda _{H}\) and \(\lambda _{L}\). For example, the policy \((f_{H}=1,f_{L}=1\)) is Hamiltonian at a particular point in time \(\bar{t}\) if \(\left| \lambda _{H}\right| ,\left| \lambda _{L}\right| >\frac{c}{\alpha }\) at \((I_{H}(\bar{t}),I_{L}(\bar{t}))\). In order to evaluate the Hamiltonian conditions, the co-state variables are needed at each point in time. These can be calculated using the facts that

$$\begin{aligned} \lambda _{H}(t)&=\frac{\partial V(I_{H}(t),I_{L}(t))}{\partial I_{H}(t)},\\ \lambda _{L}(t)&=\frac{\partial V(I_{H}(t),I_{L}(t))}{\partial I_{L}(t)}. \end{aligned}$$

These partial derivatives can be approximated by perturbing the infection levels slightly. Thus, for initial infection levels \(I_{H}^{0}\) and \(I_{L} ^{0}\), the initial values of the co-state variables are

$$\begin{aligned} \lambda _{H}^{0}&\approx \frac{V(I_{H}^{0}+\Delta ,I_{L}^{0})-V(I_{H} ^{0},I_{L}^{0})}{\Delta }, \end{aligned}$$

(25)

$$\begin{aligned} \lambda _{L}^{0}&\approx \frac{V(I_{H}^{0},I_{L}^{0}+\Delta )-V(I_{H} ^{0},I_{L}^{0})}{\Delta }, \end{aligned}$$

(26)

for small \(\Delta \). In these simulations we set \(\Delta =0.001\). For a given initial infection level, we find the initial values of the co-state variables \(\lambda _{H}^{0}\) and \(\lambda _{L}^{0}\) using (25) and (26), and find the corresponding optimal initial policy. We then allow the system to evolve, checking for optimal policy at each increment of time by re-evaluating \(\lambda _{H}(t)\) and \(\lambda _{L}(t)\) using the equations for \(\dot{\lambda }_{H}\) and \(\dot{\lambda }_{L}\) that were derived in Sect. 3. We also simulate the paths backwards, starting at the initial point \((I_{H}^{0},I_{L}^{0})\) but moving away from equilibrium.¹⁵ Together, the forward and backward paths give a fairly complete picture of optimal policy over a period of length 2t, with \((I_{H}^{0},I_{L}^{0})\) in the middle. In this set of simulations we set \(t=30\), so that overall we examine the behaviour of the infection over 60 days. We assume costs are \(c=0.4\) and set initial prevalence at \((I_{H}^{0},I_{L}^{0})=(0.6316,2*10^{-10})\).

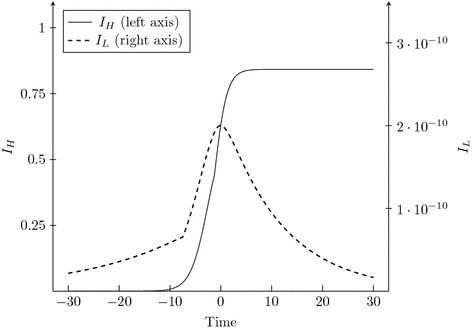

We find that the system tends towards the equilibrium where \(f_{H}^{*}=0\), so that \(I_{H}^{*}=0.8421=1-\frac{\tau }{\beta _{H}}\) and \(I_{L}^{*}\rightarrow 0.\) This is consistent with the findings in Table 4, as \(c=0.4\) falls into Region \(III\ \)of costs. The evolution of the two strains is depicted in Fig. 5. This figure shows both the forward and backward paths. We find that prevalence of \(I_{H}\) rises from a low initial point at first exponentially, and then roughly logarithmically until reaching the fixed point. Attainment of equilibrium takes approximately 15 days. The evolution of \(I_{L}\) takes a slightly different path. Prevalence first increases, and then decreases towards zero. This is because as \(I_{H}\) increases, there are fewer susceptibles that can become infected with the Low strain, so that the Low strain can be asymptotically eradicated.

Open image in new window

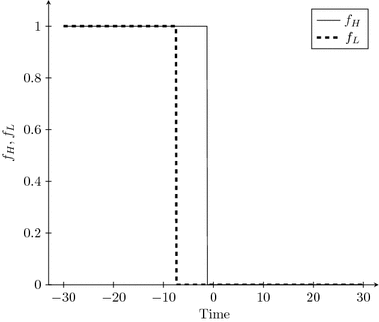

When examining the sequence of optimal policy, we find that optimal policy exhibits switch points. This is depicted in Fig. 6. The treatment of the High strain switches from one to zero just before the start of the forward path, while the treatment of the Low strain switches from one to zero earlier.

Open image in new window

Thus, optimal policy in this particular example has three phases:

$$\begin{aligned} f_{H}^{*}&=1,f_{L}^{*}=1,\\ f_{H}^{*}&=1,f_{L}^{*}=0,\\ f_{H}^{*}&=0,f_{L}^{*}=0. \end{aligned}$$

Thus, when policy is variable, it is always optimal to set \(f_{H}^{*}=0\) in equilibrium when \(c=0.4\). However, policy does not begin at this level: it switches from one to zero when the marginal cost of an additional infected individual in the population is low, relative to the cost of treating him. In addition, the asymptotic eradication of the Low strain is possible in the closing part of the path even when no one in the Low strain is treated. Since this is feasible, it is also optimal, as it is cheaper than treating unnecessarily.

5.2 Optimal policy when \(K<1\)

In this section we address the case when \(K<1\). In this regime, it is possible to have equilibria where both strains of the disease prevail. The parameter values are given in Table 5.

Table 5

Parameter values for K>1

Parameter	Value
\(\beta _{H}\)	0.8
\(\beta _{L}\)	0.4
\(\tau \)	0.15
\(\alpha \)	0.2
p	1
\(\delta \)	0.222

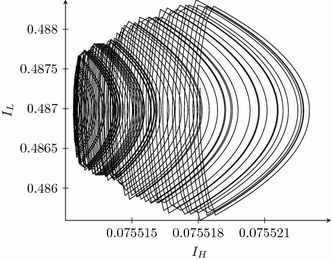

We simulate optimal policy in the region of one of the non-boundary fixed points. In particular, we assume that it is optimal to go to the fixed point \(F^{low}\), and simulate optimal policy backwards, starting from that fixed point. The evolution of prevalence is shown in Fig. 7.

Open image in new window

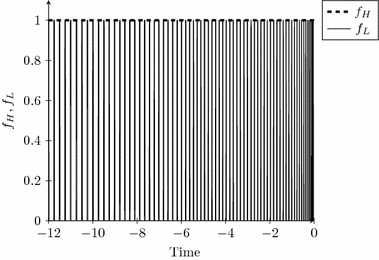

This figure clearly shows a spiral. These simulations suggest that non-boundary fixed points are never the end points of optimal paths. In every case examined, perturbing the fixed point solution and running the path backwards generates a high frequency cycle. Reversing the path from its end point generates an integral which is exceedingly large. Figure 8 shows the evolution of optimal policy along this same path. The treatment of the Low strain switches between zero and one many times. Therefore, we conclude that even in the case when \(K<1\), it is optimal to move to one of the boundary fixed points. It appears that coexistence of the two strains is never optimal.

Open image in new window

We have derived analytically the fixed points in an SIS model with two strains, where neither superinfection nor eradication of the strains are possible, and the policymaker has access to two separate treatment instruments. We have characterised two types of fixed points: non-boundary fixed points, where the two strains co-exist, and boundary fixed points, which involve the asymptotic eradication of one strain. The feasibility of these fixed points depends on parameter values: we have defined the parameter K, which delineates three regimes of feasibility. For \(K>1\), the only attainable equilibria are those where the Low strain is asymptotically eradicated and the High strain prevails. For \(K\le 1\), the coexistence of the two strains is a feasible equilibrium.

The simulations present two interesting results. First, when \(K>1\), optimal policy along the path to equilibrium exhibits switch points. This implies that a fixed policy is suboptimal. Further, in the neighbourhood of the equilibrium in our example, it is optimal to treat no one. This still allows the eradication of the Low strain. Second, when \(K<1\), we simulate optimal policy in the neighbourhood of one of the non-boundary fixed points. We find that optimal policy exhibits a spiral. This suggests that this equilibrium can never be the end point of an optimal path, and hence that coexistence, although feasible, is unlikely to be optimal. This suggests that for all values of K, the welfare-maximising policy is one that leads to one of the asymptotic equilibria.

Further research should consider extending this model to include protection via vaccination as another instrument available to the policymaker.
