Heat and Mass Transfer

, Volume 46, Issue 8–9, pp 1021–1022 | Cite as

Erratum to: Thermophoretic deposition of particles in fully developed mixed convection flow in a parallel-plate vertical channel

Erratum
First Online:
Received:
Accepted:
  • 326 Downloads

1 Erratum to: Heat Mass Transfer (2009) 45:503–509 DOI 10.1007/s00231-008-0443-z

Due to a typing error in the computer code, some results in the published paper are inaccurate. Therefore, we present here the corrected results.

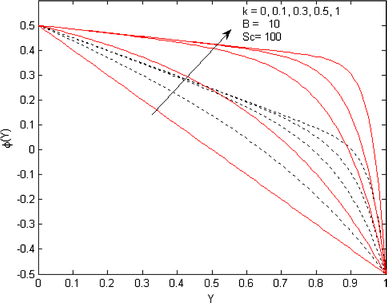

Fig. 3

Effect of the thermophoretic parameter k on particle concentration profile (full lines corrected results, dot lines incorrect results)

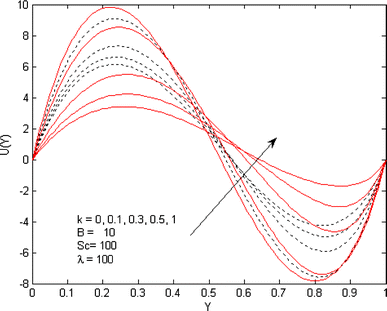

Fig. 4

Effect of the thermophoretic parameter k on the velocity profiles (full lines corrected results, dot lines incorrect results)

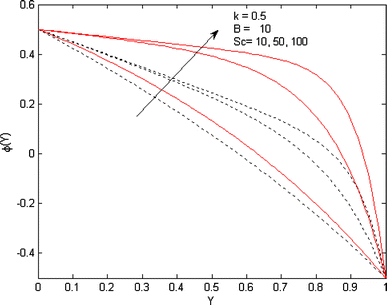

Fig. 5

Effect of the Schmidt number Sc on particle concentration profiles (full lines corrected results, dot lines incorrect results)

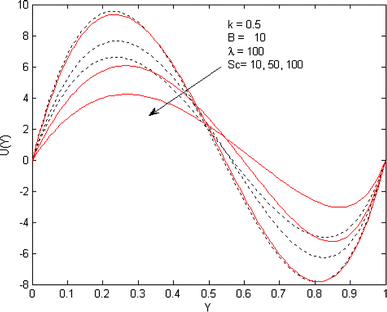

Fig. 6

Effect of the Schmidt number Sc on velocity profiles (full lines corrected results, dot lines incorrect results)

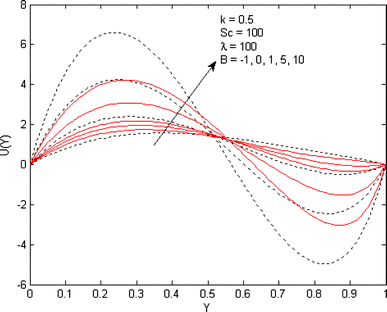

Fig. 7

Effect of the buoyancy ratio parameter B on velocity profiles (full lines corrected results, dot lines incorrect results)

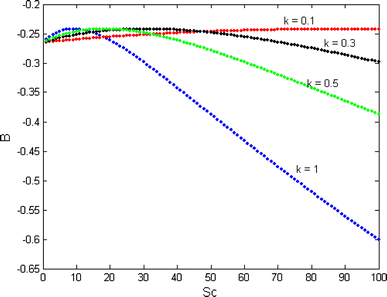

Fig. 8

Variation of B with Sc for k = 0.1, 0.3, 0.5 and 1 for which the reversed flow starts (corrected results)

Table 1

Values of the Sherwood number Sh for several values of Sc and k

Sc

\( \left. {Sh} \right|_{Y = 0} \)

\( \left. {Sh} \right|_{Y = 1} \)

k = 0.1

k = 0.5

k = 1

k = 0.1

k = 0.5

k = 1

0.1

0.999553

0.997768

0.996971

1.000485

1.002427

1.003167

1

0.995541

0.977898

0.956272

1.004858

1.024481

1.049434

10

0.956272

0.800225

0.643673

1.049434

1.265772

1.584567

100

0.643673

0.302246

0.294148

1.584567

5.004119

9.690096
