Mechanisms of human static spatial orientation

S. B. Bortolami; S. Rocca; S. Daros; P. DiZio; J. R. Lackner

doi:10.1007/s00221-006-0387-9

Experimental Brain Research

August 2006, Volume 173, Issue 3, pp 374–388 | Cite as

Mechanisms of human static spatial orientation

Authors
Authors and affiliations

S. B. BortolamiEmail author
S. Rocca
S. Daros
P. DiZio
J. R. Lackner

Research Article

First Online: 21 April 2006

Received: 13 May 2005

Accepted: 13 January 2006

180 Downloads
17 Citations

Abstract

We have developed a tri-axial model of spatial orientation applicable to static 1g and non-1g environments. The model attempts to capture the mechanics of otolith organ transduction of static linear forces and the perceptual computations performed on these sensor signals to yield subjective orientation of the vertical direction relative to the head. Our model differs from other treatments that involve computing the gravitoinertial force (GIF) vector in three independent dimensions. The perceptual component of our model embodies the idea that the central nervous system processes utricular and saccular stimuli as if they were produced by a GIF vector equal to 1g, even when it differs in magnitude, because in the course of evolution living creatures have always experienced gravity as a constant. We determine just two independent angles of head orientation relative to the vertical that are GIF dependent, the third angle being derived from the first two and being GIF independent. Somatosensory stimulation is used to resolve our vestibular model’s ambiguity of the up–down directions. Our otolith mechanical model takes into account recently established non-linear behavior of the force–displacement relationship of the otoconia, and possible otoconial deflections that are not co-linear with the direction of the input force (cross-talk). The free parameters of our model relate entirely to the mechanical otolith model. They were determined by fitting the integrated mechanical/perceptual model to subjective indications of the vertical obtained during pitch and roll body tilts in 1g and 2g force backgrounds and during recumbent yaw tilts in 1g. The complete data set was fit with very little residual error. A novel prediction of the model is that background force magnitude either lower or higher than 1g will not affect subjective vertical judgments during recumbent yaw tilt. These predictions have been confirmed in recent parabolic flight experiments.

Keywords

Spatial orientation Otolith organs Somatosensation Subjective vertical Gravity Orientation model

This is a preview of subscription content, to check access.

Notes

Acknowledgments

This research has been supported by AFSOR grant F49620110171 and NASA grant NAG9-1483.

Appendix

We model the otolith organs as if they were a single sensor located in the center of the head. The response of the combined sensor is the equal-weight sum or the difference of the signals coming from the right and left sides. The input to the sensor is the GIF (f′) with its components expressed as f′₁, f′₂, and f′₃ in otolith coordinates. The natural orientation of f′ is downward. The otolith organs individually are modeled as sets of three accelerometers capable of measuring the three components of the GIF (Fig. 11a). The response of the compound otolithic sensor $ \tilde{\mathbf{x}}'$ is defined as $(\tilde{x}^{\prime}_{1}, \tilde{x}^{\prime}_{2}, \tilde{x}^{\prime}_{3}),$ which is a function of f′. The tilde symbol, ∼, indicates internal representations of the physical variables which are presented without the tilde.

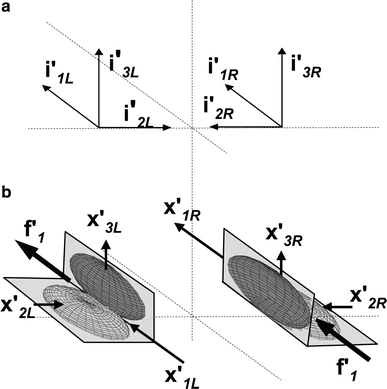

Fig. 11
a Reference frame and definition of variables for the right and left otolith organs and their respective arrangements; f′=(f′₁, f′₂, f′₃) represents the stimulus in otolith coordinates. The stimulus is the same on the left and right otoliths; however, the otoconial deflections are different for the left (x′_1L, x′_2L, x′_3L) and right (x′_1R, x′_2R, x′_3R) otoconia. b Schema of the cross-talks along the x′₂ and x′₃ axes produced by a stimulus (*thick arrow*) parallel to the i′₁ axis. Forces along the other cardinal otolith axes would produce analogous cross-displacements in the respective orthogonal axes

Sensor errors affect perceived orientation. Possible error sources include, but are not limited to, crosstalk and non-linearity of the otolith response. Displacement of the otoconia can be proportional to the applied force in relation to a stiffness k value:

$$ \tilde{x}^{\prime} = \frac{{f^{\prime}}}{k}$$

Linearity is rare in nature and generally does not extend over a broad range. Consequently, a more realistic way of addressing the mechanical characteristics of the otoliths is by introducing other terms in addition to the stiffness k:

$$ \tilde{x}^{\prime} = \frac{{f^{\prime}}}{k} + \frac{{(f^{\prime})^{n}}}{q}.$$

(11)

where 1/q is the coefficient of the nonlinear contribution (n>0). Non-linearity contributes to orientation errors in the following manner. Two GIFs having the same direction but different magnitudes would, because of non-linearity, generate non-proportional sets of sensed/estimated variables $(\tilde{x}^{\prime}_{1}, \tilde{x}^{\prime}_{2}, \tilde{x}^{\prime}_{3})$ and therefore different perceived directions.

Cross-talk among sensor axes, e.g.,

$$ \tilde{x}^{\prime}_{2} = \frac{{f^{\prime}_{2}}}{{k_{{22}}}} + \frac{{f^{\prime}_{3}}}{{k_{{23}}}}, $$

(12)

may produce sensor discharges in directions for which the GIF is not acting and consequently perception errors. An example of cross-talk is provided by Kondrachuk’s (2001) finite element modeling of the deformation of the gel layer and the otolithic membrane of the utricle of the guinea pig in response to a static force stimulus. He demonstrated that the direction of displacement of a generic point of the utricle is not necessarily parallel to the direction of the applied force and that a force parallel to one axis can also elicit a displacement along the other two axes.

We treat the mechanical response of the otoliths within their own reference frame (Fig. 1a). To transform the stimulus force f from the head reference frame (Figs. 1a, 2, 3) to the otolith frame we multiply it by the following rotation matrix:

$${\mathbf{f}}^{\prime} \triangleq {\mathbf{R}}_{y} (- 30)^{{\rm T}} \cdot {\mathbf{f}};\; {\mathbf{R}}_{y} (- 30)^{{\rm T}} = {\left[ {\begin{array}{*{20}c} {{\cos 30^\circ}} & {0} & {{\sin 30^\circ}} \\ {0} & {1} & {0} \\ {{- \sin 30^\circ}} & {0} & {{\cos 30^\circ}} \\ \end{array}} \right]}.$$

(13)

Taking relationships 11, 12, and 13 into account for all three axes, we obtain the following comprehensive representation of the compound otolith sensor:

$$\begin{aligned} \tilde{x}'_{1} &= a_{{11}} f^{\prime}_{a} + a_{{12}} f^{\prime}_{2} + a_{{13}} f^{\prime}_{3} + b_{{11}} (f^{\prime}_{1})^{n} + b_{{12}} (f^{\prime}_{2})^{n} + b_{{13}} (f^{\prime}_{3})^{n} \\ \tilde{x}^{\prime}_{2} &= a_{{21}} f^{\prime}_{1} + a_{{22}} f^{\prime}_{2} + a_{{23}} f^{\prime}_{3} + b_{{21}} (f^{\prime}_{1})^{n} + b_{{22}} (f^{\prime}_{2})^{n} + b_{{23}} (f^{\prime}_{3})^{n} \\ \tilde{x}^{\prime}_{3} &= a_{{31}} f^{\prime}_{1} + a_{{32}} f^{\prime}_{2} + a_{{33}} f^{\prime}_{3} + b_{{31}} (f^{\prime}_{1})^{n} + b_{{32}} (f^{\prime}_{2})^{n} + b_{{33}} (f^{\prime}_{3})^{n} \\ \end{aligned}, $$

which can be simplified as:

$$ \tilde{\mathbf{x}}^{\prime} = {\mathbf{Af}}^{\prime} + {\mathbf{B}}({\mathbf{f}}')^{n} $$

(14)

The coefficients a _ij and b _ij are the “compliances” ⁶ of the i axis associated with the f′_i force.

The paired otolith organs are oriented opposite to each other along the inter-aural axis and in the same direction along the sagittal plane (cf. also Spoendlin 1965; Wilson and Melvill Jones 1979; see Fig. 11a). This layout is appropriate if the combined signal along the inter-aural axis (i′₂) is the difference of the signals from the left and right otoliths (push–pull; cf. also Colenbrander 1964, Benson and Barnes 1970). Similarly, we can speculate that along the i′₁ and i′₃ axes the signals are the sums of signals of the two individual otoliths (pull–pull, cf. also Benson and Barnes 1970; Wilson and Melvill Jones 1979). Formally speaking, x′ = (x′_1L+x′_1R, x′_2L−x′_2R, x′_3L+x′_3R) represents the displacement of the combined otoconia. Hence, the inter-aural axis behaves symmetrically while the other two axes do not. In fact, along the inter-aural axis, at any given time, the stimulus on one utricle is just the opposite of that on the other (cf. Fig. 11a). Thus, whatever the response characteristics of a single utricle, the overall response of the pair, when combined, is symmetrical. Similar considerations apply to the saccule. Our experimental data for roll and recumbent yaw orientations also appear to be symmetrical, while the pitch data are not (Bortolami et al. 2006). This is consistent with the pull-pull signal configuration for the pitch axis, which is not necessarily bound to any symmetry.

Anatomical symmetries can help us identify potential patterns of cross-talk between mechanical axes. The sagittal plane is a plane of symmetry for the otolith organs. Figure 11b shows the pattern of displacements that would be produced by a force in the i′₁ direction. The components along the stimulated axis yield the main response, which represents the diagonal terms of the matrices A and B. The cross-talks, x′₂₁ and x′₃₁ relate to the coefficients (a ₂₁, b ₂₁) and (a ₃₁, b ₃₁) of the A and B matrices. The left and right contributions x′_21L and x′_21R are opposite to one another because of the symmetry of the two otoliths, but are equivalent in magnitude (at least in statistical terms, the otolith organs should have the same otoconial masses). Consequently, for the combined otoliths we obtain x′_21L+x′_21R=x′₂₁ ≅ 0. In turn, this implies a ₂₁=a ₂₁=0 and b ₂₁=b ₂₁=0. The same reasoning does not hold true for the x′₃₁ component since x′_31L has the same sign as x′_31R which yields a ₃₁ ≠ 0 and b ₃₁ ≠ 0.

Figure 11a presents the pattern for the inter-aural axis. Along this axis the cross-talks are opposite in sign, which yields a ₁₂=b ₁₂=a ₃₂=b ₃₂=0. Figure 11b shows the case for stimulation along the i′₃ axis. Here, a ₂₃ and b ₂₃ will be equal to zero, while a ₁₃ and b ₁₃ will be different from zero. This analysis indicates that all off-diagonal coefficients of the matrices A and B besides the two pairs (a ₁₃, b ₁₃) and (a ₃₁, b ₃₁) must be statistically zero. Our formulation would therefore predict that during roll body reorientation there might also be a slight perception of pitch tilt (a ₁₃, b ₁₃). We have not yet experimentally looked for the presence of such effects but shall in the future. In conclusion, the structure of the model’s matrices is as follows:

$${\mathbf{A}} = {\left[ {\begin{array}{*{20}c} {{a_{{11}}}} & {0} & {{a_{{13}}}} \\ {0} & {{a_{{22}}}} & {0} \\ {{a_{{31}}}} & {0} & {{a_{{33}}}} \\ \end{array}} \right]} \quad {\mathbf{B}} = {\left[ {\begin{array}{*{20}c} {{b_{{11}}}} & {0} & {{b_{{13}}}} \\ {0} & {{b_{{22}}}} & {0} \\ {{b_{{31}}}} & {0} & {{b_{{33}}}} \\ \end{array}} \right]}$$

(15)

The values of the coefficients of A and B must be compatible with the fact that each axis cannot move opposite to the applied force. This can be formulated as follows (cf. also Fig. 6) and requires that the response should be monotonic within physiological ranges.

$${\sum\limits_{j = 1}^3 {a_{{ij}} f^{\prime}_{j} + b_{{ij}} (f^{\prime}_{j})^{n}}} > 0; \quad i = 1\ldots3$$

A least-squares algorithm (MATLAB^TM 7.0: lsqnonlin) was used to determine the coefficients of A and B and the exponent n that best fit all of the experimental data for roll, pitch and recumbent yaw shown in Fig. 4. The model estimates the perceived vertical and not an Euler angle sequence of the head orientation. From the components of $\hat{\mathbf{g}},$ we derived roll, pitch and recumbent yaw projection angles. The derived angles $(\hat{\varphi}_{R}, \hat{\varphi}_{P}, \hat{\varphi}_{Y})$ were compared against the experimental data to calculate the goodness of the prediction/fit. The least-squares algorithm then adjusted the matrices A and B and the exponent n until the fit did not improve with additional iterations.

We identified the coefficients of the model by both imposing (9 parameters) and not imposing (11 parameters) a ₁₃=a ₃₁ and b ₁₃=b ₃₁. Both led to comparable fits (Fig. 4). Further reduction of the number of parameters resulted in a worse fit as shown in Fig. 10. The identified characterization of the input–output model of the otolith (nine parameters) relative to the plots displayed in Figs. 5 and 6 is as follows:

$${\left\{{\begin{array}{*{20}c} {{\tilde{x}^{\prime}_{1}}} \\ {{\tilde{x}^{\prime}_{2}}} \\ {{\tilde{x}^{\prime}_{3}}} \\ \end{array}} \right\}} = {\left[ {\begin{array}{*{20}c} 1.7527 & {0} & - 1.7268 \\ {0} & 2.5561 & {0} \\ - 1.7268 & {0} & 1.7693 \\ \end{array}} \right]}{\left\{{\begin{array}{*{20}c} {{f^{\prime}_{1}}} \\ {{f^{\prime}_{2}}} \\ {{f^{\prime}_{3}}} \\ \end{array}} \right\}} + {\left[ {\begin{array}{*{20}c} 0.6489 & {0} & 1.7450 \\ {0} & - 0.5545 & {0} \\ 1.7450 & {0} & 0.5927 \\ \end{array}} \right]}{\left\{{\begin{array}{*{20}c} {{f^{\prime}_{1}}} \\ {{f^{\prime}_{2}}} \\ {{f^{\prime}_{3}}} \\ \end{array}} \right\}}^{1.5217}$$

(16)

The terms f′_i have dimensions of accelerations while the matrix coefficients, “compliances”, have dimensions [s²]. Finally, for clarity we report the flow chart of the actual implementation of the model.

$$ \tilde{\mathbf{x}} = {\mathbf{R}}_{y} (30)^{{\rm T}} \cdot \tilde{\mathbf{x}}^{\prime}$$

$\overset{\lower0.5em\hbox{$\smash{\scriptscriptstyle\frown}$}}{\varphi} _{{RP}} = atan2 {\left( {{\left| {\frac{f} {g}} \right|}\frac{{{\sqrt { \tilde{x}^{2}_{1} + \tilde{x}^{2}_{2} } }}} {{ - \tilde{x}_{3} }}} \right)}$ ⁷

$$\overset{\lower0.5em\hbox{$\smash{\scriptscriptstyle\frown}$}}{\varphi} _{Y} = atan2{\left({\frac{{\tilde{x}_{2}}}{{\tilde{x}_{1}}}} \right)}$$

These lead to the following estimates of the gravity vector with respect to the head:

$$\begin{aligned} \hat{g}_{1} &= \sin (\overset{\lower0.5em\hbox{$\smash{\scriptscriptstyle\frown}$}}{\varphi} _{{RP}}) \cdot \cos(\overset{\lower0.5em\hbox{$\smash{\scriptscriptstyle\frown}$}}{\varphi} _{Y})\\ \hat{g}_{2} &= \sin (\overset{\lower0.5em\hbox{$\smash{\scriptscriptstyle\frown}$}}{\varphi} _{{RP}}) \cdot \sin(\overset{\lower0.5em\hbox{$\smash{\scriptscriptstyle\frown}$}}{\varphi} _{Y})\\ \hat{g}_{3} &= - \cos (\overset{\lower0.5em\hbox{$\smash{\scriptscriptstyle\frown}$}}{\varphi} _{{RP}})\\ \end{aligned}$$

This is the model output. However, to compare with the experimental data for the purpose of parameter identification we used the following projection angles, which are not an Euler sequence.

$$\begin{aligned} \hat{\varphi}_{R} &= atan2 {\left({\frac{- \hat{g}_{2}}{- \hat{g}_{3}}} \right)}\\ \hat{\varphi}_{P} &= atan2{\left({\frac{\hat{g}_{1}}{-\hat{g}_{3}}} \right)}\\ \hat{\varphi}_{Y} &= atan2{\left({\frac{\hat{g}_{2}}{-\hat{g}_{1}}} \right)}\\ \end{aligned}$$

The above representation is singular for $\hat{\mathbf{g}} \equiv (1,0,0),$ $\hat{\mathbf{g}} \equiv (0,1,0),$ and $\hat{\mathbf{g}} \equiv (0,0,1),$ for which the estimations of $\hat{\varphi}_{R},$ $\hat{\varphi}_{P},$ and $\hat{\varphi}_{Y} $ were extended for continuity.

References

Angelaki DE, McHenry MQ, Dickman JD, Newlands SD, Hess BJM (1999) Computation of inertial motion: neural strategies to resolve ambiguous otolith information. J Neurosci 19:316–327PubMedGoogle Scholar
Bauermeister M, Werner H, Wapner S (1964) The effect of body tilt on tactual-kinesthetic perception of verticality. Am J Psychol 77:451–456PubMedCrossRefGoogle Scholar
Benson AJ, Barnes GR (1970) Responses to rotating linear acceleration vectors considered in relation to a model of the otolith organs. In: The role of the vestibular organs in space exploration. NASA SP-314, pp 222–236Google Scholar
Bortolami SB, Pierobon A, DiZio P, Lackner JR (2006) Localization of the subjective vertical during roll, pitch and recumbent yaw body tilt. Exp Brain Res. DOI 10.1007/s00221-006-0385-y (current issue)Google Scholar
Bos J, Bles W (2002) Theoretical considerations on canal-otolith interaction and an observer model. Biol Cybern 86:191–207PubMedCrossRefGoogle Scholar
Brown JL (1961) Orientation to the vertical during water immersion. Aerosp Med 32:209–217Google Scholar
Bryan AS, Ventura J, Bortolami SB, DiZio P, Lackner JR (2004) Localization of subjective vertical and head midline during recumbent yaw tilt in altered gravitoinertial force environments. Soc Neurosci Abst 868.1Google Scholar
Clark B, Graybiel A (1966) Factors contributing to the delay in the perception of the oculogravic illusion. Am J Psychol 79:377–388PubMedCrossRefGoogle Scholar
Clark B, Graybiel A (1968) Influence of contact cues on the perception of the oculogravic illusion. Acta Otolaryngol 65:373–380PubMedCrossRefGoogle Scholar
Colenbrander A (1964) Eye and otoliths. Aeromed Acta 9:45–91Google Scholar
Correia MJ, Hixson WC, Niven JI (1968) On predictive equations for subjective judgments of vertical and horizon in a force field. Acta Otolaryngol Suppl 230:1–20Google Scholar
Fernandez C, Goldberg JM, Abend WK (1972) Response to static tilts of peripheral neurons innervating otolith organs of the squirrel monkey. J Neurobiol 35:978–997Google Scholar
Glassauer S, Merfeld DM (1997) Modeling three dimensional vestibular responses during complex motion stimulation. In: Ketter M, Haslwanter T, Minslisch H, Tweed D (eds) Three dimensional kinematics of eye, head, and limb movements in health and disease. Harwood, Amsterdam, pp 387–398Google Scholar
Grant W, Best W (1987) Otolith-organ mechanics: lumped parameter model and dynamic response. Aviat Space Environ Med 58:970–976PubMedGoogle Scholar
Grant JW, Huang CC, Cotton JR (1994) Theoretical mechanical frequency response of the otolith organs. J Vestib Res 4:137–151PubMedGoogle Scholar
Graybiel A, Clark B (1965) Validity of the oculogravic illusion as a specific indicator of otolith function. Aerosp Med 36:1173–1180Google Scholar
Graybiel A, Patterson JL (1955) Thresholds of stimulation of the otolith organs as indicated by the oculogravic illusion. J Appl Physiol 7:666–670PubMedGoogle Scholar
Graybiel A, Miller EF, Newsom BD, Kennedy RS (1968) The effect of water immersion on perception of the oculogravic illusion in normal and labyrinthine-defective subjects. Acta Otolaryngol 65:599–610PubMedCrossRefGoogle Scholar
Haslwanter T, Jaeger R, Mayr S, Fetter M (2000) Three-dimensional eye-movement responses to off-vertical axis rotations in humans. Exp Brain Res 134:96–106PubMedCrossRefGoogle Scholar
Howard IP, Templeton WB (1966) Human spatial orientation. Wiley, LondonGoogle Scholar
Jarchow T, Mast FW (1999) The effect of water immersion on postural and visual orientation. Aviat Space Environ Med 70:879–886PubMedGoogle Scholar
Kalman RE (1960) A new approach to linear filtering and prediction problems. J Basis Eng 82:35–45Google Scholar
Kaptein RG, Van Gisbergen JA (2004) Interpretation of a discontinuity in the sense of verticality at large body tilt. J Neurophysiol 91:2205–2214PubMedCrossRefGoogle Scholar
Kondrachuk AV (2001) Finite element modeling of the 3D otolith structure. J Vestib Res 11:13–32PubMedGoogle Scholar
Lackner JR (1992) Spatial orientation in weightless environments. Perception 656:329–399Google Scholar
Lackner JR, Graybiel A (1978a) Postural illusions experienced during z-axis recumbent rotation and their dependence upon somatosensory stimulation of the body surface. Aviat Space Environ Med 49:484–488PubMedGoogle Scholar
Lackner JR, Graybiel A (1978b) Some influences of touch and pressure cues on human spatial orientation. Aviat Space Environ Med 49:798–804PubMedGoogle Scholar
Lackner JR, Graybiel A (1979) Parabolic flight loss of sense of orientation. Science 206:1105–1108PubMedCrossRefGoogle Scholar
Magnus R (1924) Körperstellung. Springer, Berlin Heidelberg New YorkGoogle Scholar
Maxwell SS (1923) Labyrinth and equlibrium. Saunders, PhiladelphiaGoogle Scholar
Mayne R (1950) The dynamic characteristics of the semicircular canals. J Comp Physiol 43:309–319Google Scholar
Mayne R (1974) Vestibular system part 2: psychophysics, applied aspects and general interpretations. In: Kornhuber HH (eds) Handbook of sensory physiology. Springer, Berlin Heidelberg New York, pp 494–580Google Scholar
Meiry JL (1966) The vestibular system and human dynamic space orientation. NASAGoogle Scholar
Meiry JL, Young LR (1967) Biophysical evaluation of the human vestibular system. In: Third Semi-Annual Status Report on NASA 1-14, Grant 22-009-156Google Scholar
Merfeld DM (1995) Modeling the vestibulo-ocular reflex of the squirrel monkey during eccentric rotation and roll tilt. Exp Brain Res 106:123–134PubMedCrossRefGoogle Scholar
Merfeld DM, Zupan LH (2002) Neural processing of gravitoinertial cues in humans. III. Modeling tilt and translation responses. J Neurophysiol 87:819–833PubMedGoogle Scholar
Merfeld DM, Zupan LH, Peterka RJ (1999) Humans use internal models to estimate gravity and linear acceleration. Nature 398:615–618PubMedCrossRefGoogle Scholar
Merfeld DM, Zupan LH, Gifford CA (2001) Neural processing of gravito-inertial cues in humans. II. Influence of the semicircular canals during eccentric rotation. J Neurophysiol 85:1648–1660PubMedGoogle Scholar
Miller EF, Graybiel A (1964) Magnitude of gravitoinertial force, an independent variable in egocentric visual localization of the horizontal. U.S. Naval School of Aviation Medicine, Pensacola, FL, Report No. 98, 31 July 1964Google Scholar
Miller EF, Fregly A, Graybiel A (1968) Visual horizontal perception in relation to otolith-function. Am J Psychol LXXXI:488–496Google Scholar
Mittelstaedt H, Fricke E (1988) The relative effect of saccular and somatosensory information on spatial perception and control. Adv Otorhinolaryngol 42:24–30PubMedGoogle Scholar
Mittlestaedt H (1983) A new solution to the problem of the subjective vertical. Naturwissenschaften 70:272–281CrossRefGoogle Scholar
Murray RM, Zexiang L, Sastry SS (1994) A mathematical introduction to robotic manipulation. CRC Press, Boca RatonGoogle Scholar
Oman CM (1982) A heuristic mathematical model for the dynamics of sensory conflict and motion sickness. Acta Otolaryngol Suppl 392:1–44PubMedGoogle Scholar
Ormsby CC (1974) Model of human dynamic orientation. PhD Dissertation. M.I.T. 1-1-1974Google Scholar
Ormsby CC, Young LR (1976) Perception of static orientation in a constant gravitoinertial environment. Aviat Space Environ Med 47:159–164PubMedGoogle Scholar
Ormsby CC, Young LR (1977) Integration of semicircular canal and otolith information for multisensory orientation stimuli. Math Biosci 34:1–21CrossRefGoogle Scholar
Savage PG (2000) Strapdown analytics. Strapdown Associates, Inc. Maple PlainGoogle Scholar
Schöne H (1964) On the role of gravity in human spatial orientation. Aerosp Med 35:764–772Google Scholar
Spoendlin HH (1965) Ultrastructural studies of the labyrinth in squirrel monkeys. NASA SP-77, Pensacola, pp 7–22Google Scholar
Van Beuzekom AD, Van Gisbergen JA (2000) Properties of the internal representation of gravity inferred from spatial-direction and body-tilt estimates. J Neurophysiol 84:11–27PubMedGoogle Scholar
Will CM (1981) Experimental test of Einstein equivalence principle. Theory and experimentation in gravitational theory. Cambridge University Press, Cambridge, p 27Google Scholar
Wilson VJ, Melvill Jones (1979) Mammalian vestibular physiology. Plenum, New YorkGoogle Scholar
Young LR, Meiry JL, Yao T Li (1966) Control engineering approaches to human dynamic space orientation. In: Role of vestibular organs in space exploration, NASA SP-115 U.S. Govt. printing office, Washington DC, pp 217–227Google Scholar
Zupan LH, Merfeld DM, Darlot C (2002) Using sensory weighting to model the influence of canal, otolith and visual cues on spatial orientation and eye movements. Biol Cybern 86:209–230PubMedCrossRefGoogle Scholar
