Analytical and Bioanalytical Chemistry

, Volume 399, Issue 5, pp 1869–1875 | Cite as

An inexpensive thread-based system for simple and rapid blood grouping

  • David R. Ballerini
  • Xu Li
  • Wei Shen
Original Paper
First Online:
Received:
Revised:
Accepted:

Abstract

This study investigates the use of thread as a flexible and low-cost substrate for the rapid grouping of blood. The use of a capillary substrate such as thread for blood grouping utilises the sensitivity of the flow resistance of large particles in narrow capillary channels to separate agglutinated red blood cells (RBCs) from plasma. Large and discrete particles formed in a continuous liquid phase do not provide capillary wicking driving force and fall behind the capillary wicking front, leading to their separation from the wicking liquid. The capillary substrate therefore provides a very promising but different mechanism for the separation of the agglutinated RBCs and the blood serum phase compared to most existing blood grouping methods. The principle of chromatographic separation is also exploited in this study via the use of suitable dyes to enhance the visual detection of the agglutinated RBCs and the serum phase; surprising and encouraging outcomes are obtained. Using a thread-based device, the ABO and Rh groups can be successfully determined with only 2 μL of whole blood from a pricked finger tip within 1 min and without pre-treatment of the blood sample. It is hoped that a new, inexpensive, rapid and simple method may provide an easy-to-use blood grouping platform well suited to those in developing or remote regions of the world.

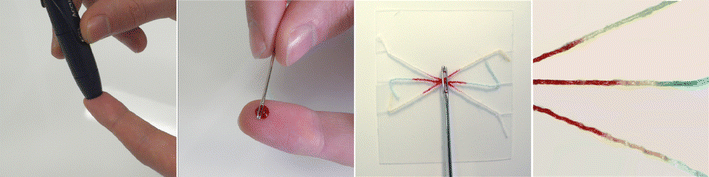

Figure

The use of a single-step thread-based blood testing device

Keywords

Blood typing Thread-based Point of care Microfluidic Low-cost Developing regions
This is a preview of subscription content, log in to check access.

Notes

Acknowledgments

This work is supported by the Australian Research Council Grant (DP1094179). The authors would like to thank the kind blood donors; Mr. Scot Sharman, Mr. Henri Kröling and Mr. Junfei Tian whose donations have made this work possible as well as Ms. Lisa Collison of the Monash University Health Service for collecting blood donations. The authors also thank Dr. Lijing Wang of the School of Fashion and Textiles, RMIT University, for kindly providing thread and textile samples. The research scholarships of Monash University and the Department of Chemical Engineering are gratefully acknowledged.

References

  1. 1.
    Daniels G, Bromilow I (2007) Essential guide to blood groups. Blackwell, Oxford, UKCrossRefGoogle Scholar
  2. 2.
    Joshi et al VDJ (2006) Anatomy and physiology for nursing and health care. BIGoogle Scholar
  3. 3.
    Daniels G, Reid ME (2010) Transfusion 50(2):281–289CrossRefGoogle Scholar
  4. 4.
    Dean L (2005) Blood groups and red cell antigens. National Center for Biotechnology Information (NCBI), Bethesda, MD, USGoogle Scholar
  5. 5.
    Malomgré W, Neumeister B (2009) Anal Bioanal Chem 393(5):1443–1451CrossRefGoogle Scholar
  6. 6.
    Storry JR, Olsson ML, Reid ME (2007) Transfusion 47:73S–78SCrossRefGoogle Scholar
  7. 7.
    Pramanik D (2010) Principles of physiology, 3rd edn. Academic, KolkataGoogle Scholar
  8. 8.
    Estridge BH, Reynolds AP, Walters NJ (2000) Basic medical laboratory techniques. Delmar Cengage Learning, Albany, NY, USAGoogle Scholar
  9. 9.
    Llopis F, Carbonell-Uberos F, Montero MC, Bonanad S, Planelles MD, Plasencia I, Riol C, Planells T, Carrillo C, De Miguel A (1999) Vox Sang 77(3):143–148CrossRefGoogle Scholar
  10. 10.
    Llopis F, Carbonell-Uberos F, Planelles M, Montero M, Puig N, Atienza T, Alba E, Montoro J (1997) Vox Sang 72(1):26–30CrossRefGoogle Scholar
  11. 11.
    Spindler JH, ter Kl H, Kerowgan M (2001) Transfusion 41:627–632CrossRefGoogle Scholar
  12. 12.
    Langston MM, Procter JL, Cipolone KM, Stroncek DF (1999) Transfusion 39(3):300–305CrossRefGoogle Scholar
  13. 13.
    Lapierre Y, Rigal D, Adam J, Josef D, Meyer F, Greber S, Drot C (1990) Transfusion 30(2305438):109–113CrossRefGoogle Scholar
  14. 14.
    Plapp F, Rachel J, Sinor L (1986) Lancet 327(8496):1465–1466CrossRefGoogle Scholar
  15. 15.
    Giebel F, Picker SM, Gathof BS (2008) Transfus Med Hemoth 35(1):33–36CrossRefGoogle Scholar
  16. 16.
    Khan MS, Thouas G, Shen W, Whyte G, Garnier G (2010) Anal Chem 82(10):4158–4164CrossRefGoogle Scholar
  17. 17.
    Li X, Tian J, Shen W (2009) ACS Appl Mater Interfaces 2(1):1–6CrossRefGoogle Scholar
  18. 18.
    Gregory P (1991) High-technology applications of organic colorants. Plenum, New York, NY, USAGoogle Scholar
  19. 19.
    Scott WE (1996) Principles of wet end chemistry. TAPPI, AtlantaGoogle Scholar

Copyright information

© Springer-Verlag 2011

Authors and Affiliations

  1. 1.Department of Chemical EngineeringMonash UniversityMelbourneAustralia
