Structural and Multidisciplinary Optimization

, Volume 45, Issue 3, pp 417–431 | Cite as

Novel insights for multi-objective optimisation in engineering using Normal Boundary Intersection and (Enhanced) Normalised Normal Constraint

Research Paper
First Online:
Received:
Revised:
Accepted:

Abstract

Normal Boundary Intersection (NBI) and (Enhanced) Normalised Normal Constraint (E)NNC are attractive and popular approaches to generate an approximation of the Pareto set in nonlinear multi-objective optimisation problems. All three methods are based on similar ideas, but do not always yield identical results, which may confuse practitioners. Hence, the current paper provides theoretical insights in the conditions under which identical results are obtained. Typically, NBI and ENNC are able to generate the same candidate Pareto points, if all additional inequalities in the ENNC subproblem are active. In general, NBI and NNC do not return the same points when three or more objectives are considered. Equivalence relations between the resulting lagrange multipliers for the additional NBI and ENNC (in)equality constraints have been derived. Moreover, the obtained relations have lead to novel criteria for detecting non-Pareto optimal points that in adverse situations maybe generated by these methods. The major advantage is that the removal criteria do not rely on a time-consuming pairwise comparison but only need matrix multiplications. A Matlab implementation has been added for completeness. The insights are illustrated for a general nonlinear bi-objective and three-objective optimisation problem, and a dynamic three-objective tubular reactor optimisation problem from chemical engineering. Finally, practical guidelines are added.

Keywords

Multiobjective optimization Optimal control (Enhanced) Normalized Normal Constraint Normal Boundary Intersection
This is a preview of subscription content, log in to check access.

Notes

Acknowledgments

Work supported in part by Projects OT/10/035, OPTEC (Center-of-Excellence Optimization in Engineering) PFV/10/002 and SCORES4CHEM KP/09/005 of the Katholieke Universiteit Leuven, and by the Belgian Program on Interuniversity Poles of Attraction, initiated by the Belgian Federal Science Policy Office. J.F. Van Impe holds the chair Safety Engineering sponsored by the Belgian chemistry and life sciences federation essenscia.

Supplementary material

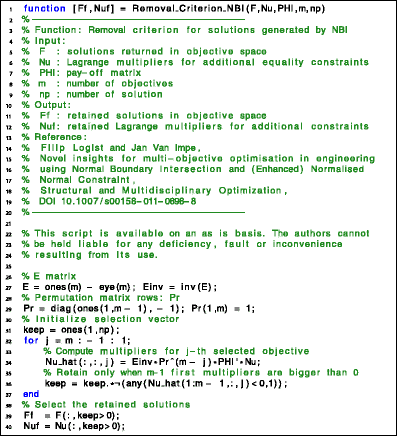

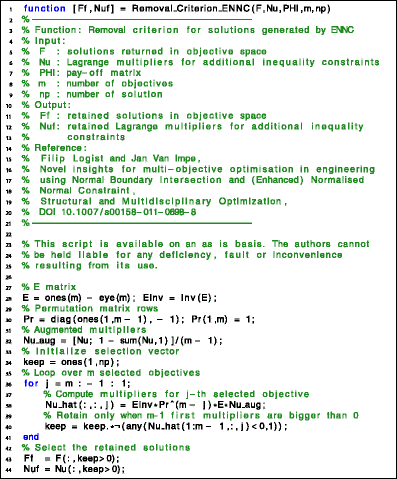

158_2011_698_MOESM1_ESM.m (2 kb)
(M File 1.61 KB)
158_2011_698_MOESM2_ESM.m (1 kb)
(M File 1.48 KB)

References

  1. Das I, Dennis J (1997) A closer look at drawbacks of minimizing weighted sums of objectives for Paretoset generation in multicriteria optimization problems. Struct Optim 14:63–69CrossRefGoogle Scholar
  2. Das I, Dennis J (1998) Normal-boundary intersection: a new method for generating the Pareto surface in nonlinear multicriteria optimization problems. SIAM J Optim 8:631–657MathSciNetMATHCrossRefGoogle Scholar
  3. Houska B, Ferreau H, Diehl M (2011) ACADO Toolkit—an open-source framework for automatic control and dynamic optimization. Optim Control Appl Methods 32:298–312MathSciNetMATHCrossRefGoogle Scholar
  4. Kim I, de Weck O (2005) Adaptive weighted-sum method for bi-objective optimization: Pareto front generation. Struct Multidisc Optim 29:149–158CrossRefGoogle Scholar
  5. Logist F, Smets I, Van Impe J (2008) Derivation of generic optimal reference temperature profiles for steady-state exothermic jacketed tubular reactors. J Process Control 18:92–104CrossRefGoogle Scholar
  6. Logist F, Houska B, Diehl M, Van Impe J (2010a) Fast pareto set generation for nonlinear optimal control problems with multiple objectives. Struct Multidisc Optim 42:591–603CrossRefGoogle Scholar
  7. Logist F, Sager S, Kirches C, Van Impe J (2010b) Efficient multiple objective optimal control of dynamic systems with integer controls. J Process Control 20:810–822CrossRefGoogle Scholar
  8. Marler R, Arora J (2004) Survey of multi-objective optimization methods for engineering. Struct Multidisc Optim 26:369–395MathSciNetCrossRefGoogle Scholar
  9. Messac A, Mattson C (2004) Normal constraint method with guarantee of even representation of complete Pareto frontier. AIAA J 42:2101–2111CrossRefGoogle Scholar
  10. Messac A, Ismail-Yahaya A, Mattson C (2003) The normalized normal constraint method for generating the Pareto frontier. Struct Multidisc Optim 25:86–98MathSciNetCrossRefGoogle Scholar
  11. Miettinen K (1999) Nonlinear multiobjective optimization. Kluwer Academic Publishers, BostonMATHGoogle Scholar
  12. Sanchis J, Martinez M, Blasco X, Salcedo J (2008) A new perspective on multiobjective optimization by enhanced normalized normal constraint method. Struct Multidisc Optim 36:537–546CrossRefGoogle Scholar

Copyright information

© Springer-Verlag 2011

Authors and Affiliations

  1. 1.Chemical and Biochemical Process Technology and Control (BioTeC) & Optimization in Engineering Center (OPTEC), Department of Chemical EngineeringK.U. LeuvenLeuvenBelgium
