Metal Contamination and the Epidemic of Congenital Birth Defects in Iraqi Cities
- First Online:
- 9.9k Downloads
Between October 1994 and October 1995, the number of birth defects per 1,000 live births in Al Basrah Maternity Hospital was 1.37. In 2003, the number of birth defects in Al Basrah Maternity Hospital was 23 per 1,000 live births. Within less than a decade, the occurrence of congenital birth defects increased by an astonishing 17-fold in the same hospital. A yearly account of the occurrence and types of birth defects, between 2003 and 2011, in Al Basrah Maternity Hospital, was reported. Metal levels in hair, toenail, and tooth samples of residents of Al Basrah were also provided. The enamel portion of the deciduous tooth from a child with birth defects from Al Basrah (4.19 μg/g) had nearly three times higher lead than the whole teeth of children living in unimpacted areas. Lead was 1.4 times higher in the tooth enamel of parents of children with birth defects (2,497 ± 1,400 μg/g, mean ± SD) compared to parents of normal children (1,826 ± 1,819 μg/g). Our data suggested that birth defects in the Iraqi cities of Al Basrah (in the south of Iraq) and Fallujah (in central Iraq) are mainly folate-dependent. This knowledge offers possible treatment options and remediation plans for at-risk Iraqi populations.
KeywordsIraq Metal exposure Human birth defects Folate-dependent birth defects
It is old knowledge that exposure to chemicals can harm human reproduction. Ancient Romans were aware that lead (Pb) poisoning can cause miscarriage and infertility (Gilfillan 1965; Retief and Cilliers 2006). Today it is well established that human pregnancy and fetal development are susceptible to parents’ environmental exposure to chemical, biological and physical agents (Mattison 2010). A new concept of the developmental origins of health and disease has also emerged which is defined as the process through which the prenatal environment, or the environment during infancy, shapes the long-term control of tissue physiology and homeostasis (Barker 2004). We know that even slight perturbations caused by chemical exposures during sensitive periods of fetal development can lead to increased risks of disease throughout the life of an individual (Sutton et al. 2010).
Pregnant mothers and their growing fetuses are especially vulnerable to exposure to pollutants. Air and water pollution, exposure to toxic metals, and exposure to persistent and volatile organics have been linked to adverse pregnancy and developmental outcomes (Landrigan et al. 2004; Bocskay et al. 2005). Recently, an unusual number of birth defects, in many bombarded Iraqi cities, has raised international concern and a few relevant studies have been published (Alaani et al. 2011a; 2011b; Al-Ani et al. 2010). Following bombardment, severe contamination of water, soil, and air can occur. Metal contamination of the public after bombardment has been reported (Jergovic et al. 2010). Jergovic et al. (2010) examined the blood serum metal content of the Croatian population in areas with “moderate fighting” versus “heavy fighting”. They found significantly higher levels of metals in populations from areas with heavy fighting. Those areas had been targeted for repeated bombardments by the North Atlantic Treaty Organization in 1991 and 1995. Various metals are contained in US small arms ammunition, and are contained in US bombs (Departments of the Army, the Navy, the Air Force, Joint Technical Bulletin, 1998; US Department of the Army Technical Manual, 1990).
Intermittent bombing of populated cities in Iraq has occurred since 1991. Most significant was the bombardment of Fallujah, a city in central Iraq, and Al Basrah, a city in southern Iraq. Fallujah was heavily bombed in 2004. Subsequently, unusual numbers of birth defects have been surfacing in that city. Al Basrah was also a target of heavy bombing (December 1998, March and April 2003). Similar to Fallujah, after the 2003 invasion and occupation of Iraq, the medical staff in Al Basrah Maternity Hospital has been witnessing a pattern of increase in congenital birth defects. Based on these observations, many suspect that pollution created by the bombardment of Iraqi cities has caused the current birth defect crisis in that country (Al-Hadithi et al. 2012).

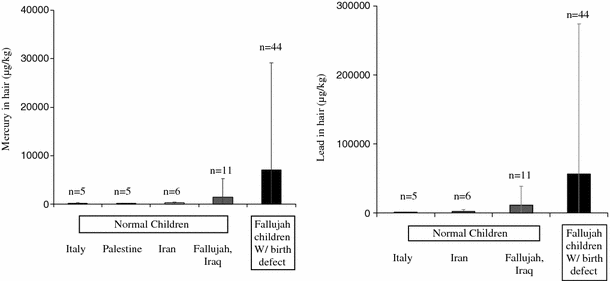

In the present article, we have reported on 56 Fallujah families’ hair metal levels and the kinds of birth defects documented in these families. The Fallujah study was conducted in 2010. We have also presented a year-to-year account of the types and numbers of birth defects in Al Basrah Maternity Hospital from 2003 to 2011. Our aim was to examine the populations of Fallujah and Al Basrah for possible metal exposure. In our samples from Al Basrah, we were looking at three tissues (hair, toenail, and teeth) and wanted to determine which tissue provides a better medium for metal analysis.
Materials and Methods
Yearly account of birth defects per 1,000 live births in Al Basrah Maternity Hospital from 2003 to 2011
Central Nervous System Defects
Multiple birth defects
Tooth samples were simultaneously collected at the Al Basrah Dental School from parents of normal children (n = 10) and parents of children with cardiac and neural tube defects (n = 12). Only 5 of each group had sufficient and suitable tooth tissue for metal analysis. Parents did not smoke or drink. Two samples of deciduous teeth were collected from children with birth deformity who had survived. Deciduous teeth from normal children were provided by the School of Dentistry at Isfahan University of Medical Sciences (n = 18, two samples were analyzed). Patient/parental consent was obtained.
Hair samples’ treatment, digestion and their analysis for Fallujah samples followed Batista et al. 2009 without modification. XSERIES 2 ICP-MS (Thermo Fisher Scientific, Germany) was used in the standard configuration, with ASX-510 auto-sampler (Cetac, USA). Instrument optimization was by auto-tune function, when required. The instrument parameters were: RF Power (W) 1400, Cool Gas Flow (L/min) 13, Auxiliary Gas Flow (L/min) 0.8, Nebuliser Gas Flow (L/min) 0.85–0.90, Sample Uptake Rate (mL/min) 0.4 approx., Sample Introduction System Concentric nebuliser with low-volume impact bead spray chamber (not cooled) and one-piece torch (1.5 mm ID injector); Cones Nickel, Xi Design; Detector Simultaneous pulse/analogue; Uptake Time 25 s at 50 rpm; Stabilization Delay 10 s at 17 rpm; Wash Time 40 s at 50 rpm, Survey Runs 1—scanning; Main Runs 3—peak jumping; Number of Points per Peak 1; Dwell Time/Point 5—50 ms; Number of Sweeps/Replicate 25. Internal Standardization Technique Interpolation, using 6Li, 45Sc, 115In, 159 Tb. Total Time per Sample 2:45 min.
Toenail and hair samples from Al Basrah were prepared and analyzed as follows: All reagents used were analytical grade or better. All aqueous solutions were prepared using deionised water (18.2 MΩ Millipore, UK). A multi-element standard and single element standard for the internal standards (SPEX CertiPrep, UK) were used as calibration standard and internal standard respectively for ICP-MS analysis. Concentrated nitric acid (HNO3) and 30% v/v hydrogen peroxide (H2O2), (BDH Aristar,UK) were used for the dissolution of samples. Analyses of toenail and hair samples were conducted at the Inorganic Geochemistry laboratories of the British Geological Survey (Nottingham, UK). Toenail and hair samples were washed thoroughly following a slightly modified version of the protocol described by Button et al. (2009), which is comparable to several published methods (Slotnick et al. 2007). Visible exogenous material was firstly removed using plastic forceps and a clean quartz fragment. Samples were then placed in clean glass vials and sonicated for 5 min using 3 mL of acetone, rinsed first with 2 mL of deionised water then 2 mL of acetone, sonicated for 10 min in 3 mL of deionised water then twice rinsed with 3 mL of deionised water, ensuring complete submersion of the sample during each step. The final rinse solution (3 mL) was retained for immediate analysis by ICP-MS to ensure removal of exogenous contamination was complete. The supernatants from each step of the washing procedure were combined and reduced to dryness in PFA vials (Savillex, USA) on a graphite hot block at 80°C. The residue was then reconstituted in 3 mL of 1% HNO3 for analysis by ICP-MS. After washing, toenails were left to dry at room temperature in a clean laminar flow hood. Certified reference materials GBW 07601 human hair and1 and NCS ZC 81002b human hair (NCS Beijing, China) were used throughout.
Both the digestion and analytical method follow the procedure described in Button et al. (2009). Toenail samples were acid digested for total elemental determination using a closed vessel microwave assisted digestion (MARS 5, CEM Corporation, UK). Into each vessel 4 mL of HNO3 and 1 mL of H2O2 was added to accurately weighed toenail and hair samples and left to stand for 30 min before sealing the vessels. The microwave heating program was: 100% power (1,200 W), 5 min ramp to 100°C, held for 2 min, ramped for 5 min to 200°C then held for 30 min. The pressure in the system was approximately 200 psi under these conditions. This method resulted in complete sample dissolution. The solutions were transferred with MQ water to PFA vials and evaporated to dryness on a hotplate at 110°C. Samples were reconstituted with 1 mL of 3% v/v HNO3, heated at 50°C for 10 min and then made up to 3 mL with deionised water to give a final solution of 1% HNO3 for direct determination via ICP-MS.
The enamel and coronal dentine components of teeth were density separated using a heavy liquid method. This was achieved by lightly crushing the decoronated tooth material and adding the powder to the heavy liquid bromoform (CHBr3) in a separating funnel. The bromoform was then slowly diluted with acetone to achieve the optimal density for enamel and dentine separation (2.7 g/mL). The enamel formed sediment at the base of the funnel and was removed. The two components were washed with acetone and dried in a laminar flow hood prior to dissolution. The teeth samples were accurately weighed into acid washed polypropylene autosampler tubes (Sarstedt), to which 0.2 mL of 2:1 HNO3:HCl was added, allowed to dissolve over 5 min, then 0.8 mL of deionised water added, left to stand for 10 min and then made up to a final volume of 10 mL with deionised water. The sample solutions were diluted approximately ×4,000 prior to analysis to ensure a final calcium concentration of 100–200 mg L−1, to avoid matrix interference and clogging of the ICP cones and torch. The final matrix prior to analysis contained 1 HNO3 and 0.5% HCl. Multielement analysis of toenail, hair and teeth digests was performed by inductively coupled plasma mass spectrometry (ICP-MS, Agilent 7500, Agilent Technologies, UK). The instrument was fitted with a micro flow concentric nebuliser and quartz Scott-type spray chamber. The instrument response was optimised daily using a commercially available Tune solution (SpexCertiprep). Multielement analysis was performed in collision cell mode using He (4 L/min) to minimise potential interferences such as that of the polyatomic ion 40Ar + 35Cl on 75As. An internal standard comprising of Sc, Ge, Rh, In, Te, and Ir was added to the sample line via a T-piece to monitor instrument signal stability. The limit of detection (LOD) for the method expressed as the mean blank signal + 3SD was as follows: Al and Fe < 2 mg/kg; V, As, Se, Mo, Cd < 0.01 mg/kg; Mn and Zn < 0.2 mg/kg; Co, Th and U < 0.005 mg/kg; Cr, Ni, Cu, W, and Pb were <0.07, <0.02, <0.1, <0.08, <0.03 mg/kg respectively. Recoveries for both reference materials were generally better than 100 ± 15% for when compared to available reference values. SPSS version 19 was used for all statistical analyses; an independent sample T Test was used to compare metals between two groups. A paired sample two tailed T Test was used to compare birth defects in Al Basrah data. Significance level was set at α = 0.05.
Results and Discussion
It is well-known that exposure to stressors alters the in utero development of a human fetus and has adverse health consequences for the offspring, including a short gestation period, reduced birth weight, increased risk of metabolic, cardiac and psychiatric disease, and overall reduced lifespan (Seckl 1998; Landrigan et al. 2004; Perera et al. 2004; Llop et al. 2010). Populations caught in war-zones or forced to live with severe nutritional restrictions (such as those imposed on the Iraqi population by U.N. sanctions from 1991 to 2003) suffer immediate and chronic stress that leads to long-lasting physical and mental damage. In addition to the harsh effects of sanctions, many Iraqi cities have experienced large-scale bombardment. An accurate tally of the types and volume of ammunition dropped on the Iraqi population is not available. However, reports have indicated that large numbers of bullets have been expended into the Iraqi environment (Buncombe 2011). Thus the environmental contamination of Iraqi cities with materials contained in bullets and bombs may be expected. Toxic metals such as mercury (Hg) and Pb are an integral part of war ammunition and are extensively used in the making of bullets and bombs (Departments of the Army, the Navy, the Air Force, Joint Technical Bulletin 1998; US Department of the Army Technical Manual 1990).
The most common abnormalities in Fallujah children were congenital heart defects (n = 24 out of 46), neural tube defects (n = 18 out of 46), and cleft lip/palate (n = 4 out of 46). Cardiac defects, neural tube defects, and facial clefting are known as folate-dependent birth defects since folate intake reduces their occurrence (MRC Vitamin Study Research Group 1991; Wilson et al. 2003; Obican et al. 2010). The Fallujah study has highlighted the role of metals in the manifestation of the current birth defect epidemic in that city. Recent data has linked metal exposure to oxidative stress and folate deficiency in humans (Wang et al. 2012). We also know that in utero metal exposure can culminate in birth deformities by increasing oxidative stress in the womb as the fetus grows (Apostoli and Catalani 2011).
In general, reports of health problems in the Iraqi population and in the surrounding countries have continued to surface (Rajab et al. 2000). News of increases in childhood cancers, of perinatal and infant morbidity and mortality, and of unusual increases in congenital birth defects, have continued to emerge from across Iraq. Data from a central Iraqi city, Al-Ramadi, have corroborated the Fallujah findings (Al-Ani et al. 2010).
Another Iraqi city where birth defects and cancers continue to climb is Al Basrah.
The earliest data on the occurrence of congenital birth defects in Al Basrah came from an article entitled “Incidence of Congenital Fetal Anomaly in Al Basrah Maternity Hospital” (Alsabbak et al. 1997). This research reported on the total number of live births (10,015) in Al Basrah Maternity Hospital between October 1994 and October 1995. The number of birth defects per 1,000 live births during this period was 1.37. Table 1 contains the yearly account of the number of birth defects per 1,000 live births in Al Basrah Maternity Hospital from 2003 to 2011. Central nervous system related defects occurred most frequently. Statistical analysis of this data has shown no significant difference between the number of children born with anencephaly and the number born with Spina Bifida (p = 0.28). There were significantly more cases of anencephaly than of hydrocephalus, limb deformity, omphalocele, or short extremities (p = 0.009, p = 0.005, p = 0.000, p = 0.000). In addition, the number of Spina Bifida cases was significantly higher than the number of hydrocephalus, limb deformity, omphalocele, or short extremity cases (p = 0.05, p = 0.005, p = 0.000, p = 0.001). Within 8 years, the occurrence of congenital birth defects in Al Basrah Maternity Hospital increased by an astonishing 17-fold.
The prevalence of congenital hydrocephalus in California (US) has been reported as 0.6 per 1,000 (Jeng et al. 2011). Worldwide hydrocephalus affects about one in every 1,000 live births. The reported numbers of hydrocephalus from Al Basrah Maternity Hospital were 3.5 times higher than the world average and six times higher than in the United States. Defects of the abdominal wall, like omphalocele and gastroschisis, were also frequently reported in Al Basrah. Omphalocele generally occurs in 0.25/1,000 live births and is associated with a high rate of mortality and severe malformation, such as cardiac anomalies and neural tube defects. The average number of omphalocele observed in Al Basrah Maternity Hospital between 2003 and 2011 was 3.3/1,000 live births.
Neural tube defects (NTDs) occur very early in human development. The prevalence of NTDs in the mainland United States is 1/1,000 live births (CDC; Williams et al. 2002). Some of the highest numbers of NTDs have been reported from coal mining regions in China (10/1,000) (Li et al. 2006). The occurrence of NTDs in Al Basrah (12/1,000) is the highest ever reported and it is increasing. Our data has shown that in Al Basrah, the total number of birth defects more than doubled between 2003 and 2009.
Comparison of metal levels in hair verses toenail from parents of children with birth defects from Al Basrah, Iraq
Metal (mean ± SD) μg/kg
Hair (n = 6)
Toenail (n = 7)
84,409 ± 90,923
64,964 ± 34,247
219 ± 185
130 ± 91
1,087 ± 869
1,299 ± 410
2,848 ± 2,148
1,040 ± 524
66,318 ± 63,239
63,536 ± 29,029
78 ± 57
43 ± 17
2,489 ± 2835
2,032 ± 2,917
16,012 ± 19,593
3,859 ± 870
269,486 ± 188,256
116,409 ± 2,1248
70 ± 76
102 ± 73
398 ± 266
659 ± 158
143 ± 104
54 ± 19
336 ± 554
324 ± 607
6,499 ± 8,589
598 ± 107
22 ± 21
11 ± 5
128 ± 130
12 ± 6
A literature review of selected metal levels in the whole deciduous teeth of children from various geographical locations verses the sample from Al Basrah, Iraq
Reference and year of the study
Mean lead (μg/g) in deciduous whole tooth of normal children
Tvinnereim et al. (2011)
Addis Ababa, Ethiopia Urban
Tvinnereim et al. (2011)
Addis Ababa, Ethiopia Rural
Rahman and Yousuf (2002)
Hernández-Guerrero et al. (2004)
Mexico City, Mexico
Tvinnereim et al. (1997)
Norway, 19 counties
Karahalil et al. (2007)
Ankara and Balikesir, Turkey
Arruda-Neto et al. (2009)
Bayo et al. (2001)
Abdullah et al. (2012)
Tsuji et al. (2001)
Ontario, Canada (near smelters)
Priyanka Prasad PhD Thesis (2010)
Hyderabad and Secunderabad, India
Present knowledge on the effects of prenatal exposure to metals, combined with our results, suggests that the bombardment of Al Basrah and Fallujah may have exacerbated public exposure to metals, possibly culminating in the current epidemic of birth defects. Large-scale epidemiological studies are necessary to identify at-risk populations in Iraq. The recognition that birth defects reported from Iraq are mainly folate-dependent offers possible treatment options to protect at-risk populations.
We thank Drs. Hossein Malekafzali, Howard Hu, and Timothy Johnson for their interest in this research. We thank Drs. Vasantha Padmanabhan, Marjorie Treadwell, Kataneh Salari, for their critical reading of this manuscript, and we thank Blaine Coleman for technical assistance. Funding for this research was provided by the University of Michigan Department of Obstetrics and Gynecology.
This article is distributed under the terms of the Creative Commons Attribution License which permits any use, distribution, and reproduction in any medium, provided the original author(s) and the source are credited.
- Alaani S, Tafash M, Busby C, Hamdan M, Blaurock-Busch E et al (2011a) Uranium and other contaminants in hair from the parents of children with congenital anomalies in Fallujah, Iraq. Conflict and Health 2:5–15Google Scholar
- Al-Ani Z, Al-Hiali S, Al-Mehimdi S et al (2010) Neural tube defects among neonates delivered in Al-Ramadi Maternity and Children’s Hospital, western Iraq. SMJ 31(2):163–169Google Scholar
- Alsabbak M, Mawahib A, Almosawi G et al (1997) Incidence of congenital fetal anomaly in Basrah Maternity Hospital. Basrah Medical Journal 3:59–60Google Scholar
- Apostoli P, Catalani S (2011) Metal ions affecting reproduction and development. Met Ions Life Sci 8:263–303Google Scholar
- Buncombe A (2011) US forced to import bullets from Israel as troops use 250,000 for every rebel killed. Indep Lond. http://www.belfasttelegraph.co.uk/news/world-news/us-forced-to-import-bullets-from-israel-as-troops-use-250000-for-every-rebel-killed-15050027.html
- CDC US birth defect/1000 http://matracking.ehs.state.ma.us/Health_Data/Birth-Defects.html
- Departments of the Army, the Navy, the Air Force, Joint Technical Bulletin. Alexandria (VA): Department of Defense (U.S.) (1998) 101 p. Report No.: TB 700–2, NAVSEAINST 8020.8A, TO 11A-1-47, and DLAR 8220.1Google Scholar
- Gilfillan S (1965) Lead poisoning and the fall of Rome. J Occup Med 7(2):53–60Google Scholar
- Military Explosives (1990) Washington (D.C.): Department of the Army (U.S.); 1990 Sep. 355 p. Report No.: TM 9-1300-214 C4Google Scholar
- Priyanka Prasad K (2010) Lead levels in exfoliated teeth of children from the twin cities of Hyderabad and Secunderabad, India. PhD Thesis, http://hdl.handle.net/10211.10/512
- Retief F, Cilliers L (2006) Lead poisoning in ancient Rome. Acta Theriol 26(2):147–164Google Scholar
- Seckl J (1998) Physiologic programming of the fetus. Clin Perinatol 25(4):939–964Google Scholar
- Tsuji L, Karagatzides J, Katapatuk B, Young J, Kozlovic D, Hannin R, Nieboer E et al (2001) Elevated dentine-lead levels in deciduous teeth collected from remote first nation communities located in the western James Bay region of northern Ontario. Canada. J Environ Monit 3(6):702–705CrossRefGoogle Scholar
- Tvinnereim H, Fantaye W, Isrenn R, Bjorvatn K, Melaku Z, Teklehaimanot R et al (2011) Lead levels in primary teeth in children from urban and rural areas in Ethiopia. Ethiop Med J 49(1):61–65Google Scholar
- Wilson D, Davies G, Desilets V, Reid G, Summers A, Wyatt P, Young D et al (2003) Use of folic acid for the prevention of neural tube defects and other congenital anomalies. JOGC 25(11):959–965Google Scholar
- Zheng X, Pang L, Wu J, Pei L, Tan L, Yang C, Song X et al (2012) Contents of heavy metals in arable soils and birth defect risks in Shanxi, China: a small area level geographic study. Pollut Environ 33(2–3):259–268Google Scholar
