Diabetes aggravates acute pancreatitis and inhibits pancreas regeneration in mice
- First Online:
- Cite this article as:
- Zechner, D., Spitzner, M., Bobrowski, A. et al. Diabetologia (2012) 55: 1526. doi:10.1007/s00125-012-2479-3
- 890 Downloads
It is well established that acute pancreatitis often causes diabetes and that a high blood glucose level associated with pancreatitis is a marker of poor prognosis. The aim of this study was to evaluate if diabetes merely reflects the severity of pancreatitis or whether it can also aggravate the progression of this disease in a vicious circle.
Reversible acute oedematous pancreatitis was induced in untreated and streptozotocin-treated diabetic mice by injection of cerulein. Progression of pancreatitis was studied by immunohistochemistry, ELISA and various other enzyme assays. The production of regenerating islet-derived 3β (REG3β) was determined by western blot and immunohistochemistry.
While cerulein treatment in non-diabetic mice resulted in acute pancreatitis followed by regeneration of the pancreas within 7 days, diabetes aggravated pancreatitis, inhibited the regeneration of the exocrine tissue and led to strong atrophy of the pancreas. The aggravation of pancreatitis by diabetes was characterised by decreased production of the anti-inflammatory protein REG3β, increased inflammation, augmented oedema formation and increased cell death during the acute phase of pancreatitis (p < 0.05). During the regenerative phase, diabetes augmented inflammation, increased cell death, reduced acinar cell expansion and increased the expansion of duct as well as interstitial cells, resulting in the formation of tubular complexes (p < 0.05). Administration of insulin reversed the observed phenotype in diabetic mice.
Diabetes aggravates acute pancreatitis and suppresses regeneration of the exocrine tissue. Thus, diabetes is not just a concomitant phenomenon of pancreatitis, but can have a fundamental influence on the progression of acute pancreatitis.
KeywordsDiabetes Insulin Pancreas regeneration Pancreatitis REG3β
Regenerating islet-derived 3β
Acute pancreatitis (AP) is an inflammatory disease of variable severity with an overall mortality rate of 2–3% . In most cases AP is mild and heals without any further complications. However, 15–20% of patients develop a severe form of AP, which is characterised by presence of organ failure and/or local pancreatic complications such as the development of a pseudocyst, abscess or parenchymal necrosis . Most clinical centres report mortality rates for severe AP of 5–15% and some reports even present mortality rates of up to 25% [1, 2].
There is a well-recognised correlation between hyperglycaemia and acute as well as chronic pancreatitis in patients [3, 4]. For example, temporary hyperglycaemia can be observed in up to 50% of patients with AP, persistent diabetes may affect 1–15% of patients with AP, and the prevalence of diabetes in chronic pancreatitis varies between 30% and 83%, depending on the study [5, 6]. This correlation is usually explained by the accepted fact that pancreatitis can cause the development of diabetes mellitus . The investigation into whether diabetes can also cause the aggravation of pancreatitis is less tangible . However, several publications suggest that this cause-and-effect relationship might exist. For example, patients with diabetes have been reported to have a higher risk for pancreatitis [7, 8, 9, 10], and hyperglycaemia may predispose patients with acute pancreatitis to systemic organ failure . Blood glucose level is an accurate predictor of outcome in gallstone pancreatitis  and an important criterion for the Ranson score, which is used to assess the prognosis of AP . All of these clinical studies support the hypothesis that hyperglycaemia may aggravate pancreatitis. However, these correlative studies cannot prove a causal relationship.
An animal model widely used to study reversible oedematous AP relies on the induction of pancreatic injury with the administration of cerulein, an analogue of the pancreatic secretagogue cholecystokinin. Administration of a supraphysiological dose of cerulein activates trypsinogen within acinar cells, possibly by causing a co-localisation of digestive zymogens with lysosomal enzymes [14, 15]. After the acute phase of pancreatitis, acinar cells respond to the tissue injury by dedifferentiation to immature progenitor-like cells, followed by massive proliferation and redifferentiation into acinar cells. This leads to a recovery of the exocrine tissue within 7 days after AP [16, 17, 18]. During the acute phase of pancreatitis the pancreas initiates an acute emergency programme for protecting the parenchyma. As part of this emergency programme, the expression of genes such as Reg3β (also known as Pap, PapI, Reg-III and Hip), is strongly upregulated . By using blocking antibodies, antisense oligonucleotides or genetic manipulation of mice, it has been demonstrated that regenerating islet-derived 3β (REG3β) inhibits inflammation and protects the pancreas after cerulein-induced pancreatitis [20, 21, 22]. Thus, REG3β is a key factor of the acute emergency programme.
The purpose of this present study was to explore the question of whether diabetes can influence the progression of AP and to analyse which aspects of this disease are affected by diabetes.

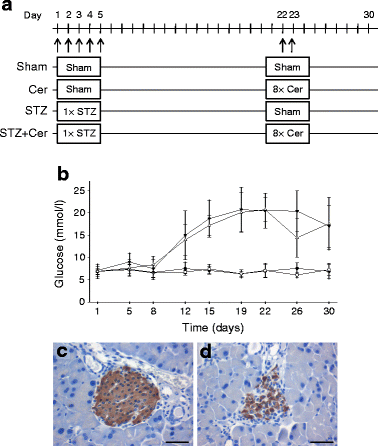

Induction of diabetes and experimental pancreatitis
Male C57BL/6 J mice were purchased from Charles River Laboratories (Sulzfeld, Germany) and were used at 8–12 weeks of age with a body weight of 22–30 g or at 12 months of age with a body weight of 30–35 g. Animals were allowed access to water and standard laboratory chow ad libitum. Diabetes was induced by i.p. injection of 50 mg/kg streptozotocin (STZ; Sigma-Aldrich, Steinheim, Germany) on 5 consecutive days. Progression of diabetes was monitored with the blood glucose meter Contour (Bayer Vital, Leverkusen, Germany). For insulin treatment, mice received on day 15 one pellet of insulin subcutaneously (s.c.; Linshin Canada, Toronto, ON, Canada; release rate, 0.1 U insulin per day). For treatment with REG3β, mice received 100 μg/kg body weight REG3β (Dynabio, Marseille, France) i.v. 2 h before the first cerulein injection on days 22 and 23. Pancreatitis was induced by administration of eight i.p. injections of 50 μg/kg cerulein (Sigma-Aldrich) at a rate of one every hour over 2 consecutive days. All control mice were sham treated appropriately (0.9% wt/vol. NaCl solution instead of cerulein, 50 mmol/l sodium citrate pH 4.5 instead of STZ, wounding of the skin with a trocar instead of insulin pellets, PBS instead of REG3β). At 2 h before induction of pancreatitis and up to the time point of tissue preservation all mice received drinking water containing 800 mg/l metamizol (Ratiopharm, Ulm, Germany) and 1 g/l BrdU (Sigma-Aldrich). BrdU administration had no effect on pancreas atrophy as animals without administration of BrdU had a similar pancreas/body weight ratio on day 30 (STZ + cerulein with BrdU 0.0027 ± 0.0012, n = 4; STZ + cerulein without BrdU 0.0026 ± 0.0012, n = 3). Animals were anaesthetised with 75 mg/kg ketamine (bela-pharm, Vechta, Germany) and 5 mg/kg xylacine (Bayer Health Care, Leverkusen, Germany), before blood samples and organs were taken at the indicated time points. All experiments were approved by the local animal welfare committee and were performed in accordance with the German legislation and the principles of laboratory animal care (NIH publication no. 85–23, revised 1985).
Analysis of plasma
Blood samples were taken 2 h after the last cerulein injection. The activity of lipase and amylase in plasma was analysed using the Cobas c111 spectrophotometer (Roche Diagnostics, Mannheim, Germany). The concentration of the trypsinogen-activating peptide (TAP) in plasma was determined by an ELISA kit for TAP (Uscn Life Science, Wuhan, People’s Republic of China).
Histology, quantification of oedema formation, immunohistochemistry and western blots
Tissue was preserved 2 h after the last cerulein injection on days 23 or 30. The tissue was either frozen for analysis of protein concentrations or fixed in 4% (wt/vol.) phosphate-buffered formalin for 2–3 days, embedded in paraffin and 4 μm sections were cut. Histology was evaluated after staining the sections with haematoxylin and eosin. To evaluate the cellular inflammatory response, naphthol AS-D chloroacetate esterase (CAE) staining was performed on sections. Oedema formation was quantified as pancreas wet/dry weight ratio by dividing the weight of the pancreas after drying (at 60°C for 48 h) by the weight of the native pancreas. Cell proliferation was evaluated by immunohistochemistry using mouse anti-BrdU (clone Bu20a, dilution 1:50) and the Universal LSAB+ Kit/HRP kit (Dako, Hamburg, Germany). Cell death was analysed using the ApopTag Plus Peroxidase in situ detection kit (Millipore, Eschborn, Germany). Immunohistochemistry for REG3β and insulin was performed using a rat-anti-REG3β antibody (R&D Systems, Minneapolis, MN, USA; code MAB5110, dilution 1:800) or a guinea pig-anti-insulin antibody (Abcam, Cambridge, UK; ab7842, dilution 1:500). For quantification, at least ten fields (each field with 300 to 650 cells using a ×40 objective) were evaluated per mouse. Acinar cells were identified by large round nuclei, granulated cytoplasm and non-fibroblast-like appearance. Duct cells were identified by a cobblestone-like appearance and direct proximity to a duct. Interstitial cells were identified by interstitial localisation in the exocrine tissue (criterion for exclusion was identification as acinar cell, duct cell or endothelial cell). Western blots were performed by separating 25 mg lysed tissue on 14% (wt/vol.) SDS gels and transferring the proteins to a polyvinyldifluoride membrane (Immobilon-P; Millipore). After blockade with 5% (wt/vol.) milk powder, membranes were incubated overnight at 4°C with a rat-anti-REG3β antibody (R&D Systems; code MAB5110, dilution 1:1,000), followed by a secondary peroxidase-linked anti-rat antibody (Santa Cruz Biotechnology, Santa Cruz, USA; code sc3823, dilution 1:10,000). For analysis of β-actin production, membranes were stripped, blocked by 2.5% (wt/vol.) BSA and incubated with mouse anti-β-actin antibody (Sigma-Aldrich, St Louis, MO, USA; code A5441, dilution 1:20,000) followed by peroxidase-conjugated anti-mouse antibody (Sigma-Aldrich [USA]; code A9044, dilution 1:60,000). Protein production was visualised by luminol-enhanced chemiluminescence (ECL plus; GE Healthcare, Munich, Germany) and digitalised with ChemiDoc XRS System (Bio-Rad Laboratories, Munich, Germany). Signals were densitometrically assessed and corrected with the signal intensity of β-actin (Quantity One; Bio-Rad Laboratories).
Data are given as means and standard deviations. The significance of data was assessed by SigmaStat3.5 software (SigmaStat, Jandel Corporation, San Rafael, CA, USA). In cases where the assumption of normality and homogeneity of variance across groups was proven, differences between the groups were calculated using the unpaired Student’s t test, including correction of the α-error according to the Bonferroni probabilities for repeated analysis. In cases where the assumption of normality or the homogeneity of variance across groups failed, the Mann–Whitney rank sum test was performed, including correction of the α-error according to the Bonferroni probabilities for repeated analysis. The criterion for significance was p < 0.05.

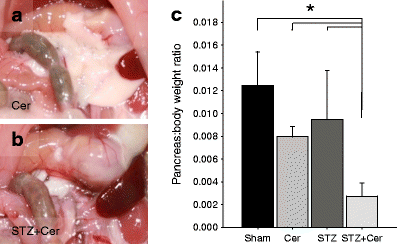

Diabetes inhibits the remission of cerulein-induced pancreatitis

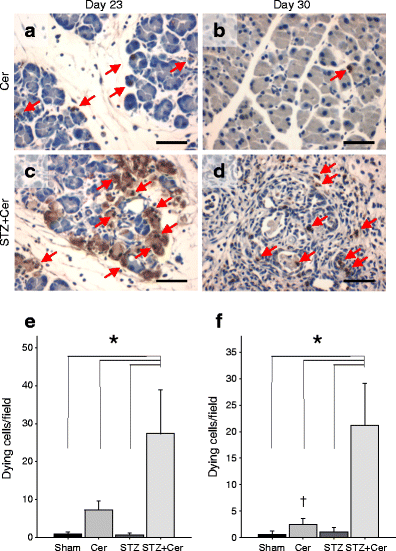

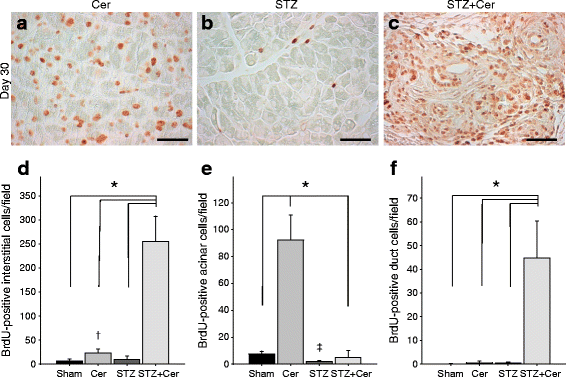

Regulation of cell expansion and cell death by diabetes

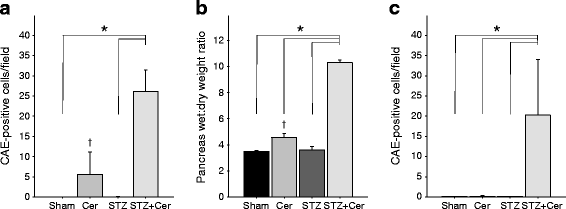

Diabetes affects pancreatic inflammation
On day 30 almost no CAE-positive infiltrating cells were observed in STZ-, cerulein- or sham-treated animals while in STZ + cerulein-treated animals a considerable number of CAE-positive cells were observed (ESM Fig. 1d–f; Fig. 6c).

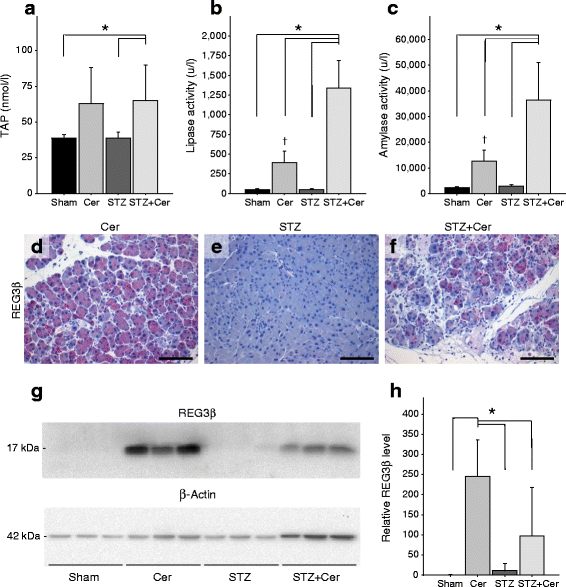

Activation of trypsinogen and suppression of REG3β production
In order to evaluate, whether the production of REG3β, an important protein induced by the emergency programme during pancreatitis, is altered in diabetic mice, we analysed the production of this protein by immunohistochemistry. REG3β production was not detected in the acinar cells of sham- or STZ-treated mice, but was produced in abundance 2 h after the last cerulein treatment in diabetic as well as non-diabetic mice (Fig. 7d–f; not shown for sham group). In order to quantify REG3β, we analysed relative protein concentrations by western blot. After cerulein administration STZ-treated animals showed a significantly lowered level of REG3β production when compared with cerulein-treated non-diabetic animals (Fig. 7g, h). We also evaluated whether administration of REG3β can inhibit the inflammation during pancreatitis. On day 23, we observed a small 5.3% decrease (not significant) in the number of CAE-positive cells in STZ + REG3β + cerulein-treated mice when compared with STZ + cerulein-treated animals (data not shown).

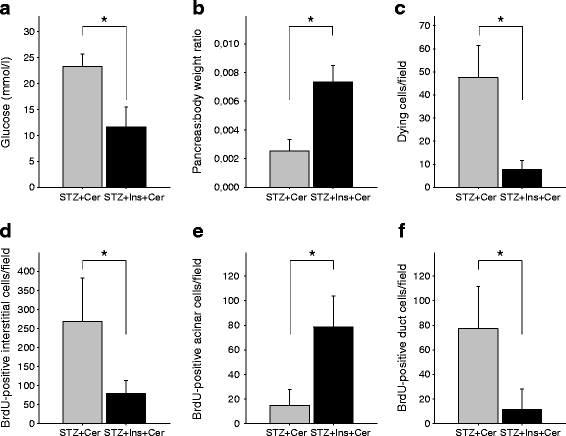

Progression of pancreatitis in insulin-treated and aged mice
In order to test the hypothesis that diabetes is not only a concomitant phenomenon of AP, but can also aggravate this disease, we compared the progression of pancreatitis after induction of pancreatitis in non-diabetic and diabetic mice. The following observations documented that experimental diabetes caused an aggravation of cerulein-induced AP. Compared with non-diabetic mice, diabetic mice displayed: (1) an enhanced and extended inflammatory response; (2) increased local oedema formation; (3) enhanced cell death; (4) reduced acinar cell expansion but increased duct cell as well as interstitial cell expansion; (5) reduced production of REG3β; and (6) increased activity of lipase and amylase in blood plasma. The increased cell death and inhibited regeneration of acinar cells resulted in almost complete atrophy of the pancreas. Administration of insulin lowered the blood glucose concentration and inhibited the observed aggravation of pancreatitis by diabetes. This suggests that the diabetic metabolic state rather than non-specific cytotoxicity of administered compounds aggravates pancreatitis. The observed protective effect of insulin might also explain why evolutionary pressure caused the dispersion of the endocrine islets of Langerhans within a predominantly exocrine organ . This so-called islet–acinar axis might not only be relevant for normal physiology of exocrine tissue, but might be especially relevant for distinct pathologies such as pancreatitis.
AP is thought to be caused by the intracellular activation of trypsinogen . However, in our study diabetes had no influence on the concentration of TAP in the plasma of mice 2 h after the last cerulein injection, suggesting that diabetes might influence downstream mechanisms of pancreatitis rather than the activation of trypsinogen. One of these downstream mechanisms might be the induction of the acute emergency programme. REG3β is part of the acute emergency programme for protecting the pancreas and has been shown to inhibit inflammation during pancreatitis [20, 21, 22]. We demonstrate that REG3β production is significantly suppressed in diabetic mice during pancreatitis. This finding is surprising, as REG3β production usually correlates with the severity of pancreatitis in animal models as well as in patients [25, 26]. The suppression of REG3β production suggests that the inhibitory mechanism of diabetes on REG3β production overwhelms the stimulatory mechanisms of aggravated pancreatitis. However, we observed only a small non-significant repression of inflammation after administration of REG3β. These data suggest that diabetes significantly alters the induction of the emergency programme during pancreatitis, but that several additional factors in addition to reduced REG3β production might contribute to the aggravation of pancreatitis in diabetic mice. We did not observe an obvious increase in REG3β protein in STZ-treated mice when compared with sham-treated animals, whereas other groups could demonstrate an increase in Reg3β RNA level in diabetic animals [27, 28]. These seemingly conflicting results could be explained by assuming that the detection limit for Reg3β RNA might be lower than the detection limit for REG3β protein or that results from RNA analysis do not always correlate with the actual protein content.
Differences between diabetic and non-diabetic mice were first observed 2 h after the last cerulein injection and included reduced production of REG3β, increased activity of lipase and amylase in blood plasma, enhanced inflammatory response, increased local oedema formation and increased cell death. Other differences such as reduced acinar cell expansion were observed on day 30, but not on day 23. This observation is consistent with data describing that the main cell expansion of acinar cells occurs during the regenerative, but not the acute, phase of pancreatitis [16, 17]. Interestingly, a significant reduction in BrdU-positive acinar cells was observed in diabetic mice even in the absence of pancreatitis when comparing diabetic mice with sham-treated animals. These data suggest that diabetes might directly inhibit the expansion of acinar cells independent of pancreatitis. In addition, we observed that STZ + cerulein treatment influenced cell expansion in a cell-type-specific manner. Diabetes inhibited the expansion of acinar cells, whereas it induced the expansion of interstitial cells and duct cells after pancreatitis. This stimulatory effect on the expansion of these cells might, however, constitute the response of the tissue to increased tissue damage in diabetic mice.
The distinct proliferative behaviour of acinar and duct cells in response to diabetes may lead to the observed formation of tubular complexes in diabetic mice. Though the significance of tubular complexes is controversial, they have been proposed to be early cancer precursors [29, 30] and are formed by transdifferentiation of acinar cells to duct cells, as well as increased proliferation of duct cells . Possibly, the increased formation of tubular complexes in diabetic mice after pancreatitis may provide an explanation for the observation that diabetes and chronic pancreatitis are major risk factors for pancreatic cancer [32, 33, 34, 35].
Up to 50% of patients with AP have an elevated blood sugar level [3, 5, 6]. In these patients hyperglycaemia may be caused by decreased insulin secretion, parenteral nutritional therapy, increased gluconeogenesis and decreased glucose use . These patients, however, are also susceptible to hypoglycaemia, resulting in conservative insulin therapy at intensive care units . During the last 10 years an intensified insulin therapy for critically ill patients has been a major issue of discussion. An intensified insulin therapy has been found to be of benefit or of no benefit to patients, depending on the clinical study [36, 37, 38]. Possibly this discrepancy may be resolved by the assumption that an intensified insulin therapy is beneficial to certain subsets of patients, whereas in other subsets of critically ill patients the risk of hypoglycaemia will outweigh beneficial effects. Thus, it is essential to understand whether diabetes can aggravate distinct diseases such as AP or whether diabetes is just a concomitant phenomenon of specific diseases. Additional preclinical as well as clinical studies might, therefore, be expedient to provide evidence for the decision on whether repetitive blood glucose measurements or technological advances such as continuous glucose monitoring systems followed by precise blood glucose control may improve the survival of patients with severe AP.
We thank B. Blendow, D. Butzlaff, D. Frenz and M. Nerowski (Institute for Experimental Surgery, University of Rostock) for excellent technical assistance.
The study was supported by a grant from the FORUN programme of the University of Rostock (project. 889017) and a stipend to A. Bobrowski by the Studienstiftung des deutschen Volkes e.V.
DZ was responsible for the conception of the study, analysis and interpretation of data, drafting the article and revising the article critically. MS, AB, NK and AK were responsible for analysis and interpretation of data and revising the article critically. BV was responsible for conception of the study and revising the manuscript critically. All authors approved the final version of the manuscript to be published.
Duality of interest
The authors declare that there is no duality of interest associated with the manuscript.
