1 Introduction

Almost all FRCs used today commercially involve the use of a single fiber type. The decision to mix two fibers may be based on the properties that they may individually provide or simply based on economics (ACI committee 544 2011). Clearly, a given type of fiber can only be effective in a limited range of crack opening and deflection. The benefits of combining organic and inorganic fibers to achieve superior tensile strength and fracture toughness were recognized nearly 40 years ago by Walton and Majumdar (1975). After a long period of relative inactivity there appears to be a second wave of interest in hybrid fiber composites and efforts are underway to develop the science and rationale behind fiber hybridization.

In well-designed hybrid composites, there is a positive interaction between the fibers and the resulting hybrid performance exceeds the sum of individual fiber performances (Bentur and Mindess 1990; Xu et al. 1998). This phenomenon is often termed as “synergy”. This might be due to any of the following mechanisms.

1.1 Hybrids Based on Fiber Constitutive Response

One type of fiber is stronger, stiffer and provides reasonable first crack strength and ultimate strength, while the second type of fiber is relatively flexible and leads to improved toughness and strain capacity in the post-crack zone.

1.2 Hybrids Based on Fiber Dimensions

One type of fiber is smaller, so that it bridges micro-cracks controlling their growth and delays coalescence. This leads to a higher tensile strength of the composite. The second fiber is larger and is intended to arrest the propagation of macro-cracks and therefore results in a substantial improvement in the fracture toughness of the composite. Fibers of small size (often called micro-fibers) delay crack coalescence in the cement paste and mortar phases and increase the apparent tensile strength of these phases (Banthia et al. 1995; Shah 1991).

1.3 Hybrids Based on Fiber Function

One type of fiber is intended to improve the fresh and early age properties such as ease of production and plastic shrinkage, while the second fiber leads to improved mechanical properties.

In the past, many attempts have been made at identifying fiber combinations that produce the maximum synergy (Larson and Krenchel 1991; Feldman and Zheng 1993; Kamlos et al. 1995; Qian and Stroeven 2000; Kim et al. 1999; Banthia and Sheng 1991; Mobasher and Li 1996; Lawler et al. 2002). More recently, Banthia and Soleimani (2005) investigated three-fiber hybrids with carbon and polypropylene micro-fibers added to macro-steel fibers. Their results showed that, steel macro-fibers with highly deformed geometry produce better three-fiber hybrids than those with a less deformed geometry. Finally, Banthia and Gupta (2004) showed that the strength of the matrix plays a major role in the optimization of hybrid composites.

On the other hand, many researchers are now looking at the sliding plane deformation state other than opening mode which may be associated with crack propagation and fracture known as mode II fracture. In considering this, there are two major and interrelated problems: (1) determination of fracture parameters for mode II and (2) verification both analytically and experimentally that a crack can propagate due to mode II deformation. Analytical models cannot function successfully without valid mode II data such as values of K IIc (Swartz et al. 1988). The authors’ knowledge to the parameters controlling the concrete fracture toughness and the fiber/matrix interface should enhance the development of concrete technology.

To study Mode II fracture toughness, various approaches have attempted to define testing geometries where self-similar crack propagation occurs with only mode II deformations (Sherbini 2014). Although there is a violent debate around the validity of such a test in driving cracks under pure mode II, the proposed test geometries briefed in Table 1 are considered the most important techniques in isolating shear parameters (Reinhardt et al. 1997; Watkins 1983; Prokopski 1991; Irobe and Pen 1992; Iosipescu 1967).

Table 1 Mode II fracture toughness test geometries.

In a quick comparison between advantages and disadvantages of proposed Mode II fracture toughness test approaches, Sherbini (2014) concluded in an earlier study that, double notched cube (DNC) test setup showed higher values than all other tests due to the crack propagation miss alignment opposing sliding of crack surfaces. Regarding Brazilian notched disc (BND) test setup, the addition of fibers decreased the calculated values of K IIc for all single fiber types. Finally, four point shear (4PS) test set up reflects the most reliable values of mode II fracture toughness K IIc of concrete. The biases of the various concrete toughness tests developed is still unknown. Sufficient data should be gathered and sufficient research conclusions should be collected in order to define a reliable test standard (Lee and Lopez 2014).

The aim of this experimental investigation is to study the effect of adding different combinations of fibers to concrete on its mode II fracture toughness K IIc . A comparison between the estimated values of K IIc of concrete according to the proposed four different test techniques is reported in this investigation attempting to find an answer for the confusing argument, “which test set up is the most convenient to evaluate mode II fracture toughness in case of hybrid fiber reinforced concrete?”

2 Experimental Work

The present experimental program included Three different types of fibers; namely steel (S), glass (G), and polypropylene (PP) fibers were mixed together in four hybridization groups, (S/G), (S/PP), (G/PP), (S/G/PP) with constant cumulative volume fraction (V f ) of 1.5 %. The concrete matrix properties were kept the same for all hybrid fiber reinforced concrete (FRC) patterns. The chosen types of fibers, cumulative volume fractions (V f ), properties of raw materials, mix proportions, matrix properties, and all other laboratory conditions (specimen preparation, casting and compaction, curing, temperature, test setup, and day of testing) were kept the same as reported from previous work of Sherbini (2014) to achieve a solid comparison with his earlier study for single fiber type. Each group contains, standard cubes and cylinders to determine the mechanical properties, in addition to four different mode II fracture toughness test specimens (Reinhardt et al. 1997; Watkins 1983; Prokopski 1991; Irobe and Pen 1992; Iosipescu 1967). In the current study, three different (a/w) ratios 0.3, 0.4, and 0.5 were used in agreement with the conclusion of Lee and Lopez (2014) that, the accuracy of the size effect fracture energy determined using one size of notched beam has recently been brought into question. As a further study, a comparison of the size effect fracture energy as determined using multiple sizes of notched beams is recommended. Five specimens per sample were used for each tested parameter.

The cement used in all concrete mixes was ordinary Portland cement of 450 kg/m3. Light gray silica fume with specific surface area (SSA) of 18 m2/gm supplied from the Ferro silicon alloys plant in Edfo zone, Egypt, was used with 10 % added percentage to the cement content to produce HSC. The sand used was local natural siliceous sand with specific gravity of 2.55, fineness modulus (FM) of 2.51, and SSA of 50.47 cm2/gm. The coarse aggregate was dolomite with nominal maximum aggregate size (NMAS) of 10 mm, specific gravity of 2.6, FM of 6.69, and SSA of 6.54 cm2/gm. A superplasticizer called Adecrite PVF (naphthalene sulphonated compound) was added to the mixing water to improve the workability and to keep the slump almost constant. The mixing, casting, and compaction recommendations suggested by ACI Committee 544 (2011) were adopted in the present work to prepare all mixes.

Plain mild steel, high zirconia alkali resistance glass (NEG ARG) fibers and MC polypropylene fibers were used with different combinations in this investigation. Table 2 shows the properties of different fiber types used in the current study as reported by manufacturers. Galvanized steel fiber with a new shape was used in this work; two straight steel fibers of 265 MPa yield strength were twisted around each other to form a bi-filament fiber of 25 mm length. This new shape of fiber produces a good bond between the matrix and the fiber due to the development of interlock mechanical bond depending on the fiber geometry. Chopped strands alkaline resistance glass fiber (NEG ARG) achieves its high alkali resistance from the high zirconia’s content in its glass composition. “MC” polypropylene Synthetic fiber meets the requirements of ASTM C 1116 and C 1399.

Table 2 Properties of the used steel, glass and polypropylene fiber.

The mix proportion by weight for all mixes was 1:1.92:2.00:0.38 [cement:sand:dolomite:water/(cementations materials)] as reported by Sherbini (2014). The fiber combination percentages are illustrated in Table 3.

Table 3 Fiber combination percentages.

A vertical mixer of revolving blades type was used in mixing. Materials of the specified mix were weighed first and then mixed in the following procedures. Mixing different fiber types in hybrid combinations was really a challenge. The used fibers with widely varied aspect ratios are hard to blend together due to their different behavior during mixing. Polypropylene fibers representing high aspect ratio fiber (L/d = 167) should be mixed with the fine dry components.

First of all: sand, cement, silica fume, and polypropylene fibers were dryly mixed together for about 3 min to achieve uniform distribution of fibers through the mix.

Then, the coarse aggregate is added gradually during dry mixing. In the second step, one-third of the water content is added to the mixture. In the following step, the admixtures are added to the residual two-thirds of the water content then added to the mixture to achieve a slump greater than the final desired slump by 50 mm. Finally, Chopped glass and steel fibers (representing low aspect ratio fiber (L/d = 25) are added in small increments by sprinkling them onto the surface of the mix until all the fibers were absorbed into the matrix. This technique was performed to prevent balling or interlocking of the fibers and achieve homogeneous dispersion of the fibers through the matrix. The freshly mixed concrete was tested for slump as a quality control test; the desired slump was (100 mm) to avoid segregation during casting and compaction. The mixed materials were then placed in the molds, compacted using external vibration, leveled, and cured in water for 28 days before testing according to the recommendations of ACI committee 544 (2011). Figure 1 represents the uniform distribution of fibers along the cross section of the tested specimens reflecting that, the fiber segregation was avoided and the desired homogeneity was achieved.

Fig. 1
figure 1

Distribution of fibers along the cross section of the tested specimens.

Cubes of 150 × 150 × 150 mm dimensions were prepared to be tested under static compression. Cylinders of 150 mm diameter and 300 mm height were prepared to be tested under indirect tension. The mean values and the standard deviations of compressive and tensile strengths of the hybrid FRCs are listed in Table 4.

Table 4 Mechanical properties of hybrid FRCs in MPa (Mean ± SD).

For comparison, the mean values of compressive and tensile strengths for high strength concrete matrix with single fiber type addition tested by Sherbini (2014), with the same constituents properties and mix proportions as the current study, are listed in Table 5. It is clear that, the strengths of hybrid FRCs are higher than those of individual FRC. The compressive strength increased by (2–13 %), and the tensile strength increased (up to 14.8 %) in comparison with single fiber addition to concrete at the same fiber volume fraction. The keyword explaining that behavior is “synergy”, i.e. synergistic effect.

Table 5 Compressive and tensile strengths in MPa (Sherbini 2014).

Rao and Rao (2009) and Boulekbache et al. (2012), studied the effect of steel fiber geometry (fiber aspect ratio = 47 (Rao and Rao 2009) and 65 & 80 (Boulekbache et al. 2012)) and matrix strength, i.e. f c  ≈ 20 MPa (Rao and Rao 2009) and f c  ≈ 29, 60, and 82 MPa (Boulekbache et al. 2012), on shear behavior of fiber reinforced concrete. They concluded that (Rao and Rao 2009; Boulekbache et al. 2012), the ultimate shear strength of FRC (τ f ) is a function of V f % and the ultimate shear strength of concrete matrix (τ 0), τ 0 = kf co where k is constant and f co is compressive strength of concrete matrix, i.e., τ f  = τ 0 + c (V f %)n where c and n are constants.

Rao and Rao (2009), measured compressive, tensile, and shear strengths of concrete, while, Boulekbache et al. (2012), measured only compressive and shear strengths of the reported three types of concrete. Furthermore, the mechanical property of concrete that is designed or controlled is typically its compressive strength, since this is the most important material characteristic in concrete specification and in building codes (Li 2012). Therefore, in the present work regression analysis was carried out on their experimental data points of τ f and compressive strength of FRC (f c) (Rao and Rao 2009; Boulekbache et al. 2012). Through regression analysis, the empirical relation obtained can be expressed.

$$ \tau_{f} = 0.153\,f_{c}^{1.163} $$
(1)

Coefficient of determination (R 2) of this proposed relation is 0.89, suggesting a strong correlation between these two mechanical properties. In the present study, steel fiber represents the main fiber type due to its higher strength and stiffness, and for all hybrid FRCs except S/G/PP, the ration of V f of steel fiber to V f of other fibers is 2.0. Therefore, the current regression analysis of the results reported by Rao and Rao (2009) and Boulekbache et al. (2012) might herein be acceptable. According to the above equation, the predicted values of the present hybrid FRCs are tabulated in Table 4.

Concerning mode II of fracture (sliding mode), four test methods have been investigated; four point shear (4PS), Brazilian notched disc (BND), double notched cube (DNC), and double edge notched specimens (DENP), in a trial to avoid the limitations and sensitivity of each test. Test setups, layout, loading conditions, and specimens’ dimensions are illustrated in Table 1. The main parameter affecting K IIc obtained from previous test setups are specimen geometry, size effect, constraint condition, and the notch depth to specimen width ratio (a/w). Looking closer at these methods, it turned out that, most of them produce a mixed state of normal and shear stress mainly due to unavoidable load eccentricities, and hence bending moments which occur either from the beginning or after some deformation of the specimen.

To examine the reliability of these four mode II fracture toughness tests, the maximum undamaged defect size (d max) suggested by Sallam (2003), Al Hazmi et al. (2012), Sallam et al. (2014), Sallam and Mubaraki (2015) will be compared with the NMAS. Here, d max is calculated by incorporating the strength of the material, f, instead of the critical applied stress along with the fracture toughness of the material, K C, hence, d max instead of the notch depth is as follows:

$$ \;\mathop K\nolimits_{C} = Y\sigma_{cr} \sqrt {\pi {\kern 1pt} a} \,= \,{\kern 1pt} Y{\kern 1pt} f\sqrt {\pi {\kern 1pt} d_{\hbox{max} } } $$
(2)

Applying this concept in the present case, i.e. K C  = K IIC and f = τ f , hence

$$ d_{{\rm {max}}} = \frac{1}{\pi }\left( {\frac{{K_{\text{{\it {IIC}}}} }}{{\tau_{f} }}} \right) $$
(3)

3 Results and Discussion

A comparison between the values of K IIc of concrete according to four different test techniques is reported to make further assessment of the resulting data. Highlighting the effects of controlling the matrix fracture toughness, the fiber/matrix interface, and the matrix flaw size on the composite behavior might also enhance the production of engineered cementitious composites (ECC) (Li 2012).

Figure 2 shows the relation between a/w and mode II fracture toughness K IIc for different test setups and hybridization patterns. For all hybrid patterns of FRC, a significant discrepancy of mode II fracture toughness K IIc values (13–43 %) is clearly observed with small values of a/w, i.e. a/w = 0.3. while it ranges from (19–24 %) with high values of a/w, i.e. a/w = 0.5. This is evidence that mode II fracture toughness K IIc is affected by a non material characteristic parameter (a/w), indicating that mode II fracture toughness K IIc in hybrid fiber reinforced concrete can not be assumed as a material property. Mode II fracture toughness K IIc is inversely proportional to a/w for all concretes and test configurations, which strengthens the previous argument. This argument is in good agreement with the reported works by Swartz et al. (1988) and Reinhardt et al. (1997). By increasing a/w. The mode II fracture toughness K IIc decreasing rate reduces. This behavior may be due to that, by increasing a/w both length and severity of crack increase, while the defense zone represented in the crack forehead ligament decreases.

Fig. 2
figure 2

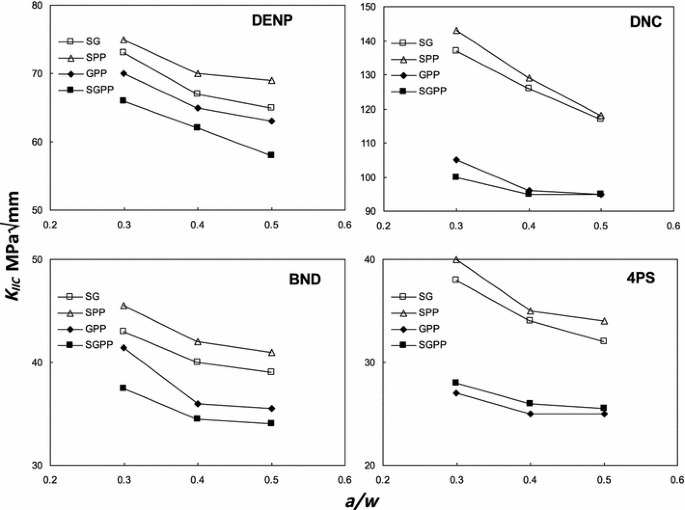

Notch depth to specimen width ratio (a/w) versus mode II fracture toughness k IIc for various test setups.

Hybrid FRC containing steel fibers in combination of either glass or pp showed higher values of mode II fracture toughness k IIc than all other hybrid patterns, i.e. synergistic effect. The increment percentages ranges from (11.5–16 %) for DENP test (20–30 %) for DNC test (17–18 %) for BND test, and (25–30 %) for 4PS test. Steel fiber represents the fiber type with higher strength and stiffness, while either glass or pp fiber represents the relatively flexible type. In accordance with the 1st synergic mechanism (Hybrids based on fiber constitutive response), this hybridization pattern leads to improved toughness and strain capacity in the post-crack zone. For different test geometries the (S/PP) results are higher than those of all other hybridization patterns. The 2nd synergic mechanism (Hybrids based on fiber dimensions) explains that phenomenon, the pp fiber represents the smaller type that bridges micro-cracks and therefore controls their growth and delays coalescence leading to a higher tensile strength of the composite. Steel fiber represents the larger type that is intended to arrest the propagation of macro-cracks and therefore results in a substantial improvement in the fracture toughness of the composite. In this specific hybridization pattern (S/PP), a dual synergic mechanism takes place resulting supreme values of mode II fracture toughness k IIc . For different test setups, the (G/PP) showed lower mode II fracture toughness k IIc . Both glass and pp are deficient in the required stiffness to provide reasonable crack propagation arrest. The S/G/PP hybrid FRC showed lower values of mode II fracture toughness k IIc for most geometries due to the reduction of V f of steel fiber from 1 to 0.5 %. For all hybrid FRCs except S/G/PP, the ration of V f of steel fiber to V f of other fibers is 2.0, while, that ration is 1.0 in S/G/PP hybrid FRC. For both DNC and 4PS test setups, a wide gap between (S/PP & S/G) on one hand and (G/PP & S/G/PP) on the other hand is observed, which support the idea of dual synergic mechanism when adding steel fibers to the hybrid. In the other test setups DENP & BND, that gap exists but with narrower range.

In comparison with reported test results of single FRC by Sherbini (2014), the mode II fracture toughness k IIc values fitted in those gaps as shown in Fig. 3 for almost all geometries. The difference between compressive strengths for different hybridization patterns reported in the current study is minimal (less than 6 %), and does not reflect the wide discrepancy in the values of mode II fracture toughness K IIc (up to 43 %). In comparison with the previous study of single FRC reported by Sherbini (2014), the S/PP hybrid FRC pattern shows supreme behavior of both mechanical properties (compressive and tensile strengths) and mode II fracture toughness K IIc .

Fig. 3
figure 3

Notch depth to specimen width ratio (a/w) versus mode II fracture toughness k IIc for single and hybrid fiber reinforced concrete.

Table 6 represents the mean values and standard deviations of mode II fracture toughness K IIc reported in the current study in comparison to the results of single FRC previously found by Sherbini (2014) for the same concrete matrix. The sensitivity effect of the adopted test is almost the same in either single or hybrid FRC. Figure 4 shows that, the mode II fracture toughness K IIc measured from DNC test are the highest values due to the crack propagation miss alignment opposing sliding of crack surfaces. Figure 5a shows the different crack patterns of DNC specimens. However, the mode II fracture toughness K IIc values measured from 4PS test are the lowest as shown in Fig. 4. It is obvious that the common drawback of the 4PS mode II testing method is that, in the direction perpendicular to crack plane a tensile stress cannot be avoided, especially for crack pattern (c), as shown in Fig. 5b. Similarly in BND test as shown in Fig. 5c, the tensile stress component certainly causes a mode I stress intensity. For the materials with low tensile strength like concrete a small mode I stress intensity could result in tensile failure prior to shear failure in those specimen geometries employed in mode II tests. On the other hand, DENP specimens suffer from indirect tensile cracks near the main shear crack, as shown in Fig. 5d.

Table 6 Mode II fracture toughness K IIc for hybrid and single FRC.
Fig. 4
figure 4

Notch depth to specimen width ratio (a/w) versus mode II fracture toughness k IIc for different hybridization patterns.

Fig. 5
figure 5

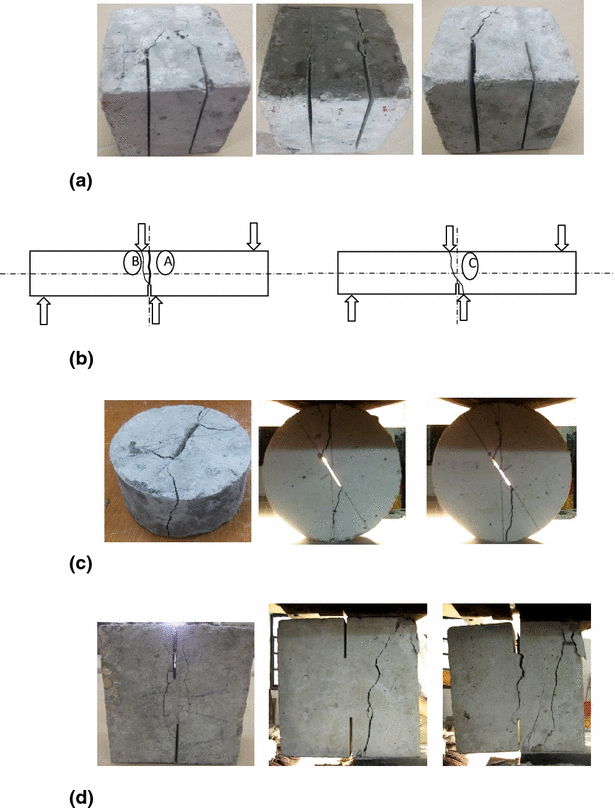

Crack patterns in different mode II specimens under various test setups. a DNC specimens. b 4PS specimens. c BND specimens. d ENP specimens.

Maximum size of undamaged defect (d max) is defined as, the maximum defect size that does not affect the material prosperities, i.e. the damage size beyond which, the material properties decreases. The values of d max should be normalized to an internal structure parameter of concrete such as the NMAS. The values of d max/NMAS should not equal unity, i.e. d max must be less than NMAS. On the other hand, d max should not be of trivial value less than air voids in concrete. In the case of mode I fracture toughness, the value of d max/NMAS was reported to be 0.7 by Sallam et al. (2014). On the present study, to check the reliability of the present results, d max/NMAS are calculated and tabulated in Table 7. It is clear that, the values of d max/NMAS in DNC test are greater than unity which is unacceptable. On the other hand, the values of d max/NMAS in 4PS test are very low, ranged from 0.08 to 0.18. This may be attributed to the existence of tensile stress at the tip of mode II crack as mentioned above. d max/NMAS ranged from 0.42 to 0.65, and from 0.14 to 0.26 in DENP and BND test setups respectively, which represent acceptable values. Although DENP suffered from tensile cracks near the main shear crack, but still the most reliable test setup according to the non damage defect concept, i.e. The closer value to that obtained for Mode I (0.7) reported by Sallam et al. (2014).

Table 7 Calculated values of d max/NMAS.

4 Conclusions

The results of the present experimental work support the following conclusions:

  1. 1.

    Hybridization of fiber relatively increased compressive strength (2–13 %), and tensile strength (up to 14.8 %) in comparison with single fiber addition to concrete at the same fiber volume fraction.

  2. 2.

    Mode II fracture toughness of concrete K IIc decreased with the increment of a/w ratio for all hybridization patterns and test setups (5–17.5 %).

  3. 3.

    Hybrid FRC containing steel fibers in combination of either glass or pp showed higher values of mode II fracture toughness k IIc than all other hybrid patterns. The increment percentages ranges from (11.5–16 %) for DENP test (20–30 %) for DNC test (17–18 %) for BND test, and (25–30 %) for 4PS test.

  4. 4.

    Due to dual synergic mechanism, the (S/PP) mode II fracture toughness K IIc results are the highest among all other hybridization patterns.

  5. 5.

    Mode II fracture toughness K IIc of hybrid fiber reinforced concrete is found to be sensitive to a/w, geometry of test specimen, and loading condition. i.e., mode II fracture toughness K IIc of hybrid fiber reinforced concrete could not be assumed as a real material property.

  6. 6.

    According to the non damage defect concept, DENP test setup is the most reliable test to measure pure mode II of concrete.
