The Caledonian paleokarstification of Longwangmiao Formation, Lower Cambrian in the central Sichuan basin, China

  • Original Article
  • Published:
Carbonates and Evaporites Aims and scope Submit manuscript

Abstract

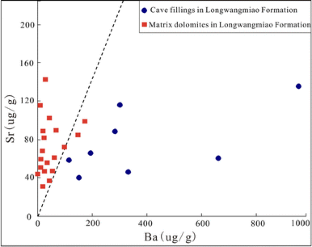

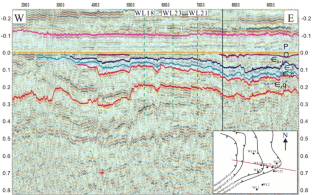

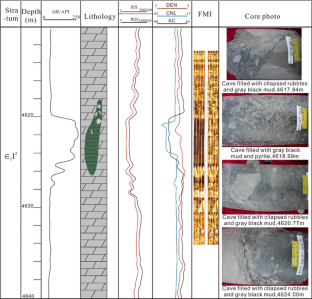

Longwangmiao Formation in Lower Cambrian is one of the key petroleum systems in Sichuan basin. The reservoir is well developed in the Longwangmiao Formation which was deposited in the restricted carbonate platform. It is indicated that the karstification occurred in the reservoir of Longwangmiao Formation during the Caledonian tectonic movement on the basis of seismology, petrology, sedimentology and geochemistry. Distinguishable markers of the paleo-karstification include: the lost strata and unconformable contact occurring between Middle-Upper Cambrian carbonates and Lower Permian Liangshan Formation; the occurrence of collapse breccias and fillings in caves and karrens; the evident difference between cave fill dolostones and matrix dolomite in the Sr/Ba ratio; and the log response of cavernous formations. The karstification lasted for a long time. According to the residual thickness between the top of Longwangmiao Formation and the bottom of the Permian, paleo-geomorphology during the Caledonian karstification had been recovered. In that time, Longwangmiao Formation was not directly exposed to the surface in central Sichuan basin; lots of meteoric fresh water flowed through faults and cracks from Gaotai Formation and a series of vertical dissolved caverns and karrens were formed. Meanwhile, due to the denudation window of Leshan-Longnvsi paleo-uplift lying in the west of the study area, meteoric fresh water flowed from the denudation window and the Longwangmiao Formation became a karstic confined aquifer. Under the pressure, diagenetic fluid migrated along the formation. Consequently, elongated dissolved pores and vugs formed and bedding karst reservoir developed in Longwangmiao Formation. The intensity of the karstification weakened with the distance from the paleo-uplift increasing, which indicates that the karstification was deeply influenced by the paleo-uplift. Finally, the supergene karstification model of Longwangmiao Formation has been established on the basis of the synthesis of the above-mentioned research results.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10

Similar content being viewed by others

References

  • Chen HD, Zhang JQ, Ye DS (1994) Paleokarst reservoir characteristic and its oil controlling effect in Northern Tarim Basin, Xinjiang. Chengdu University of Science and Technology Press, Chengdu, pp 27–77 (in Chinese)

  • Dai DS, Wang LS (2000) Condition of fracture-vug system of carbonate reservoir in Sichuan Basin. Mar Orig Petrol Geol 2:89–97

    Google Scholar

  • Dai HM, Wang SY, Wang HQ et al (1999) Formation characteristics of natural gas reservoirs and favorable exploration areas in Sinian- Cambrian petroleum system of Sichuan basin. Pet Explor Dev 26(5):16–20 (in Chinese with English Abstract)

    Google Scholar

  • Du JH, Zhou XY, Li QM et al (2011) Characteristics and controlling factors of the large carbonate petroleum province in the Tarim basin, NW China. Pet Explor Dev 38(6):652–661 (in Chinese with English Abstract)

    Article  Google Scholar

  • Esteban M, Klappa CF (1983) Subaerial exposure environment[C]//Scholle PA, Bebout DG, Moore CH. AAPG Memoir 33: Carbonate depositional environments. AAPG, Tulsa, pp 1–54

  • Feng ZZ, Pen YM, Jin ZK et al (2002) Lithofacies palaeogeography of the early Cambrian in china. J Palaeogeogr. 4(1):1–12

    Google Scholar

  • Huang WM, Lin SG, Zhang CJ, Wang GZ, Xu GS, Yong ZQ, Ma WX (2009) Reservoir characteristics and formation mechanism of the high quality Cambrian reservoirs in Sichuan basin. Oil Gas Geol 30(5):566–575 (in Chinese with English Abstract)

    Google Scholar

  • Huang WM, Liu SG, Wang GZ, Zhang CJ, Sun W, Ma WX (2011) Geological condition and gas reservoir features in Lower Paleozoic in Sichuan basin. Nat Gas Geosci. 22(3):465–476 (in Chinese with English Abstract)

    Google Scholar

  • James NP, Choquette PW (1988) Paleokarst[M]. Springer-Verlag, Berlin

    Book  Google Scholar

  • Jia ZY, Cai ZX, Xiao YR (1995) Paleoweathering crust: an important reservoir (body) type of carbonate rocks. Earth Sci (J China Univ Geosci) 20:283–289 (in Chinese)

    Google Scholar

  • Jin ZJ, Cai LG (2006) Exploration propects, problems and strategies of marine oil and gas in China. Oil Gas Geol 27(6):722–730 (in Chinese with English Abstract)

    Google Scholar

  • Jin ZK, Zhou YR, Jiang CL, You WF (2001) Distribution and controlling factors of Ordovician karst reservoirs in Dagang region. Acta Sedimentol Sin 19:530–535 (in Chinese with English Abstract)

    Google Scholar

  • Li TS (1992) The characteristics of sedimentary rock and reservoir of oil and gas of Cambrian system in Sichuan basin. Mineral Petrol 12(3):66–73

    Google Scholar

  • Li W, Yu HQ, Deng HB (2012) Stratigraphic division and correlation and sedimentary characteristics of the Cambrian in central-southern Sichuan Basin. Pet Explor Dev. 39(6):681–690

    Article  Google Scholar

  • Li L, Tan XC, Zhao LZ et al (2013) Prediction of thin shoal-facies reservoirs in the carbonate platform interior: a case from the Cambrian Xixiangchi Grop of the Weiyuan area. Sichuan basin. Pet Explor Dev. 40(3):334–340

    Google Scholar

  • Lin ZM (2002) Formation condition of large-scale oil-gas pool in ordovician carbonate rock in the Tahe oil field, Tarim Basin. Geol Rev 48:372–376 (in Chinese with English Abstract)

    Google Scholar

  • Moore CH (2001) Carbonate reservoirs: porosity evolution and diagenesis in a sequence stratigraphic framework. Elsevier Science, Amsterdam, pp 194–200

    Google Scholar

  • Pan WQ, Liu YF, Dickson JAD et al (2009) The geological model of hydrothermal activity in outcrop and the characteristics of carbonate hydrothermal karst of lower Paleozoic in Tarim basin. Acta Sedimentol Sin 27(5):983–994 (in Chinese with English Abstract)

    Google Scholar

  • Ran LH, Xie YX, Wang LS (2006) Understanding exploration of marine carbonate reservoirs in South China through Sichuan basin. Oil Gas Geol 27(3):289–294 (in Chinese with English Abstract)

    Google Scholar

  • Song WH (1996) Research on reservoir formed condition of large-medium gas field of Leshan-Longnvsi palaeohigh. Nat Gas Ind 16(supp):13–26

  • Wang XZ, Huang JX, Hou FH (1996) The relations between Paleokarst and reservoir porosity in Dengying formation, Sinian of Ziyang and neighboring area, Sichuan. J Mineral Petrol 26:47–56 (in Chinese with English Abstract)

    Google Scholar

  • Xiao KH, Wo YJ, Zhou Y, Tian HQ (2006) Petroleum reservoiring characteristics and exploration direction in marine strata in southern China. Oil Gas Geol 27(3):316–415 (in Chinese with English Abstract)

    Google Scholar

  • Yang XF, Wang XZ, Tang H et al (2014) The early Hercynian paleo-karstification in the block 12 of Tahe oilfield, northern Tarim basin, China. Carbonates Evaporites. 29(3):251–261

    Article  Google Scholar

  • Yao GS, Zhou JG, Zou WH et al (2013) Characteristics and distribution rule of Lower Cambrian Longwangmiao grain beach in Sichuan basin. Mar Orig Petrol Geol. 18(4):1–8

    Google Scholar

  • Yuan DX (1993) China karstology. Geology press, Beijing, pp 4–8 (in Chinese)

    Google Scholar

  • Zhang K (2001) The characteristics of Tahe oilfield and its oil gas exploration direction in the carbonates of Tarim basin. Acta Pet Sin 22:1–6 (in Chinese with English Abstract)

    Google Scholar

  • Zhao WZ, Shen AJ, Hu SY et al (2012) Geological conditions and distributional features of large-scale carbonate reservoirs onshore China. Pet Explor Dev 39(1):1–12 (in Chinese with English Abstract)

    Article  Google Scholar

  • Zhao WZ, Shen AJ, Pan WQ, Zhang BM, Qiao ZF, Zheng JF (2013) A research on carbonate karst reservoirs classification and its implication on hydrocarbon exploration: case studies from Tarim basin. Acta Pet Sin 29(9):3213–3222 (in Chinese with English Abstract)

    Google Scholar

  • Zhu GY, Zhang SC, Liang YB (2006) Formation mechanism and distribution prediction of high-quality marine reservoir in deeper Sichuan basin. Pet Explor Dev. 33(2):161–165 (in Chinese with English Abstract)

    Google Scholar

Download references

Acknowledgments

The authors express their deep gratitude to Lin Xie and Nan Jiang and for their help during the research. We are also grateful to the Carbonates and Evaporates editor and reviewers for their valuable suggestion and kind help in improving the quality of the manuscript.

Author information

Authors and Affiliations

  1. State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation, Southwest Petroleum University, Chengdu, 610500, Sichuan, China

    Xuefei Yang, Xingzhi Wang & Hao Tang

  2. School of Geoscience and Technology, Southwest Petroleum University, Chengdu, 610500, Sichuan, China

    Xuefei Yang, Xingzhi Wang, Hao Tang & Lincheng Dai

  3. Research Institute of Exploration and Development, Southwest Oil and Gas Field Company, PetroChina, Chengdu, 610051, Sichuan, China

    Yueming Yang, Jirong Xie & Wenjun Luo

Authors
  1. Xuefei Yang
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Xingzhi Wang
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Hao Tang
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Yueming Yang
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Jirong Xie
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Wenjun Luo
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Lincheng Dai
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Xuefei Yang.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Yang, X., Wang, X., Tang, H. et al. The Caledonian paleokarstification of Longwangmiao Formation, Lower Cambrian in the central Sichuan basin, China. Carbonates Evaporites 32, 325–335 (2017). https://doi.org/10.1007/s13146-016-0303-8

Download citation

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s13146-016-0303-8
