Abstract
Purpose

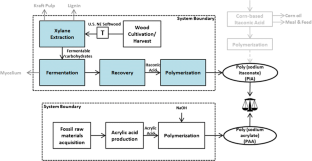

Shifting the resource base for chemical and energy production from fossil feed stocks to renewable raw materials is seen by many as one of the key strategies towards sustainable development. The objective of this study is to assess the environmental burdens of producing polyitaconic acid (PIA), a water-soluble polymer derived from itaconic acid identified by the US Department of Energy as one of the top 12 value added chemicals from northeast (NE) US softwood biomass. Results are compared to corn-derived PIA and fossil-based poly acrylic acid (PAA) on the basis of 1 kg of polymer at the factory gate.
Methods
This study uses attributional life cycle assessment to quantify global warming potential (GWP), fossil energy demand (CED), acidification, eutrophication, water use, and land occupation of the polymer production routes. This includes feedstock growth and harvest, sugar extraction, fermentation, itaconic acid recovery, and subsequent polymerization. Foreground data for softwood-derived PIA comes from lab- and pilot plant runs undertaken by Itaconix LLC.
Results and discussion

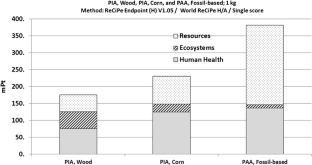

Results indicate that the use of softwood-based PIA may be advantageous in terms of GWP, CED, and acidification when compared to both, the integrated corn biorefinery and fossil-based PAA production. When looking at impacts to eutrophication and water use, the use of softwood leads to lower potential impacts compared to its corn-based counterpart but to higher impacts when compared to fossil-based PAA. Land occupation, to a large extent, due to lower yields and longer growth cycles associated with softwood growth in the NE, is highest for softwood-derived PIA and lowest for fossil-based PAA. Environmental impacts are mainly the results of onsite electricity use, inputs of activated carbon and sodium hydroxide, as well as water use during sugar extraction and fermentation. Assumptions with regards to allocation, activated carbon inputs, and electricity mixes to processes of the foreground system are tested in a sensitivity analysis.
Conclusions
Wood-derived PIA production may be an interesting alternative to current fossil-based pathways and could contribute to a future biobased economy. However, currently, land occupation, water use, and eutrophication are high when compared to traditional PAA production. The use of short rotation crops or waste feedstocks and optimization with regards to water requirements and reuse should be investigated to further lower system-wide impacts.
Similar content being viewed by others
Notes
Connecticut, Maine, Massachusetts, New Hampshire, New York, Rhode Island, and Vermont
In reality, the corn-based biorefinery would likely be located in the Midwestern USA in close proximity to the corn belt. However, since the goal and scope of this paper is to compare the biorefinery process using wood to the use of corn, we choose similar electricity mixes for all processes of the foreground system.
The process “Pulpwood, softwood, US NE-NC” is used.
NAI represents the average annual volume over a reference period of gross increment less natural losses and hence represents a good estimate for the required forest land area for biomass provision.
This includes pulp-grade wood, lignin, and mycelium.
This price is simply based on currently existing commercial IA production pathways and does not imply the production cost or target price for Itaconix LLC.
Given a radius of 70 m, the transportation distance was calculated as follows:
$$ {{1} \left/ {{\sqrt {2} \cdot 70\;{\mathrm{miles} = 49}.5\;{\mathrm{miles}}.}} \right.} $$The CED indicator encompasses nonrenewable fossil (i.e., coal, oil, etc.) and nuclear (i.e., uranium) energy demand.
Includes fossil feedstock energy.
According to Oneil et al. (2010), fertilization is used by a few large private landowners but it is overall not a common practice in the NE region.
From −0.13 to −0.36 kg CO2-eq if the carbon temporarily sequestered in the PIA is included.
From 0.74 to 0.53 kg CO2-eq if the carbon temporarily sequestered in the PIA is included.
References
Akiyama M, Tsuge T, Doi Y (2003) Environmental life cycle comparison of polyhydroxyalkanoates produced from renewable carbon resources by bacterial fermentation. Polym Degrad Stabil 80(1):183–194
Althaus H-J, Hischier R, Osses M, Primas A, Hellweg S, Jungbluth N, Chudacoff M (2007a) Life cycle inventories of chemicals data v2.0. Ecoinvent Centre. ETH Zurich, Dübendorf
Althaus H-J, Werner F, Stettler C (2007b) Life cycle inventories of renewable materials data v2.0. Ecoinvent Centre. ETH Zurich, Dübendorf
Amidon TE (2006) The biorefinery in New York: woody biomass into commercial ethanol. Pulp Pap-Can 6(107):47–50
Bare JC, Norris GA, Pennington D, McKone T (2002) Traci—the tool for the reduction and assessment of chemical and other environmental impacts. J Ind Ecol 6(3–4):49–78
Bauer C, Bolliger R, Tuchschmidt M, Faist-Emmenegger M (2007) “Wasserkraft.” Sachbilanzen von energiesystemen: grundlagen fuer den oekologischen Vergleich von Energiesystemen und den Einbezug von Energiesystemen in Oekoblianzen fuer die Schweiz, Ecoinvent Report No. 6-VIII (In German), R. Dones, ed., Paul Scherrer Institute Villigen, Swiss Centre for Life Cycle Inventories, Dübendorf, Switzerlan
Benjamin J, Lilieholm RJ, Damery D (2009) Challenges and opportunities for the northeastern forest bioindustry. J For 107(3):125–131
Dodds DR, Gross RA (2007) Chemistry: chemicals from biomass. Science 318(5854):1250–1251
Ecoinvent (2010) Ecoinvent life cycle inventory database v2.2. Swiss Centre for Life Cycle Inventories
US Forest Service (2010) Forest Inventory and Analysis National Program—tools and data. http://www.fia.fs.fed.us/tools-data/default.asp. Accessed on: 27 Dec 2010
Gerngross TU (1999) Can biotechnology move us towards a sustainable society. Nat Biotechnol 17:541–544
Goedkoop M, Oele M, de Schryver A, Vieira M (2008) SimaPro database manual—methods library. PRé Consultants, Netherlands
Goedkoop M, Heijungs R, Huijbregts M, De Schryver A, Struijs J, Van Zelm R (2009) ReCiPe 2008, a life cycle impact assessment method which comprises harmonised category indicators at the midpoint and the endpoint level; First edition Report I: Characterisation. (www.lcia-recipe.net)
Itaconix, LLC (2009) The development of integrated production of polyitaconic acid from Northeast hardwood biomass. Grant Project Proposal, Itaconix, LLC, (Principal); Microbia, Inc.; University of Maine
Itaconix, LLC (2010) Technical datasheet: ITACONIX™ Dispersant DSP2K
Johnson E (2009) Goodbye to carbon neutral: getting biomass footprints right. Environ Impact Assess 29(3):165–168
Jungbluth N, Chudacoff M, Dauriat A, Dinkel F, Doka G, Emmenegger MF, Gnansounou E, Kljun N, Schleiss K, Spielmann M, Stettler C, Sutter J (2007) Life cycle inventories of bioenergy. Ecoinvent report no.17. Swiss Centre for Life Cycle Inventories, Dübendorf
Kamm B, Gruber PR, Kamm M (2006) Biorefineries—industrial processes and products: status quo and future directions, volume 2. Wiley, New York
Khoo HH, Tan RBH, Chang KWL (2010) Environmental impacts of conventional plastic and bio-based carrier bags. Int J Life Cycle Assess 15(3):284–293
Koellner T, Scholz R (2007) Int J Life Cycle Assess 12(1):16–23
McKechnie J, Colombo S, Chen J, Mabee W, MacLean HL (2011) Forest bioenergy or forest carbon? Assessing trade-offs in greenhouse gas mitigation with wood-based fuels. Environ Sci Technol 45(2):789–795
ISO New England (2010) 2010 Regional System Plan (www.iso-ne.com)
Nielsen PH, Oxenbøll KM, Wenzel H (2006) Cradle-to-gate environmental assessment of enzyme products produced industrially in denmark by novozymes A/S. Int J Life Cycle Assess 12(6):432–438
NREL (2008) U.S. Life Cycle Inventory Database (U.S. LCI), v1.6.0. National Renewable Energy Laboratory (NREL)
Oneil EE, Johnson LR, Lippke BR, McCarter JB, McDill ME, Roth PA (2010) Life-cycle impacts of Inland Northwest and Northeast/North Central Forest Resources. 42(CORRIM Special Issue), pp. 29–51
Smith WB, Miles PD, Perry CH, Pugh SA (2009) Forest Resources of the United States, 2007. Gen. Tech. Rep. WO-78. U.S. Department of Agriculture, Forest Service, Washington Office, Washington, p 336
US EPA (2011) Chapter 9: food and agricultural industries, AP 42, fifth edition, volume I. Office of Air Quality Planning and Standards
USDA (2011) Agricultural marketing service—market news and transportation data. http://www.ams.usda.gov/AMSv1.0/ams.fetchTemplateData.do?startIndex=1&template=TemplateW&page=SearchFeedstuffsReports. 6 Jul 2011
Vink ETH, Rábago KR, Glassner DA, Gruber PR (2003) Applications of life cycle assessment to NatureWorks(TM) polylactide (PLA) production. Polym Degrad Stabil 80(3):403–419
Vink ETH, Glassner D, Kolstad J, Wooley R, O’Connor R (2007) The eco-profiles for current and near-future NatureWorks® polylactide (PLA) production. Ind Biotechnol 3(1):58–81
Vink ETH, Davies S, Kolstad J (2010) The eco-profile for current Ingeo® polylactide production. Ind Biotechnol 6(4):212–224
Walker T (2010) Massachusetts Biomass Sustainability and Carbon Policy Study: report to the Commonwealth of Massachusetts Department of Energy Resources. Natural Capital Initiative Report. Manomet Center for Conservation Science, Brunswick
Werner F, Althaus H-J, Kuenninger T, Richter K, Jungbluth N (2007) Life cycle inventories of wood as fuel and construction material—data v2.0. Dübendorf: Switzerland
Werpy T, Petersen G (2004) Top value added chemicals from biomass, volume 1: results of screening for potential candidates from sugars and synthesis gas. National Renewable Energy Laboratory (NREL) and Pacific Northwest National Laboratory (PNNL)
Acknowledgments
The authors are grateful to Yvon Durant and staff at Itaconix LLC for providing process data and assisting with the LCI analysis. We also would like to thank DOE-USDA (grant no. 2009-10006-06046) for funding the LCA task of the project and two anonymous reviewers for their constructive comments.
