Introduction

The widespread extraction, refining, processing, transportation, and utilization of petroleum are posing an ever increasing risk of soil contamination with petroleum hydrocarbons (Tahhan et al. 2011). In addition to accidental contamination, improper disposal of oily sludge generated in oil refineries and petrochemical industries often leads to soil contamination and poses a serious threat to soil and groundwater as many of the constituents of oily sludge are carcinogenic and potent immunotoxicants (Propst et al. 1999).

Oily-sludge-contaminated soils are currently treated using physical, chemical, and biological processes. Physical or chemical methods include incineration, chlorination, ozonation, and combustion. Many of these technologies, however, are either costly or do not result in complete removal of contaminants. On the other hand, biological treatment (“bioremediation”) is widely used (Huang et al. 2005; Liu et al. 2010; Vasudevan and Rajaram 2001; Wang et al. 2012) and appears to be among the most promising methods for remediating a wide range of organic contaminants, particularly petroleum hydrocarbons though some fractions of them with high molecular weight are fairly resistant to bioremediation, requiring long periods of time for assimilation. Phytoremediation is one of bioremediation technologies. It uses plants and their associated microbes for environmental cleanup and is generally considered as an environmental friendly and gentle management option for polluted soils as it uses solar-driven biological processes to treat pollutants (Wenzel 2009). Phytoremediation can be applied at moderate contamination levels and biotoxicity or after the application of other remediation measures as a further step to degrade residual pollutants (Merkl et al. 2005). The successful application of phytoremediation of petroleum-contaminated soils has been shown in a number of studies (Gerhardt et al. 2009; Huang et al. 2005; Muratova et al. 2008). However, there are also many limitations in phytoremediation. One of the factors limiting biodegradation of oil pollutants is that many hydrocarbon compounds are less readily accessible to microorganisms in the soil due to their low aqueous solubility and strong binding/sorption onto soil matrix. Low biomass production and slow growth of the plants due to the phytotoxicity of hydrocarbons in soil also limit effective remediation (Huang et al. 2004, 2005).

One of the effective ways to increase the bioavailability of petroleum hydrocarbon pollutants in soil is using surfactants to enhance their desorption and solubilization, thereby facilitating microbial degradation (Kuyukina et al. 2005). Biosurfactants are structurally diverse group of surface-active substances produced by living cells and have desirable characteristics such as biodegradability, low toxicity, and ecological acceptability. Though most of biosurfactants are produced by microorganisms, including rhamnolipids, surfactin, sophorolipids, and so on, there are also plant-derived biosurfactants such as saponins. They can also be produced from renewable and cheaper substrates than many synthetic surfactants (Banat et al. 2000). A number of studies have been successfully carried out on soil bioremediation using biosurfactants (Cameotra and Singh 2008; Lai et al. 2009; Liu et al. 2012; Urum et al. 2003).

Successful plant growth in petroleum-contaminated soils is also critical for the optimum performance of phytoremediation. Plant-growth-promoting rhizobacteria (PGPR) have been used to enhance the tolerance of plants against toxicity through the production of plant-growth-promoting factors such as siderophores, indole-3-acetic acid (IAA), and 1-aminocyclopropane-1-carboxylate (ACC) deaminase (Glick et al. 2007). Therefore, the application of rhizobacteria with PGPR characters is a promising approach to improving the efficiency of phytoremediation. However, to the best of our knowledge, no report has been published on the utilization of biosurfactant-producing bacteria with PGPR characters to assist phytoremediation petroleum-contaminated soils.

Tall fescue (Testuca arundinacea L.) which can significantly increase the efficiency of hydrocarbon degradation in the soil (Huang et al. 2005) was used in this study. The aims of this work were (1) to characterize the biosurfactant-producing Pseudomonas sp. SB which has the characters of PGPR, (2) to determine the impact of the strain inoculation on tall fescue growth and removal rate of total petroleum hydrocarbon (TPH) and polycyclic aromatic hydrocarbons (PAHs) in an oily-sludge-contaminated soil, and (3) to examine changes in the functional diversity indices of the microbial community and the acute biological toxicity of the contaminated soil after phytoremediation.

Materials and methods

Soil characterization

The oily-sludge-contaminated soil was collected from the surface layer (0–20 cm) in Jingmeng city, Hubei Province, China (31°02′ N, 112°11′ E). Soil samples were air-dried, ground to pass through a 2-mm sieve, and stored in plastic bags until use. Hydrolyzable nitrogen, cation exchange capacity (CEC), pH, and available phosphorus and potassium were measured using standard methods (Lu 1999) before phytoremediation, and the soil had the following properties (dry-weight basis): pH (1:2.5 soil/water) 6.45, hydrolyzable N 558 mg kg−1, available P 171 mg kg−1, available K 174 mg kg−1, and cation exchange capacity 23 cmol kg−1.

Bacterium and surface tension measure

Pseudomonas sp. SB was isolated from rhizosphere soil of tall fescue (Testuca arundinacea L.) grown in a petroleum-contaminated soil and stored in the laboratory. The isolated strain was inoculated into 50 ml of the LB medium and incubated at 25 °C with shaking at 180 rpm for 48 h. The surface tension and the optical density at 600 nm of the culture medium were measured every 4 h. The surface tension was measured by the ring method at 25 °C using a Model ZL-2 digital tensiometer (Boshan Tongye Analytical Instrument, Shandong, China).

ACC deaminase, phosphate solubilization, IAA, and siderophore assay

The activity of ACC deaminase of cell-free extracts was determined by estimating the amount of α-ketobutyrate (α-KB) generated by the enzymatic hydrolysis of ACC. The amount of α-KB was determined by comparing the absorbance at 540 nm of a sample to a standard curve of α-KB (Zhang et al. 2011). Total protein was determined by the method of Bradford (1976) using bovine serum albumin as a standard. After determining the amount of protein and α-KB, the enzyme activity was expressed as molar α-KB per milligram per hour (Jalili et al. 2009). Mineral phosphate solubilization was assayed on Pikovskaya agar plates containing insoluble tricalcium phosphate Amprayn et al. (2012). The plates were incubated at 28 °C, and development of a clear zone around the colony was evaluated at day 5.

Bacterial IAA was measured as previously described (Glickmann and Dessaux 1995). Single bacterial colony was inoculated into the TSB medium and grown overnight with shaking at 200 rpm in a water bath at 30 °C. The absorbance at 600 nm of culture was adjusted to approximately 1.2, and 5 ml of each culture was inoculated into 5 ml of the DF medium [with (NH4)2SO4] containing l-tryptophan (200 μg ml−1). The cultures were grown with shaking at 200 rpm at 30 °C for 40 h (Reed et al. 2005). Siderophore secretion by the Pseudomonas sp. SB was detected by the method of Payne (1994).

Pot experiment

A pot experiment was conducted in a glasshouse with natural light. The experiment consisted of three treatments in four replicates with a fully randomized design. The treatments were (1) no-plant control, (2) tall fescue, and (3) tall fescue plus Pseudomonas sp. SB (tall fescue + SB). Plastic pots were filled with 2.0 kg air-dry soil, and water content of the soil was maintained at about 80 % field capacity during the experimental period. All treatments received 80 mg P kg−1 as KH2PO4 before the experiment. Other nutrients were at adequate ranges and thus were not applied.

Uniform seeds of tall fescue were surface-disinfected by immersing in 0.3 % sodium hypochlorite for 5 min and rinsing with sterilized distilled H2O. An aliquot of 50 seeds were then sown in each pot of the planted treatments. For the tall fescue + SB treatment, the strain SB in the exponential phase in the LB medium were collected by centrifugation at 9,000×g for 15 min at 4 °C, washed with sterile distilled water, and centrifuged. Bacterial inoculum was prepared by resuspending pelleted cells in sterile distilled water to obtain an inoculum density of 109 colony-forming units (cfu) ml−1. Bacterial suspension (10 ml pot−1) was mixed with the soil before sowing seeds. Plants were harvested at day 120.

TPH analysis

Sub-samples (10 g) of freeze-dried and pulverized soil were mixed with an equal volume of anhydrous Na2SO4. Then the mixtures were placed in a thimble and extracted in a Soxhlet apparatus with 100 ml tetrachloromethane for 24 h and analyzed by FT-IR after passing the extract through a florisil column. The TPH content of the soil before remediation is 1,851 mg kg−1.

PAHs analysis

An aliquot of 2 g freeze-dried soil samples was mixed with an equal volume of anhydrous Na2SO4. Then the mixtures underwent Soxhlet extraction with dichloromethane (DCM) for 24 h. The extracts were reduced to 2 ml using rotary evaporation followed by further concentration under a weak stream of nitrogen. The residue was dissolved in 2 ml of cyclohexane and 0.5 ml of the solute and extracted. The extracts were then purified by a silica gel column (8 mm × 220 mm) and washed with a mixture of hexane and DCM (1:1). The first 1 ml of elute was discarded because it contained non-polar saturated hydrocarbons and was less retained than PAHs by silica gel. The second 2-ml aliquot of elute was collected, dried by sparging with N2, and dissolved in 1 ml hexane (Ping et al. 2007).

Sixteen US Environmental Protection Agency (USEPA) priority PAH compounds were identified and quantified using GC–MS. An Agilent 7890N GC system and Agilent 5795B series MSD equipped with G6500-CTC autosampler was used. The GC–MS operating conditions were as follows: DB-5 silica column (30 m × 0.25 mm × 0.25 μm); injection temperature was set at 250 °C; splitless mode. The column temperature was programmed as follows: 50 °C hold for 1 min, rising at 25 °C min−1 to 200 °C, rising at 8 °C to 280 °C, rising at 1 °C to 283 °C, and rising at 2 °C to 290 °C. Helium was used as the carrier gas with flow rate at 1.0 ml min−1. Peaks was verified and quantified based on key fragment ions, retention times compared to those of external PAH standards, and/or mass spectra. The MS operating conditions were as follows: ionization voltage 70 eV, transfer line temperature 260 °C, ion source 230 °C, and mass scan range m/z 60–640 amu.

Microbial counts and community-level physiological profiling (CLPP) analysis

Soil samples were taken on days 60 and 120 for analyses of heterotrophic bacteria, TPH degraders and PAH degraders, and on day 120 for determination of the CLPP of the soil microbial communities. The heterotrophic bacteria were enumerated on nutrient agar plates. TPH degraders and PAH degraders were enumerated by the most-probable-number (MPN) technique (Wrenn and Venosa 1996). The CLPP of the soil microbial communities was analyzed with gram-negative (GN) microplates (BIOLOG Inc.). Aliquots of 10−3 dilutions were used to inoculate GN plates (150 μl per well) and incubated at 30 °C. The plates were read every 12 h (OD590) over 132 h using a BIOLOG automated plate reader. All wells were blanked to the control well A1. For the BIOLOG data, average well color development (AWCD) was calculated as described by Garland and Mills (1991). The Shannon index, Shannon evenness, McIntosh index, McIntosh evenness, and Gini coefficient of soil microbial communities were used to measure species metabolic diversity (Harch et al. 1997; Yang and Yao 2000).

Toxicity assay

The biotoxicity of the contaminated soil before and after remediation was studied according to the methods of Płaza et al. (2005a). Briefly, DCM and dimethylsulfoxide (DMSO) were used to extract the soil. The biological toxicity of the DCM/DMSO extracts and DMSO (control) were tested based on the measurement of reduction in light emission by Photobacterium phosphoreum T3 under toxic stress. All bioassays were carried out in triplicate and light output was measured using a portable luminometer (Model DXY-2). Toxicity results were reported as the effective concentration promoting a 50 % (EC50) reduction in light emitted by the bacteria.

Statistical analysis

All experiments were conducted with four replicates or otherwise specified. The data collected were analyzed statistically using SPSS 16.0 software. Duncan’s multiple range tests was used to compare the means of the treatments, variability in the data was expressed as the standard deviation, and a P <0.05 was considered to be statistically significant.

Results

Bacterial growth and biosurfactant production

Growth curves were obtained for the strains Pseudomonas sp. SB in order to establish the relation between cell growth and surface activity of the biosurfactant in time (Fig. 1). The results showed the absorbance (growth) and surface tension of the LB medium plotted versus time for the strain. Surfactant production was directly proportional to cell growth as the surface tension decreased with increasing cell density. The lowest surface tension (27.3 mN m−1) and highest absorbance (1.59) was obtained at 16 h. Therefore, 16 h incubation is sufficient for surfactant production and cell growth in the following experiments.

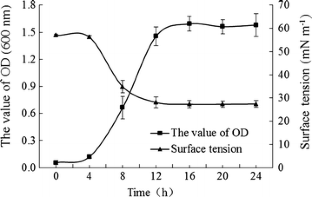

Fig. 1
figure 1

Growth and biosurfactant production curves of Pseudomonas sp. SB. Error bars: ±1 standard deviation (n = 3)

Full size image

Plant-growth-promotion features of Pseudomonas sp. SB

Pseudomonas sp. SB was found to exhibit a number of traits which are important for plant-growth-promoting activity. The production of ACC deaminase was 2.04 M α-KB mg−1 h−1 in the DF medium. The strain also had the capacity to produce IAA (16.0 mg l−1) in the LB medium when the medium was supplemented with l-tryptophan. Orange halos around the colonies of SB on the blue agar were formed, indicating siderophore excretion of the strain. Clear zone around the colony of the strain appeared in the SRSM agar plate after 5 days, indicating that the strain was able to solubilize P (Jin-Hee et al. 2011).

Plant growth

The inoculation of Pseudomonas sp. SB improved the growth of tall fescue. It increased shoot and root dry weights by 28 % and 19 %, respectively, by the end of the experiment (Table 2).

Degradation of TPH and PAHs

The TPH contents of the soil after 120 days are shown in Table 1. The TPH decreased by 33.8 %, 68.0 %, and 84.5 % in non-planted control, tall fescue, and tall fescue + SB treatments, respectively. The content of TPH was significantly lower (P < 0.05) in two treatments with plants than the control, and the inoculation of BS further decreased TPH contents.

Table 1 Effect of growing tall fescue for 120 days and inoculation of Pseudomonas sp. SB on plant biomass and concentration of total petroleum hydrocarbon (TPH) in soil
Full size table

Sixteen USEPA PAHs were detected in the initial soil (Table 2). After 120 days, total PAHs decreased by 31.7 %, 40.7 %, and 46.2 % in the control, tall fescue, and tall fescue + SB treatments, respectively. Compared with the tall fescue treatment, the inoculation of BS further decreased the contents of total PAHs and individual PAHs with high molecular weights (HMW) (five to six rings) such as benzo[k]fluoranthene, dibenz[ah]anthracene, and benzo[ghi]perylene. For example, the removal efficiency of benzo[a]pyrene, a strongly carcinogenic compound, was 43.7 %, 43.7 %, and 61.3 % in the soil of the control, tall fescue, and tall fescue + SB treatments, respectively.

Table 2 Removal of polycyclic aromatic hydrocarbon (PAHs) after 120 days of growing tall fescue with or without inoculation of Pseudomonas sp. SB
Full size table

Microbial populations

To reveal the treatment effects on microbial communities in the soil, heterotrophic bacteria, TPH degraders, and PAH degraders were quantified at days 60 and 120. The counts of heterotrophic bacteria, TPH degraders, and PAH degraders were all the highest in the tall fescue + SB treatment and lowest in the no-plant control at day 60. Heterotrophic bacteria showed the same trend at day 120, but the counts of TPH and PAHs degraders decreased over time and were lower in the plant treatments than in the control at day 120 (Table 3).

Table 3 Heterotrophic bacteria, TPH degraders, and PAH degraders in the soil after growing tall fescue for 60 and 120 days with or without inoculation of Pseudomonas sp. SB
Full size table

CLPP of the sludge microbial communities

AWCD and diversity index were analyzed using BIOLOG data to detect treatment difference in microbial communities. The activity of soil microbial communities in the soil evaluated by AWCD increased over time and was highest in the tall fescue + SB treatment and lowest in the controls (Fig. 2). The absorbance of each well in the BIOLOG plates at 72 h was used to calculate diversity indices of the microbial community (Table 4). The Shannon index, Gini coefficient, and McIntosh evenness were significantly higher in the planted treatments than in the control. The inoculation of SB further increased the Shannon evenness, McIntosh Index, and Gini coefficient.

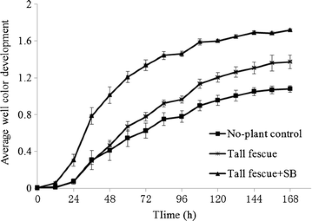

Fig. 2
figure 2

Changes in average well color development (AWCD) of soil microbial community during incubation. Error bars: ±1 standard deviation (n = 4)

Full size image
Table 4 Functional diversity indices of microbial community in soils of no-plant control and after 120 days of growing tall fescue with or without inoculation of Pseudomonas sp. SB
Full size table

Biotoxicity assay

Biotoxicity of the soil was determined before and after phytoremediation by P. phosphoreum T3. EC50 values were ranked as follows: Before remediation (Before Rem) < No-plant control < Tall fescue < Tall fescue + SB (Fig. 3), indicating that both growing tall fescue and inoculation of BS decreased the biotoxicity of the soil.

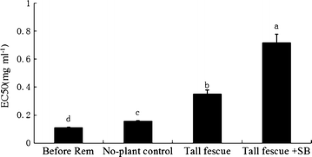

Fig. 3
figure 3

Biotoxicity of the soil under different treatments. Error bars: ± 1 standard deviation (n = 4). Different letters indicate a significant difference at p < 0.05 according to Duncan’s multiple range tests

Full size image

Discussion

Mass transfer from adsorbed or insoluble phases to the aqueous phase is considered to be the rate-limiting step in biodegradation of organic contaminants because the compounds must be released to the aqueous phase prior to entering the microbial cell and subsequent intracellular transformation by the necessary catabolic enzymes (Dean et al. 2001). Compounds present in oily sludge are inherited from petroleum hydrocarbons, and most of them are insoluble. Furthermore, oily sludge undergoes several aging and weathering processes that eventually lead to the compounds having low water solubility. As shown in Table 2, the HMW PAHs (five- and six-ring PAHs) with low water solubility accounted for 75 % of total PAHs in the oily contaminated soil used in this experiment. There are several reports on improving oily sludge degradation by addition of biosurfactant or chemical surfactant to increase the bioavailability of the hydrocarbons (Ahn et al. 2010; Benincasa 2007; Cameotra and Singh 2008; Lai et al. 2009). However, the effect of inoculating biosurfactant-producing bacteria which can produce surfactants successively is relatively less studied.

This study showed that Strain SB produced the biosurfactant that reduces the surface tension of medium to 27.3 mN m−1. The biosurfacant is expected to enhance desorption of TPHs and PAHs and increased their removal from the soil. It was evident that SB inoculation significantly (P < 0.05) increased the removal of TPHs and PAHs in the sludge-contaminated soil. For HMW PAHs such as benzo[ghi]perylene, benz[a]pyrene, and benzo[k]fluoranthene, their removal rates were 21.2 %, 17.6 %, and 16.3 % higher in the BS inoculated treatment than in the tall fescue alone treatment, respectively. These PAHs all have large K ow (above 6.0) and low water solubility. The bioavailability could be the rate-determining factor for their degradation. One possible reason why biosurfactant-producing bacteria enhanced the removal of TPHs and PAHs is that the inoculation could increase the rate of solubilization and desorption of TPHs and PAHs by enhancing the rate of mass transfer from adsorbed phases to soil solution (Juhasz and Naidu 2000).

Apart from the produced biosurfactant, Pseudomonas sp. SB used in this experiment also exhibited a number of characters of PGPR and improved the development of the root and shoot system of tall fescue. It produced IAA and siderophore, and had the P-solubilization ability. Especially, the bacteria with ACC-deaminase activity metabolize ACC (an immediate precursor of ethylene in plants) into α-ketobutyric acid and ammonia, thus regulating the biosynthesis of ethylene and promoting plant growth.

The degradation of most hydrocarbons is believed to enhance through a rhizosphere effect. Plants exude organic compounds through their roots, which increase the density, diversity, and activity of specific microorganisms which in turn degrade hydrocarbons in the surrounding rhizosphere (Phillips et al. 2006). Hence, extensive root growth is a prerequisite of maximizing the effectiveness of phytoremediation processes. Reduced root growth in contaminated soils might be owing to production of ethylene induced by toxicity stress (Arshad et al. 2007). Huang et al. (2004; 2005) demonstrated that biomass accumulation and root growth of tall fescue were severely decreased by TPHs in soil, although tall fescue is relatively tolerant of organic contaminants. Merkl et al. (2005) also showed that root biomass was positively correlated with phytoremediation activity in a hydrocarbon-contaminated soil.

In phytoremediation, hydrocarbons are degraded mainly by soil microbial communities. Therefore, the phytoremediation potential can be characterized by enumerating cultivable soil heterotrophic and pollutant-degrading bacteria in the rhizosphere (Muratova et al. 2008). This present study showed that tall fescue planting and SB inoculation promoted TPH and PAH degraders at 60 days, although the TPH and PAHs degraders were lower than that of control at 120 days (Table 3). The heterotrophic bacterial counts in the two planted treatments were always higher than in the control plot throughout the experiment (Table 3). The reason might be that most of the TPH and PAHs were degraded in two planted treatments and their concentration was very low and hard to support the degraders’ growth at the end of the experiment.

Wuensche et al. (1995) demonstrated that substrate utilization patterns as recorded with the BIOLOG system are suitable for rapidly assessing the dynamics of autochthonous communities and evaluating their biodegradative potential in soil. The highest activity of soil microbial communities evaluated by AWCD in the tall fescue + SB treatment indicates that tall fescue and Pseudomonas sp. SB inoculation had important influences on the microbial activity.

There were also similar effects of growing tall fescue and SB inoculation on microbial metabolic diversity reflected by Shannon index, McIntosh index, and Gini coefficient. The Shannon index provides the information on the distribution of C source utilization by microbial communities and potential metabolic diversity of the communities while the McIntosh index provides information on species richness based on the number of species and their abundances. Gini coefficient quantifies the inequality of use of carbon sources (richness and evenness) (Harch et al. 1997). Thus, it can be concluded that phytoremediation not only decreased TPH content but also increased microbial activity and community diversity in this oily-sludge-contaminated soil. It must be emphasized that CLPP is not a culture-independent method and is somewhat biased towards fast-growing and easily cultivable species (Smalla et al. 1998).

Petroleum contains hundreds of individual compounds with varying degrees of toxicity, mutagenicity, and carcinogenicity, and its composition varies with sites and source strata (Liu et al. 2009). Therefore, ecotoxicity bioassays should be used as supplementary tools for monitoring the remediating effectiveness of petroleum-contaminated sites (Płaza et al. 2008; Płaza et al. 2005b). In this study, the toxicities of the soil as a function of petroleum biodegradation activity were also determined. P. phosphoreum T3 was used to test the biotoxicity of the oily sludge before and after bioremediation. The EC50 of the soils increased by 41 %, 218 %, and 550 % in the control, tall fescue, and tall fescue + SB treatments, respectively, at the end of the experiment. Clearly, the EC50 of the SB-inoculated treatment was the highest, indicating that the soil of this treatment had the lowest toxicity. This ecotoxicity decrease of the soils might be due to the efficient conversion of the toxic raw-petroleum material to less or non-toxic intermediates and by-products during biodegradation (Płaza et al. 2008).

Conclusion

In this study, the biosurfactant-producing strain Pseudomonas sp. SB was isolated from rhizosphere of tall fescue grown in a petroleum-contaminated soil. This strain can produce biosurfactants thereby decreasing the surface tension of the culture medium to 27.3 mN m−1 after 16 h of growth. This strain also produced IAA, siderophores, and ACC deaminase. The inoculation of the SB strain promoted the growth of tall fescue and significantly enhanced the degradation of TPH and PAHs. It also increased the microbial activity and diversity in the soil. Furthermore, the inoculation of the SB markedly decreased the biotoxicity of the contaminated soil. Thus biosurfactant-producing Pseudomonas sp. SB which has the characters of PGPR may be a suitable bioinoculant to assist phytoremediation of oily-sludge-contaminated soils, but validation under field conditions is needed.
