Pulse Pressure, Arterial Compliance and Wave Reflection Under Differential Vasoactive and Mechanical Loading

  • Original Paper
  • Published:
Cardiovascular Engineering

Abstract

Similar pulse pressure increases and flow reductions have been reported by many investigators, despite dissimilar forms of arterial loading applied. Increased vascular load is most commonly observed due to mechanical and vasoactive interventions. The present study intended to differentiate the hemodynamic contributions of these two forms of arterial loading at closely matched blood pressure levels. To accomplish this, proximal aortic characteristic impedance (Z o ), total arterial compliance (C), peripheral vascular resistance (R s ) and time-domain resolved forward (P f ) and reflected (P r ) waves were obtained in six anesthetized, thoracotomized and ventilated dogs. Acute loading was accomplished by brief descending thoracic aorta (DTA) occlusion or by intravenous bolus infusion of methoxamine (MTX:5 mg/ml) Systolic pressure increases were matched to a similar extent. Results showed that pulse pressures were drastically increased, reflecting large increases in wave reflections and decreases in arterial compliances. Changes in Z o , R s and C were quantitatively different between the two forms of loading. DTA occlusion primarily increased Z o and R s with a concurrently large reduction in C. MTX infusion significantly increased small vessel R s to the same extent as DTA occlusion, but with a slight decrease in C secondary to an increase in pressure, with Z o unchanged. Examination of dynamic loading showed similar increases in reflection coefficients, but P f and P r were qualitatively different. We conclude that vasoactive methoxamine infusion provides primarily an increased resistive load, while mechanical DTA occlusion provides an increased complex load to the left ventricle. These loads also occur earlier and variably during ventricular ejection.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

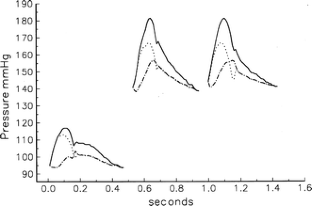

Fig. 1

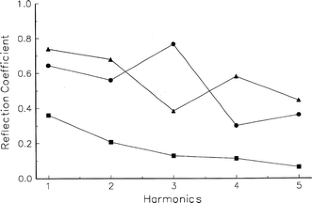

Fig. 2

Similar content being viewed by others

References

  • Berger DS, Li JK-J. Concurrent compliance reduction and increased peripheral resistance in the manifestation of isolated systolic hypertension. Am J Cardiol. 1990;65:67–71.

    Article  CAS  PubMed  Google Scholar

  • Braunwald E. Determinants and assessment of cardiac function. N Engl J Med. 1977;296:86–9.

    Article  CAS  PubMed  Google Scholar

  • Brin KP, Yin FCP. Effect of nitroprusside on wave reflections in patients with heart failure. Ann Biomed Eng. 1984;12:135–50.

    Article  CAS  PubMed  Google Scholar

  • Cohn JN, Franciosa JA. Vasodilator therapy of cardiac failure. N Engl J Med. 1977;297:254–8.

    Article  CAS  PubMed  Google Scholar

  • Du FY, Chen X-L, Drzewiecki G, Li JK-J, Kedem J. Hypervolemia improves global and local function and efficiency in postischemic myocardium. Clin Exp Pharmacol Physiol. 2001;28:630–6.

    Article  CAS  PubMed  Google Scholar

  • Ferguson JJ III, Randall OS. Hemodynamic correlates of arterial compliance. Cathet Cardiovasc Diagn. 1986;12:376–80.

    Article  PubMed  Google Scholar

  • Geipel PS, Li JK-J. Assessing wave reflections in the systemic arterial tree. In: Proc. IEEE 9th Ann. Conf. Eng. Med. Biol. 1987. p. 880–1.

  • Geipel PS, Li JK-J, Laskey WK, Noordergraaf A. Ventricular performance evaluated from load sensitivity. In: Proc. 9th. Int. Cardiovasc. System Dynamics Conf. 1989. p. 309–12.

  • Gundel W, Cherry G, Rajagopalan B, Tan L-B, Lee G, Schultz D. Aortic input impedance in man: acute response to vasodilator drugs. Circulation. 1981;63:1305–14.

    CAS  PubMed  Google Scholar

  • Imai S, Shigei T, Hashimoto K. Cardiac actions of methoxamine. Circ Res. 1961;9:552–60.

    CAS  PubMed  Google Scholar

  • Li JK-J. Dynamics of the vascular system. Singapore: World Scientific Publishing Co; 2004.

    Google Scholar

  • Li JK-J. The arterial circulation: physical principles and clinical applications. Totowa: Humana Press; 2000.

    Google Scholar

  • Li JK-J, Melbin J, Noordergraaf A. Directional disparity of pulse wave reflections in dog arteries. Am J Physiol. 1984;247:H95–9.

    CAS  PubMed  Google Scholar

  • Li JK-J. Time domain resolution of forward and reflected waves in the aorta. IEEE Trans Biomed Eng. 1986;BME-33:783–5.

    Google Scholar

  • Li JK-J. Increased arterial pulse wave reflections and pulsatile energy loss in acute hypertension. Angiology J Vasc Dis. 1989;40:730–5.

    CAS  Google Scholar

  • Li JK-J, Cui T, Drzewiecki G. A nonlinear model of the arterial system incorporating a pressure-dependent compliance. IEEE Trans. Biomed. Eng., 1990;BME-37:673–8.

    Google Scholar

  • Li JK-J, Zhu Y. Arterial compliance and its pressure-dependence in hypertension and vasodilation. Angiology J Vasc Dis. 1994;45:113–7.

    CAS  Google Scholar

  • Li JK-J, Zhu Y, Drzewiecki G. Pulse pressure is a significant determinant of arterial compliance in hypertension and vasodilation. Circulation. 1994;90:I166.

    Google Scholar

  • Li JK-J, Zhu Y, O’Hara D, Khaw K. Allometric hemodynamic analysis of isolated systolic hypertension and aging. Cardiovasc Eng. 2007;7:135–9.

    Article  PubMed  Google Scholar

  • Liao J, Li JK-J. Modeling of the coronary circulatory system. Cardiovasc Eng. 2005;5:141–50.

    Article  Google Scholar

  • Lucas CL, Wilcox BR, Henry GW. Comparison of time domain algorithms for estimating aortic characteristic impedance in humans. IEEE Trans Biomed Eng. 1988;35:62–7.

    Article  CAS  PubMed  Google Scholar

  • Matonick JP, Li JK-J. Pressure-dependent and frequency domain characteristics of systemic arterial compliance. Cardiovasc Eng. 2001;1:21–30.

    Article  Google Scholar

  • Murgo JP, Westerhof N, Giolma JP, Altobelli S. Manipulation of ascending aorta pressure and flow wave reflections with the valsalva maneuver: relationship to input impedance. Circulation. 1981;63:122–32.

    CAS  PubMed  Google Scholar

  • Noordergraaf A. Circulatory system dynamics. New York: Academic Press; 1978.

  • Ohtsuka S, Kakihana M, Sugishita Y, Ito I. Effects on the rise in aortic pressure on coronary flow reserve in dogs. Jpn Heart J. 1987;28:403–11.

    CAS  PubMed  Google Scholar

  • Pepine CJ, Nichols WW, Curry RC, Conti R. Aortic input impedance during nitroprusside infusion. J Clin Invest. 1979;64:643–54.

    Article  CAS  PubMed  Google Scholar

  • Randall OS. Effect of arterial compliance on systolic blood pressure and cardiac function. Clin Exp Hypertens Theory Pract. 1982;4(7):1045–57.

    Article  CAS  Google Scholar

  • Safar ME, Laurent P. Pulse pressure and arterial stiffness in rats: comparison with humans. Am J Physiol. 2003;285:H1363–9.

    CAS  Google Scholar

  • Stergiopoulos N, Segers P, Westerhof N. Use of pulse pressure method for estimating total arterial compliance in vivo. Am J Physiol. 1999;276:H424–8.

    Google Scholar

  • Stokland O, Miller MM, Ilebekk A, Kiil F. Mechanism of hemodynamic responses to occlusion of the descending thoracic aorta. Am J Physiol. 1980;238:H423–9.

    CAS  PubMed  Google Scholar

  • Van den Bos GC, Westerhof N, Elzinga G, Sipkema P. Reflection in the systemic arterial arterial system effects of aortic and carotid occlusion. Cardiovasc Res. 1976;10:565–73.

    Article  Google Scholar

  • Vogt A, Neuhaus K-L, Kreuzer H. Pathophysiologic arguments for vasodilators in heart failure. Cardiovasc Drugs Ther. 1988;2:647–51.

    Article  CAS  PubMed  Google Scholar

  • Yin FCP, Guzman PA, Brin KP, Maughan WL, Brinker JA, Traill TA, Weiss JL, Weisfeldt ML. Effect of nitroprusside on hydraulic vascular loads on the right and left ventricle of patients with heart failure. Circulation. 1983;67:1330–9.

    CAS  PubMed  Google Scholar

  • Zandberg P, Timmermans PBMWM, van Zwieten PA. Hemodynamic profiles of methoxamine and B-HT933 in spinalized ganglion-blocked dogs. J Cardiovasc Pharmacol. 1984;6:256–62.

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgments

This work was supported in part by a grant from the American Heart Association and New Jersey Commission on Spinal Cord Research.

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to John K-J. Li.

Rights and permissions

Reprints and permissions

About this article

Cite this article

Li, J.KJ., Zhu, Y. & Geipel, P.S. Pulse Pressure, Arterial Compliance and Wave Reflection Under Differential Vasoactive and Mechanical Loading. Cardiovasc Eng 10, 170–175 (2010). https://doi.org/10.1007/s10558-010-9107-y
