Dimmuborgir: a rootless shield complex in northern Iceland

  • Research Article
  • Published:
Bulletin of Volcanology Aims and scope Submit manuscript

Abstract

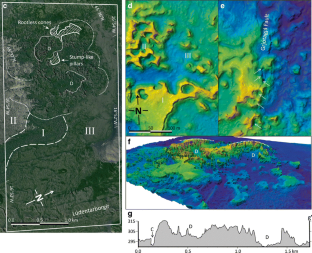

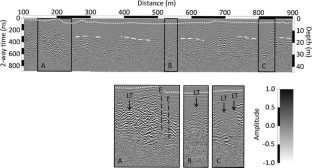

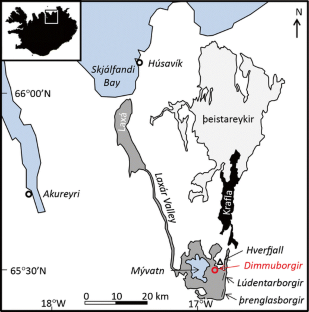

The origin of Dimmuborgir, a shield-like volcanic structure within the Younger Laxá lava flow field near Lake Mývatn, in northern Iceland, has long been questioned. New airborne laser mapping (light detection and ranging (LiDAR)), combined with ground-penetrating radar results and a detailed field study, suggests that Dimmuborgir is a complex of at least two overlapping rootless shields fed by lava erupting from the nearby Lúdentarborgir crater row. This model builds upon previous explanations for the formation of Dimmuborgir and is consistent with observations of rootless shield development at Kīlauea Volcano, Hawaii. The larger rootless shields at Dimmuborgir, 1–1.5 km in diameter, elliptical in plan view, ∼30 m in height, and each with a 500-m-wide summit depression, were capable of storing as much as 2–3 × 106 m3 of lava. They were fed by lava which descended 30–60 m in lava tubes along a distance of 3 km from the crater row. The height difference generated pressure sufficient to build rootless shields at Dimmuborgir in a timescale of weeks. The main summit depressions, inferred to be drained lava ponds, could have emptied via a 30-m-wide × 5-m-deep channel, with estimated effusion rates of 0.7–7 m3 s−1 and minimum flow durations of 5–50 days. We argue that the pillars for which Dimmuborgir is famed are remnants of lava pond rims, at various stages of disintegration that formed during pond drainage.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 16

Similar content being viewed by others

References

  • Bamlett M, Potter JF (1986) Icelandic geology: an explanatory excursion guide based on a 1986 field meeting. Proc Geol Assoc 99:221–248

    Article  Google Scholar

  • Barth TFW (1942) Craters and fissure eruptions at Mývatn in Iceland. Nor J Geogr 9:58–81

    Article  Google Scholar

  • Booth B, Self S (1973) Rheological features of the 1971 Mount Etna lavas. Philos Trans R Soc Lond 274:99–106

    Article  Google Scholar

  • Calvari S, Spampinato L, Lodato L, Harris AJL, Patrick MR, Dehn J, Burton MR, Andronico D (2005) Chronology and complex volcanic processes during the 2002–2003 flank eruption at Stromboli volcano (Italy) reconstructed from direct observations and surveys with a handheld thermal camera. J Geophys Res 110(B4), B02201

    Article  Google Scholar

  • Chadwick WW (2003) Quantitative constraints on the growth of submarine lava pillars from a monitoring instrument that was caught in a lava flow. J Geophys Res 108(B11):2534

    Article  Google Scholar

  • Gregg TKP, Christle KW (2013) Non-explosive lava–water interaction in Skaelingar, Iceland and the formation of subaerial lava pillars. J Volcanol Geotherm Res 264:36–48

    Article  Google Scholar

  • Hamilton CW, Fagents SA, Thordarson T (2010) Explosive lava–water interactions II: self-organization processes among volcanic rootless eruption sites in the 1783–1784 Laki lava flow, Iceland. Bull Volcanol 72:469–485

    Article  Google Scholar

  • Harris AJL, Dehn J, Calvari S (2007) Lava effusion rate definition and measurement: a review. Bull Volcanol 70:1–22

    Article  Google Scholar

  • Hauptfleisch U, Einarsson À (2012) Age of the Younger Laxá lava and Lake Mývatn, Northern Iceland determined by AMS radiocarbon dating. Radiocarbon 54:155–164

    Article  Google Scholar

  • Hon K, Kauahikaua J, Denlinger R, Mackay K (1994) Emplacement and inflation of Pahoehoe sheet flows: observations and measurements of active lava flows on Kilauea Volcano, Hawaii. Geol Soc Am Bull 106:351–370

  • Jeffreys H (1925) Flow of water in an inclined channel of rectangular section. Phil Mag J Sci 49:793–807

    Article  Google Scholar

  • Kauahikaua JP, Sherrod DR, Cashman KK, Heliker CC, Hon K, Mattox TM, Johnson JA (2003) Hawaiian lava flow dynamics during the Pu`u `O`o-Kupaianaha eruption: a tale of two decades. In: Heliker, CC, Swanson, DA, Takahashi, TJ (eds) The Puʻu ʻŌʻō-Kūpaianaha eruption of Kilauea volcano: the first twenty years. US Geol Survey Prof Paper 1676:63–87

  • Miyamoto H, Haruyama J, Kobayashi T, Suzuki K, Okada T, Nishibori T, Showman AP, Lorenz R, Mogi K, Crown DA, Rodriguez JAP, Rokugawa S, Tokunaga T, Masumoto K (2005) Mapping the structure and depth of lava tubes using ground penetrating radar. Geophys Res Lett 32, L21316. doi:10.1029/2005GL024159

    Article  Google Scholar

  • Murase T, McBirney AR (1973) Properties of some common igneous rocks and their melts at high temperatures. GSA Bull 84:3563–3592

    Article  Google Scholar

  • Nicholson H, Latin D (1992) Olivine Tholeiites from Krafla, Iceland: evidence for variations in melt fraction within a plume. J Petrol 33:1105–1124

    Article  Google Scholar

  • Orr TR (2011) Selected time-lapse movies of the east rift zone eruption of Kilauea Volcano, 2004–2008. US Geol Survey Data Ser 621:15

    Google Scholar

  • Orr TR, Poland MP, Patrick MR, Thelen WA, Sutton J, Elias T, Thornber CR, Parcheta C, Wooten KM (2015) Kīlauea’s 5–9 March 2011 Kamoamoa fissure eruption and its relation to 30+ years of activity from Puʻu ‘Ō‘ō. In: Carey RJ et al. (eds) Hawaiian volcanoes, from source to surface. AGU Monograph 208:393–420

  • Patrick MR, Orr TR (2012) Rootless shield and perched lava pond collapses at Kīlauea Volcano, Hawaiʻi. Bull Volcanol 74:67–78

    Article  Google Scholar

  • Rittman A (1938) Die vulkane am Mývatn. Bull Volcanol 4:3–38

    Article  Google Scholar

  • Rossi MJ (1996) Morphology and mechanism of eruption of postglacial shield volcanoes in Iceland. Bull Volcanol 57:530–540

    Article  Google Scholar

  • Russell JK, Stasiuk MV (1997) Characterization of volcanic deposits with ground-penetrating radar. Bull Volcanol 58:515–527

    Article  Google Scholar

  • Sæmundsson K (1991) Jar∂fræ∂i Kröflukerfisins. In: Gardarsson A, Einarsson A (eds) Náttúra Mývatns. Hið íslenska Náttúrufræðifélag, Reykjavík, 372 pp

    Google Scholar

  • Sæmundsson K, Hjartarson Á, Kaldal I, Sigurgeirsson MÁ, Kristinsson SG, Víkingsson S (2012) Geological map of the Northern Volcanic Zone, Iceland, northern part: Iceland GeoSurvey, scale 1:100000

  • Self S, Keszthelyi L, Thordarson T (1998) The importance of pāhoehoe. Annu Rev Earth Planet Sci 26:81–110

    Article  Google Scholar

  • Tazieff H (1977) An exceptional eruption: Mt. Niragongo, Jan. 10th, 197. Bull Volcanol 40:189–200

    Article  Google Scholar

  • Thorarinsson S (1951) Laxárgljúfur and Laxárhraun: a tephrochronological study. Geogr Ann 33:1–89

    Google Scholar

  • Thorarinsson S (1953) Crater groups in Iceland. Bull Volcanol 14:3–44

    Article  Google Scholar

  • Thorarinsson S (1979) The postglacial history of the Mývatn area. Oikos 32:17–28

    Article  Google Scholar

  • Thordarson T, Sigmarsson O (2009) Effusive activity in the 1963–1967 Surtsey eruption, Iceland: flow emplacement and growth of small lava shields. In: Thordarson T, Self S, Larsen G, Rowland SK Hoskuldsson A (eds) Studies in volcanology: the Legacy of George Walker, Special Publication of IAVCEI 2: 53–84

  • van Bemmelen RW, Rutten MG (1955) Table mountains of northern Iceland. E J Brill, Leiden, 217 pp

    Google Scholar

Download references

Acknowledgements

Thorvald Thordarson, Tracy Gregg, Scott Rowland and Dave Sherrod are thanked for thorough and thoughtful reviews of earlier versions of this paper.
