Virchows Archiv

, Volume 457, Issue 6, pp 693–703

Hemoglobin level predicts outcome for vulvar cancer patients independent of GLUT-1 and CA-IX expression in tumor tissue

  • Hedwig P. van de Nieuwenhof
  • Joanne A. de Hullu
  • Johannes H. A. M. Kaanders
  • Johan Bulten
  • Leon F. A. G. Massuger
  • Léon C. L. T. van Kempen
Open AccessOriginal Article

DOI: 10.1007/s00428-010-0981-x

Cite this article as:
van de Nieuwenhof, H.P., de Hullu, J.A., Kaanders, J.H.A.M. et al. Virchows Arch (2010) 457: 693. doi:10.1007/s00428-010-0981-x

Abstract

Intratumoral hypoxia has been associated with poor prognosis in several solid tumors. The aim of this study was to determine whether the hypoxia-associated markers glucose transporter (GLUT)-1 and carbonic anhydrase (CA)-IX expression and preoperative hemoglobin (Hb) levels correlate with presence of inguinofemoral or distant metastases, and disease-free survival (DSS) in vulvar squamous cell carcinoma (SCC) patients. Vulvar SCC (n = 103) were reviewed for histopathological characteristics by an expert gynecopathologist and stained for GLUT-1 and CA-IX. Clinical data and preoperative Hb levels were obtained from medical records. No significant correlations were observed between GLUT-1 or CA-IX expression patterns and preoperative Hb levels, presence of inguinofemoral or distant metastases and DSS. However, anemic patients (Hb < 11.2 g/dL) had significantly more inguinofemoral metastases and lower Hb level was an independent prognostic factor for a worse DSS (p < 0.001). The number of comorbidic conditions was inversely correlated with preoperative Hb level. Preoperative Hb levels are associated with poor DSS for vulvar SCC patients, whereas tumor hypoxia reflected by GLUT-1 and CA-IX expression does not have a predictive value. Because preoperative Hb levels inversely correlated with the number of comorbidic conditions and not with GLUT-1 or CA-IX expression, it is most likely that preoperative Hb levels represent overall physical condition.

Keywords

Vulvar squamous cell carcinomaPrognosisHypoxiaAnemiaComorbidity

Introduction

Vulvar squamous cell carcinoma (SCC) accounts for 3–5% of all gynecological malignancies. Positive inguinofemoral lymph nodes have been found to be the most important prognostic factor for vulvar SCC [13]. Currently, the standard treatment for patients with early stage vulvar SCC is wide local excision with uni- or bilateral inguinofemoral lymphadenectomy via separate incisions that may lead to impressive morbidity such as lymphedema. There are no non-invasive diagnostic tests that are able to exclude inguinofemoral lymph node metastasis with a high enough certainty to safely omit a complete inguinofemoral lymphadenectomy [4]. Fortunately, the sentinel lymph node procedure is an upcoming promising staging technique [5].

Limited research has been performed on immunohistochemical markers to predict the presence of positive inguinofemoral lymph nodes and the prognosis of the individual patient with vulvar SCC. Fons et al. have analyzed 16 immunohistochemical markers with potentially prognostic value for patients with vulvar SCC. Lack of caspase three expression, a key effector of cellular death, was associated with poor disease-specific survival (DSS) in a multivariate analysis [6]. In addition, increased epidermal growth factor receptor (EGFR) expression and increased angiogenic response have been found to be associated with decreased survival [711].

Hypoxia occurs in anemia [12], cancer, prolonged exercise, and long-term ischemia with durations of several hours or more [13]. Hypoxia may induce cell death, although tumor cells may adapt to the hypoxic microenvironment by inducing a hypoxia-inducible factor (HIF)-1 mediated angiogenic response, and/or by altering their metabolic activity [14]. The overall cellular consequences of hypoxia are a decreased proliferation rate, increased radio- and multidrug resistance, and increased invasive and metastatic potential [15]. These adaptive responses promote tumor progression and treatment resistance to both radio- and chemotherapy. Several studies have shown that tumor hypoxia is significantly related to poor patient prognosis in various malignancies such as head and neck cancer, and cervical cancer [16, 17].

Several immunohistochemical markers can assess hypoxia. HIF-1 is considered a master regulator of the cellular response to hypoxia. However, although HIF-1 indicates tumor aggressiveness, it is debatable whether it is also a reliable marker of tumor hypoxia as HIF1 induction is also dependent on other microenvironmental conditions [14]. Among others, HIF-1 regulates the expression of the surface transmembrane glucose transporters (GLUTs), especially GLUT-1 and carbonic anhydrases (CAs) which are both involved in energy metabolism [1821]. Whereas GLUTs import glucose across the cell membrane in an energy independent manner to fuel anaerobic glycolysis [22], the subsequent intracellular acidification is antagonized by CAs [23]. This results in an acidic extracellular environment that may promote progression toward a more malignant phenotype [24]. Of all CAs, CA-IX has the greatest magnitude of induction under hypoxic conditions.

Oxygen delivery to tumors depends on tissue perfusion and the oxygen-carrying capacity of the blood. It has been suggested that a decrease in the oxygen-carrying capacity of the blood caused by anemia may be a major causative factor for the development of tissue hypoxia [25, 26]. In a rat model, Kelleher et al. indeed demonstrated that tumor-related anemia resulted in substantial worsening of tumor oxygenation [27]. Both high CA-IX, GLUT-1 and low preoperative hemoglobin (Hb) levels were found to be associated with a poor DSS in different tumor types, e.g., cervical, ovarian, and head and neck carcinomas [2836].

Studies that have analyzed the correlation between hypoxia and prognosis in vulvar SCC are limited. In a small-scale study (20 patients), only preoperative anemia showed a correlation with nodal metastasis [37]. Therefore, the aim of this study is to determine whether GLUT-1 and CA-IX expression and preoperative hemoglobin levels correlate with presence of inguinofemoral or distant metastases and DSS in a large group of vulvar SCC patients.

Materials and methods

From January 1st 1988 until December 31st 2005, 167 consecutive patients with vulvar SCCs were treated with a curative intent in the Radboud University Nijmegen Medical Centre. Only patients whose treatment consisted of primary surgery were included. Tumors with a depth of invasion of 1 mm or more in the operation specimen were selected for this study. A total number of 103 paraffin-embedded primary vulvar SCCs that met the above-mentioned criterion with long-term follow-up were available for this study (last month of follow-up—August 2008). All slides were reviewed for histopathological characteristics by an expert gynecopathologist (JB). Clinical data were obtained from medical records and comorbidity was registered in accordance with the Comorbidity Index of Mary E. Charlson [38].

All patients were staged according to the surgicopathological staging system for vulvar carcinoma of the International Federation of Gynecology and Obstetrics (FIGO). When a recurrence was diagnosed, the localization of the recurrence was registered as local, skin bridge, groin, pelvic, or distant. For analytical purposes, skin bridge recurrences were considered to be groin recurrences and pelvic recurrences considered to be distant recurrences.

Immunohistochemistry

Formalin-fixed paraffin-embedded tissue sections (4 μm) were mounted onto Superfrost slides (Menzel-Gläser, Braunschweig, Germany) and dried overnight at 37°C. Tissues were dewaxed in xylene, rehydrated through graded alcohols, and rinsed three times in phosphate-buffered saline (PBS; pH 7.4) for 10 min. Following an antigen retrieval step [sodium citrate (0.01 M; pH 6.0), 95°C, 10 min], tissue sections were preincubated with 20% normal goat serum in PBS and subsequently incubated overnight at 4°C with a polyclonal rabbit-anti-GLUT-1 (Dako, Glostrup, Denmark; 1:200) or rabbit-anti-CA-IX (0.1 μg/mL, kindly provided by Dr. E. Oosterwijk, Dept. of Experimental Urology, Radboud University Nijmegen Medical Centre). Antibodies were diluted in PBS containing 1% bovine serum albumin (BSA). Slides were rinsed in PBS for 10 min and incubated with biotinylated anti-rabbit IgG (Vector, Burlingame, CA, USA) for 30 min at room temperature (RT). A biotin–avidin peroxidase (CA-IX) or alkaline phosphatase (GLUT-1) complex was generated according to standard procedures (Vector). Peroxidase was visualized with 3-amino-9-ethylcarbazole (AEC, ScyTek, Logan, UT, USA) and briefly counterstained with Mayer’s hematoxylin. Alkaline phosphatase was visualized with Fast Blue (20 mL Tris–HCl pH 8.2, 4 mg Naphtol AS-MX, 4.8 mg Levamisole, and 20 mg Fast Blue BB salt) and counterstained with Nuclear fast red (Vector). Slides were mounted with Imsol (Klinipath, Duiven, The Netherlands) and subsequently with Permount (Fisher Scientific, Fairlawn, NJ, USA). Negative controls (buffer only) were included in each analysis.

For GLUT-1/CD31 double staining, the sodium-citrate antigen retrieval step and preincubation with normal serum was followed by incubation with monoclonal mouse-anti CD31 (Dako, clone JC70A, 1:20) overnight at 4°C. After washing the slides with PBS for 10 min, tissue sections were incubated with biotinylated anti-mouse IgG (Vector), an avidin–peroxidase complex (Vector) generated and visualized with AEC. Subsequently, the GLUT-1 staining protocol (Fast Blue) was performed as described above.

Evaluation of staining

Slides were scored (HvdN, LvK) blinded to clinicopathological data and results of other stainings. Because GLUT-1 and CA-IX function as transmembrane proteins, only membranous staining was considered a positive result. The percentage of positive cells and localization of staining was determined and categorized in the following manner: negative, less than 5% of tumor cells stained, between 5% and 25%, between 25% and 75%, and over 75%. To avoid small numbers, for GLUT-1 staining, the only tumor with less than 5% cells stained was grouped together with 5–25% and for CA-IX staining, tumors with over 75% tumor cells stained (three tumors) were grouped together in a category ≥25% tumor cells stained.

Hemoglobin levels

Preoperative hemoglobin levels were recorded from the medical charts. All hemoglobin levels were taken within 1 week prior to surgery.

Statistical analysis

Data were entered in a computerized database and analyzed using SPSS software (version 16.0.1 for Windows, SPSS). Patient and tumor characteristics were compared using χ2 and two-tailed Student’s t tests. Survival analysis was performed by the Kaplan–Meier product limit method, and survival rates were compared using log-rank statistics. Cox regression analysis was used for confounder analysis. All time-dependent outcomes were calculated from time of pathological diagnosis. Patient data were censored when a disease event had not occurred at the last follow-up. For the endpoint “presence of inguinofemoral or distant metastases”, an event was defined as occurrence of inguinofemoral metastases or metastasis in a distant organ. For DSS, only deaths due to vulvar SCC were analyzed as events. Patients who are still alive or died due to other causes than vulvar SCC were censored at the date of last follow-up. Values of p <0.05 were considered significant.

Results

Primary treatment and staging

A total number of 30 patients underwent a wide local excision, 72 patients had a radical vulvectomy and for one patient an exenterative procedure was performed. Postoperative radiotherapy was given to 31 patients (30%); no patients were treated with adjuvant chemotherapy.

Median age of the patients was 72 years (range 31–92 years). Nine (8.7%) patients had a FIGO stage I tumor, 43 (41.7%) patients a stage II, 32 (31.1%) patients a stage III, and 19 patients (18.5%) a stage IV tumor.

Expression of GLUT-1 and CA-IX

To assess hypoxia in vulvar SCCs, we performed immunohistochemical analyses for the tissue hypoxia-associated markers GLUT-1 and CA-IX. The median area stained by GLUT-1 was 25% of the whole tumor. Often a diffuse staining of a large tumor area was observed, with a focally increased staining intensity (Fig. 1). Both cytoplasmic and membranous GLUT-1 staining was observed, but only membranous staining was considered positive staining. In several cases, GLUT-1 expression was observed directly adjacent to a blood vessel (Fig. 1e–f).
https://static-content.springer.com/image/art%3A10.1007%2Fs00428-010-0981-x/MediaObjects/428_2010_981_Fig1_HTML.gif
Fig. 1

GLUT-1 staining in vulvar squamous cell carcinomas. Representative image of a negative staining (a), 40% (b), and 90% positivity (c). High-power magnification (d) of indicated area in (c) demonstrates clear membranous localization. Scale bars (a)–(c): 50 μm, (d): 10 μm. Membranous GLUT-1 staining of tumor cells (blue) adjacent to erythrocyte-containing blood vessels (red) can be observed (e and f). Erythrocytes are GLUT-1 positive and serve as an internal control for positive staining. Microvessels, where diffusion can occur, are indicated (arrows)

CA-IX staining was less pronounced than GLUT-1, with a median staining area of only 1% (Fig. 2). CA-IX staining was often observed at a distance from vessels.
https://static-content.springer.com/image/art%3A10.1007%2Fs00428-010-0981-x/MediaObjects/428_2010_981_Fig2_HTML.gif
Fig. 2

CA-IX staining in vulvar squamous cell carcinomas. Representative image of a negative staining (a), 10% (b), 60% (c), and 90% positivity (d). High-power magnification of indicated area in (d) demonstrates clear membranous localization. Scale bars (a)–(c): 50 μm, (d): 10 μm

Hemoglobin levels

With the aim to assess the role of anemia, preoperative hemoglobin levels were recorded from medical charts. Hemoglobin levels were available for 77 patients. Eight patients (7.8%) had a Hb value below 11.2 g/dL and were considered to be anemic. Eight patients had a Hb level between 11.2 and 12.6 g/dL, and 15 patients had a Hb level between 12.6 and 13.4 g/dL. Twenty patients had a Hb level between 13.4 and 14.2 g/dL, and 26 patients had a Hb level of 14.2 g/dL or higher.

GLUT-1, CA-IX, and preoperative Hb levels in relation to tumor characteristics

Tumor characteristics in relation to expression of GLUT-1 and CA-IX are summarized in Table 1. Less-differentiated tumors demonstrated lower GLUT-1 expression levels. There were no differences between tumor characteristics with respect to GLUT-1 and CA-IX expression at the invasive front of the tumors (data not shown).
Table 1

Tumor characteristics of 103 vulvar SCCs in relation to GLUT-1 and CA-IX expression patterns



GLUT-1

CA-IX

Negative

5–25%

25–75%

≥75%

p valuea

Negative

<5%

5–25%

≥25%

p value

Local

Number

40

12

28

23



47

12

31

13



Depth of invasion (mm)

Median

8

8

8.75

7

NS

6

10.5

8

9

NS

Range

1.7–27

3–15

1–18

1–35

1–27

4–20

2–35

3–25

Tumor diameter (mm)

Median

31.5

37.5

35

30

NS

30

49.5

30

50

NS

Range

11–70

16–65

6–90

5–120

5–90

16–70

14–65

15–120

Differentiation grade

Well

5%

8.3%

7.1%

43.5%

0.001

21.3%

8.3%

12.9%



NS

Moderately

50%

66.7%

64.3%

30.4%

53.2%

58.3%

41.9%

61.5%

Poor

42.5%

16.7%

28.6%

17.4%

19.1%

25%

45.2%

38.5%

Unknown

2.5%

8.3%



8.7%

6.4%

8.3%



Regional



NS

Number of positive nodes

Mean

0.95

1.92

1.21

0.74

NS

0.85

1.42

1.42

0.85



Range

0–5

0–8

0–4

0–4

0–7

0–8

0–5

0–3

Capsular

No

17.5%

8.3%

39.3%

21.7%

NS

19.1%

8.3%

32.3%

30.8%

NS

Breakthrough

Yes

22.5%

33.3%

21.4%

13%

14.9%

33.3%

29%

15.4%

Not applicable

57.5%

58.3%

35.7%

65.2%

61.7%

58.3%

38.7%

53.8%

Missing

2.5%



3.6%



4.3%



FIGO stage



NS



NS



I

12.5%

8.3%



13%

12.8%



6.5%

7.7%

II

40%

50%

35.7%

47.8%

48.9%

58.3%

25.8%

38.5%

III

30%

16.7%

42.9%

26.1%

21.3%

25%

45.2%

38.5%

IV

17.5%

25%

21.4%

13%

17%

16.7%

22.6%

15.4%

Recurrence



NS



NS



No recurrence

72.5%

50%

57.1%

65.2%

66%

66.7%

64.5%

53.8%

Local

12.5%

8.3%

28.6%

26.1%

23.4%

8.3%

19.4%

15.4%

Groin

5%

16.7%

14.3%

4.3%

4.3%

16.7%

6.5%

23.1%

Distant

10%

2.5%



4.3%

6.4%

8.3

9.7%

7.7%

GLUT glucose transporter, CA carbonic anhydrase, FIGO International Federation of Gynecology and Obstetrics, NS not significant

ap values are only given when significant

Anemic patients (<11.2 g/dL) presented with tumors with a larger diameter than patients with Hb levels within the normal range (Table 2). Subsequently, the correlation between GLUT-1 or CA-IX expression and Hb levels was determined. GLUT-1 and CA-IX were inversely correlated (p = 0.003, 95% CI −0.479 to −0.104). No correlation was found between preoperative Hb levels and CA-IX or GLUT-1 expression.
Table 2

Tumor characteristics of 77 vulvar SCCs in relation to preoperative Hb levels



Hb (g/dL)

<11.2

11.2–12.6

12.6–13.4

13.4–14.2

≥14.2

p valuea

Local

Number

8

8

15

20

26



Depth of invasion

Median

9.5

10.5

9

9

7

NS

Range

2–25

8–15

1.7–27

2–18

1–15

Tumor diameter

Median

51.5

35

38

29

28

0.05

Range

28–120

21–80

10–60

12–90

5–60

Differentiation grade

Well

37.5%

12.5%

20%

25%

19.2%

NS

Moderately

62.5%

37.5%

46.7%

60%

42.3%

Poor



50%

33.3%

15%

30.8%

Unknown



7.7%

Regional

Number of positive nodes

Mean

1.87

1.63

0.73

1.10

1.15

NS

Range

0–3

0–5

0–3

0–3

0–8

Capsular breakthrough

No

37.5%

37.5%

33.3%

25%

15.4%

NS

Yes

50%

37.5%

6.7%

10%

26.9%

Not applicable

12.5%

25%

60%

65%

53.8%

Missing



3.8%

FIGO stage




I



20%

10%

7.7%

NS

II

12.5%

25%

33.3%

50%

46.2%

III

50%

75%

33.3%

20%

30.8%

IV

37.5%



13.3%

20%

15.4%

Recurrence




No recurrence

25%

87.5%

66.7%

75%

61.5%

NS

Local

25%

12.5%

20%

5%

23.1%

Groin

25%



13.3%

15%

3.8%

Distant

25%



5%

11.5%

Hb hemoglobin, FIGO International Federation of Gynecology and Obstetrics, NS not significant

ap values are only given when significant; anemic patients were compared with non-anemic patients

GLUT-1, CA-IX, and preoperative Hb levels in relation to presence of inguinofemoral metastases

For GLUT-1 and CA-IX expression patterns, no differences were found for presence of inguinofemoral or distant metastases (Fig. 3a, b). An imbalance between oxygen supply and consumption is more likely to occur in large tumors (large diameter or great depth of invasion). Therefore, we performed a subanalysis for large tumors (diameter ≥38 mm or depth of invasion ≥8 mm, which are both the mean values). Expression of GLUT-1 and CA-IX did not differ between tumors smaller or greater than a diameter of 38 mm or between tumors with a depth of invasion smaller or greater than 8 mm. In addition, GLUT-1 and CA-IX expression were not associated with presence of inguinofemoral or distant metastases in this subgroup of large tumors (data not shown).
https://static-content.springer.com/image/art%3A10.1007%2Fs00428-010-0981-x/MediaObjects/428_2010_981_Fig3_HTML.gif

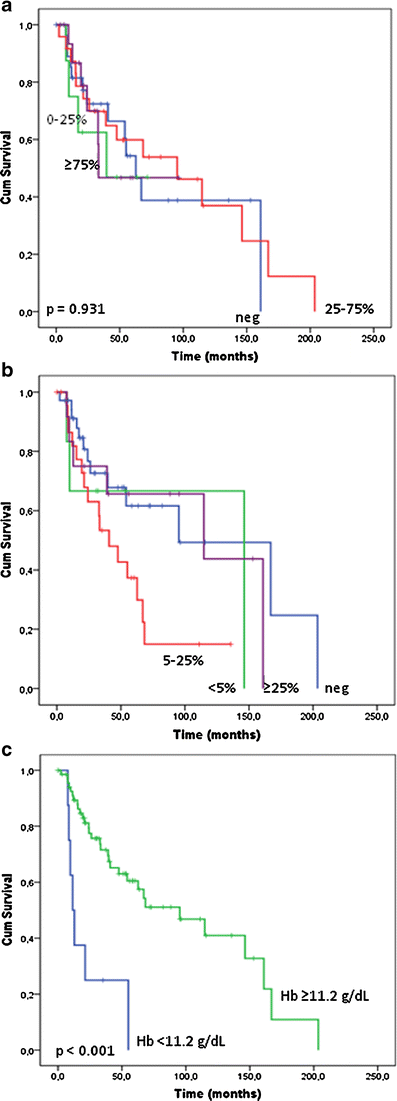

Fig. 3

Low preoperative Hb level correlates with increased risk of inguinofemoral or distant metastases. Presence of inguinofemoral or distant metastases curves for patients subdivided into different GLUT-1 expression patterns (a), CA-IX patterns (b), and preoperative Hb levels (c). Low preoperative Hb levels significantly correlate with increased risk of inguinofemoral or distant metastases

For preoperative Hb levels, significant differences were found for presence of inguinofemoral metastases or distant (log rank = 0.001) when stratified as in Table 2, and log rank <0.001 (Fig. 3c) when stratified between anemic patients (Hb < 11.2 g/dL) and patients with normal Hb levels (>11.2 g/dL).

GLUT-1, CA-IX, and preoperative Hb levels and disease-specific survival

Univariate Cox regression analysis showed that both GLUT-1 (HR 0.876, 95% CI 0.583–1.115) and CA-IX (HR 1.086, 95% CI 0.794–1.477) were not predictive for DSS, whereas preoperative Hb value was a prognostic factor (p < 0.001, HR = 0.146, 95% CI 0.059–0.358). In addition, the number of positive inguionofemoral lymph nodes and development of groin or distant recurrence correlated with a poor DSS (p < 0.001). When these variables were included in a multivariate Cox proportional hazards analysis, preoperative Hb level turned out to be an independent prognostic factor for poor DSS (p = 0.021). These findings were confirmed in a linear regression analysis, demonstrating that groin, pelvic, or distant recurrences are independent of preoperative Hb level (p = 0.262). The Kaplan–Meier survival curves with corresponding log-rank values for GLUT-1, CA-IX, and Hb level are shown in Fig. 4a–c. There was no difference in DSS between tumors with and without GLUT-1 and CA-IX expression at the invasive front (data not shown). This was also found in a subanalysis for patients treated with adjuvant radiotherapy (31 patients); preoperative Hb levels were predictive for DSS (p = 0.041), but not GLUT 1 and CAIX expression in the tumor (log rank p = 0.507 and 0.568, respectively).
https://static-content.springer.com/image/art%3A10.1007%2Fs00428-010-0981-x/MediaObjects/428_2010_981_Fig4_HTML.gif

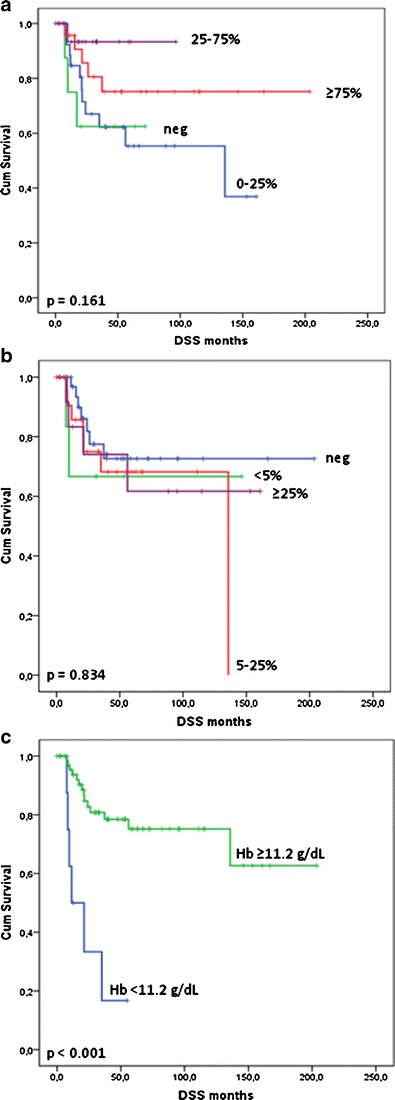

Fig. 4

Anemic vulvar SCC patients have a poor disease-free survival. Disease-free survival curves for patients subdivided into different GLUT-1 expression patterns (a), CA-IX patterns (b), and preoperative Hb levels (c). Low preoperative Hb levels significantly correlate with reduced DSS

Comorbidity

The lack of a correlation between Hb levels and expression of hypoxia-associated markers provided no evidence for a link between anemia and tissue hypoxia. The correlation between Hb levels and poor DSS has led us to analyze whether Hb levels reflect the physical condition of the patients. Twenty-eight patients had no comorbidic conditions according to Charlson et al. [38], whereas one to six comorbidic conditions were observed in 75 patients (Table 3). The number of comorbidic conditions and Hb value were inversely associated in a linear regression model (p = 0.020, 95% CI −0.295 to −0.026).
Table 3

Overview of patients’ comorbidity

Patients

103

No comorbidic conditions

28

Myocardial

38

Vascular

54

Pulmonary

7

Neurological

6

Endocrine

26

Renal

1

Liver

1

Gastrointestinal

1

Cancer

11

Miscellaneous

7

The total number exceeds the total number of patients included (103) as some patients had multiple comorbidic conditions

Discussion

Our study of 103 patients with vulvar SCC did not reveal a prognostic value for the expression of the tissue hypoxia-associated markers GLUT-1 and CA-IX. Although anemia has been linked to tissue hypoxia [14], we did not find such a correlation. However, low Hb values were associated with multiple comorbidic factors and turned out to be an independent prognostic factor for a poor DSS. Literature about the relation between the expression of hypoxia-associated markers and lymph node metastasis or survival for vulvar SCCs patients is limited. A small-scale study comprising 20 patients likewise failed to demonstrate a significant correlation between various measures of tumor oxygenation and nodal metastasis [37].

Patients’ anemia may contribute to the establishment of intratumoral hypoxic conditions by reducing oxygen delivery to tumor tissues. In our study, no correlation between Hb levels and hypoxia-associated markers could be demonstrated. Similarly, no association between Hb levels in patients before surgery and expression of hypoxia-associated markers was observed in 45 head and neck cancer and 79 colorectal adenocarcinomas [39, 40]. It is generally known that anemia has a negative impact on survival for cancer and non-cancer patients [41, 42]. However, previous research has focused on its correlation with hypoxia, but not as a representative for physical condition. We demonstrated an increased number of comorbidic conditions in vulvar SCC patients with low Hb values (<11.2 g/dL), which in turn correlates with very poor prognosis (Fig. 4c). This is consistent with the study of Wu et al. who also found that the cohort of patients with anemia had the highest prevalences of several diseases [42], with even minimal deviations from an optimal range being associated with an increased risk of 30-day postoperative mortality [42]. A deterioration of prognosis with Hb levels below 11.2 g/dL was also observed for cervical cancer patients treated with radiotherapy [43]. The differential diagnosis of anemia is extensive with chronic illness as a frequent cause. Cardiac and vascular conditions were most often present in our study population and may both be causes of the observed anemia in those patients. Because bleeding from a vulvar tumor rarely occurs, this factor is not likely to explain the low Hb levels in patients with large tumors. Therefore, it is more likely that low preoperative Hb levels represent an impaired physical condition than tumor hypoxia.

In our study, increasing percentages of GLUT-1 and CA-IX expression were not associated with differences in primary tumor characteristics (Table 1), presence of inguinofemoral or distant metastases (Fig. 3), and DSS (Fig. 4). This may indicate that tumor hypoxia is not relevant for vulvar cancer or that the markers are of insufficient specificity. Tumor hypoxia can be induced by an inadequate function of the tumor vasculature independent of Hb levels. Furthermore, CA-IX and GLUT-1 do not necessarily behave in a coherent fashion [44] as we also observed in this study. The role of GLUT-1 as an endogenous marker for tumor hypoxia was found to be questionable [45]. Expression of GLUT-1 is induced by a variety of stimuli besides hypoxia, including glucose deprivation, oncogenic transformation, inhibition of oxidative phosphorylation, and osmotic stress [45]. Although GLUT expression has been demonstrated at a distance from vessels and adjacent to necrosis, the relationship with hypoxia has not been investigated [26]. Because we detected GLUT-1 expression directly adjacent to erythrocyte-containing blood vessel, we conclude that GLUT-1 is not a genuine hypoxia marker in vulvar SCC.

In prostate cancer, GLUT-1 mRNA expression correlates with loss of differentiation [46]. In contrast, we detected high GLUT-1 protein expression (i.e., >75%) more frequently in well-differentiated SCC than in moderate and poorly differentiated tumors (Table 1, p = 0.001). The relevance for vulvar SCC biology is currently unknown. However, this correlation is not observed in all other cases in which GLUT-1 is expressed by less than 75% of the tumor cells. It has to be noted, however, that our semi-quantitative scoring of staining profiles is not as accurate as quantitative PCR. Small changes mRNA expression may have a prominent effect on tumor cell biology, but this altered gene expression may not be detected at the protein level in a semi-quantitative manner. CA-IX expression has been studied in a number of tumor types supporting the notion that CA-IX represents tumor aggressiveness. CA-IX is strongly induced by hypoxia in a broad range of tumor cells [47, 48] and considerable co-localization with pimonidazole staining was observed [16, 48]. High expression of CA-IX is associated with poor survival in breast cancer, small cell lung cancer, head and neck and cervical tumors [30, 3335], but an inverse correlation has been demonstrated for renal clear cell and rectal carcinomas [4951], indicating that the prognostic or predictive value for CA-IX expression depends on tumor type. Our study does not indicate prognostic value of CA-IX expression for vulvar SCC patients.

In conclusion, we found that high GLUT-1 and CA-IX protein expression levels do not predict DSS for vulvar SCC patients. Furthermore, their expression did not correlate with preoperative Hb levels. However, preoperative Hb levels could predict DSS independently of the development of a groin or distant recurrence, and also correlated with the number of comorbidic conditions. It is most likely that preoperative Hb levels represent overall physical condition more than it predicts tumor hypoxia.

Acknowledgment

We thank Dr. J. Hendriks (Department of Epidemiology and Biostatistics, Radboud University Nijmegen Medical Centre) for his expert help regarding the statistical methods used in this study.

Disclosure/conflict of interest

None

Open Access

This article is distributed under the terms of the Creative Commons Attribution Noncommercial License which permits any noncommercial use, distribution, and reproduction in any medium, provided the original author(s) and source are credited.
