Variation analysis and gene annotation of eight MHC haplotypes: The MHC Haplotype Project

  • Roger Horton
  • Richard Gibson
  • Penny Coggill
  • Marcos Miretti
  • Richard J. Allcock
  • Jeff Almeida
  • Simon Forbes
  • James G. R. Gilbert
  • Karen Halls
  • Jennifer L. Harrow
  • Elizabeth Hart
  • Kevin Howe
  • David K. Jackson
  • Sophie Palmer
  • Anne N. Roberts
  • Sarah Sims
  • C. Andrew Stewart
  • James A. Traherne
  • Steve Trevanion
  • Laurens Wilming
  • Jane Rogers
  • Pieter J. de Jong
  • John F. Elliott
  • Stephen Sawcer
  • John A. Todd
  • John Trowsdale
  • Stephan Beck
Open AccessOriginal Paper

DOI: 10.1007/s00251-007-0262-2

Cite this article as:
Horton, R., Gibson, R., Coggill, P. et al. Immunogenetics (2008) 60: 1. doi:10.1007/s00251-007-0262-2

Abstract

The human major histocompatibility complex (MHC) is contained within about 4 Mb on the short arm of chromosome 6 and is recognised as the most variable region in the human genome. The primary aim of the MHC Haplotype Project was to provide a comprehensively annotated reference sequence of a single, human leukocyte antigen-homozygous MHC haplotype and to use it as a basis against which variations could be assessed from seven other similarly homozygous cell lines, representative of the most common MHC haplotypes in the European population. Comparison of the haplotype sequences, including four haplotypes not previously analysed, resulted in the identification of >44,000 variations, both substitutions and indels (insertions and deletions), which have been submitted to the dbSNP database. The gene annotation uncovered haplotype-specific differences and confirmed the presence of more than 300 loci, including over 160 protein-coding genes. Combined analysis of the variation and annotation datasets revealed 122 gene loci with coding substitutions of which 97 were non-synonymous. The haplotype (A3-B7-DR15; PGF cell line) designated as the new MHC reference sequence, has been incorporated into the human genome assembly (NCBI35 and subsequent builds), and constitutes the largest single-haplotype sequence of the human genome to date. The extensive variation and annotation data derived from the analysis of seven further haplotypes have been made publicly available and provide a framework and resource for future association studies of all MHC-associated diseases and transplant medicine.

Keywords

Major histocompatibility complexHaplotypePolymorphismRetroelementGenetic predisposition to diseasePopulation genetics

Introduction

The MHC has long been believed to be the most important region in the human genome with respect to infection, inflammation, autoimmunity and transplant medicine (Lechler and Warrens 2000). This was recently confirmed by the largest genome-wide association study carried out to date for seven common diseases, including two autoimmune diseases (type 1 diabetes and rheumatoid arthritis) and one inflammatory disease (Crohn’s disease). The highest associations were found between the MHC and these two autoimmune diseases (The Wellcome Trust Case Control Consortium 2007). The complex aetiology of MHC-associated disease coupled with high density, polymorphism, linkage disequilibrium (LD) and frequent non-Mendelian inheritance of gene loci have made it challenging to identify variations that cause or contribute to disease phenotypes. Additional limiting factors have been our incomplete knowledge of the allelic variation of genes and regions flanking the nine classical human leukocyte antigen (HLA) loci and the lack of a single haplotype reference sequence, the original reference sequence being a composite of multiple MHC haplotypes (Mungall et al. 2003; The MHC Sequencing Consortium 1999).

Recognizing that the future identification of variants conferring susceptibility to common disease is critically dependent on fully informative polymorphism and haplotype maps, the MHC Haplotype Consortium formed in 2000 with the aim to generate these critical data and to make them publicly available as a general resource for MHC-linked disease studies. Similar efforts, but with different experimental approaches, were also carried out in Japan (Shiina et al. 2006) and the USA (Smith et al. 2006). To develop the resource, eight HLA-homozygous MHC haplotypes were selected on the basis of conferring either protection against or susceptibility to two autoimmune diseases, type 1 diabetes and multiple sclerosis, and that represented common haplotypes in European populations. In the subsequent years, incremental data, materials and tools comprising this resource have been released (Allcock et al. 2002; Horton et al. 2004; Stewart et al. 2004; Traherne et al. 2006) and have contributed towards the construction of a high-resolution LD map and a first generation of HLA tag single nucleotide polymorphisms (SNPs; de Bakker et al. 2006; Miretti et al. 2005) and the identification of a second MHC susceptibility locus for multiple sclerosis (The International Multiple Sclerosis Genetics Consortium; Yeo et al. 2007). In this paper, we report the final account of this international effort, including, analysis of the last four of the eight haplotypes, up-to-date variation statistics, gene annotation, population-specific aspects and a detailed description of the databases and tools for viewing and accessing the data in the context of existing genome annotation.

Materials and methods

Variation analysis

The method previously reported for comparison of MHC haplotype sequences (Stewart et al. 2004; Traherne et al. 2006) was extended to cover all eight haplotypes. Briefly, the most suitable method proved to be a clone by clone comparison using the discrepancy-list option of the cross_match program (Green, unpublished; http://www.phrap.org/), an implementation of the Smith–Waterman sequence alignment algorithm (Smith and Waterman 1981), using the alignment of a haplotype clone sequence with the appropriate overlapping reference sequence from a PGF clone or clones. All variations were submitted to dbSNP using the submitter handle SI_MHC_SNP and user identifiers of the form [PGF BAC clone sequence version]_[position in PGF BAC clone sequence]_[variation change]. Thus, AL662890.3_6645_TC indicates a substitution in which the base T at base position 6645 in AL662890.3 (PGF BAC 308K3) was substituted by C in the other haplotype. In the case of indels, the ‘variation change’ consists of ‘i’ or ‘d’ (for insertion or deletion), followed by a numerical value for the length of the indel, in turn followed by the inserted or deleted sequence if this were of 12 or fewer bases. For longer indels, an X value is given, which refers to a look-up table (http://www.sanger.ac.uk/HGP/Chr6/MHC/Xfile). Thus, AL662890.3_7470_d8TACACACA indicates a deletion in AL662890.3 after base 7470 of the eight bases ‘TACACACA’. Further, AL662890.3_10559_i5ATATT indicates an insertion in AL662890.3 starting after base 10559 of the five bases ‘ATATT’. AL662890.3_7475_d14X1 indicates a 14-base deletion after base 7475 in AL662890.3 of a sequence coded as X1 which is ‘ATACACACACACAC’.

Major indel sequences, appearing as breaks in the cross_match discrepancy lists between two clones from difference haplotypes, were extracted and subjected to analysis by RepeatMasker to detect the presence of retrotransposible elements.

Gene annotation

The finished genomic sequence for each of the eight haplotypes was analysed using a modified Ensembl pipeline (Searle et al. 2004). CpG islands were predicted on unmasked sequence. Interspersed and tandem repeats were masked out by RepeatMasker (Smit, AFA, Hubley, R & Green, P. RepeatMasker Open-3.0. 1996–2004, http://www.repeatmasker.org) and Tandem Repeats Finder (TRF; Benson 1999), respectively. The sequence was then BLAST searched (BLAST, basic local alignment search tool; Altschul et al. 1990) using a vertebrate set of complementary DNAs (cDNAs) and expressed sequence tags (ESTs) from the European Molecular Biology Laboratory (EMBL) nucleotide database (Kulikova et al. 2007), followed by the re-alignment of significant hits. Non-redundant proteins were aligned similarly. Protein domain matches were provided through alignment of Pfam to the genomic sequence using Genewise (Birney et al. 2004), thereby providing protein domain data to the annotator. Ab initio gene predictions were performed by Genscan (Burge and Karlin 1997) and Fgenesh (Salamov and Solovyev 2000), and potential transcriptional start sites were predicted by Eponine (Down and Hubbard 2002). Analysis results were displayed, and annotation was performed through an in-house annotation software system.

Genes were manually annotated according to the human and vertebrate analysis and annotation (HAVANA) guidelines (http://www.sanger.ac.uk/HGP/havana/) using evidence based on comparison with external databases as of August 2005. All gene structures are supported by transcriptional evidence, either from cDNA, EST, or protein. In general, annotations are supported by best-in-genome evidence. Haplotype-specific evidence is assigned where possible. As with previous MHC annotation (Stewart et al. 2004; Traherne et al. 2006), some olfactory receptors have been built upon protein homology alone because of their restricted expression.

Locus and variant types were annotated according to established standards (Harrow et al. 2006), with the modification that, within the MHC region, the artefact locus has been used to tag historically annotated structures that are no longer deemed valid.

HLA-A, HLA-B, HLA-C, HLA-DRB1, HLA-DQA1, and HLA-DQB1 allele types were assessed by comparison against the IMGT/HLA database (http://www.ebi.ac.uk/imgt/hla/; Marsh et al. 2005).

Annotation status of haplotypes

The PGF, COX, and QBL haplotypes have already been annotated in detail (Stewart et al. 2004; Traherne et al. 2006). It was decided, however, to re-annotate and update this annotation to maintain consistency between all eight haplotypes with the current supporting evidence and pipeline analyses. The SSTO haplotype was manually annotated de novo. The new annotation from the PGF haplotype was projected through a DNA–DNA alignment to each of the remaining haplotypes (APD, DBB, MANN and MCF) where possible. This projection was checked thoroughly and non-alignable regions were manually adjusted (including the C4 and HLA-DRB1 hypervariable regions). Polyadenylation sites and signals were not annotated for haplotypes APD, DBB, MANN and MCF because of time constraints. In the main, however, these features may be assumed to correspond to the same positions as in the first four haplotypes.

Combination of variation and annotation data

By employing a series of Perl scripts, the array of haplotype variation was combined with the annotation of gene loci, repeat elements and microsatellites, extracted from the Vertebrate Genome Annotation (VEGA) database in general feature format (GFF; http://www.sanger.ac.uk/Software/formats/GFF/), to determine the variation status of all loci.

Distribution of sequenced HLA haplotypes in Europeans

To assess the distribution of sequenced haplotypes at the population level, 180 founder haplotypes were reconstructed using genotypic data from Centre d’Etude Polymorphisme Humain (CEPH) trios (de Bakker et al. 2006). A ~214 kb segment spanning the HLA–DRB1DQB1 genes was selected for the analyses. This segment, represented by 54 SNPs, is delimited by rs2187823 and rs2856691, with NCBI build 36 chromosome 6 coordinates 32547486 and 32761413, respectively. Phased haplotypes with known HLA–DRB1DQB1 alleles were then used to construct a neighbor-joining tree (Kumar et al. 2001) and a phylogenetic network (Bandelt et al. 1999).

Resources

All sequences presented in this paper have been submitted to the EMBL/GenBank/DNA Data Bank of Japan (DDBJ) database and allocated accession numbers. For clarity, all bacterial artificial chromosome (BAC) clones are referred to using their accession numbers. The annotation of each haplotype has been entered in the VEGA database and is accessible through its browser (http://www.VEGA.sanger.ac.uk). All variations from the study were submitted to dbSNP (http://www.ncbi.nlm.nih.gov/SNP) using the submitter handle SI_MHC_SNP.

BAC clones from the CHORI-501 (PGF) and CHORI-502 (COX) libraries can be requested from BACPAC resources (http://www.bacpac.chori.org/). Clones from the other libraries can be requested from john.elliott@ualberta.ca.

The web site for the MHC Haplotype Project provides links to various data resources (http://www.sanger.ac.uk/HGP/Chr6/MHC/).

DAS sources for all substitutions and indels are available from http://www.das.ensembl.org/das as follows:
  • ens_35_COX_SNP ens_35_COX_DIP

  • ens_35_QBL_SNP ens_35_QBL_DIP

  • ens_35_SSTO_SNP ens_35_SSTO_DIP

  • ens_35_APD_SNP ens_35_APD_DIP

  • ens_35_DBB_SNP ens_35_DBB_DIP

  • ens_35_MANN_SNP ens_35_MANN_DIP

  • ens_35_MCF_SNP ens_35_MCF_DIP

These can be accessed via the VEGA browser.

Results and discussion

Variation analysis

One of the main aims of the MHC Haplotype Project was to generate a comprehensive variation map of this most variable region of the human genome. To achieve this, eight haplotypes were sequenced and subjected to variation analysis. Table 1 details the lengths of the sequence contigs, the number of sequence gaps and the allelic types of major HLA loci for each haplotype. Of the eight haplotypes sequenced, three have already been described: PGF and Cox (Stewart et al. 2004) both of which formed single contigs of approximately 4.7 Mb, and QBL (Traherne et al. 2006), of approximately 4.2 Mb but with five gaps. The remaining haplotypes sequenced all contained gaps, their coverage ranging from 2.33 Mb (DBB with 28 gaps) to 4.19 Mb (MANN with 10 gaps).
Table 1

Haplotype sequence contig length, number of gaps and HLA allele types

Haplotype

Length (bp)

Gaps

HLA-A

HLA-B

HLA-C

HLA-DQA1

HLA-DQB1

HLA-DRB1

PGF

4754829

0

A*03010101

B*070201

Cw*07020103

DQA1*010201

DQB1*0602

DRB1*150101

COX

4731878

0

A*01010101

B*080101

Cw*070101

DQA1*050101

DQB1*020101

DRB1*030101

QBL

4249272

5

A*260101

B*180101

Cw*050101

DQA1*050101

DQB1*020101

DRB1*030101

APD

4160965

16

A*01010101

DBB

2330101

28

A*02010101

Cw*06020101

DQA1*0201

DQB1*030302

DRB1*070101

MANN

4191014

10

A*290201

B*440301

Cw*160101

DQA1*0201

DQB1*0202

DRB1*070101

MCF

4087413

15

[A*020101]

B*15010101

Cw*030401

DQA1*0303

DQB1*030101

SSTO

3704249

22

A*320101

B*44020101

Cw*050101

DQA1*030101

DQB1*030501

DRB1*040301

Sequence length (bp) and number of gaps in each haplotype sequence, together with the HLA gene types obtained by BLAST against the IMGT/HLA database. Dashes or data in square brackets indicate the absence or the partial presence, respectively, of a gene owing to a sequence gap.

For the variation analysis, each of the above haplotypes was compared with the PGF reference sequence, resulting in the identification of 44,544 variations (37,451 substitutions and 7,093 indels, Table 2), which have all been submitted to dbSNP. The success of this exercise is illustrated by the fact that examination of this public database (NCBI dbSNP build 127, March 2007) showed that there were only a further 19,598 variations, submitted by other laboratories, in this region which were not identified by this project. In accordance with the annotation that we also generated for each haplotype (see below), the variations shown in Table 2 were further classified as untranslated region (UTR), exonic, intronic, intergenic and eight more sub-categories (Table 3). Coding substitutions, which are of particular interest with respect to altered functionality, were further classified as synonymous, non-synonymous conservative, or non-synonymous non-conservative and grouped depending on whether they affected HLA or other genes (Table 4). The actual variations and affected amino acids can be viewed using the VEGA browser as illustrated in Fig. 1 and described in the corresponding section later on. In addition, we have analysed all haplotype sequences for inversions, which represent another important variation category that has been linked to genomic disorders (Shaw and Lupski 2004). Using Ssaha2 (Ning et al. 2001), we found no evidence of any inversion polymorphism within the generated sequences but could not exclude large-scale (e.g. involving entire MHC) inversions with breakpoints outside the MHC regions sequenced here.
https://static-content.springer.com/image/art%3A10.1007%2Fs00251-007-0262-2/MediaObjects/251_2007_262_Fig1a_HTML.gifhttps://static-content.springer.com/image/art%3A10.1007%2Fs00251-007-0262-2/MediaObjects/251_2007_262_Fig1c_HTML.gif

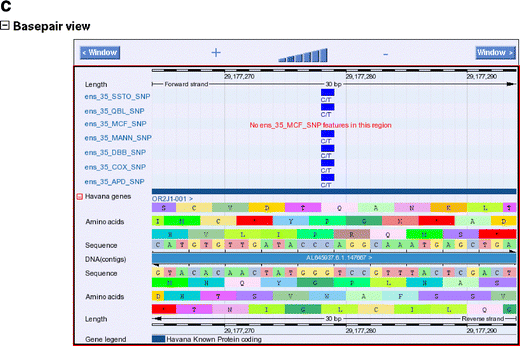

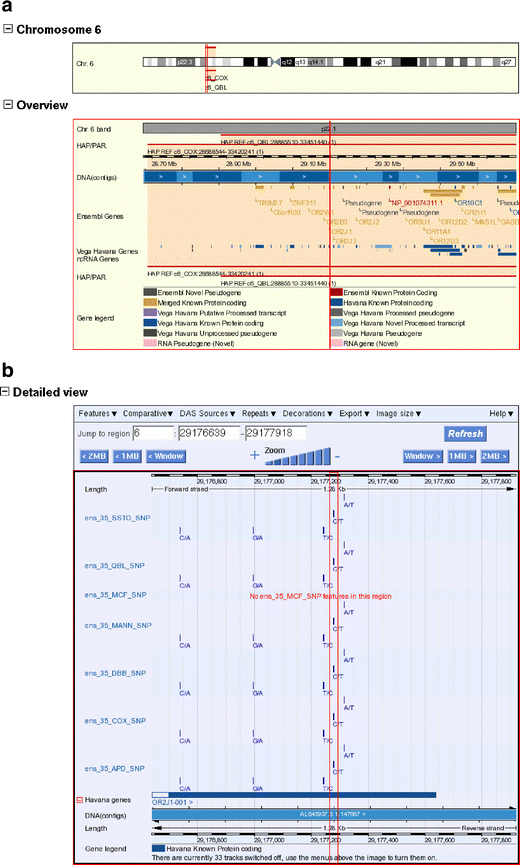

Fig. 1

Annotation and variation data in VEGA. VEGA ‘overview’ (a), ‘detailed view’ (b) and ‘basepair view’ (c) example of the variation in the OR2J1 locus in which a STOP codon is present in all haplotypes except MCF

Table 2

Distribution of substitutions and indels amongst haplotypes

Haplotype

Substitutions

Indels

ALL

COX

15,967

2,393

18,360

QBL

15,282

2,360

17,642

SSTO

14,982

2,300

17,282

APD

4,230

683

4,913

DBB

14,255

1,975

16,230

MANN

12,102

1,654

13,756

MCF

10,790

1,545

12,335

Overall

37,451

7,093

44,544

Number of variations found by comparing the PGF haplotype sequence with each of the other haplotype sequences in turn.

Table 3

Distribution of substitutions and indels within different sequence regions amongst haplotypes

Sequence region

Base pairs

COX

QBL

SSTO

APD

DBB

MANN

MCF



S

ID

S

ID

S

ID

S

ID

S

ID

S

ID

S

ID

Coding

247,505

353

8

503

19

380

2

74

0

351

6

401

9

348

2

UTR

155,960

382

34

438

59

331

35

38

9

326

39

303

35

309

31

Intronic

1,283,472

3,141

571

3,135

590

2,658

505

602

147

2,897

509

2,185

393

2,126

404

Total intragenic

1,686,937

3,876

613

4,076

668

3,369

542

714

156

3,574

554

2,889

437

2,783

437

Pseudogenic

57,223

235

15

226

21

227

19

101

8

191

10

109

6

113

10

Pseudogenic intron

63,108

507

54

220

27

215

18

158

20

258

22

98

13

179

13

Transcript exon

78,092

190

30

207

33

119

22

71

8

136

17

88

16

70

15

Transcript intron

332,705

1,243

197

1,186

216

1,053

155

85

29

1,245

192

1,081

161

268

53

REPEATS:



LINEs

608,429

2,110

221

2,015

240

2,388

255

755

93

2,097

217

2,084

193

1,530

164

SINEs

428,567

1,381

428

1,316

401

1,311

385

346

134

1,229

318

928

241

936

271

Other repeats

487,863

2,605

207

2,518

229

2,514

207

925

56

2,748

199

2,198

177

2,170

169

Total in repeats

1,524,859

6,096

856

5,849

870

6,213

847

2,026

283

6,074

734

5,210

611

4,636

604

Microsatellite

15,185

186

168

95

85

222

198

14

29

60

76

61

71

90

68

All above

3,297,590

12,333

1,933

11,859

1,920

11,418

1,801

3,169

533

11,538

1,605

9,536

1,315

8,139

1,200

Other intergenic

996,720

3,634

460

3,423

440

3,564

499

1,061

150

2,717

370

2,566

339

2,651

345

Total

4,754,829

15,967

2,393

15,282

2,360

14,982

2,300

4,230

683

14,255

1,975

12,102

1,654

10,790

1,545

Variations shown in Table 2 ascribed to sequence regions identified during annotation. These included exonic, UTR and intronic regions of coding; pseudogenic and transcript loci; repeat elements, microsatellites and other intergenic regions

S Substitution, ID indel

Table 4

Codon variation caused by substitutions in HLA and other gene loci

Codons variation by virtue of substitutions

COX

QBL

SSTO

APD

DBB

MANN

MCF

HLA

Other

Total

HLA

Other

Total

HLA

Other

Total

HLA

Other

Total

HLA

Other

Total

HLA

Other

Total

HLA

Other

Total

Synonymous

49

81

130

71

106

177

72

57

129

1

24

25

66

69

135

59

79

138

80

52

132

Non-synonymous

Total Conservative

125

76

201

184

121

305

164

72

236

19

27

46

120

76

196

144

91

235

147

56

203



68

42

110

102

72

174

92

39

131

11

18

29

67

40

107

77

60

137

82

35

117

Non-conservative

57

34

91

82

49

131

72

33

105

8

9

17

53

36

89

67

31

98

65

21

86

Total



174

157

331

255

227

482

236

129

365

20

51

71

186

145

331

203

170

373

227

108

335

Coding substitutions analysed for their effects on protein sequences and listed in by haplotype for HLA genes (HLA-A HLA-B HLA-C HLA-DRB1 HLA-DRA HLA-DQA1 HLA-DQB1 HLA-DPA1 HLA-DPB1) and for all other genes according to the changes they induced in codons as either synonymous, non-synonymous conservative, or non-synonymous non-conservative changes.

Gene annotation

There have been several previous annotations of the gene content of the MHC (Horton et al. 2004; Mungall et al. 2003; Stewart et al. 2004; The MHC Sequencing Consortium 1999; Traherne et al. 2006). The maximum region annotated in this study extends from the telomeric ZNF452 gene in the MHC extended class I region (COX haplotype) to the centromeric ZBTB9 gene just telomeric of the MHC extended class II region (PGF and SSTO haplotypes). The PGF haplotype (Stewart et al. 2004) remains the longest complete MHC haplotype, encompassing 320 annotated loci with 1,267 variants. The number of variants ascribed to each locus-type is listed in Table 5. A comparison of the statistics for loci in each haplotype is shown in Table 6.
Table 5

Splice-variant statistics for PGF annotation

Type

No.

Total splice variants

1,267

Coding

523

Unprocessed_pseudogene

50

Processed_pseudogene

41

Expressed_pseudogene

7

Transcript

271

Putative

71

Retained_intron

263

Nonsense_mediated_decay

30

Artefact

11

Total loci

320

Splice variants annotated in the PGF haplotype.

Table 6

Gene annotation statistics for eight MHC haplotypes

Locus type

PGF

COX

QBL

SSTO

APD

DBB

MANN

MCF

Coding

165

159

150

131

82

146

129

150

Transcript

28

28

26

26

19

26

27

22

Putative

18

18

15

15

6

16

12

14

Pseudogenes total

98

95

93

98

59

92

95

75

Unprocessed

50

48

48

53

36

52

53

42

Processed

41

42

40

39

19

34

37

28

Expressed

7

5

5

6

4

6

5

5

Artefact

11

11

10

11

0

0

0

0

Total loci

320

311

294

281

166

281

264

261

Total variants

1,267

1,191

1,155

1,058

568

1,138

960

1,115

Annotation statistics for loci in each haplotype. For definitions of locus types see “Materials and methods”.

VEGA database and browser

The VEGA database provides access to gene annotation of the eight MHC haplotype sequences, a valuable public resource and a means of integrating annotation and variation data. The VEGA database also provides the facility to download nucleotide or peptide sequences for genes of interest, by selecting ‘export cDNA’ or ‘export peptide’ from the menu obtained by clicking on gene cartoons in the VEGA ‘detailed view’ or ‘basepair view’ window. From these, any desired alignments can be made. Variation data may be viewed in the browser linked to a distributed annotation system (DAS) source of any given variation (see “Materials and methods”). This is illustrated An example of the use of this browser to view a C to T substitution is illustrated for the OR2J1 locus (Fig. 1). An overview of the genomic environment is given in Fig. 1a, showing the gene within a cluster of olfactory gene loci on chromosome 6. The detailed view (Fig. 1b) shows OR2J1 with associated variations in all haplotypes. The basepair view (Fig. 1c) illustrates the presence of the C/T substitution in all haplotypes except MCF, and its positioning above the translated sequence, at the first position of a CAG codon, indicating the presence of a stop codon instead of glutamine.

Annotation changes

In addition to loci annotated in the previous studies, newly recognised with official Hugo Gene Nomenclature Committee (HGNC) symbols have also been annotated. These have included the mitochondrial coiled–coil domain protein 1 gene MCCD1 (Semple et al. 2003) and the related unprocessed pseudogenes MCCD1P1 and MCCD1P2, as well as the zinc-finger and BTB domain-containing protein gene ZBTB9, annotated at the very centromeric boundary of the sequenced region.

The C6orf21 gene (De Vet et al. 2003; XXbac–BPG32J3.17-001) of the MHC class III region was annotated as a separate locus from the adjacent centromeric locus LY6G6D (splice variants XXbac–BPG32J3.4-001 and XXbac–BPG32J3.4-002). There was, however, a further coding splice variant of LY6G6D (XXbac–BPG32J3.4-004), which spanned not only the other LY6G6D splice variants but also C6orf21, suggesting that this is a possible so-called chimeric transcript (Parra et al. 2006).

HLA-DRB1 hypervariable region

Of the five newly annotated MHC haplotypes, APD alone exhibited the HLA–DRBDR52 antigenic specificity found on DRB1*3, DRB1*05 (DRB1*11 and DRB1*012) and DR6 (DRB1*13 and DRB1*14) haplotypes and encoded by HLA–DRB3, whereas the remainder (SSTO, DBB, MANN and MCF) exhibited the DR53 specificity, encoded by HLA–DRB4, here annotated for the first time in genomic sequence. The HLA–DRB53 sequences included three known loci (HLA–DRB4, HLA–DRB7 and HLA–DRB8), as well as three novel pseudogenes (DASS–218M11.1, DASS–23B5.1 and DASS–23B5.2). DASS–23B5.1 corresponds to a pseudogene derived from the gene for the protein kinase, interferon-inducible double-stranded RNA dependent activator (Chida et al. 2001) for which the symbol PRKRAP1 has now been recognised. A further processed pseudogene, FAM8A5P (Jamain et al. 2001), was also annotated in the DR53 specificity.

HLA-V and HLA-P

Our analysis showed that the two unprocessed class I pseudogenes HLA-V and HLA-P ( previously HLA-75 and HLA-90, Geraghty et al. 1992) should in fact be merged together; individually they merely represented the 5′ and 3′ portions of a single unprocessed pseudogene, separated by repeat elements. According to our annotation guidelines (see “Materials and methods”), the newly merged locus was assigned the symbol from the 3′ component, in this case, HLA-P. Best-in-genome nucleotide evidence was found to support five transcript variants at the 5′ end, which, together with evidence for continued locus-transcription, led us to designate the locus as a transcribed pseudogene. Because transcription appears to still occur at this locus, it was, therefore, designated as a transcribed pseudogene. A further six expressed pseudogenes were identified in the MHC region (HLA–DPB2, HLA-J, CYP21A1P, HLA–DRB6, HLA–L and PPP1R2P1).

RCCX hypervariable region

This module within the MHC class III region, named for its gene content (RP-C4A/B-CYP21-TNXB), may be duplicated or triplicated (Chung et al. 2002), and the pseudogenes CYP21A1P, TNXA and STK19P contain the complement component gene, C4, in either or both of the two versions, C4A and C4B (Awdeh and Alper 1980). This gene may also be present in either long (C4AL, C4BL) or short (C4AS, C4BS) forms depending on the presence or absence of an inserted HERVC4 element in intron 9. Contrary to our previous annotation (Stewart et al. 2004) see also legend to (Fig. 2), the PGF haplotype now appears to possess an arrangement in which C4AL precedes C4BL, whereas COX has a single module with C4BS and QBL has a single module with C4AS (Traherne et al. 2006). For the new haplotype sequences reported in this paper, SSTO was bimodular with two copies of C4BL, whereas DBB was bimodular with C4AL followed by C4BS. Although a sequence gap was present in MCF, this haplotype appeared to be bimodular in that, although the telomeric copy of the C4 gene could not be identified, there was evidence for the pseudogenes CYP21A1P, TNXA and STK19P in a telomeric module. The second centromeric module in MCF contained C4AL. The RCCX region in the APD and MANN haplotypes was incomplete because of sequence gaps.

C6orf205

Variability in the C6orf205 gene has been reported to consist of extension of the minisatellite in exon 2 from 27 copies in PGF and COX to 31 copies in QBL (Traherne et al. 2006). In the newly annotated haplotypes, we found the minisatellite to extend to 29 in MANN. The APD, DBB and MCF possessed 27 copies. There was a sequence gap in this region in the SSTO haplotype.

MICA

The known allelic polymorphism of MICA reported for the DRB1*03 QBL cell line sequence, in which a four-base insertion (GCGT) extended the open reading frame in coding exon 5 haplotype (Traherne et al. 2006), was also present in the DRB1*07 MANN haplotype. The insertion was absent from PGF, COX and SSTO. No sequence was available in APD, DBB and MCF for this gene.

PPP1R2P1

The intronless pseudogene PPP1R2P1 reported to have a full-length open reading frame in the PGF, COX and QBL haplotypes (Stewart et al. 2004; Traherne et al. 2006) was found to have a similar open reading frame in the DBB and MANN haplotypes but to have the frameshift mutation seen in the original chromosome reference sequence (Mungall et al. 2003) in the SSTO, APD and MCF haplotypes.

PSORS1C1

The QBL haplotype remains the only one in which there was a single nucleotide deletion in a polyC tract of exon 5 (Traherne et al. 2006). DBB, MANN and MCF resembled PGF and COX. No sequence was available for this gene in SSTO or APD.

POU5F1

The PGF haplotype has been reported to have a disrupted start codon for alternative splice variant of POU5F1 (Traherne et al. 2006). This disruption was not present in COX or QBL nor was it present in the further haplotypes reported in this paper, namely SSTO, DBB, MANN and MCF. APD had no sequence in this region.

OR2J1

This olfactory receptor OR2J1 has been reported to have both functional and non-functional alleles (Ehlers et al. 2000), the latter the result of a premature stop codon at amino acid position 194 introduced by a substitution in the coding sequence. In our annotation, we found the PGF and MCF haplotypes to contain the full-coding sequence, whereas the COX, QBL SSTO, APD, DBB and MANN haplotypes to contain the truncated sequence as an unprocessed pseudogene (see above and Fig. 1).

Other annotation differences

Other loci included in the current but not the previous PGF annotation were HCG4P11, HCG4P8, HCG4P7, HCG4P5, HCG4P3 and the loci without symbols listed in Table 7. Previously annotated loci not annotated in this study or considered artefacts because they did not reach our current standards of annotation included HLA-X, C6orf215, HCG2P7, HCG8, HCP5P2, HCP5P3, HCP5P6, HCP5P12, HCP5P13, HCP5P14, HCP5P15, HCG8 and HCG26.
Table 7

Other newly annotated loci

Locus

Locus type

XXbac-BCX196D17.5

Transcript

XXbac-BPG116M5.14

Putative

XXbac-BPG116M5.15

Putative

XXbac-BPG116M5.16

Putative

XXbac-BPG118E17.9

Putative

XXbac-BPG126D10.10

Processed pseudogene

XXbac-BPG126D10.11

Processed pseudogene

XXbac-BPG13B8.10

Transcript

XXbac-BPG13B8.9

Unprocessed pseudogene

XXbac-BPG154L12.4

Putative

XXbac-BPG181B23.4

Transcript

XXbac-BPG181M17.4

Putative

XXbac-BPG246D15.8

Transcript

XXbac-BPG248L24.10

Unprocessed pseudogene

XXbac-BPG248L24.9

Processed pseudogene

XXbac-BPG249D20.9

Putative

XXbac-BPG250I8.13

Transcript

XXbac-BPG254F23.5

Putative

XXbac-BPG254F23.6

Putative

XXbac-BPG254F23.7

Transcript

XXbac-BPG254F23.7

Putative

XXbac-BPG27H4.7

Transcript

XXbac-BPG27H4.8

Transcript

XXbac-BPG294E21.7

Processed pseudogene

XXbac-BPG296P20.14

Putative

XXbac-BPG296P20.15

Putative

XXbac-BPG299F13.14

Putative

XXbac-BPG308J9.3

Transcript

XXbac-BPG308K3.5

Putative

XXbac-BPG308K3.6

Transcript

XXbac-BPG309N1.15

Unprocessed pseudogene

XXbac-BPG32J3.18

Putative

XXbac-BPG8G10.2

Unprocessed pseudogene

DAQB-12N14.5

Transcript

DAQB-331I12.5

Putative

DAQB-335A13.8

Transcript

Newly annotated loci without HGNC symbols.

Non-canonical splice sites

Eight variants within six loci were shown to exhibit haplotypic variation at their splice sites (canonical to non-canonical motif; Table 8). These variations may affect the gene expression at the post-transcriptional level. Hoarau et al. (2004, 2005) have already described the differential splicing within the HLA–DQA1 locus, and this can clearly be seen by comparing the new HLA–DQA1 annotation through the VEGA genome browser.
Table 8

Haplotype variation at splice sites

Gene

Variant

Affected exons

Donor*

Acceptor*

dbSNP cluster ID

Best evidence

PGF

QBL

COX

SSTO

DBB

APD

MANN

MCF

TRIM31

2

3/4

ggt

tgg

rs28400887

cDNA

NC

NC

NC

C

ND

NC

NC

C

TRIM31

5

2/3

ggt

tgg

rs28400887

EST

NC

NC

NC

C

ND

NC

NC

C

C4B

7

3/4

ggt

cgg

EST

NC

ND

NC

C

NC

ND

ND

ND

C4A

7

3/4

ggt

cgg

EST

NC

NC

ND

C

NC

ND

ND

NC

HLA-DQA1

4

4/5

ggt

cgg

rs707947

cDNA

C

C

C

NC

NC

ND

NC

NC

HLA-DQA1

5

4/5

ggt

taa/caa

rs3667

cDNA

NC

NC

NC

C

C

ND

C

C

HLA-DRB1

2

2/3

gat

cag

rs9271083

EST

NC

C

C

C

C

ND

C

ND

Gene loci and variants that are affected by disruptive variations at splice sites. C Canonical splice site (donor = ngt; acceptor = nag), NC non-canonical, and ND no data (gene absent or gap). Donor and acceptor variable nucleotides in bold with equivalent dbSNP cluster ID number given in column to right. The C4A and C4B genes are, for these purposes, effective duplicates of each other. The two TRIM31 variants share the same splice site (but differ elsewhere in structure). The two HLA–DQA variants share the same donor but have alternative acceptors. Note the mutually exclusivity of these variants amongst the haplotypes (Hoarau et al. 2004; Hoarau et al. 2005).

Combination of variation and annotation data

The data for sequence contig length, gaps, variation rate within haplotypes and PGF coding gene annotation have been combined in the map in Fig. 2. This illustrates the concentration of variation around the HLA gene loci, specifically in 3 areas: around HLA-F, HLA-G and HLA-A; around HLA-C and HLA-B; and around HLA-DRB1, HLA-DQA1, HAL-DQB1, HLA-DQA2 and HLA-DQB2. The variation status of genes of the PGF haplotype is shown in Table 9.
https://static-content.springer.com/image/art%3A10.1007%2Fs00251-007-0262-2/MediaObjects/251_2007_262_Fig2_HTML.gif
Fig. 2

Variation and annotation map of eight MHC haplotypes. The map represents the complete reference sequence (orange bar split into three 1.6 Mb sections) labelled PGF and marked with a scale (Mb) and approximate megabase positions on the NCBI36 build of chromosome 6 (grey milestones). Below the reference sequence are arrows representing gene positions and orientations colour-coded for variation status (invariable, black; with synonymous variation only, green; with non-synonymous, conservative variation, red; with non-synonymous, non-conservative variation, purple; see Table 8) and their symbols on a band denoting MHC class (extended class I, green; class I, yellow; class III, pale orange; class II, light blue; extended class II, pink; outside MHC, pale grey). Above the reference sequence, coloured bands represent the sequences of the other seven haplotypes (COX, orange; QBL, mauve; APD, yellow; DBB, green; MANN, light blue; SSTO, dark blue; MCF, purple) with sequence gaps in dark grey; the RCCX hyper-variable region shown with green (C4A block) and/or red (C4B block) or black (block absent), and the HLA–DRB hyper-variable region in shades of blue-green. Above each haplotype bar, a bar-graph represents total variation between the haplotype and the reference sequence (total variations/10 kb) in dark red. Re-examination of the sequence AL645922 from the PGF haplotype, which contains the RCCX region, has shown that the original assembly was erroneous. Correction of these errors leads us now to the conclusion that the C4A gene precedes the C4B gene in this clone sequence. This new gene order is reflected in Fig. 2

Table 9

Variation status of the main coding variant of each gene in the PGF haplotype annotation

Invariable

Synonymous variation only

Non-synonymous variation

Conservative variation

Non-conservative variation

ABCF1

BAT1a

AGER

BAT2

AGPAT1

BAT5

BRD2a

BAT3

AIF1

C2

BTNL2

BAT4

APOM

CREBL1

C6orf21

C4A

ATP6V1G2

DAXX

C6orf27

C4B

B3GALT4

DDR1a

CFB

C6orf10

C6orf134

GNL1

DOM3Z

C6orf100

C6orf136a

GPSM3

DPCR1

C6orf15

C6orf26

GTF2H4

EGFL8

C6orf205

C6orf48

HLA-DOAa

EHMT2

C6orf25

CLIC1

HSPA1B

FKBPL

C6orf47

CSNK2B

LY6G6C

GABBR1

CCHCR1

CUTA

MSH5

HLA-DMA

CDSN

CYP21A2

PBX2

HLA-DOB

COL11A2

DDAH2

POU5F1

HLA-DQB2

DHX16

FLOT1

PPP1R11

HLA-DRA

HLA-A

HLA-DPA1

PRR3

HSPA1A

HLA-B

HLA-DRB5

RING1

LY6G6D

HLA-C

HSD17B8

RNF5

MCCD1

HLA-DMB

KIFC1a

RXRB

MOGa

HLA-DPB1

LSM2

SYNGAP1

OR11A1

HLA-DPB2

LST1

TRIM10

OR2H2

HLA-DQA1

LTB

TRIM26

OR2J1

HLA-DQA2

LY6G5C

TRIM27

OR2J2

HLA-DQB1

LY6G6E

TRIM39a

OR2J3

HLA-DRB1

MAS1L

VPS52

PHF1

HLA-E

MRPS18B

ZBTB12

PSMB9

HLA-F

NCR3

ZBTB9

RPP21

HLA-G

NEU1

ZNRD1

SFTPG

HSPA1L

NRM



SKIV2L

IER3

OR2B3



SLC44A4

KIAA1949

OR2H1



TAP2

LTA

OR2W1



TRIM15

LY6G5B

PFDN6



WDR46

MDC1

PPP1R10



ZBTB22

MICA

PRRT1



ZNF311

MICB

PSMB8b



NFKBIL1

RDBP



NOTCH4

RGL2



OR10C1

RPS18



OR12D2

SLC39A7



OR12D3

STK19



OR5U1

TNF



OR5V1

TUBB



PPT2

ZFP57



PSORS1C1



PSORS1C2



RNF39



TAP1



TAPBP



TCF19



TNXB



TRIM31



TRIM40



UBD



VARS



VARSL

Gene coding sequences may be invariable (no recorded variation), have synonymous variation only (variation at the nucleotide but not the peptide level) or have non-synonymous variation (variation at both the nucleotide and peptide level), which in turn, may be conservative or non-conservative variation according to the criteria of positive or negative values in the BLOSUM62 matrix. The main coding variant is that numbered 001 in the VEGA database except for LY6G6E and HLA-DPB2 where the main variant is not coding. C4A and C4B were excluded from calculation of variation because the order of these genes in the PGF sequence precluded alignment with other haplotype sequences. Nevertheless, alignment of the coding sequences for each gene separately showed that there were non-synonymous, non-conservative variations. HLA-DRB5 is present in this study only in the PGF haplotype and, therefore, here appears invariable

aCoding genes where the main variant does not harbour non-conservative, non-synonymous variation but other variants do (BAT1 BRD2 DDR1 C6orf136 HLA-DOA MOG KIFC1 and TRIM39).

bSimilarly, coding genes where the main variant does not harbour conservative non-synonymous variation but other variants do (PSMB8).

As well as the variations reported above, major indels revealed as breaks in cross_match discrepancy lists and analysed by RepeatMasker are given in Table 10. Many of these have been previously reported (Dangel et al. 1994; Dunn et al. 2003; Dunn et al. 2002; Gaudieri et al. 1999; Horton et al. 1998; Kulski and Dunn 2005; Stewart et al. 2004). These indels were most frequently but not exclusively associated with AluY elements.
Table 10

Major indels in the form of retrotransposible elements

Chr6 pos’n

Flanking loci

Presence in haplotype

Details

PGF

COX

QBL

SSTO

APD

DBB

MANN

MCF

29002370

TRIM27:C6orf100

C

C

C

C

?

?

C

C

Complex region (A)

29440424

OR5V1:OR12D3

?

?

?

X

X

AluYa5

29784097

C6orf40:HCP5P15

X

?

X

X

X

AluYa5/8 175..304

29788451

Within HCP5P15

X

X

X

?

X

AluYa5/8 176..310

29794763

HCP5P15:HLA-F

X

X

?

X

X

X

SVA_E plus simple rpt.s

29922942

HLA-G:MICF

X

L1ME3B 5940..6165

29954495

MICF:HLA-H

X

X

X

X

X

X

X

HERVK9 inserted in MER9

30008633

HLA-K:HLA-21

X

X

X

X

?

SVA E/F plus simple rpt.

30106475

HCG8:ETF1P1

X

X

X

X

X

AluYb8

30547387

SUCLA2P:RANP1

X

X

X

?

X

X

?

AluJb 1..283 and parts of MLT1D/L1PBa

31079582

C6orf205:HCG22

X

X

X

X

X

?

X

AluYb8 37..297

31117638

C6orf205:HCG22

X

X

X

AluY (whole & part) and MER63 1017..1062

31301931

HCG27:HLA-C

X

?

HERV3 part (6489...7339)

31320352

HCG27:HLA-C

X

X

X

?

X

X

X

SVA_F 349..850 plus GC rich rpt.

31358220

RPL3P2:WASF5P

X

X

X

?

X

X

X

AluY 35..306

31400900

WASF5P:HLA-B

?

X

X

X

AluSp plus L1PREC2 part (3205...4617)

31405648

WASF5P:HLA-B

X

?

X

x

x

HERVIP10F (part) and AluSg (only cf CX DB)

31418854

WASF5P:HLA-B

?

X

L1PA5 part (5503..5876)

31530995

MICA:HCP5

X

?

?

?

X

?

SVA B/F plus simple rpt.s

32421915

within C6orf10

X

X

X

X

X

AluYb8

32486228

BTNL2:HLA-DRA

X

X

X

L1P1/L1HS parts

32655545

HLA-DRB1 intron 5

x

x

X

?

?

AluYa5 within more or less partial LTR12

32660731

HLA-DRB1 intron 1

X/X

✓/X

X/X

✓/✓

?

✓/✓

✓/✓

?

Tigger4/AluSx

32661119

HLA-DRB1 intron 1

C

C

C

C

?

C

C

?

Complex region (B)

32663167

HLA-DRB1 intron 1

X/✓

✓/✓

✓/✓

✓/X

?

✓/X

✓/X

?

AluSq/AluY

32669534

HLA-DRB1:HLA-DQA1

C

C

C

C

?

C

C

?

Complex region (C)

32679461

HLA-DRB1:HLA-DQA1

X

X

X

?

X

X

?

AluY

32693271

HLA-DRB1:HLA-DQA1

?

X

?

L1PA4 (parts)

32697545

HLA-DRB1:HLA-DQA1

X

X

X

X

?

?

L1HS 7..6032

32701428

HLA-DRB1:HLA-DQA1

X

?

x

X

x

L1PA2 part and from CX: MER2B and AluY

32728179

HLA-DQA1: HLA-DQB1

C

C

C

C

?

C

C

C

Complex region (D)

32739664

within HLA-DQB1

X

X

X

?

X

X

AluY

32743646

HLA-DQB1: MTCO3P1

X

X

X

X

?

X

X

LTR13

32746780

HLA-DQB1: MTCO3P1

X

X

X

X

?

X

L1PA4 (parts)

32751442

HLA-DQB1: MTCO3P1

X

X

X

X

?

X

X

LTR5_Hs

32753489

HLA-DQB1: MTCO3P1

?

X

X

L1PA10 268..4888 around L1PA4 (part)

32756020

HLA-DQB1: MTCO3P1

X

X

X

X

?

X

X

LTR5_Hs

32764047

HLA-DQB1: MTCO3P1

?

X

X

AluSx

32765930

HLA-DQB1: MTCO3P1

X

X

X

X

?

X

X

AluYa5

32785062

MTCO3P1:HLA-DQB3

?

X

X

X

Tigger4 (Zombi)/L1HS (parts) and T-rich

32795150

MTCO3P1:HLA-DQB3

X

X

X

X

X

X

AluY

32796573

MTCO3P1:HLA-DQB3

X

X

X

X

X

X

AluY

32815974

HLA-DQB3: HLA-DQA2

X

X

X

X

X

X

AluYa5

32857369

HLA-DQB2:HLA-DOB

X

X

X

X

AluYg6

32881426

HLA-DQB2:HLA-DOB

X

X

?

X

X

?

AluYa5

32887265

HLA-DQB2:HLA-DOB

X

?

X

X

X

LTR42 and parts of L1MC5 and AluSc 3..105

33201559

within HLA-DPB2

X

X

X

?

X

?

AluYb8

33234360

HCG24:COL11A2

?

?

X

AluY (1..293) AluJb (26..306)

Where there was a break in the cross_match discrepancy list match between two clones, the inserted sequence was extracted and subjected to analysis by RepeatMasker to assess the number of major indels that were a result of retrotransposible elements. Chromosome 6 position (NCBI35/36) of the inserted sequence was that of the midpoint where the sequence was an insertion in PGF or the position before the deletion in PGF. Flanking loci were retrieved from the annotation. Insertion in a haplotypes is indicated by ‘✓’, deletion by ‘X’, complex regions by ‘C’. Where there is a sequence gap in a haplotype corresponding to the indel, this is shown by ‘?’. Four complex deletion/insertion events are listed: A, B, C and D; for details, see text.

Four of these major indels were complex and designated as complex regions A, B, C and D in Table 10. They include three known regions from the comparison of the PGF and COX haplotypes (Stewart et al. 2004). Complex region A (involving MIR, MER41B, MER115, AluSx, Flam_C, AluSg, AluY, AluSx, L2 and MER38 elements) maps between TRIM27 and C6orf100 and was found to be deleted in COX but present in PGF, QBL, SSTO, MANN and MCF. Complex region B (involving L2 and AluY elements) maps to intron 1 of HLA–DRB1 and was also found by comparing PGF with COX, QBL, DBB, MANN and SSTO. Complex region C (SVA and low-complexity repeat elements) maps between HLA–DRB1 and HLA–DQA1 and was noted in COX as a deletion of the SVA and low-complexity repeats. Whereas, DBB, MANN and SSTO displayed the same deletion, as well as a telomeric deletion of AluSx/MIRb, QBL had both deletions plus that of an intervening 2.5 kb sequence containing Alu, L3 and MLT1A1 elements. Complex region D maps between HLA−DQA1 and HLA−DQB1 and is more complicated than previously reported. At the telomeric end, PGF lacks an L1PA4 fragment of >300 bp that is present in COX, QBL, SSTO and MCF and is also absent in DBB and MANN where it is interrupted by about 1.3 kb of SVA sequence. Centromeric to this PGF contains an AluSx, an AluY and an AluYd2, flanked by long interspersed nuclear element repeats, all deleted in the other haplotypes. Further towards the centromere there is an L1MA7 fragment, into which in PGF alone there are insertions of an AluSx followed by an AluY; a subsequent AluSg present in all haplotypes contains an insertion of 795 bp of SVA sequence in just COX and QBL. Finally, at the centromeric end of this region, PGF uniquely contains intact MER11C and LTR5 elements.

Representation of haplotypes within European populations

The eight haplotypes analysed in this study were selected on the basis of their association with type 1 diabetes and multiple sclerosis and their high population frequencies. To determine how representative these haplotypes are with respect to SNP haplotypic diversity in a population, we determined their distribution in the haplotypic tree space in the European population.

For this analysis, we selected a segment of ~214 kb, spanning the HLA–DRB1 and HLA–DQB1 genes in a population of European ancestry with known HLA allelic data (de Bakker et al. 2006). Phylogenetic analysis of 180 founder haplotypes derived from genotypic data (54 substitutions) shows that the eight haplotypes selected as part of the MHC Haplotype Project share identical HLA alleles over most of the tree space (Fig. 3a), representing almost the entire variation observed in the population assayed with the exception of two branches (DRB1*1103–DQB1*0301 and DRB1*0101–DQB1*0501).
https://static-content.springer.com/image/art%3A10.1007%2Fs00251-007-0262-2/MediaObjects/251_2007_262_Fig3_HTML.gif

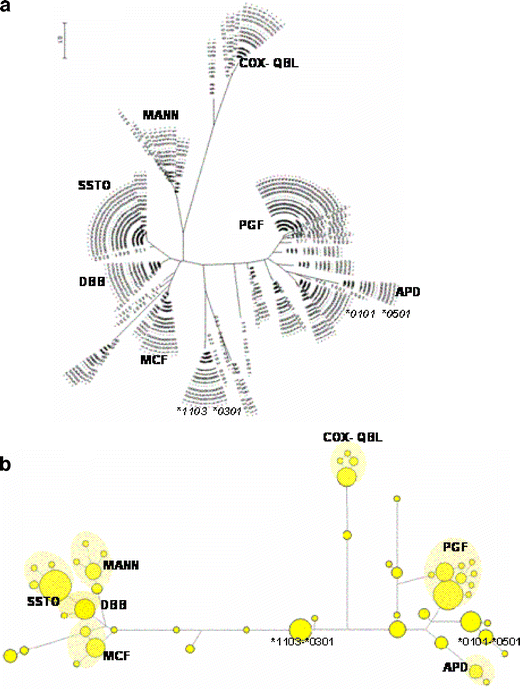

Fig. 3

Clusters of haplotypes in the European haplotypic diversity. Phylogenetic relationship of 180 founder SNP haplotypes from CEPH trios spanning a 214-kb segment of the MHC class II region, including the HLA-DRB1 and HLA-DQB1 genes (54 substitutions from rs2187823 to rs2856691). a Sequenced haplotypes are widely distributed in this NJ tree and represent the vast majority of the variation in the population sampled. Four-digit alleles are indicated for the corresponding DRB1 and DQB1 genes in each haplotype ID label to highlight the HLA haplotypic distribution based on the underlying nucleotide variation. The NJ tree was constructed using pairwise genetic distances considering the Kimura 2-parameters model without correction for rate variation among sites as implemented in the MEGA2 software (Kumar et al. 2001). b Each haplotype sequenced is associated to a single haplotype cluster. This phylogenetic network (Bandelt et al. 1999) also shows that clusters (shaded area) are constituted by one central haplotype and its derivatives. Circles represent individual haplotypes, and the size of the circle is proportional to the haplotype frequency. The length of the lines connecting nodes is relative to the distance between them, e.g. distances within shaded areas (clusters) never exceed three mutation steps. Cluster of haplotypes sharing HLA alleles with sequenced cell lines are named accordingly: COX and QBL: DRB1*0301 DQB1*0201–PGF: DRB1*1501 DQB1*0602–APD: DRB1*1301 DQB1*0603–MCF: DRB1*0401 DQB1*0301–DBB: DRB1*0701 DQB1*0303–SSTO: DRB1*0403 DQB1*0302–MANN: DRB1*0701 DQB1*0202. HLA haplotypes DRB1*1103–DQB1*0301 and DRB1*0101–DQB1*0501 indicate the two major haplotype clusters not represented in the MHC haplotype project data

Haplotype diversity in this sub-population is restricted to relatively few haplotype clusters (Fig. 3b). Each cluster consists of a founder haplotype, depicted by the most frequent and centrally located haplotype within the cluster. Recently derived haplotypes show lower frequencies and are connected to the central haplotype by relatively few mutation steps (in this case, up to three). This phylogenetic network clearly shows that all the sequenced haplotypes occupy central positions in their respective haplotypic groups. Inferences about phylogenetic relationships between haplotype clusters are, however, only approximate as a consequence of recombination events.

It should also be noted that SNP haploptypes derived from CEPH pedigrees of European ancestry by no means represent an exhaustive sampling of European diversity. Nevertheless, the sampling has been shown to represent the European population in the UK reasonably well (Ke et al. 2005). In conclusion, our analysis demonstrates that the HLA haplotypes selected for the MHC Haplotype Project are ancestral haplotypes, representative of MHC diversity in the European population.

Conclusion and outlook

The MHC Haplotype Project has succeeded in providing a new public resource for immune-linked disease and population genetic studies. First reports from studies using the resource indicate that it adds significant power to the identification and fine-mapping of disease-associated variations (Yeo et al. 2007). The data have also contributed to the recent identification of a first set of HLA tag SNPs, which hold great promise for future applications in clinical settings, e.g. to complement or replace classical HLA-typing in transplant medicine (de Bakker et al. 2006). While costs and other limitations of the current (capillary) sequencing technology have restricted our study to only few (eight) MHC haplotypes, the number of new variations found, combined with the fact that no variation plateau has yet been reached, indicates that there are many more variations to be discovered. The recent introduction of several new and massively parallel sequencing platforms (for review, see Bentley 2006) has created the opportunity to do just that by re-sequencing haplotypes and, eventually, entire genomes at the population level and as integral part of case control studies. Because of its wide-ranging medical importance, the MHC can be expected to be among the first regions of the human genome to be sequenced in this way. Such sequencing will provide the critical, and until now missing, data to identify causal variations and their underlying mechanisms on an unprecedented scale.

Acknowledgements

The authors thank C.-K. Chen and all the staff of the DNA Sequencing Division and the HAVANA group (http://www.sanger.ac.uk/HGP/havana) at the Wellcome Trust Sanger Institute (http://www.sanger.ac.uk) for their assistance. This work was supported by a joint grant (048880) from the Wellcome Trust to J.A.T., J.T., S.B. and S.S., and a Wellcome Trust/Juvenile Diabetes Research Foundation grant to J.A.T.

Open Access

This article is distributed under the terms of the Creative Commons Attribution Noncommercial License which permits any noncommercial use, distribution, and reproduction in any medium, provided the original author(s) and source are credited.

Copyright information

© The Author(s) 2007

Authors and Affiliations

  • Roger Horton
    • 1
  • Richard Gibson
    • 1
  • Penny Coggill
    • 1
  • Marcos Miretti
    • 1
  • Richard J. Allcock
    • 3
  • Jeff Almeida
    • 1
  • Simon Forbes
    • 1
  • James G. R. Gilbert
    • 1
  • Karen Halls
    • 4
  • Jennifer L. Harrow
    • 1
  • Elizabeth Hart
    • 1
  • Kevin Howe
    • 2
  • David K. Jackson
    • 1
  • Sophie Palmer
    • 1
  • Anne N. Roberts
    • 9
  • Sarah Sims
    • 1
  • C. Andrew Stewart
    • 5
  • James A. Traherne
    • 10
  • Steve Trevanion
    • 1
  • Laurens Wilming
    • 1
  • Jane Rogers
    • 1
  • Pieter J. de Jong
    • 6
  • John F. Elliott
    • 7
  • Stephen Sawcer
    • 8
  • John A. Todd
    • 9
  • John Trowsdale
    • 10
  • Stephan Beck
    • 1
    • 11
  1. 1.Wellcome Trust Sanger InstituteGenome CampusCambridgeUK
  2. 2.CRUK Cambridge Research InstituteCambridgeUK
  3. 3.School of Surgery and PathologyUniversity of Western AustraliaNedlandsAustralia
  4. 4.The Wellcome Trust/Cancer Research UK Gurdon Institute, The Henry Wellcome Building of Cancer and Developmental BiologyUniversity of CambridgeCambridgeUK
  5. 5.National Cancer InstituteFrederickUSA
  6. 6.Children’s Hospital Oakland Research InstituteOaklandUSA
  7. 7.Alberta Diabetes Institute (ADI), Department of Medical Microbiology and Immunology, Division of Dermatology and Cutaneous SciencesUniversity of AlbertaEdmontonCanada
  8. 8.Department of Clinical NeurosciencesUniversity of CambridgeCambridgeUK
  9. 9.Juvenile Diabetes Research Foundation/Wellcome Trust Diabetes and Inflammation Laboratory, Department of Medical Genetics, Cambridge Institute for Medical ResearchUniversity of Cambridge, Wellcome Trust/MRC Building, Addenbrooke’s HospitalCambridgeUK
  10. 10.Department of Pathology, Immunology DivisionUniversity of CambridgeCambridgeUK
  11. 11.UCL Cancer InstituteUniversity College LondonLondonUK
